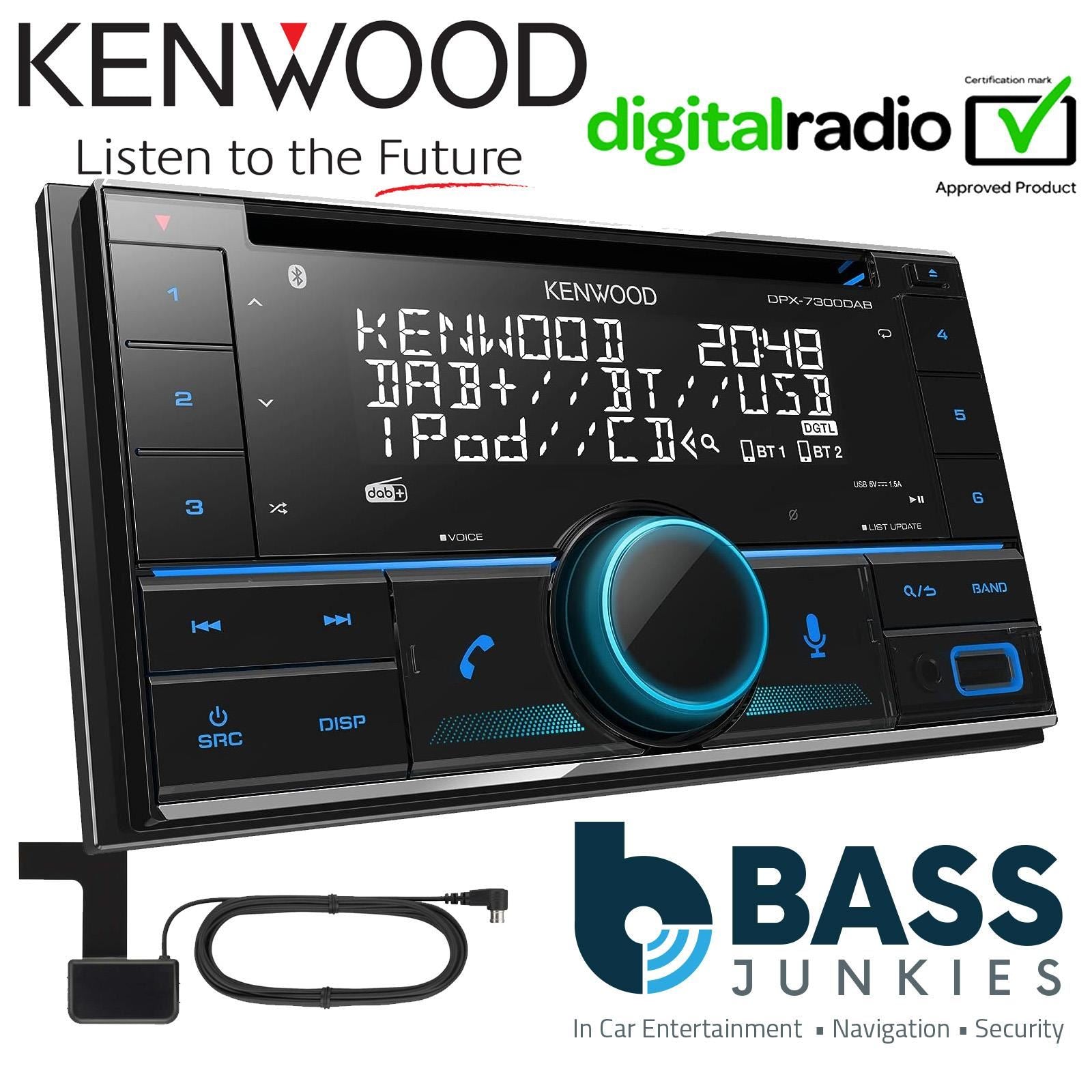

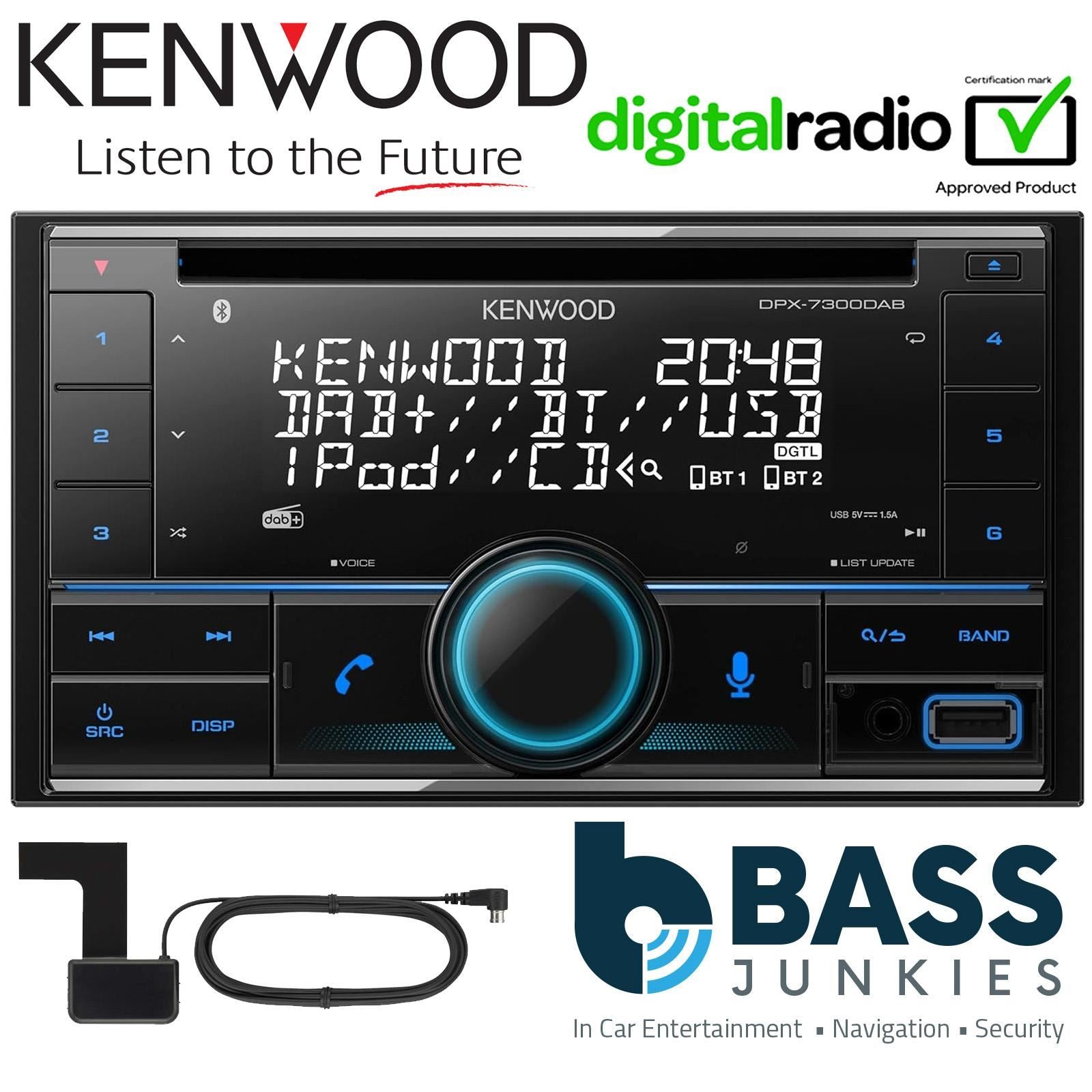

Kenwood DPX-7300DAB + Connects2 Double Din + Steering Wheel Controls fits Audi A4 2008-16|A5 2008-16

Kenwood Double Din Bluetooth USB CD DAB Radio fits Audi A4 2008-2016

COMES WITH DAB AERIAL

CD/USB Receiver with Digital radio DAB+, Bluetooth technology & Amazon Alexa voice service.
Enjoy convenient control. Cristal clear Digital Radio DAB+. Built-in Bluetooth technology for hands-free calls and music streaming, the ability to use your smartphone like a wireless remote control and interactions with Amazon Alexa cloud-based voice service. The Digital Sound Processor, Time Alignment & 13-Band EQ ensures you of optimal sound tuning enhancements.

Key Features

• DAB+ Digital radio, analog FM radio with RDS functionality and AM radio reception
• Bluetooth technology for hands-free calls and music streaming.
• Use your smartphone like a wireless remote control with the KENWOOD Remote app.
• Enjoy audio streaming just by switching among 5 connected BT devices with Music Mix
• Amazon Alexa cloud-based voice service ready.
• MP3 / WMA / AAC / WAV / FLAC music file playback.
• Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.
• 3 high power (2.5V) RCA preouts to connect multiple power amplifiers.
• Large 3 line LCD display with high contrast, wide viewing angle & variable-colour backlight.
• Menu language in English (default), Russian, Spanish, French or German.

General Features

• DIN Size 2 DIN
• Key Illumination Variable LED
• Rotary Encoder & Control Knob
• Dual Accent Key Handsfree & Voice Assistant
• Back-up Memory Menu Settings
• Attenuator with Smooth Volume Return
• Touch Sensor Tone
• Digital Clock (24H)
• All-off Select (20 /40/60 minutes)
• Built-in Connector Mitsumi, 16 pin
• Bluetooth unit built-in
• Firmware upgreadable

Display Features

• Display Layout 3 line text + custom icons
• Vertical Aligment Liquid Crystal Display
• Display Illumination Variable by RGB LED
• Dimmer Control Manual / Set by Timer
• Brightness control 0-31 steps
• Demo Mode
• Menu text in selectable language English (default) / Spanish / French / German / Russian
• TAG Language Display English / Spanish / French / German / Russian / Greek

Cosmetics Features

• Dress plate Black Injection
• Preset key finish Black Injection
• Escutcheon finish Black Injection
• Volume & operation knob or wheel Transparant Lighting
• Triangle Illumination Red LED
• Key illumination Variable by RGB LED
• Illuminated front USB port Variable by RGB LED
• Brightness Control (Key) 0-31 step
• Dimmer Control (Key) Manual / Set by Timer
• Variable color illumination
• Color Zone Concept 3 zone colour control
• Chrome-finished accents faceplate

Tuner Features

• Station Select Manual / Preset
• FM Reception
• AM (MW / LW) Reception
• Tuner Presets (FM / AM) 24 Presets (18FM / 6AM)
• Preset memory w/o back-up power
• Mixed preset memory (FM & AM) 6 presets
• Up/Down Seek/Scan
• Automatic Memory Entry (AME)
• FM Stereo / Mono Selector
• Radio Data System
• Radio Text Plus
• Traffic Information
• Local search
• AF Regional Selectable: AF/AF Reg/OFF
• Auto TP search
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)

CE DAB Tuner Features

• DAB+ tuner built-in
• Digital Radio Certification Mark
• Intelligent seek
• Ensemble seek
• Tuning mode / Seek mode Auto1 / Auto2 / Manual
• Service preset 6 ch * 3 bank presets,
• Auto service memory (AME)
• Service list by alphabet order
• Preset list
• Related service
• Audio interrupt standby by PTY
• Audio interrupt standby by announcement
• DAB-RDS integrated TI
• Traffic Information
• DAB-AF (Alternative frequency)
• Announcement Switching (ASW) Select
• DMB Audio (Digital multimedia broadcasting)
• Soft linking
• Antenna power supply on/off switch
• DAB Antenna Included

Playable Audio File

• AAC (*.m4a) files are playable USB
• AAC (*.aac) files are playable CD/USB
• MP3 files are playable CD/USB
• WMA (.wma) files are playable CD/USB
• WAV (.wav) files are playable USB
• FLAC files are playable USB

CD Features

• CD-R/RW Compatible
• MP3, WMA & AAC playback
• CD Text with special Character Support English, Spanish, Russian & Greek
• D.A.C. processing 24bit
• 0 bit Mute
• Random Function DISC Random/Random OFF
• Repeat Function Track Repeat/All Repeat

USB Features

• USB terminal Front side with dust cover
• USB Type 2.0 High speed
• Drive Change
• MP3, WMA, AAC, WAV, FLAC playback
• Repeat/Scan/Random search
• Repeat / Random Play
• Direct search
• Resume play
• Time code display
• 1A Charge Capability for Smartphone.
• 1,5A Smartphone Quick Charge

iPod Features

• Made for iPod & iPhone
• USB Direct Control (Audio, 1 wire, Lightning-connector) with optional cable KCA-iP103
• Music playback
• Alphabet search
• Skip search
• Related search
• Direct Search
• iPod EQ Mode
• Control by hand
• App & iPod control mode
• Spotify App Link
• Reverse browsing
• Battery charge + power control
• *Always update to latest Apple firmware

Audio Features

• Maximum Output Power 50W x 4
• MOSFET Power IC
• Auxiliary Type Mini-jack, front panel
• Pre-out 3 RCA
• Pre-out Output Level 2.5V
• Subwoofer Reference Level Adj
• 2-Way X'over network
• 3-Way x'over (bi-amp connection)
• Tone Control / Easy EQ 13 band, 8 presets
• Balance/Fader/Loudness Control
• Bass Boost Circuit Off/+1/+2/+3/+4/+5
• Att.(-20dB) with smooth Volume Return
• Equalizer built-in
• Graphic Equalizer + Preset 13-Bands Graphic Equalizer with 8 Presets.
• Digital Sound Processor (DSP) Built-in
• Digital Time Aligment (DTA)
• Low & High-pass Filter
• Speaker Size Control Off/10cm/13cm/16cm/6x9inch
• Kenwood Sound Reconstruction
• Sound Reconstruction
• Space Enhancer
• Realizer
• Stage EQ
• Drive EQ

Bluetooth General Features

• Max num. of regist. phones for HFP & A2DP 5 phones
• Hands Free Profile with High Sound Quality HFP V1.7.1
• Max num. of regist. phones for HFP 5 phones
• 2 phones fulltime connection
• Audio Streaming (A2DP)
• High Quality Audio Streaming SBC/AAC
• Max num. of regist. units for A2DP 5 units
• Serial Port Profile (SPP)
• Phonebook Access Profile (PBAP)
• Audio/Video Remote Control Profile (AVRCP) V1.6.1
• Easy pairing function
• iPhone & Android automatic pairing via USB
• Voice Dialing / Siri Eyes Free
• Spotify App Link
• KENWOOD Remote App Ready
• KENWOOD Music Mix Support
• Amazon Alexa ready
• Catchphone / Call Waiting
• Private mode
• Alphabet Search (Phonebook)
• Noise Canceller
• Echo Canceller
• Phone device status display
• Audio device status display
• Signal strength display
• Remaining battery display
• Bluetooth Paring Indicator
• High-quality noise canceling microphone Rear Wired
• Bluetooth firmware upgradeable
• *depends on phone model/make & Kenwood unit

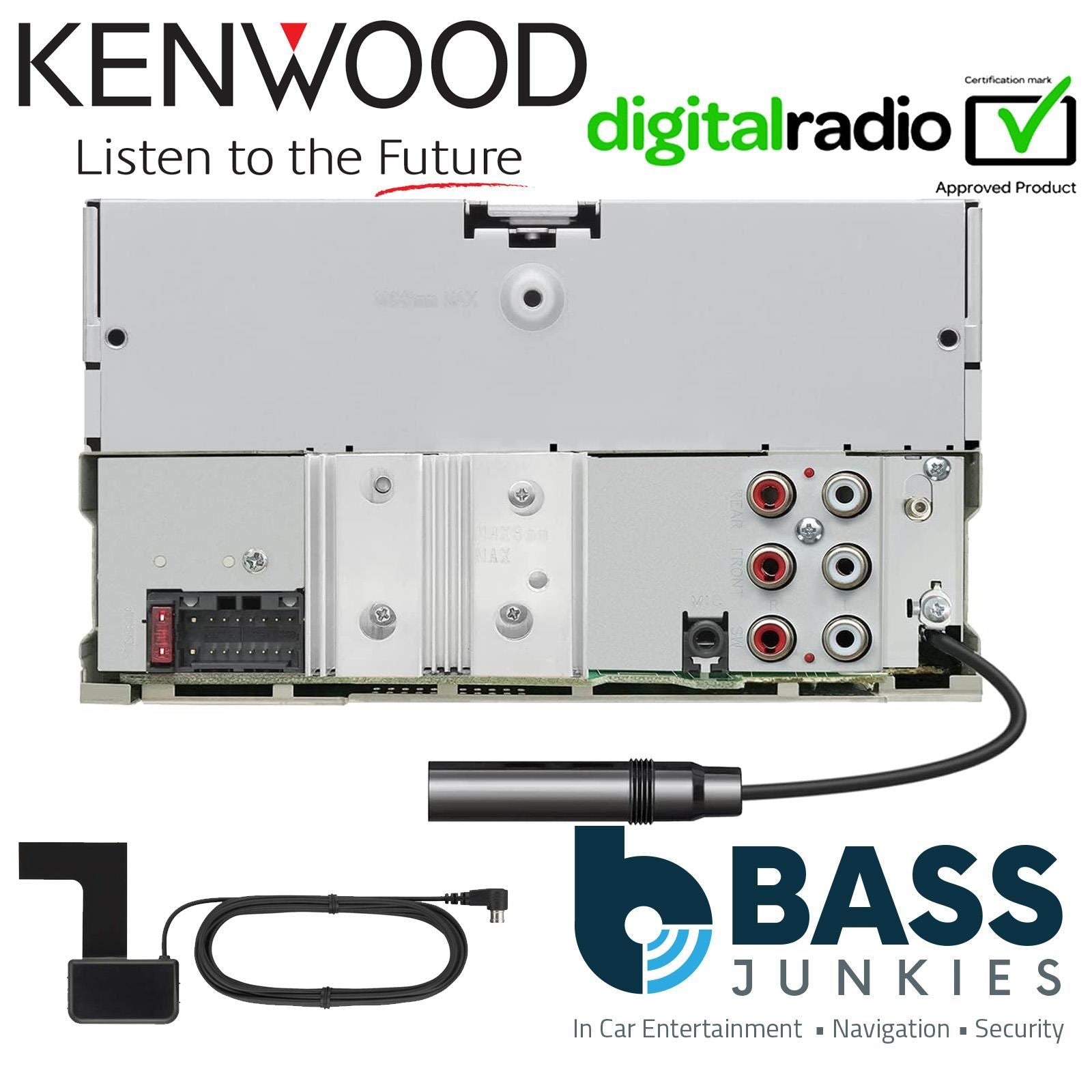

Connectivity

• Front USB & AUX Input
• OEM Wired Remote Control ready
• DC-Cord Mitsumi to ISO
• Power Control (P.CON) wire
• Amplifier pre-out RCA: Front/Rear/Subwoofer
• DAB Aerial input SMB connector
• External microphone input 3,5mm mini-jack

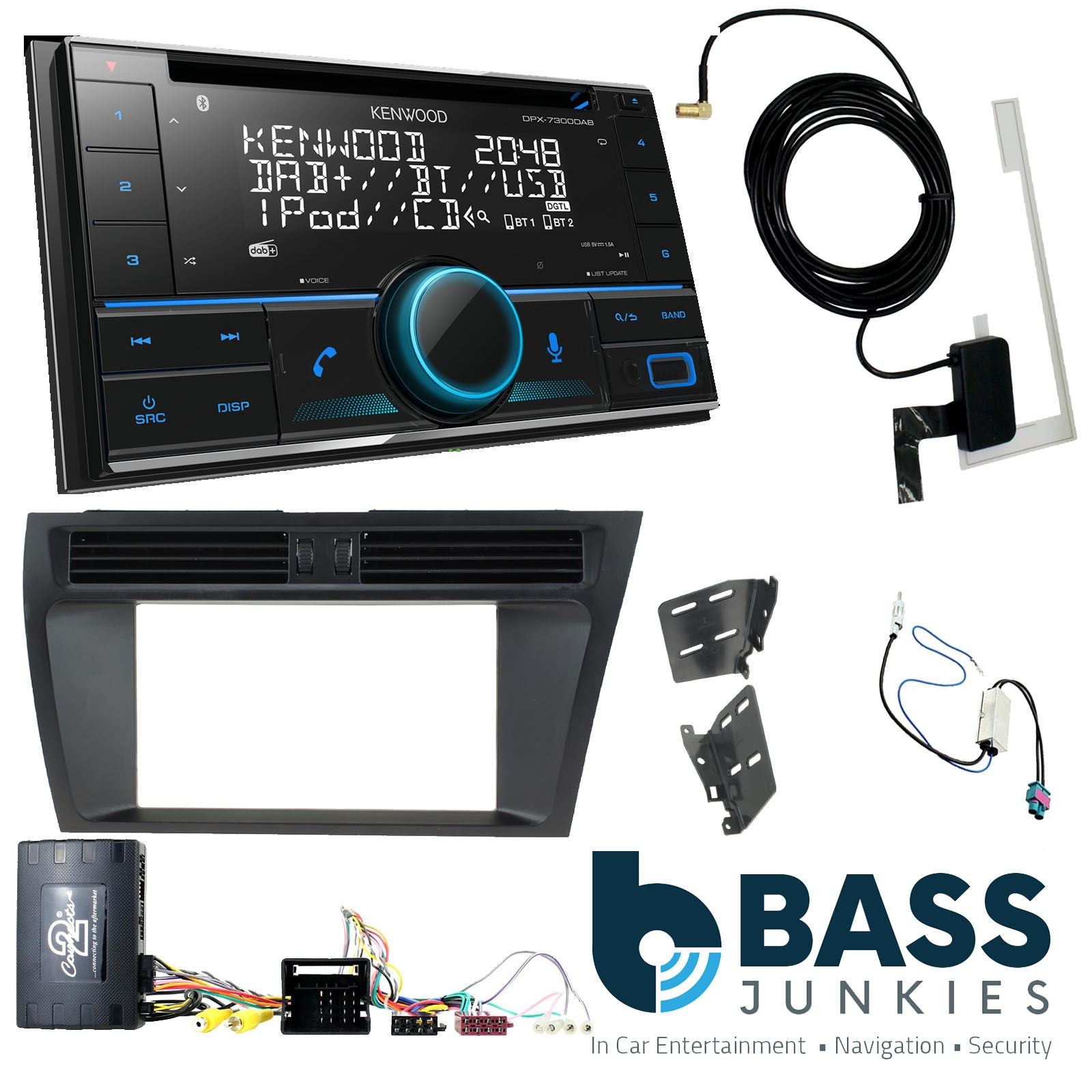

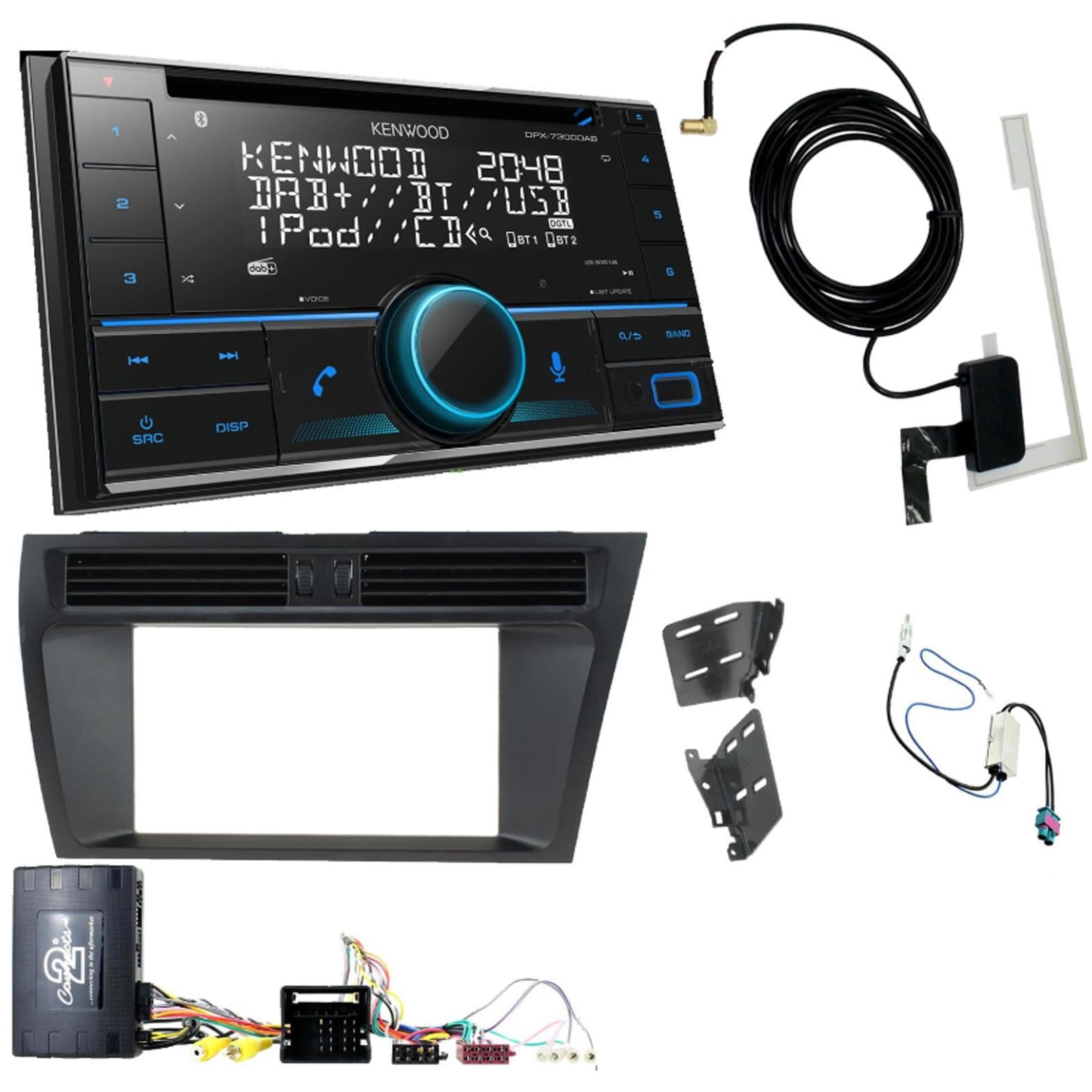

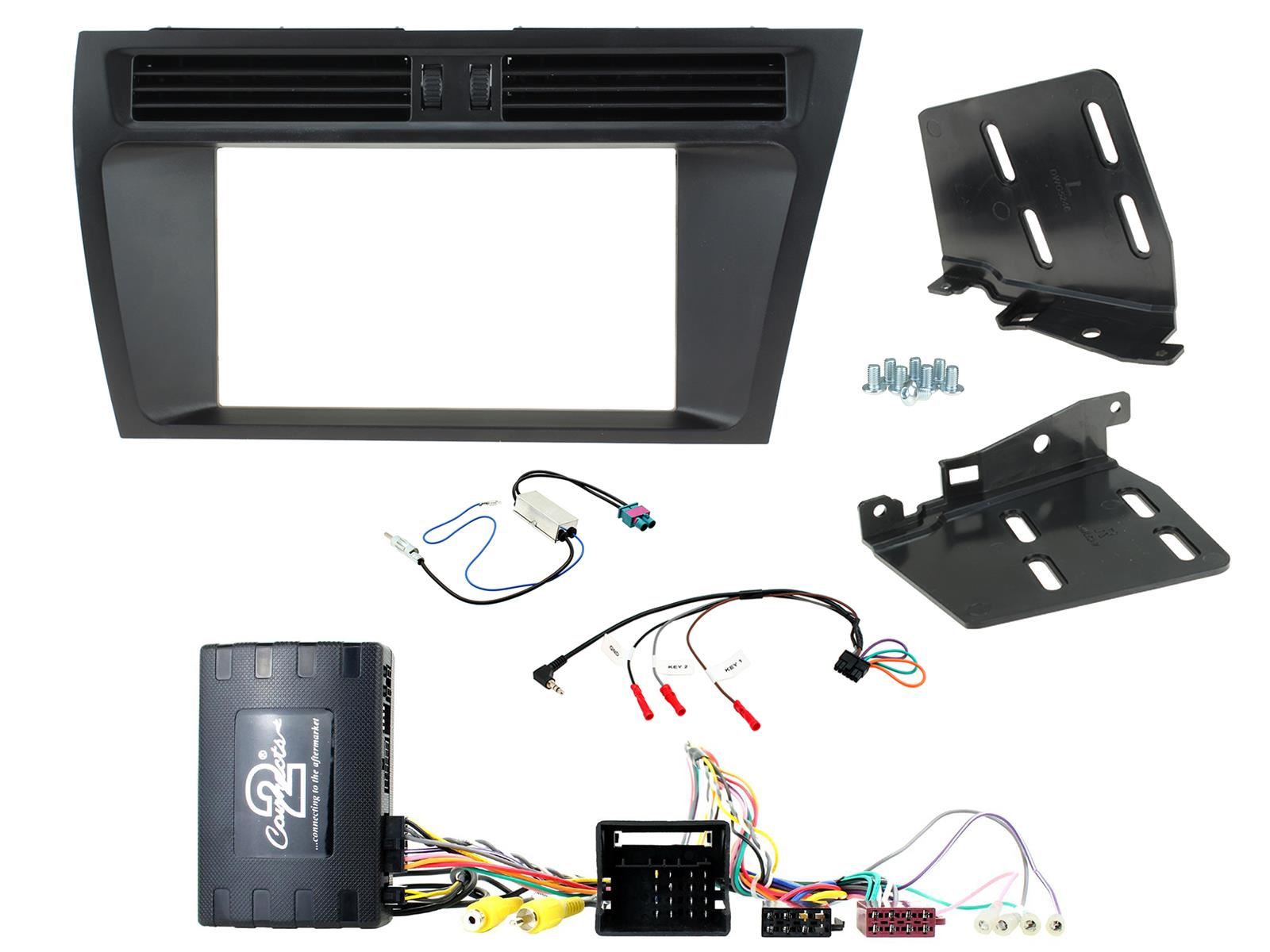

Connects2 Full Fitting Kit for Audi A4 2008-2016. Complete installation kit for right-hand drive Audi vehicles with non-MMI systems. Kit contains double DIN fascia, Infodapter interface, antenna adapter and patch lead.

• Contains universal patchlead CTMULTILEAD.2
• This product has been developed through carefully documented data and research.

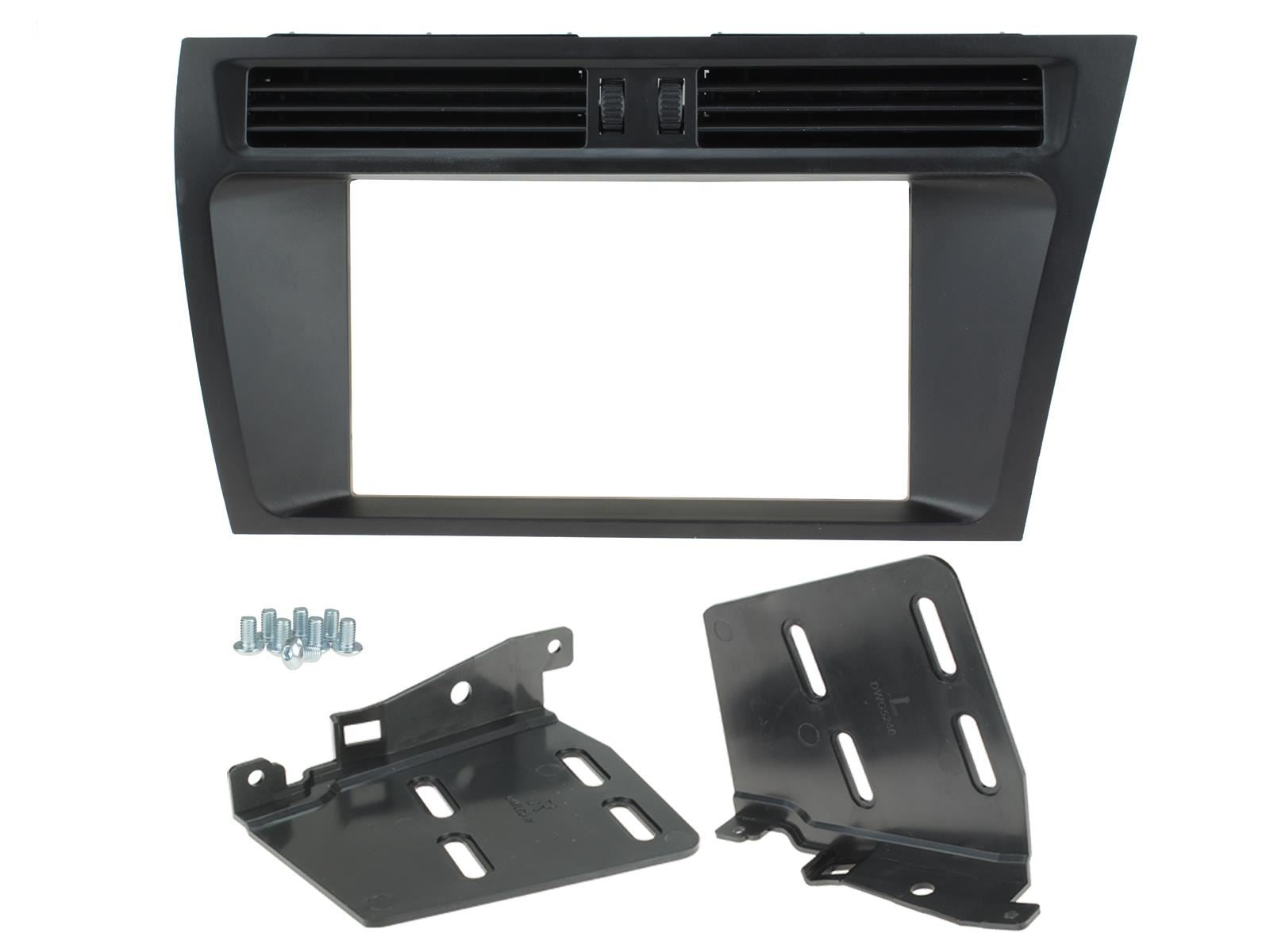

Fitting Kit Breakdown:Fascia Panel

For the installation of a double DIN aftermarket head unit into the OEM dashboard. Includes bespoke, integrated air vents. Finished in matte black. For right-hand drive vehicles only

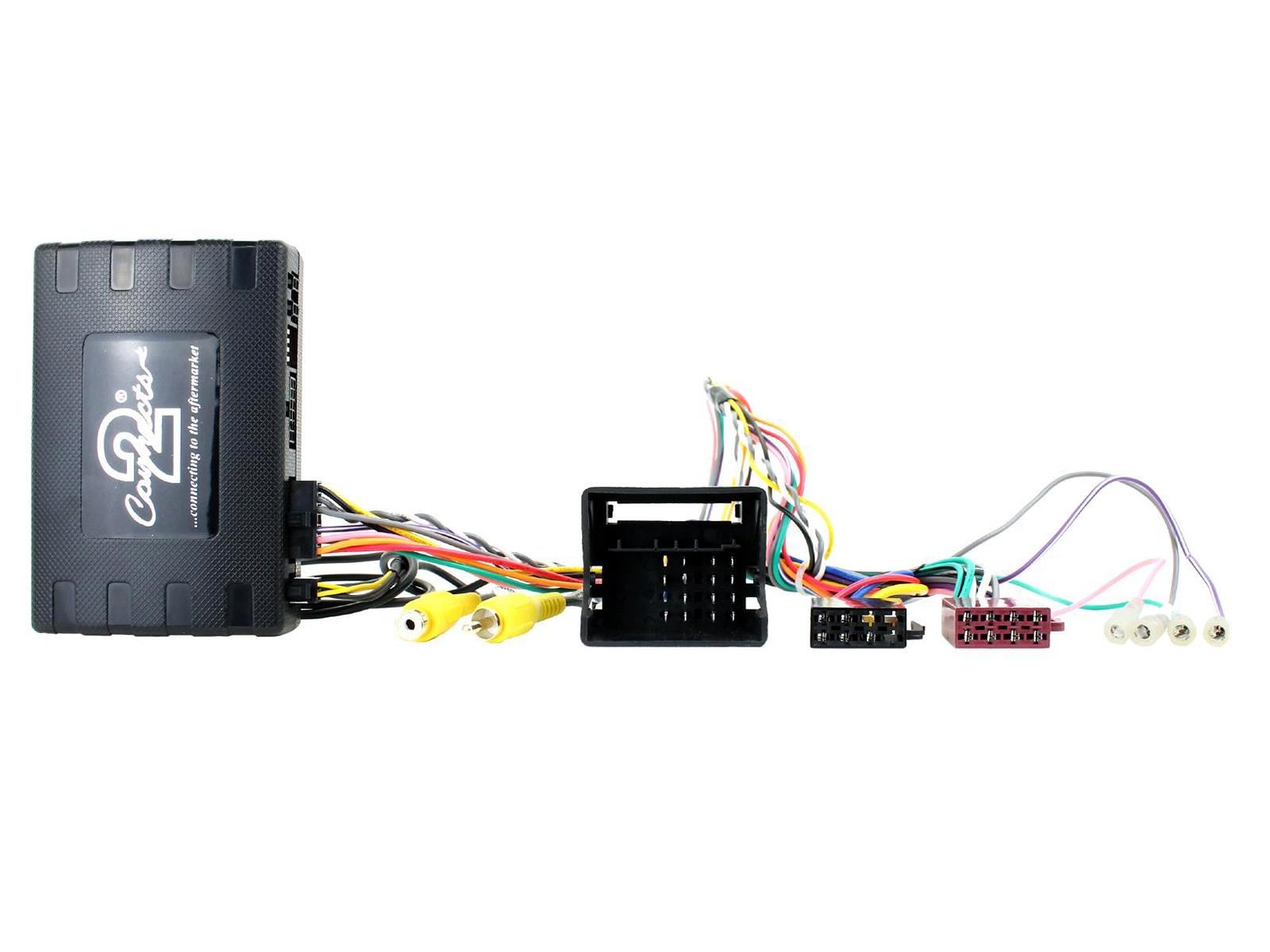

Steering Controls Adapter

Infodapter interface for select NON-MMI Audi vehicles. This Infodapter allows you to retain a vast amount of vehicle features and functions that would have been lost with a regular installation kit. This interface retains steering wheel controls, phone button functionality, parking sensor audio and provides an input for an aftermarket reversing camera.
Allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls

Safety: Allows you to keep your hands on the steering wheel and eyes on the road.

Plug and play, no cutting of wires required

Choose the relevant head unit connection lead according to the make of aftermarket head unit you wish to fit

This product has been developed through carefully documented data and research. Connects2 Ltd. cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.

Retains vehicle settings and generates settings menus

Provides input for aftermarket reversing camera

Retains parking sensor audio and generates parking sensor graphics

Provides outputs for park brake, reverse gear, speed pulse and mute

Infodapter menu settings are controlled and altered via the vehicle's original steering wheel controls

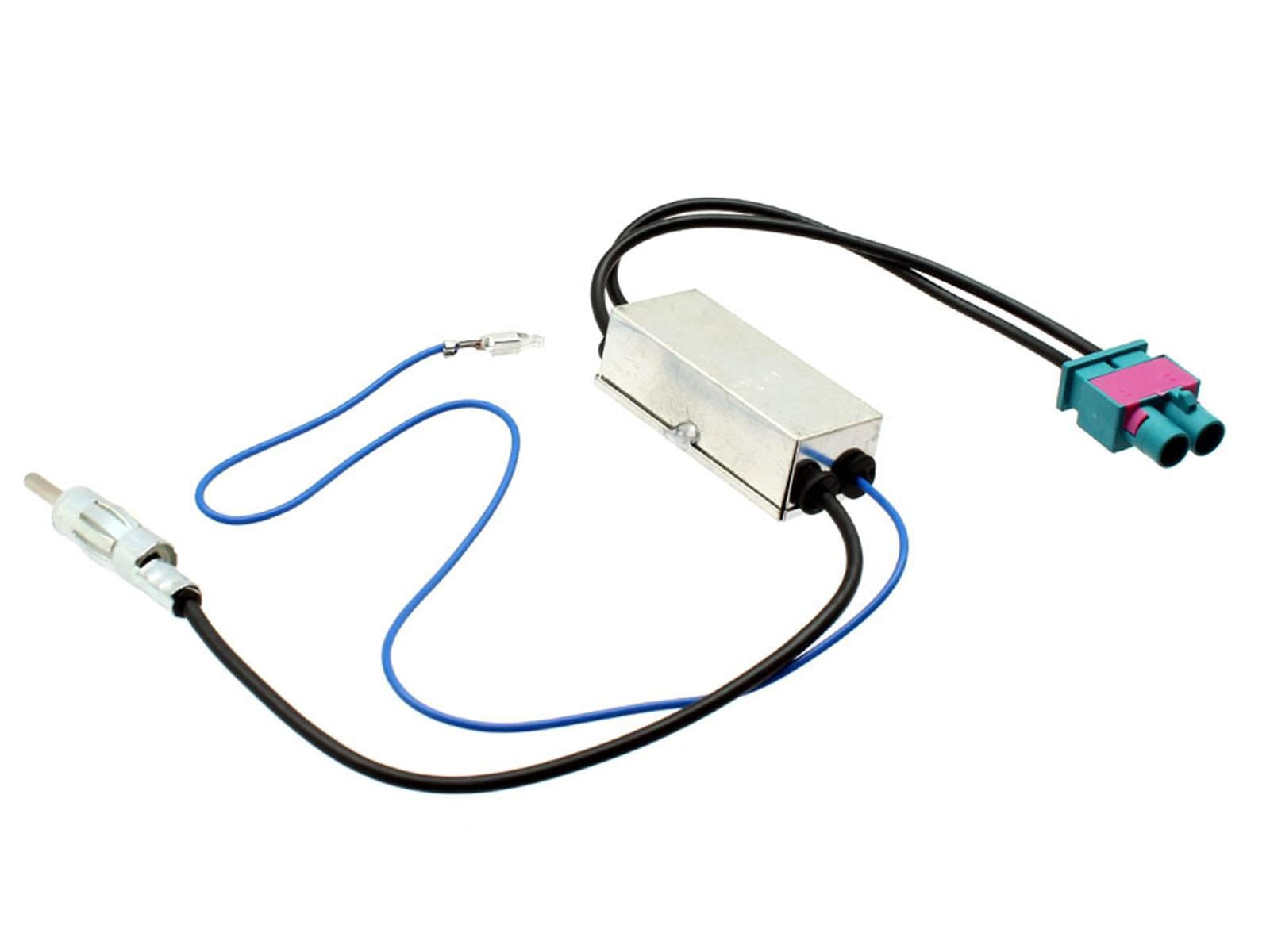

Aerial Adapter

VAG Double Fakra - DIN Antenna Adapter. Twin FAKRA To DIN Antenna Adapter With Phantom Power Supply. *For Aftermarket Radio With DIN Antenna Connector*
Converts car specific antenna connector to a universal aftermarket connector

Steering Controls Adapter

Universal patch lead to connect an aftermarket stereo to a Connects2 interface. Supports most major head unit brands including Alpine, Clarion, JVC Kenwood, Panasonic, Pioneer, Sony and more.
This head unit connection lead can be used with all of the Connects2 steering wheel control interface range

This kit is designed to fit the following vehicles:

• Audi A4 2008-2016 (8K)
  [Headunit: Aftermarket unit must have RCA audio out connectors - Connection: Quadlock (Fakra)]
• Audi A5 2008-2016 (8TF)
  [Headunit: For Non-MMI OEM Systems - Connection: Quadlock (Fakra)]

Please note:

every effort is made to get the parts listed within the listing correct to the best of our knowledge but we can not be responsible for vehicles on a change over year from the manufacturer

It is your responsibility to ensure the compatibility and we recommend that the parts pictured in our listing are compared to the actual connectors/parts in your vehicle before you make your purchase or you will have to return the incorrect item at your cost. If still unsure please contact us via the eBay messaging system with pictures that must be attached of the wiring and connections that you are trying to install so our tech guys can help and advise before you make your purchase.
