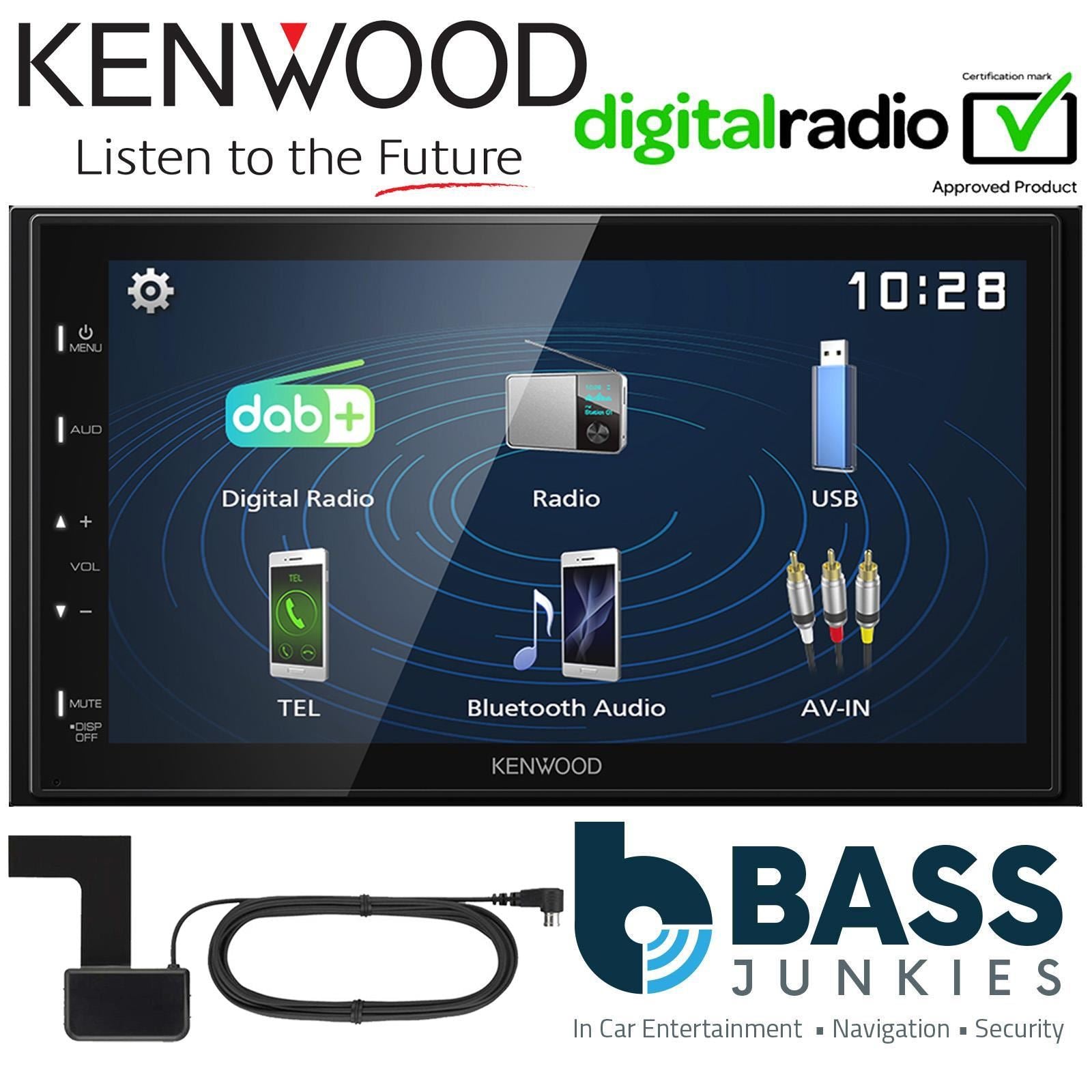

Kenwood 6.8" Screen USB DAB Android Mirroring fits Opel Adam 2013-2021
The KENWOOD DMX125DAB Car Stereo has a crisp, clear 6.8" resistive touch screen, multi-format playback and rear camera input. It has a USB input for connectivity and Android Mirroring with compatible Android smartphones. Built-in DAB ensures this is a must-have upgrade for any vehicle!
PLEASE NOTE THIS STEREO IS A MECHLESS AND DOES NOT HAVE CD DRIVE BUILT IN & DOES NOT SUPPORT APPLE CARPLAY
Kenwood DMX-125DAB Features:
- Clear resistive 6.8" WVGA touch screen
- Android USB mirorring ready
- DSP / DTA / 13 band equalizer
- DAB+ tuner built in
- 3 preouts, (2.0V) (Front / Rear / Sub (mono))
- AV-in, Video-out & RCAM-in
- Bluetooth handsfree & audiostreaming built-in
- Rear USB, 1A Charge
- MP3, WMA, AAC, WAV & FLAC audio file playback
- MPEG1/2 & MPEG4, H.264, WMV & MKV video file playback
- Shortbody, only 75mm installation depth
General Features
- DIN Size 2 DIN
- Smooth GUI
- Key Illumination Blue LED
- Touch sensor
- Touch Sensor Tone
- Optional IR remote controller
- Digital Clock (24H)
- ISO connector
- Built-in Bluetooth
- DAB Tuner Built-in
- Android USB Mirroring
General Specifications
- Operating voltage 14.4V (10.5 ~ 16V Allowable)
- Maximum Current Consumption 10A
- Dimensions (W x H x D)
- Weight 900gr
- Operation Temperature Range -10°C ~ 60°C
Monitor Specifications
- Screen size (Diagonal) 6.75 Inches Wide
- Screen Size (W x H) 151.8 x 79.7mm
- Display system Transparent TN LCD Panel
- Drive system TFT Active Matrix System
- Number of Pixels 1152000pixels (800(H) x 480(V) x RGB)
- Effective pixels 99.99%
- Pixel arrangement RGB Striped
- Back lighting LED (Light Emitting Diode)
Connectivity
- USB interface
- OEM Wired Remote Control ready
- Parking sensor (handbrake) wire
- 2-way (Tel/Navi) mute wire
- AV-Input (Non Switchable) (RCA)
- AV Output Video only (RCA)
- Reverse sensor wire
- Rear View Camera Input
- FM Antenna Input
- DAB Aerial input SMB connector
- External microphone input
Accessories
- Release keys 2x
- Escutcheon
- Installation Sleeve
- Handsfree Microphone with 3 m cable

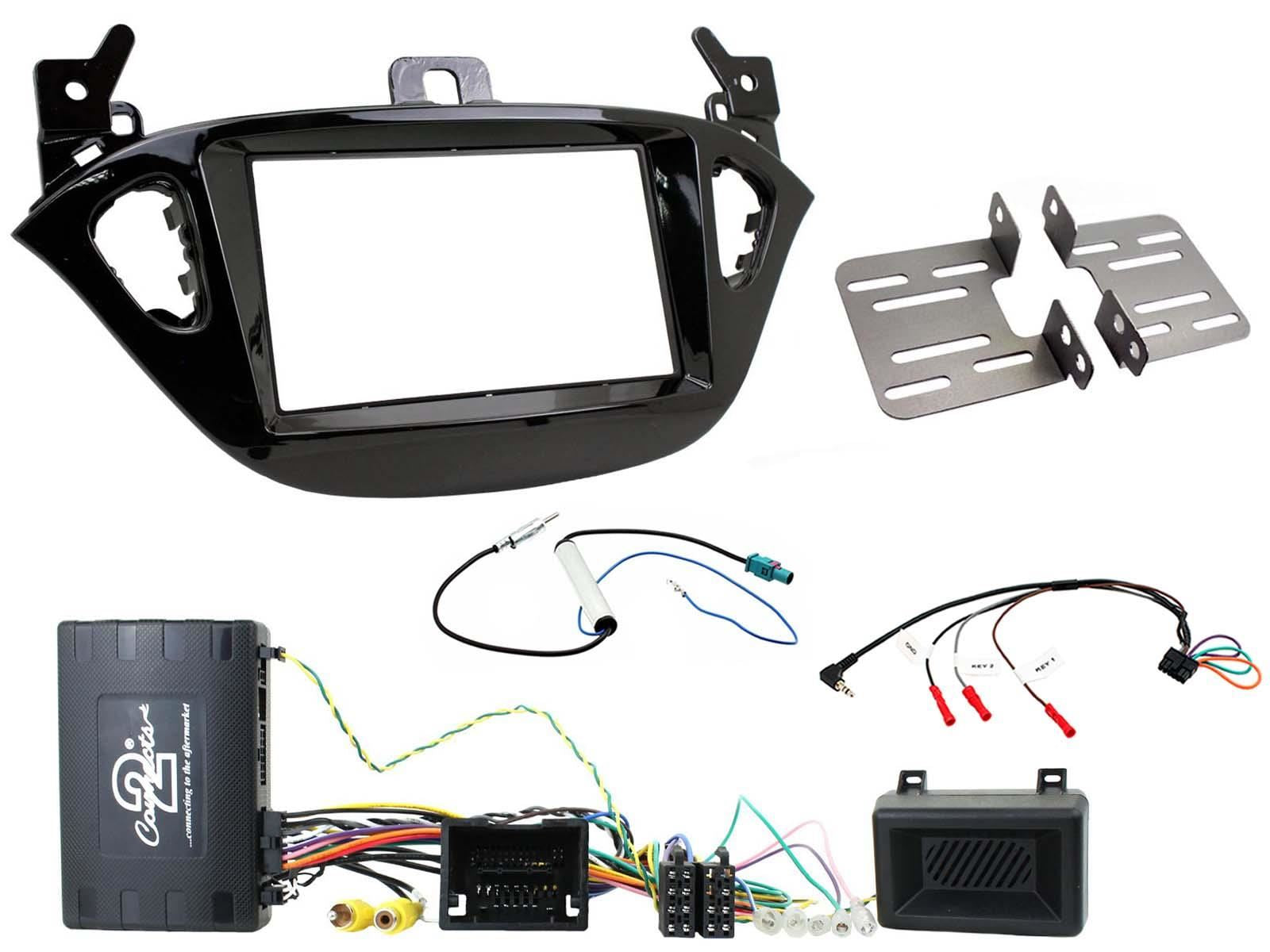

Connects2 Full Fitting Kit for Opel Adam 2013-2021. Vauxhall/Opel Installation Kit. Supplied With Piano Black Double DIN Fascia, FAKRA Antenna Adapter, Infodapter & Universal Patchlead
- Contains universal patchlead CTMULTILEAD.2
- This product has been developed through carefully documented data and research.

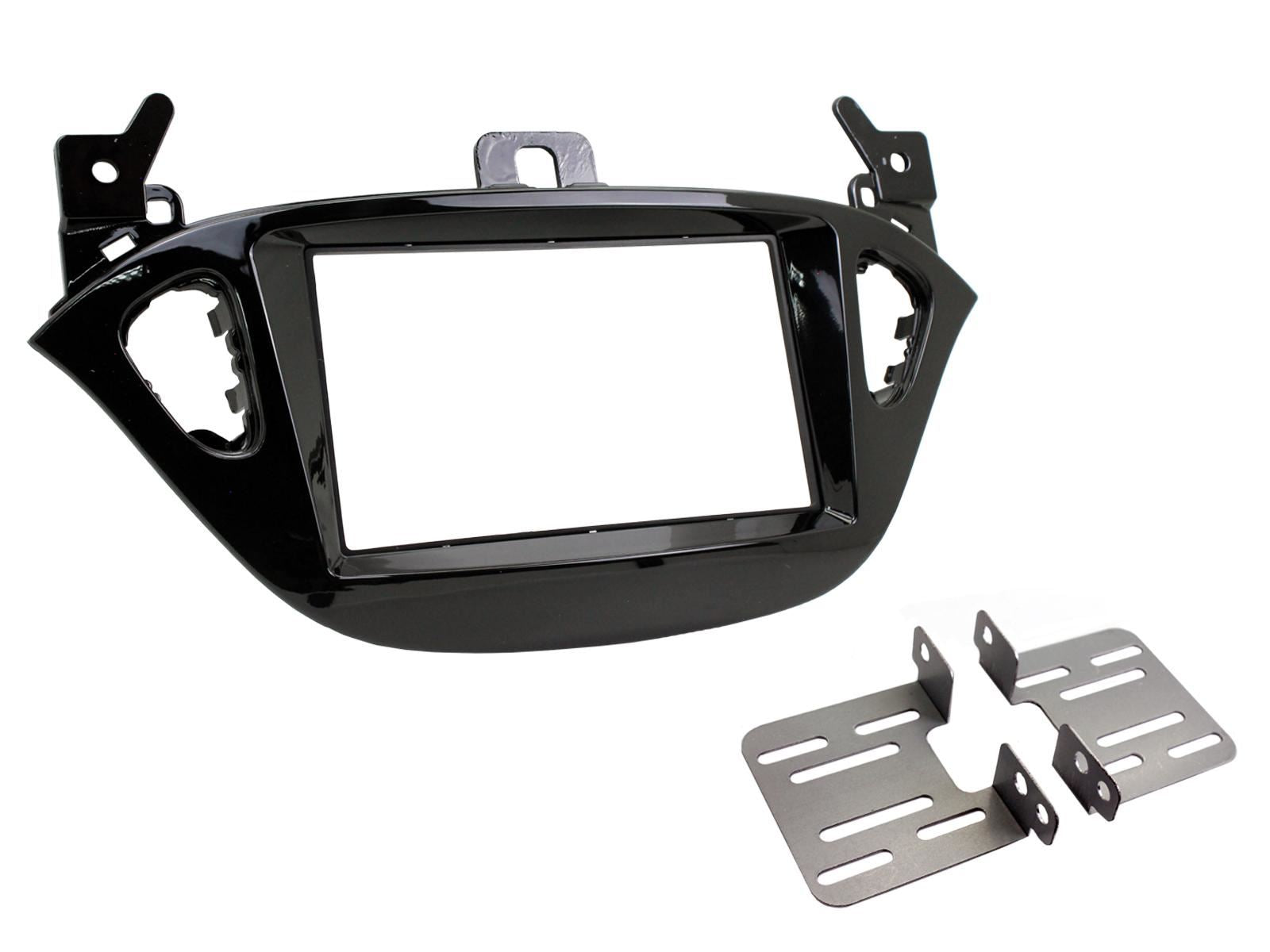

Fitting Kit Breakdown:Fascia Panel
Vauxhall Double Din Fascia Plate (Piano Black) This fascia kit allows the installation of an aftermarket head unit into a non din sized aperture
High quality finish designed to match the vehicle dashboard
Fascia kit supplied with brackets or cage if required (please see product image)
This product has been developed through carefully documented data and research. Connects2 Ltd. cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.
Fascia Panel

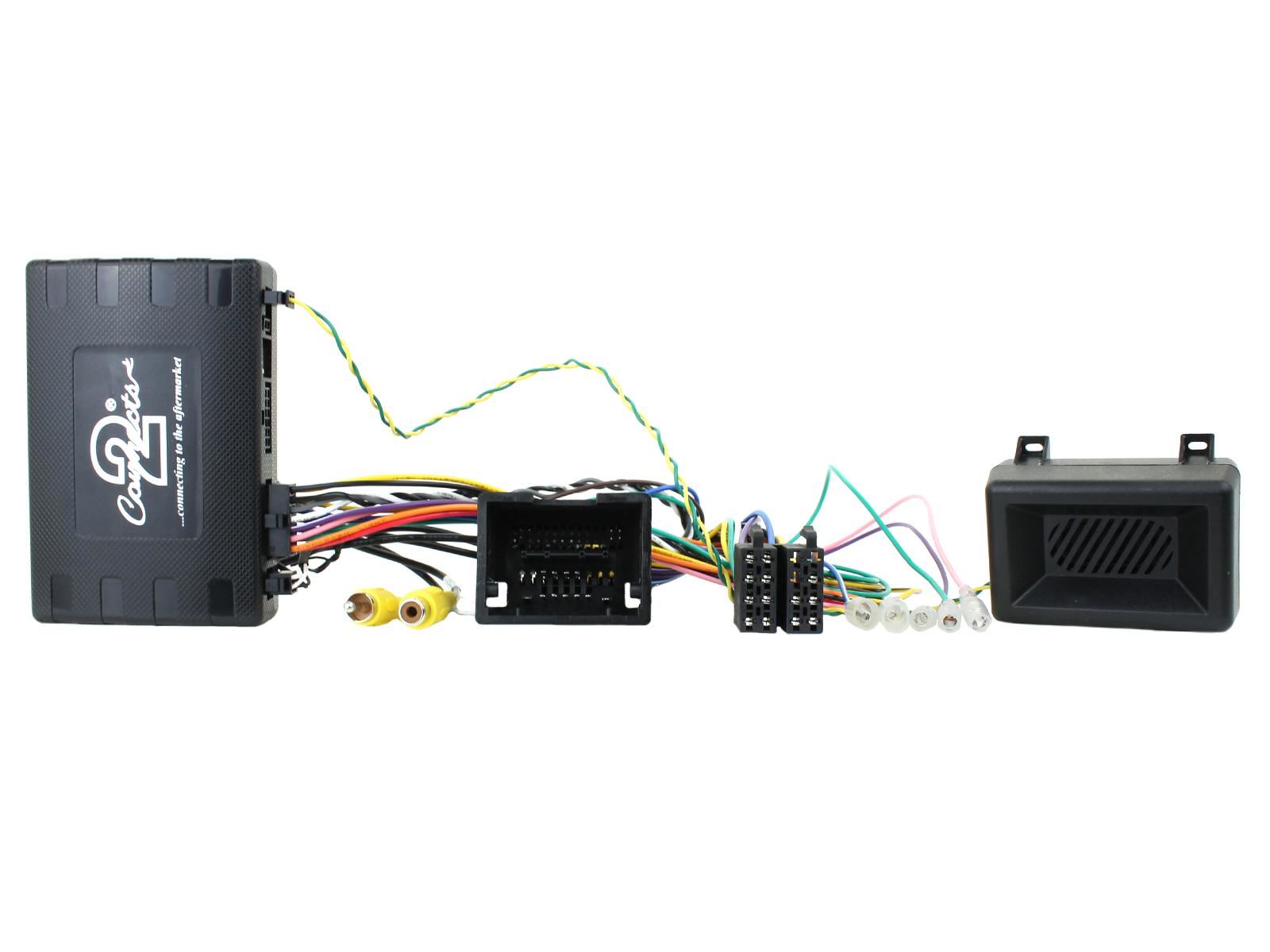

Opel/Vauxhall Infodapter. Allows Use Of Steering Wheel Controls, Optical Parking Sensor Display And Climate Control Visualization With An Aftermarket AV Head Unit Allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls
Safety: Allows you to keep your hands on the steering wheel and eyes on the road.
Plug and play, no cutting of wires required
Choose the relevant head unit connection lead according to the make of aftermarket head unit you wish to fit
The infodapter allows vehice information to be displayed on any aftermarket AV head unit.
Please check the connections in the vehicle match the harness you are purchasing
This product has been developed through carefully documented data and research. Connects2 Ltd. cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.
Infodapter menu settings are controlled and altered via the vehicle's original steering wheel controls
Aerial Adapter
Fakra to DIN Antenna Adapter With Phantom Power Supply Converts car specific antenna connector to a universal aftermarket connector
Steering Controls Adapter
Universal patch lead to connect an aftermarket stereo to a Connects2 interface. Supports most major head unit brands including Alpine, Clarion, JVC Kenwood, Panasonic, Pioneer, Sony and more. This head unit connection lead can be used with all of the Connects2 steering wheel control interface range
This kit is designed to fit the following vehicles:
-
Opel Adam 2013-2021
[Connection: OEM Specific]
-
Opel Corsa 2014-2019
[Connection: OEM Specific]
-
Vauxhall Adam 2012-2019
[Connection: OEM Specific]
-
Vauxhall Corsa 2014-2019
[Connection: OEM Specific]
Please note:
every effort is made to get the parts listed within the listing correct to the best of our knowledge but we can not be responsible for vehicles on a change over year from the manufacturer
It is your responsibility to ensure the compatibility and we recommend that the parts pictured in our listing are compared to the actual connectors/parts in your vehicle before you make your purchase or you will have to return the incorrect item at your cost. If still unsure please contact us via the eBay messaging system with pictures that must be attached of the wiring and connections that you are trying to install so our tech guys can help and advise before you make your purchase.
