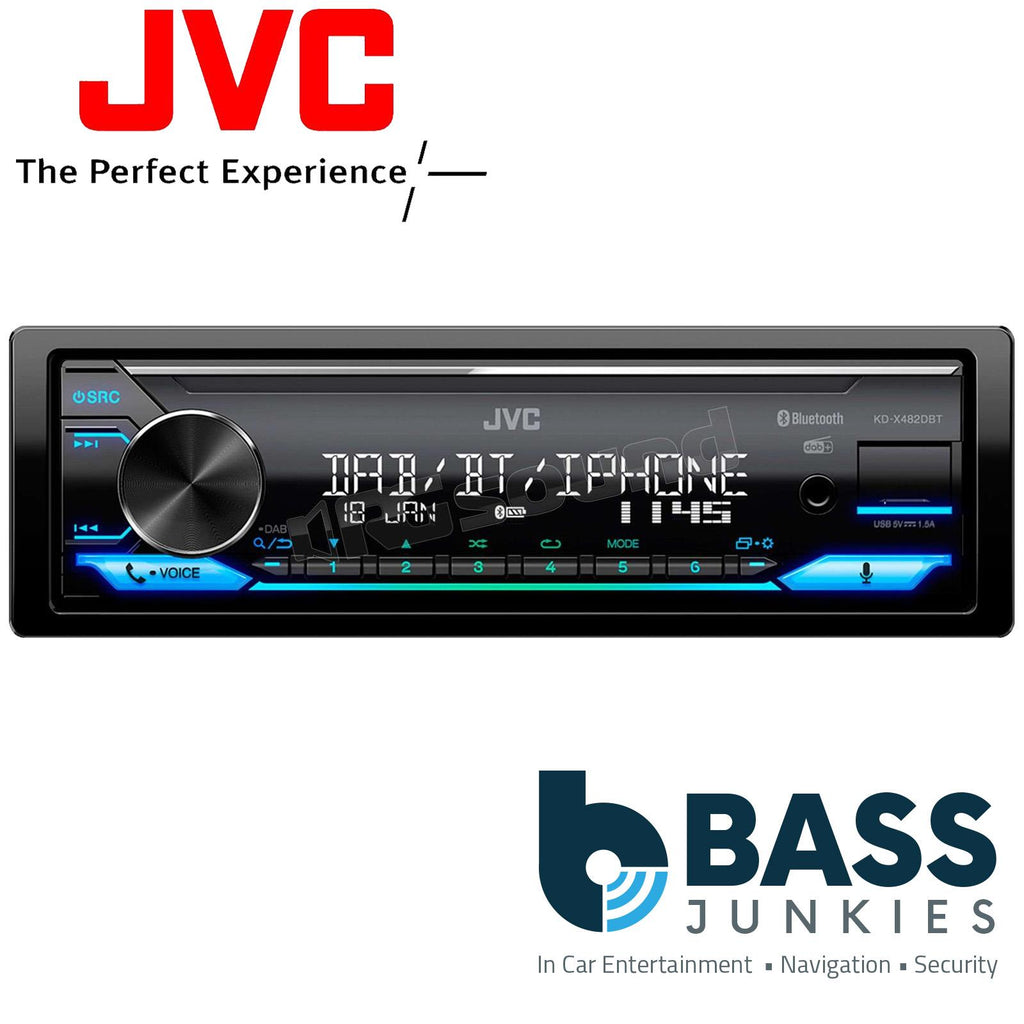

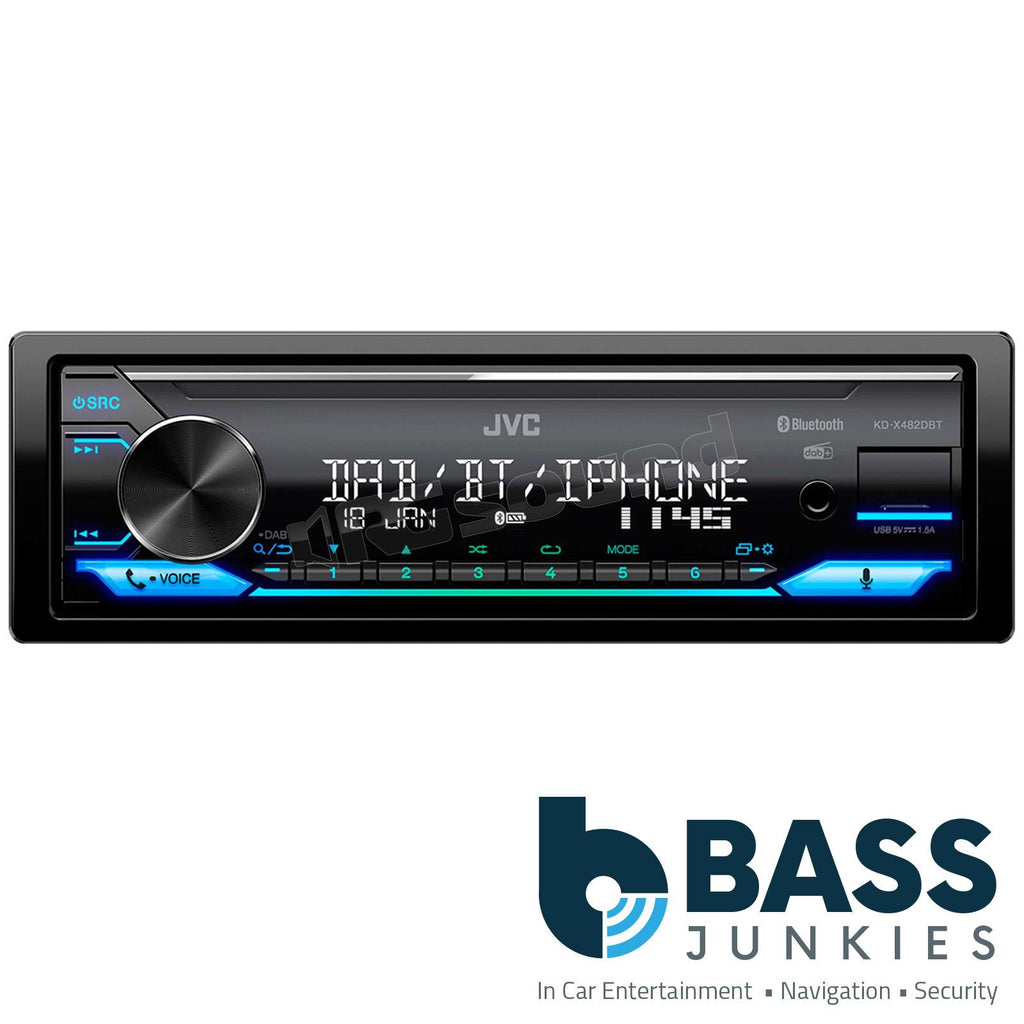

KD-X482DBT
Digital Media Receiver featuring Amazon Alexa / Digital Radio DAB+ / Bluetooth® / DSP with DTA & 13-band EQ / JVC Remote App Compatibility.
DAB AERIAL INCLUDED
Features
- Amazon Alexa cloud-based voice service ready.
- Bluetooth(R) Wireless Technology (*Available functions depend on cell phone.)
- Bluetooth technology for hands-free calls and music streaming.
- Enjoy audio streaming just by switching among 5 connected BT devices with JVC Streaming DJ.
- Bluetooth Voice Dialing (voice recognition compatible mobile phone required)
- Bluetooth Phone Book Access Profile (PBAP)
- iPhone Automatic Pairing
- Low Battery Information
- MP3 / WMA / AAC / WAV / FLAC music file playback.
- iPod/iPhone Music Playback
- DAB+ Digital radio, analog FM radio with RDS functionality and AM radio.
- Use your smartphone like a wireless remote control with the JVC Remote app (IOS & Android).
- Front AUX input & Illuminated USB with dust cover
- USB High Current 1.5A Charging
- Wide 2 line LCD display with high contrast, wide viewing angle & white backlight
- Variable colour key Illumination
- Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.
- 3 high power (2.5V) RCA preouts to connect power amplifiers.
- K2 Technology (K2 is a JVCKENWOODs original technology that reproduces the original master sound by expanding the bit rate and frequency range.)
- Menu language in English(default), Russian, Spanish, French or German.
- Short body (100mm) for easy installation.
Display
- Detachable Face Panel
- Display Type 2-Line VA LCD Display
- Separated Variable-Color (2 Zone)
- LCD Colour White
- Key Color Variable Color
- Music Sync. Effect
- Auto Dimmer
- Brightness Control
- Russian Text Compatible
- Spanish Text Compatible
- French Text Compatible
- German Text Compatible
Radio Tuner
- DAB+ Tuner
- DAB+ Frequency Band III 174928MHz to 239200MHz
-
FM Tuner
- Radio Data System (RDS)
- FM Frequency Range 87.5 - 108.0MHz
- FM Usable Sensitivity 6.2dBf (0.56V/75 ohms)
- FM Quieting Sensitivity (46dB) 1.58uV / 75 ohms
- FM Stereo Separation 40dB
-
LW Tuner
- LW Frequency Range 153 - 279kHz
- LW Sensitivity 45uV
-
MW Tuner
- MW Frequency Range 531 - 1,611kHz
- MW Sensitivity 28,5uV
- Preset Stations 18FM + 6AM + 18DAB
- Tuner Preset Memory
- Automatic Preset / SSM (FM only)
- Digital Processing Tuner
Media Playback
- MP3 Compatible with Tag USB
- WMA Compatible with Tag USB
- WAV Compatible with Tag USB
- AAC Compatible with Tag USB
- FLAC Compatible with Tag USB ( Up to 96kHz/24bit )
USB
- Position Front
- Drive Change Mode for Mass Storage Class
- Random / Repeat Play
- 1.5A Max. Power Supply Current
Bluetooth®
- Built-In Bluetooth® (Ver 4.2, Wired-Mic included)
- Audio Codec AAC / SBC
- Auto Pairing for iPhone / Android (iPhone only)
- 2 Phones Full-Time Connection
- Voice Dialing
- * Voice recognition compatible mobile phone required
- Remote Control Application JVC Remote App (IOS & Android)
- Hands Free Call (HFP) (HFP 1.7 wideband speech)
- 5 BT-Audio Connection [JVC Streaming DJ]
- Audio/Video Remote Control Profile (AVRCP) (AVRCP 1.6.1)
- Phone Book Access Profile (PBAP)
- Wired Microphone included
- Low Battery Information
iPod/iPhone Control
- iPod/iPhone Music Playback
- iPod/iPhone Music Playback (via USB or Bluetooth(R))
- iPod/iPhone Mode (2-Way Control Mode) (USB & Bluetooth)
- iPod/iPhone Mode (2-Way Control Mode) (USB: Audio only)
- Siri Eyes Free Mode for iPhone
- Random/Repeat Play
- Battery Charge (USB: 1.5A Max.)
Amazon Alexa
App(s)
- JVC Remote Control App
- App Store (Apple) https://apps.apple.com/nl/app/jvc-remote/id1154864875
- Google Play (Android) https://play.google.com/store/apps/details?id=com.jvckenwood.jkts.jvcremoteapp.openlink
Audio
- Maximum Power Output (Front & Rear) 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
- Full Bandwidth Power (at less than 1%THD) 22W x 4
- Full Bandwidth Power (at less than 1%THD) 30W x 4 (PWR DIN45324, +B=14.4V)
- MOS-FET Amplifier
- Speaker Load Impedance 4 ohms (4 - 8 ohms allowable)
- K2 Technology
- 13-Band Graphic EQ
- Preset EQ (8-preset)
- Easy EQ Setting
- Volume Link EQ
- High-Pass Filter/Low-Pass Filter
- Digital Sound Processor (DSP)
- Time Alignment
- Sound Enhancement
- Space Enhancement
- Sound Response
- Sound Lift
- Digital Track Expander
- Digital Track Expander
- Loudness Control (Off/Low/High)
- Bass Boost (Hyper Bass System)

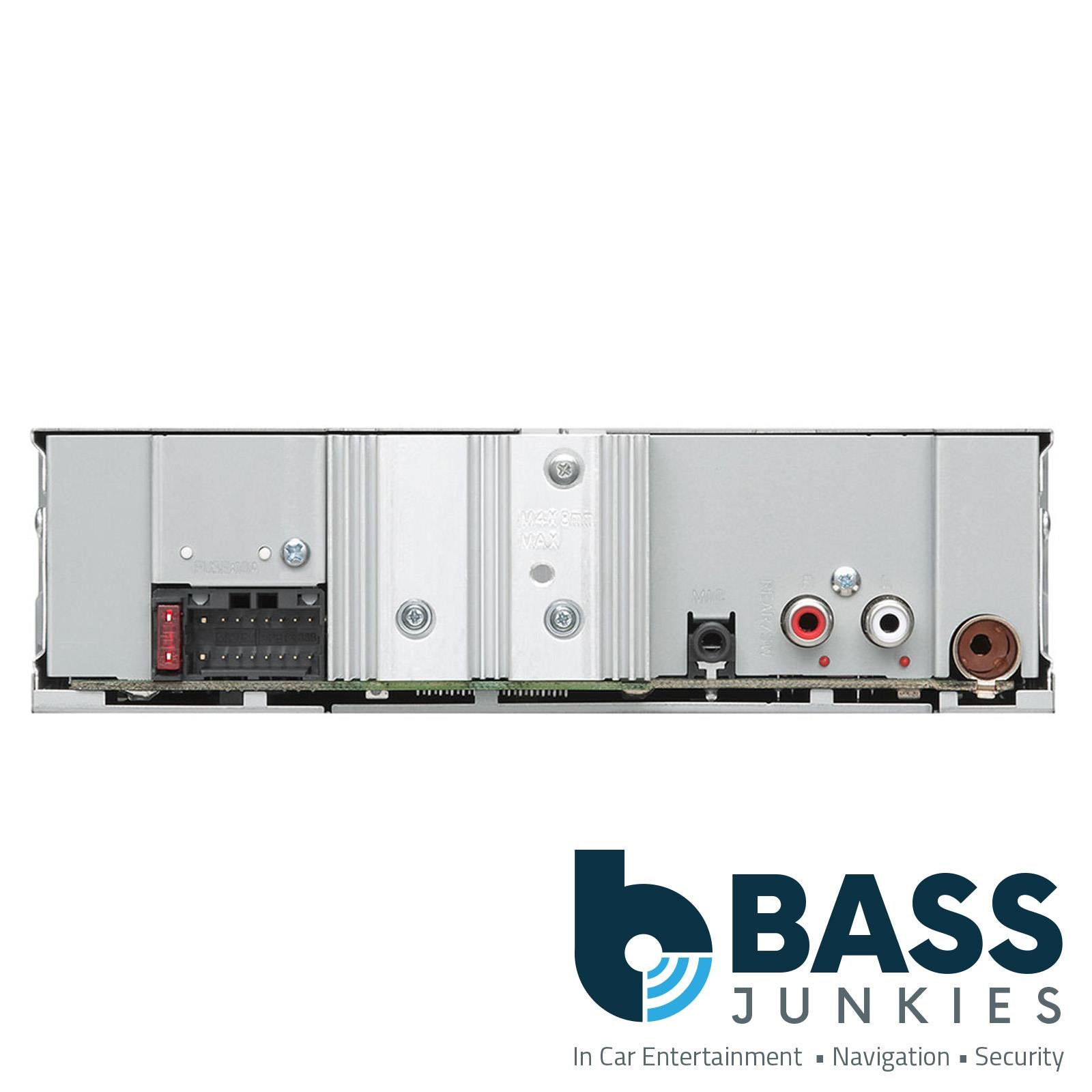

Inputs and Outputs
- Auxiliary (AUX) Input 1 (Front)
- Pre-Out Terminals 3 Pairs (Front + Rear + Subwoofer)
- Pre-Output Level 2.5V
- Pre-Out Impedance Less than 600 ohms
- Subwoofer Output with Level/Frequency Control (Level -50 to +10)
- Subwoofer Output with Level/Frequency Control (Level -8 - +8)
- Subwoofer Output Level 2.5V
General
- Rotary Encoder
- Beep Tone Support (From Speakers)
- Back Up Memory
- Wired Steering Remote Control Ready
- ISO Connector Cable
- Short Chassis
- Dimensions (W x H x D) 182 x 53 x 100mm
- Weight 0.60kg
