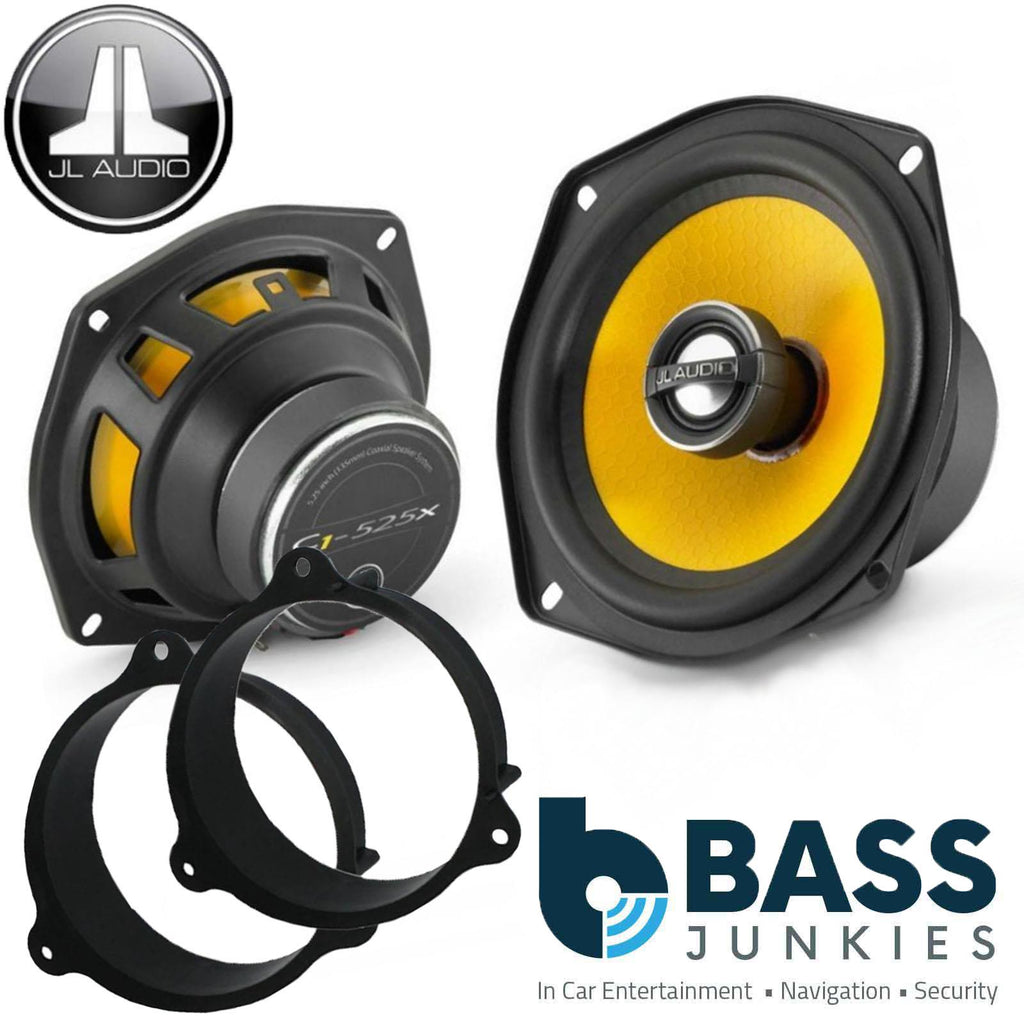

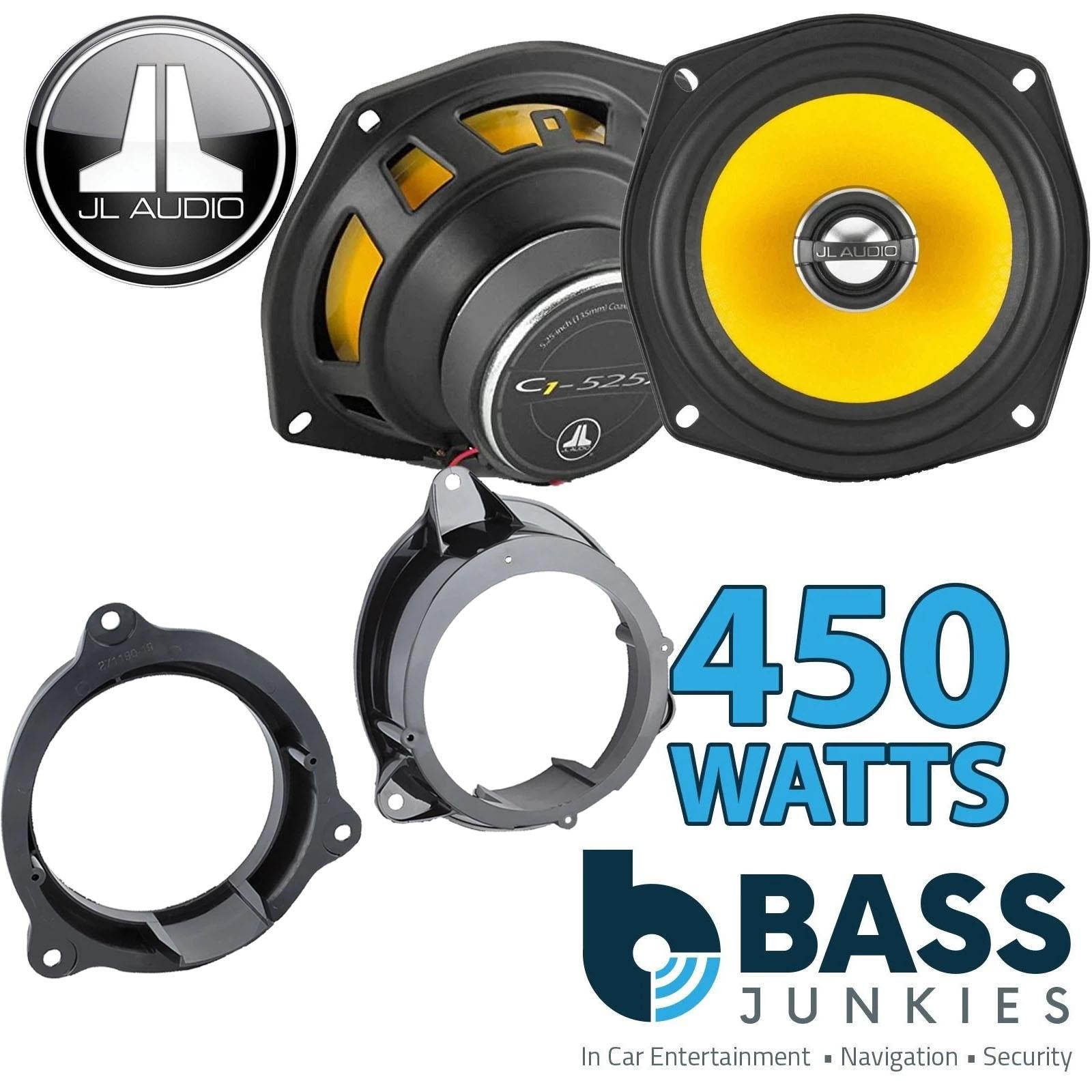

C1-525X 5.25" speakers with Brackets to fit Mercedes Citan Front Doors 12-21
Coaxial Speaker System: 5.25-inch (130 mm) Woofer, 0.75-inch (19 mm) Aluminum Dome Tweeter
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-525x is a proprietary, stamped, steel 5.25-inch (130 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
Sold as a pair. Grilles not available.
- Continuous Power Handling (RMS): 50 W
- Recommended Amplifier Power (RMS): 10 - 75 W / Ch.
- System Efficiency: 89.0 dB @ 1 W / 1 m
- System Nominal Impedance: 4 Ω
- System Frequency Response: 54 Hz - 24 KHz ± 3 dB

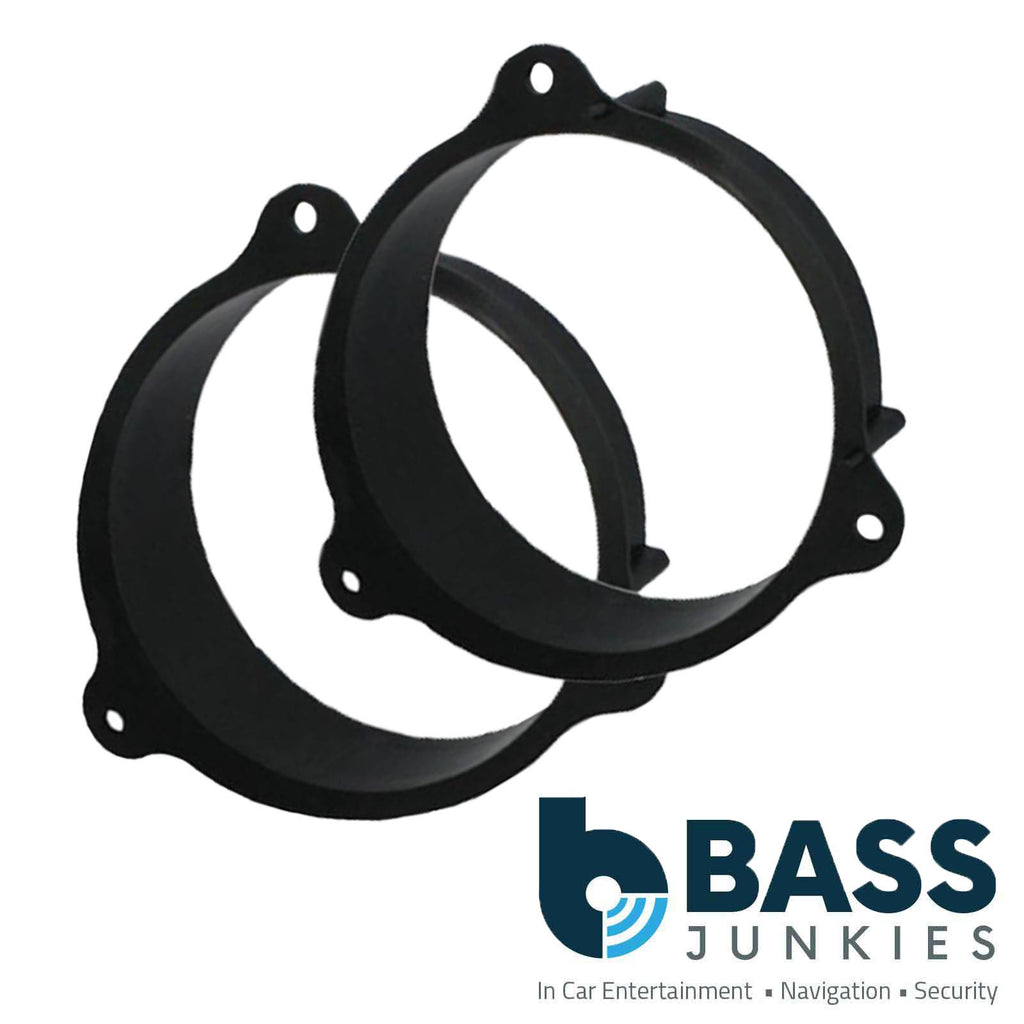

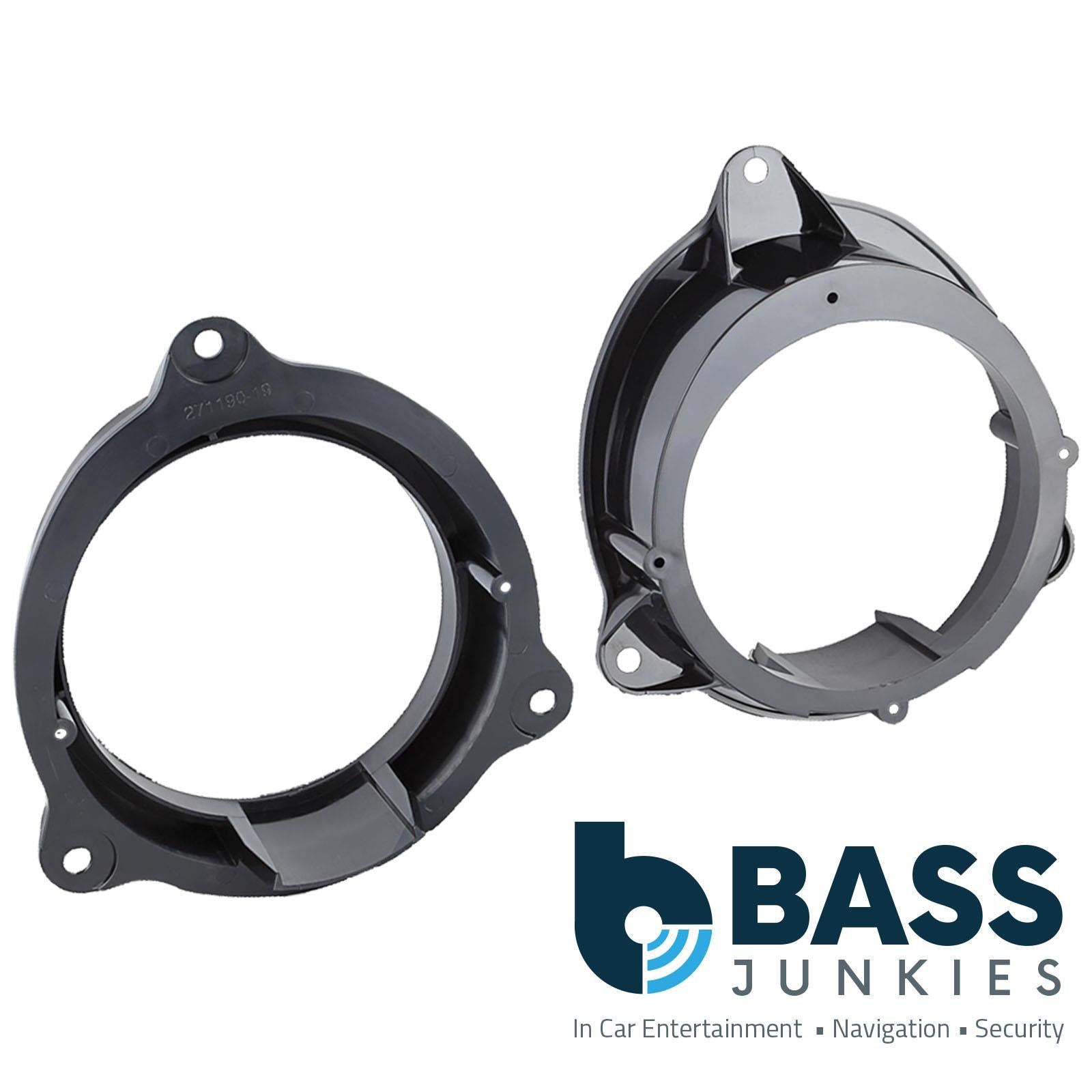

Connects2 Speaker Brackets to fit 5.25" (13cm/130mm) Speakers in to Mercedes Citan 2012-21
Mercedes Speaker AdapterItem Specifics
Allows the installation of standard size aftermarket speakers when replacing the OEM speakers
This will fit the following vehicles:
- Mercedes Citan 2012-2021 [ Front Doors 130mm. W415 Model]
Please Note: Please make sure that is the correct Speaker Adaptor for your car by firstly checking to see if your make, model and year of car is listed in the vehicle breakdown above. Secondly by checking to see if the shape of bracket in the picture listed is the same as you have in your vehicle.
Note: Sold As A Pair. (Wire adapters maybe required in addition to these brackets)
