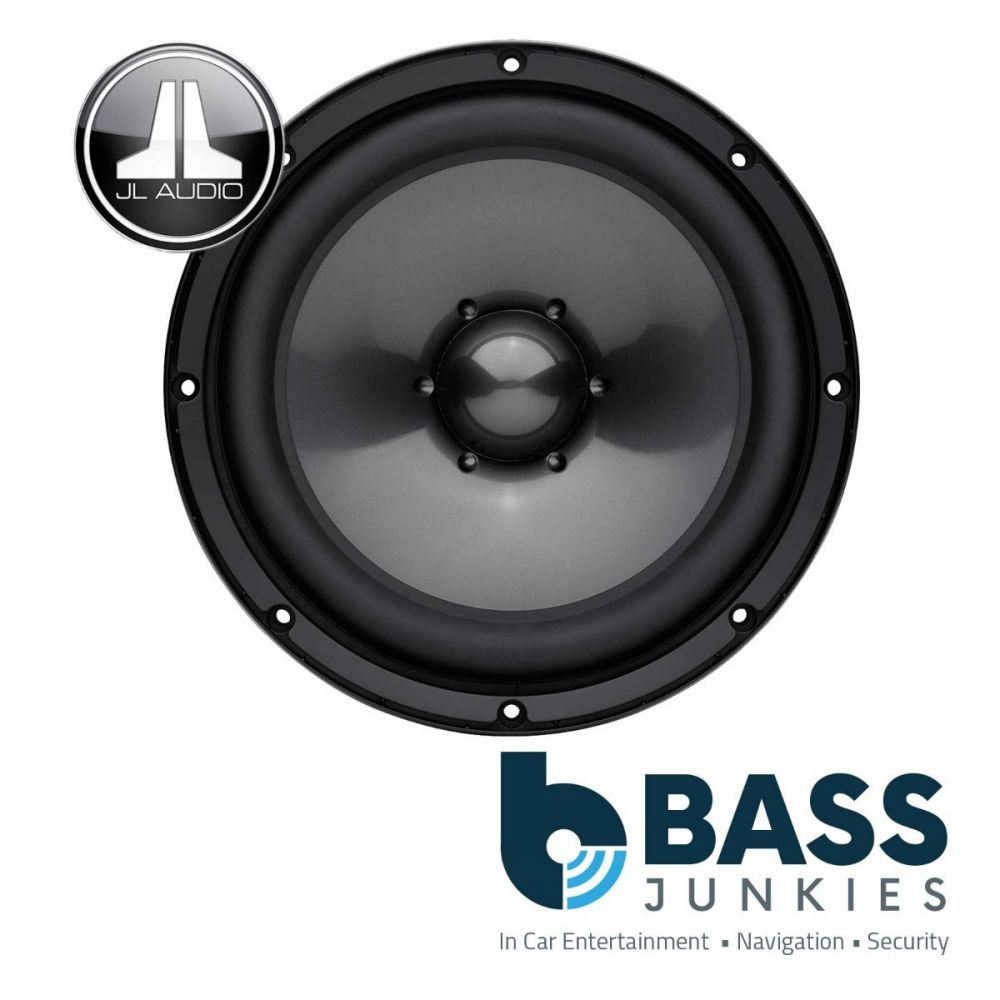

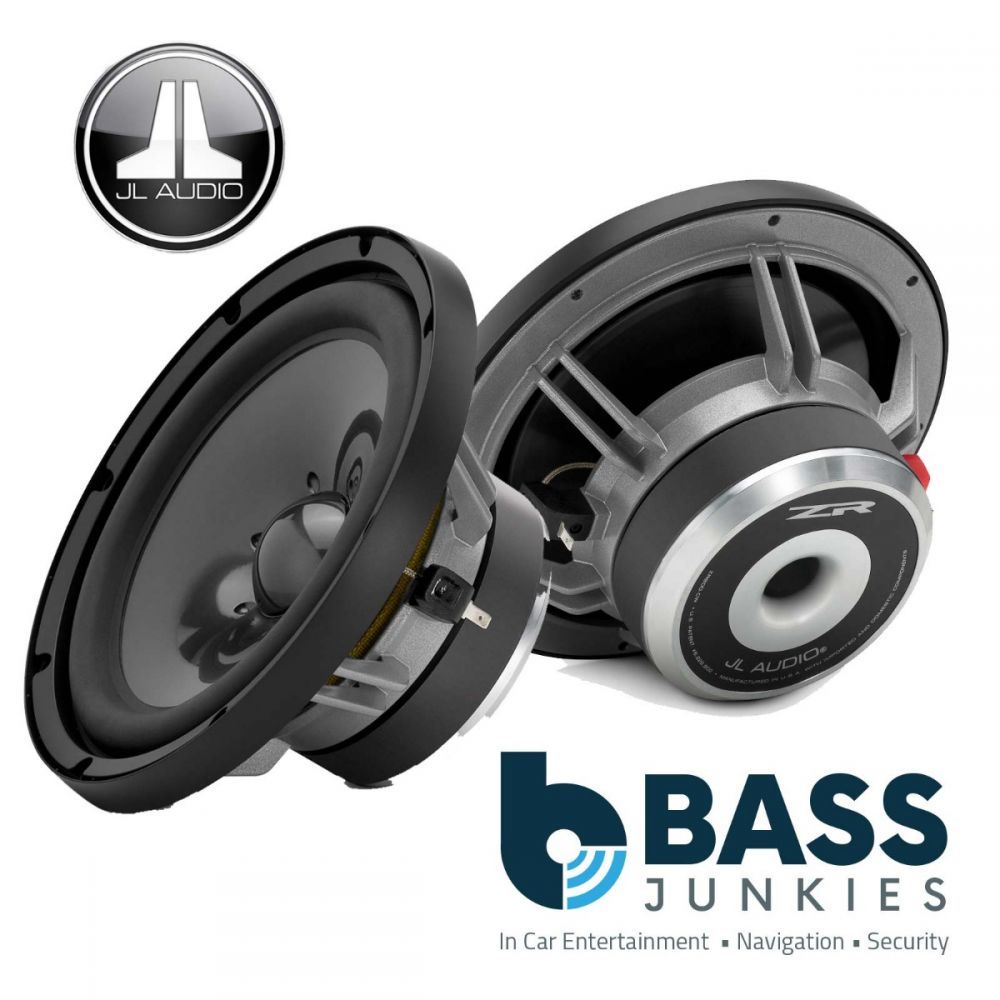

JL Audio ZR800-CW - ZR 8" (200 mm) Component Woofer with Grille
Specifications:
- Free Air Resonance (Fs): 46.27 Hz
- Electrical "Q" (Qes): 0.702
- Mechanical "Q" (Qms): 11.667
- Total Speaker "Q" (Qts): 0.662
- Equivalent Compliance (Vas): 0.787 cu. ft. / 22.29 liters
- One-Way, Linear Excursion (Xmax)*: 0.34 in. / 8.6 mm
- Reference Efficiency (no):
- Efficiency (1W/1m)**: 87.0 db SPL
- Effective Piston Area (Sd): 33.34 sq. in. / 0.0215 sq. m
- DC Resistance (Re): 3.935 ohm
- Nominal Impedance (Znom): 4 ohm
- Thermal Power Handling (Pt): 125W
- Driver Displacement: 0.016 cu. ft. / 0.44 liters
- Net Weight: 5.7 lbs. / 2.60 kg
