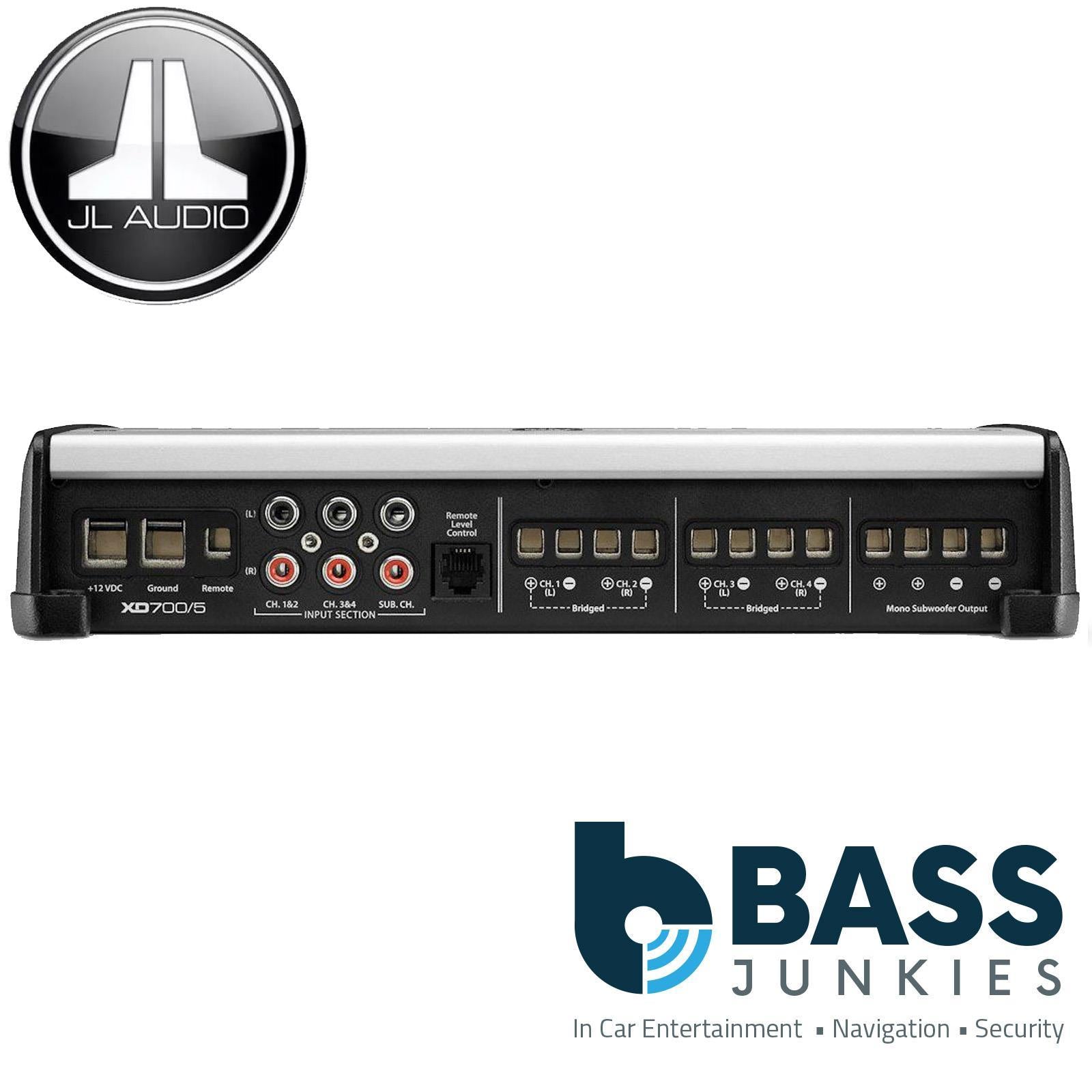

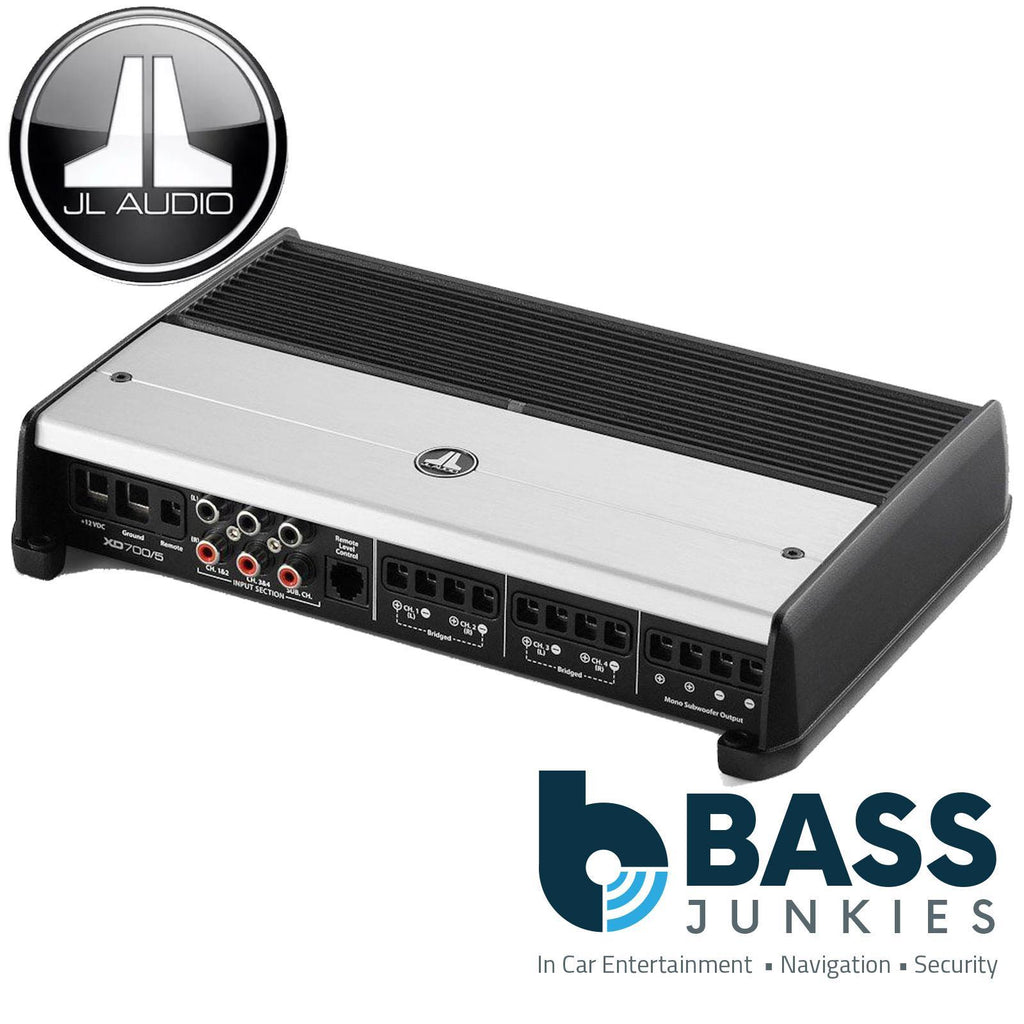

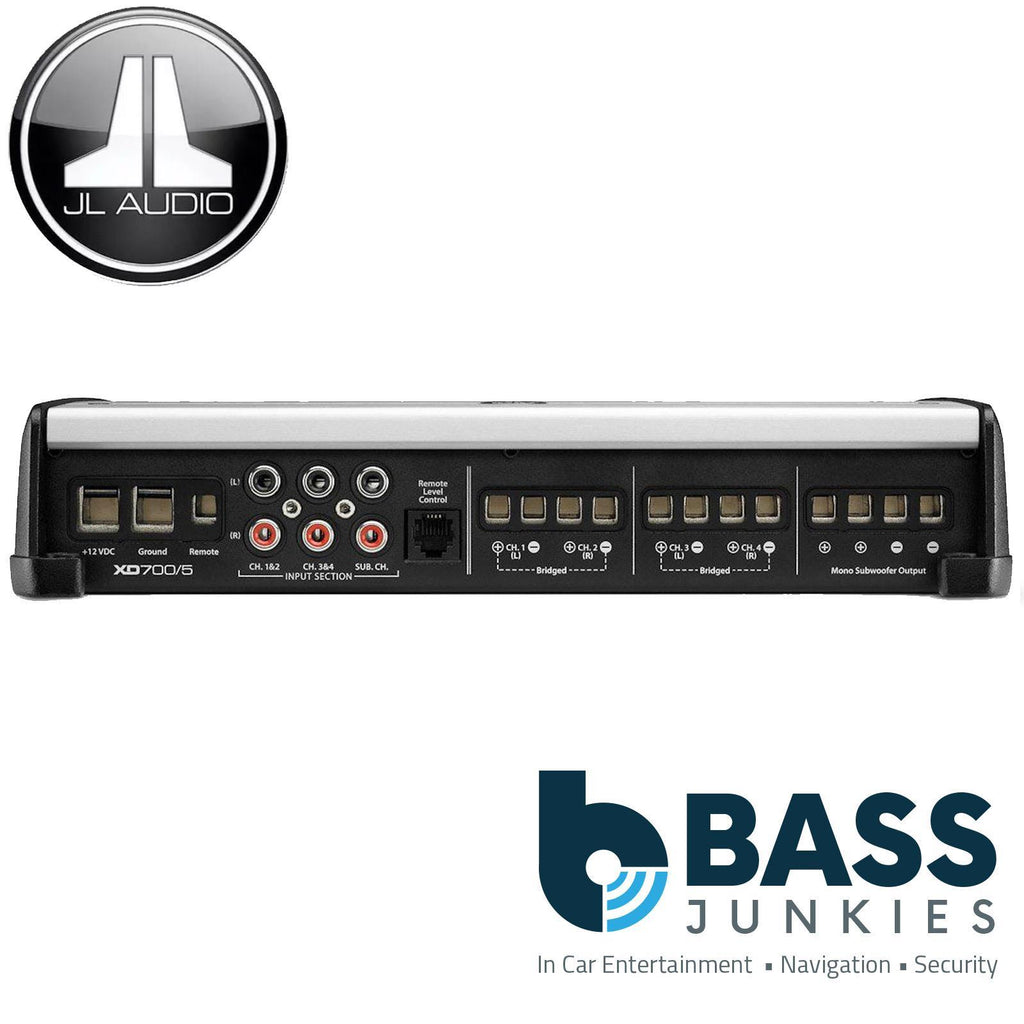

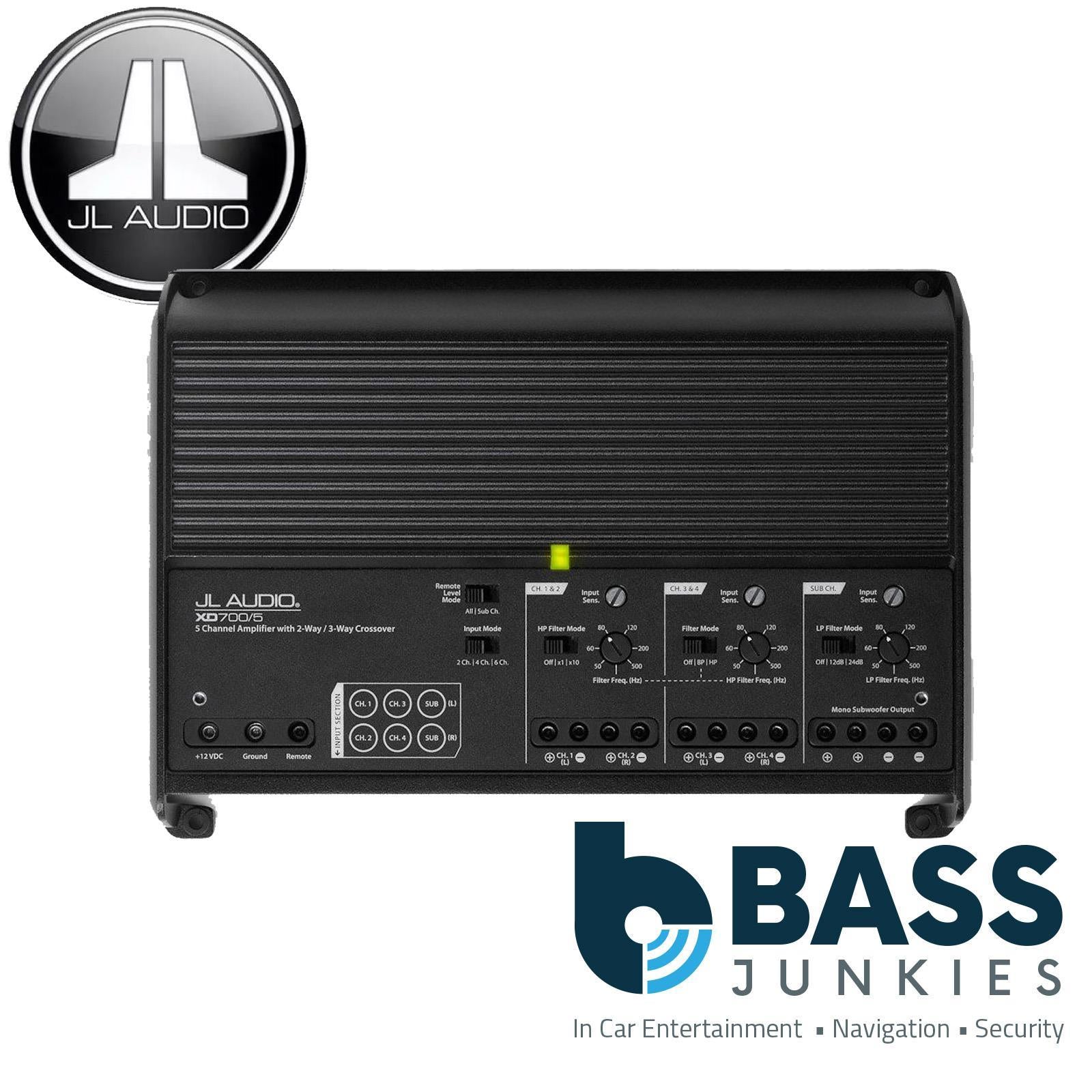

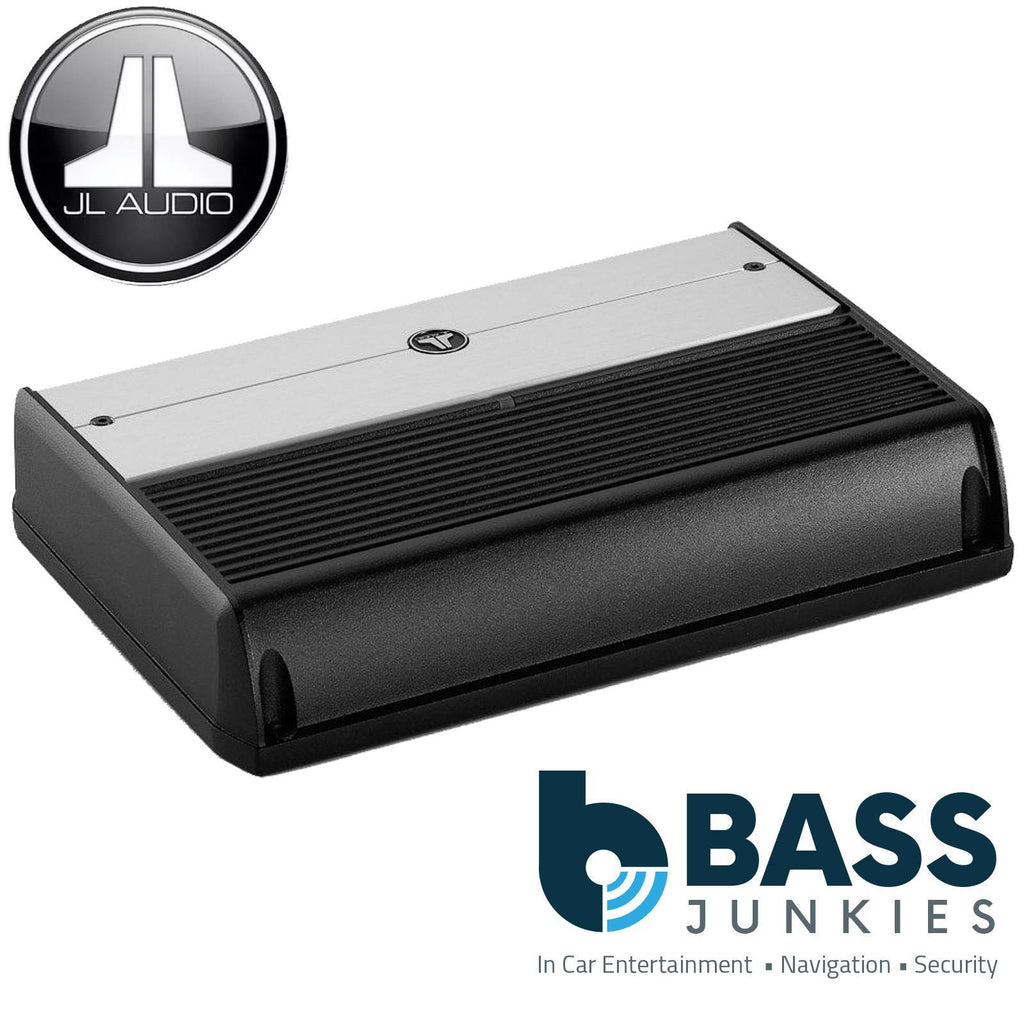

JL Audio XD700/5V2 - XDv2 700 Watts 5 Channel Class D Full Range Amplifier
This power packed amplifier employs JL Audios high-speed NexD switching design to achieve unprecedented efficiency and amazing power output in a very compact chassis. Dont let the small size fool you this amplifier is capable of serious subwoofer power delivering a full 700 Watts of continuous power - amazingly small in size but HUGE in performance!
JL Audio JL XD750/5 Specifications:
- 5 Channel Car Amplifier
- Main Channels @ 4 Ω 75 W RMS x 4
- Main Channels @ 2 Ω 100 W RMS x 4
- Main Channels - Bridged @ 4Ω 200 W RMS x 2
- Subwoofer Channel @ 4 Ω 180 W RMS x 1
- Subwoofer Channel @ 3 Ω 240 W RMS x 1
- Subwoofer Channel @ 2 Ω 300 W RMS x 1
- Subwoofer Channel @ 1.5 Ω N/A
- Frequency Response (Main Channels) 12 Hz - 22 kHz (+0, -1dB)
- Frequency Response (Subwoofer Channel) 10 Hz - 1 kHz (+0, -1dB)
- S/N Ratio, referred to highest rated power (Main Channels) >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Damping Factor @ 4 Ω >150 / 50 Hz
- Damping Factor @ 2 Ω >75 / 50 Hz
- THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch.
- THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch.
- Input Voltage Range @ RCA Inputs 100 mV - 4 V RMS
- Min Copper Power / Ground Wire Gauge 4 AWG wire
Dimensions:
- Height (H) 2.05 in / 52 mm
- Width (W) 10.23 in / 260 mm
- Depth (D) 7.09 in / 180 mm
- Net Weight 6.15 lb / 2.79 kg
