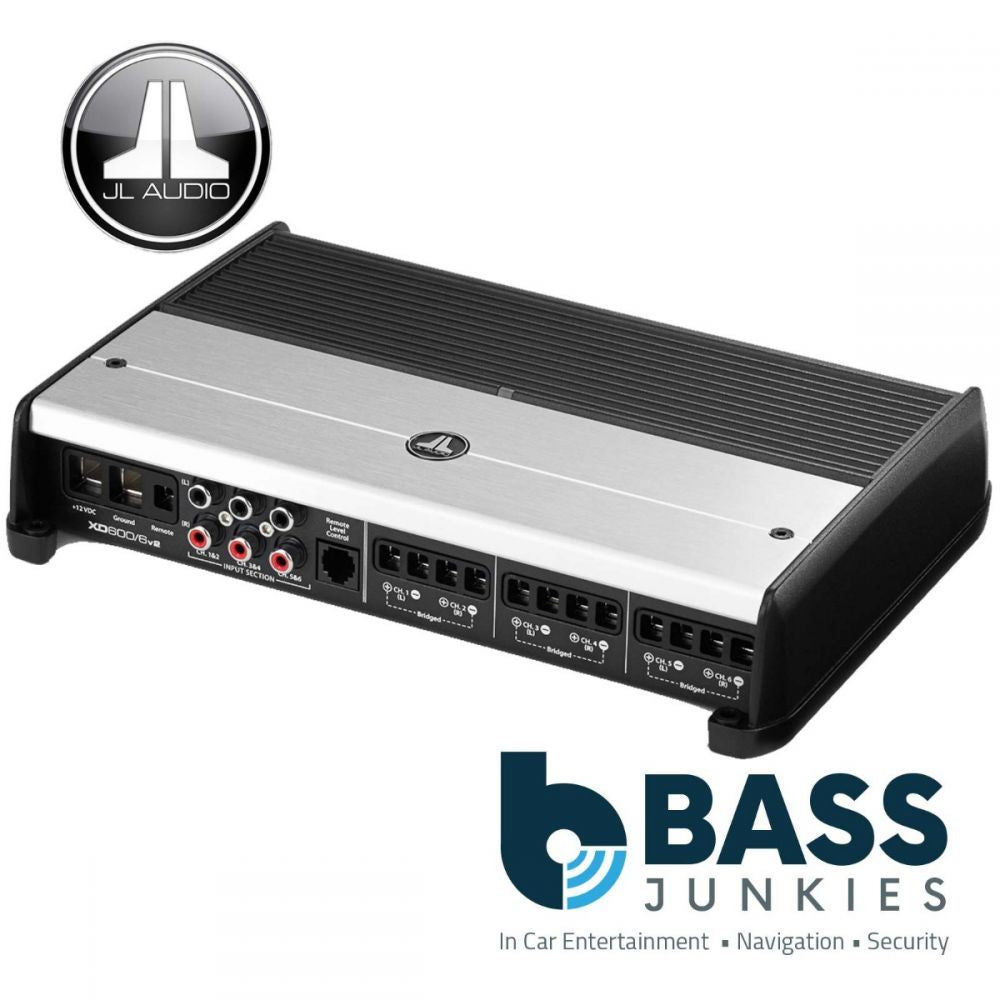

JL Audio XD600/6V2 - XDv2 600W 6 Channel Class D Full Range Amplifier
This power packed monoblock amplifier employs JL Audios high-speed NexD switching design to achieve unprecedented efficiency and amazing power output in a very compact chassis. Dont let the small size fool you this amplifier is capable of serious subwoofer power delivering a full 600 Watts of continuous power - amazingly small in size but HUGE in performance!
Incredibly Compact and Powerful Advanced NexD™ switching technology produces huge, clean power in half the space of conventional amplifiers!
JL Audio JL XD600/6 Specifications:
- Rated Power 14.4 V Stereo: 75W RMS x 6 @ 4 ohms / 100W RMS x 6 @ 2 ohms
- Rated Power 14.4 V Bridged : 150W RMS x 3 @ 8 ohms / 200W RMS x 3 @ 4 ohms
- Rated Power 12.5 V Stereo: 60W RMS x 6 @ 4 ohms / 90W RMS x 6 @ 2 ohms
- Rated Power 12.5 V Bridged: 120W RMS x 3 @ 8 ohms / 180W RMS x 3 @ 4 ohms
- THD at Rated Power: 104 dB referred to rated power (A-weighted, 20 Hz-20 kHz noise bandwidth), >84 dB referred to 1W (A-weighted, 20 Hz-20 kHz noise bandwidth)
- Frequency Response: 12 Hz - 22 kHz (+0, -1dB)
- Damping Factor: >150 @ 4 ohms per ch./ 50 Hz / >75 @ 2 ohms per ch. / 50 Hz
- Input Range: 100mV - 4V RMS
- Dimensions (L x W x H):
- 10.23 in. x 7.09 in. x 2.05 in. / 260 mm x 180 mm x 52 mm
"
