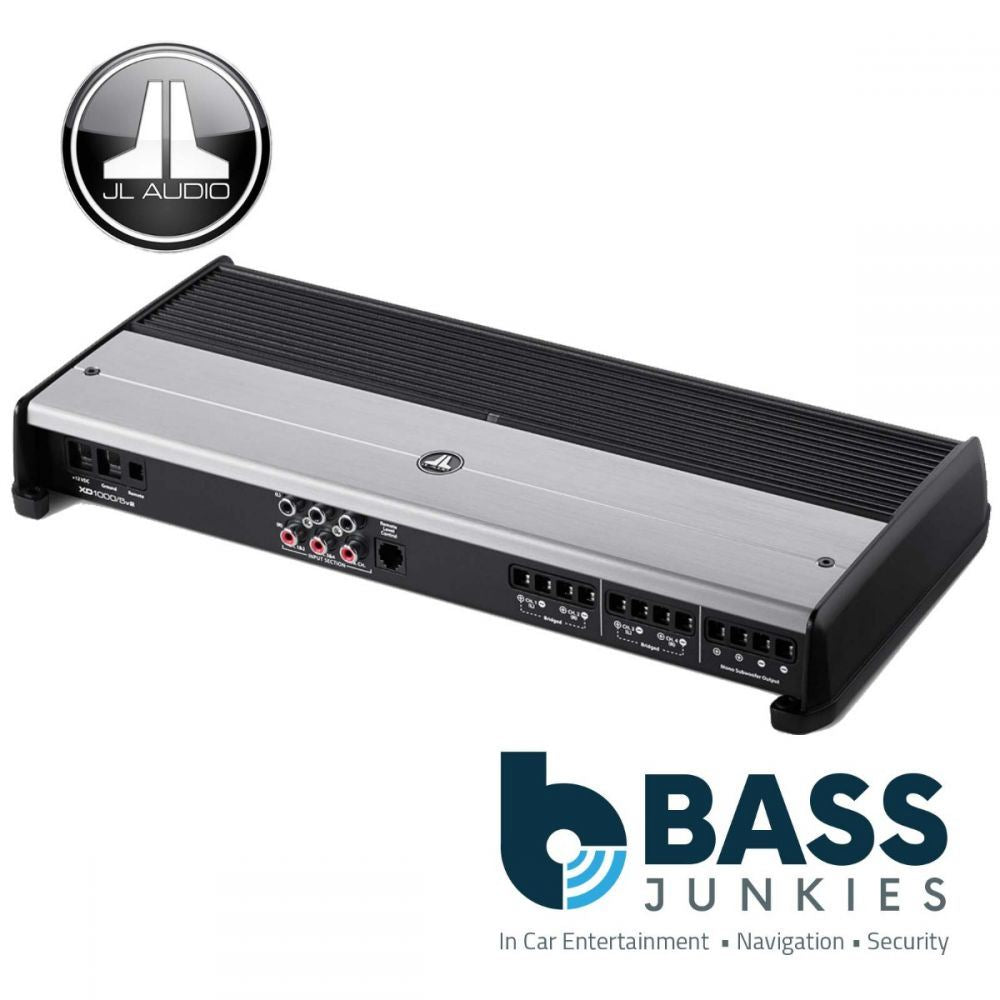

JL Audio XD1000/5V2 - XDv2 1000W 5 Channel Class D Full Range Amplifier
The XD1000/5v2 delivers up to 1000 W of clean power and is ideal for an audiophile-grade, subwoofer + four satellite system. With this potent amplifier, you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 Ω), while also delivering a stout 600 W of power to a subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching amplifier design.
The XD1000/5v2 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An ""x10"" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz.
The XD1000/5v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.
Specifications:
- 5 Channel Car Amplifier
- Main Channels @ 4 Ω 75 W RMS x 4
- Main Channels @ 2 Ω 100 W RMS x 4
- Main Channels - Bridged @ 4Ω 200 W RMS x 2
- Subwoofer Channel @ 4 Ω 400 W RMS x 1
- Subwoofer Channel @ 3 Ω 500 W RMS x 1
- Subwoofer Channel @ 2 Ω 600 W RMS x 1
- Subwoofer Channel @ 1.5 Ω N/A
- Frequency Response (Main Channels) 12 Hz - 22 kHz (+0, -1dB)
- Frequency Response (Subwoofer Channel) 10 Hz - 1 kHz (+0, -1dB)
- S/N Ratio, referred to highest rated power (Main Channels) >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Damping Factor @ 4 Ω >150 / 50 Hz
- Damping Factor @ 2 Ω >75 / 50 Hz
- THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch.
- THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch.
- Input Voltage Range @ RCA Inputs 100 mV - 4 V RMS
- Min Copper Power / Ground Wire Gauge 4 AWG wire
Dimensions:
- Height (H) 2.05 in / 52 mm
- Width (W) 14.73 in / 2374 mm
- Depth (D) 7.09 in / 180 mm
- Net Weight 6.15 lb / 2.79 kg
"
