JL Audio VX800/8I 800 Watts 8-Channel Class D Car Amplifier with Integrated DSP
8-Channel Class D Full-Range Amplifier with Integrated DSP, 100 W x 8 @ 2 Ω / 75 W x 8 @ 4 Ω - 14.4V
Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.
With our second-generation NexD2™ technology, the VX800/8i full-range amplifier outputs up to 75 watts per channel into 4 ohms, or 100 watts into 2 ohms. It can also be bridged into 4 ohms to deliver a powerful 200 W x 4.
The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.
Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.

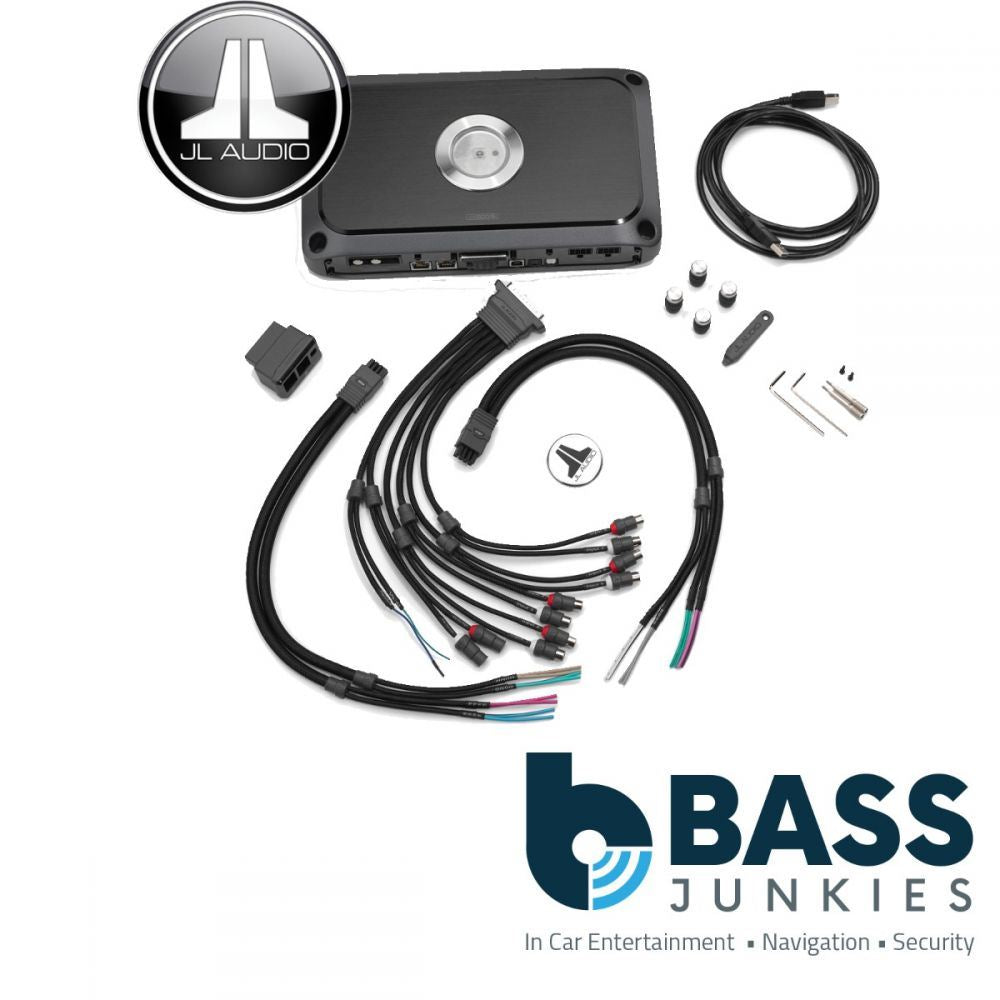

What's Included:
- Power Connector (for 2 AWG wire)
- Analog Input/Pre-Out Harness
- Speaker Output Harnesses
- 6 ft A/B USB Cable
Specifications:
Rated Continuous (RMS) Power @ 14.4 V
| @ 4 Ω |
75 W RMS x 8 |
| @ 2 Ω |
100 W RMS x 8 |
| Bridged @ 4Ω |
200 W RMS x 4 |
Rated Continuous (RMS) Power @ 12.5 V
| @ 4 Ω |
60 W RMS x 8 |
| @ 2 Ω |
90 W RMS x 8 |
| Bridged @ 4Ω |
180 W RMS x 4 |
General Specifications:
| Damping Factor @ 4 Ω |
>100 / 50 Hz |
S/N Ratio, referred to highest rated power
(Analog Inputs)
|
99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
S/N Ratio, referred to 1 W
(Digital Inputs)
|
82 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
S/N Ratio, referred to 1 W
(Analog Inputs)
|
80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
S/N Ratio, referred to highest rated power
(Digital Inputs)
|
101 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Min.Copper Power / Ground Wire Gauge |
4 AWG wire |
| THD+N @ Rated Power |
<1% @ 2 Ω per Ch. |
| Frequency Response |
12 Hz - 24 kHz (+0, -1dB) |
| Damping Factor @ 2 Ω |
>50 / 50 Hz |
| Fuse Rating |
80 A (AFS, AGU or MaxiFuse™) |
| Input Voltage Range @ RCA Inputs |
200 mV - 16 V RMS |
"
