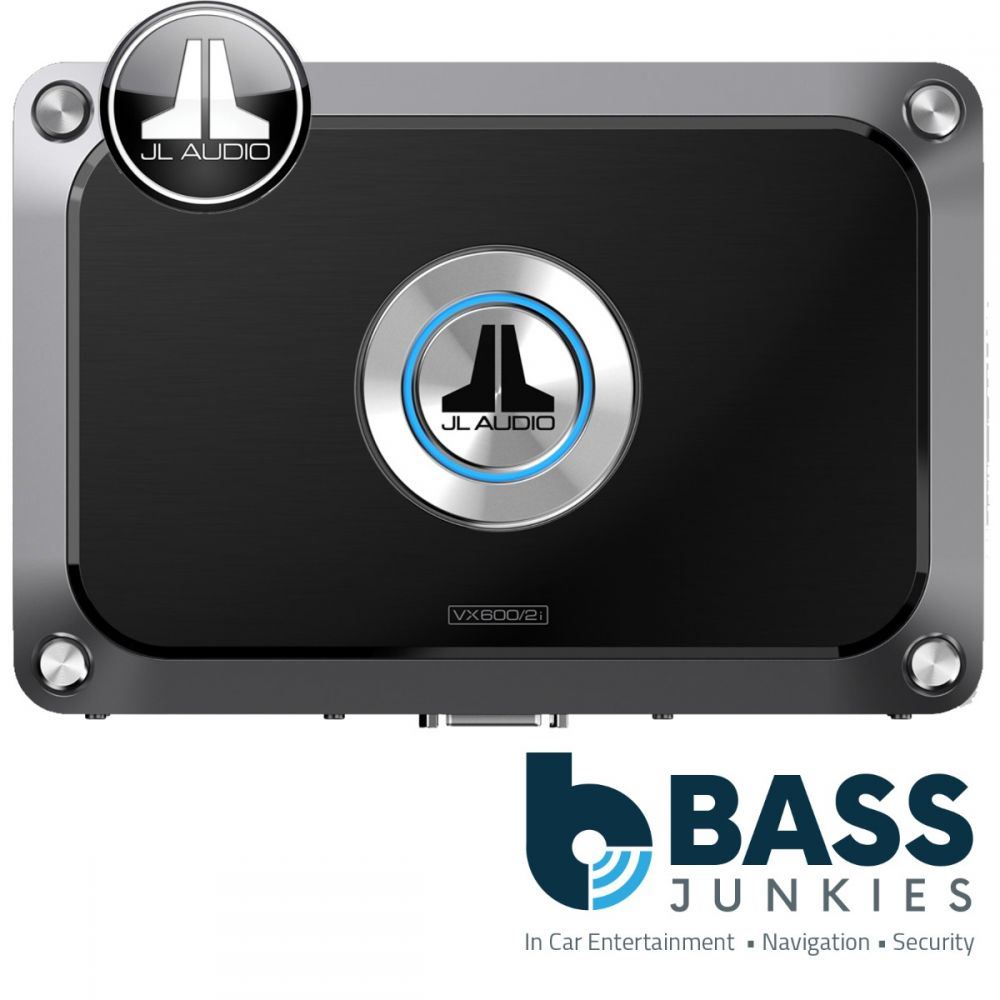

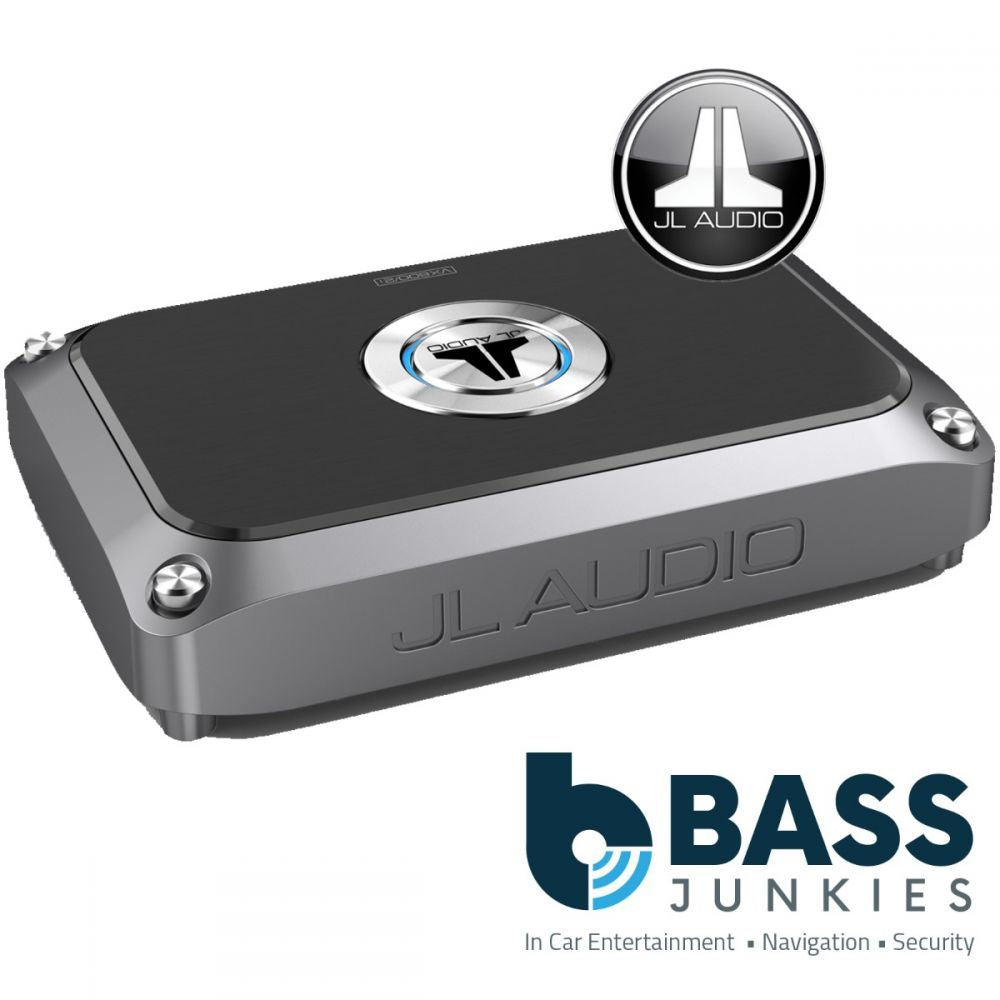

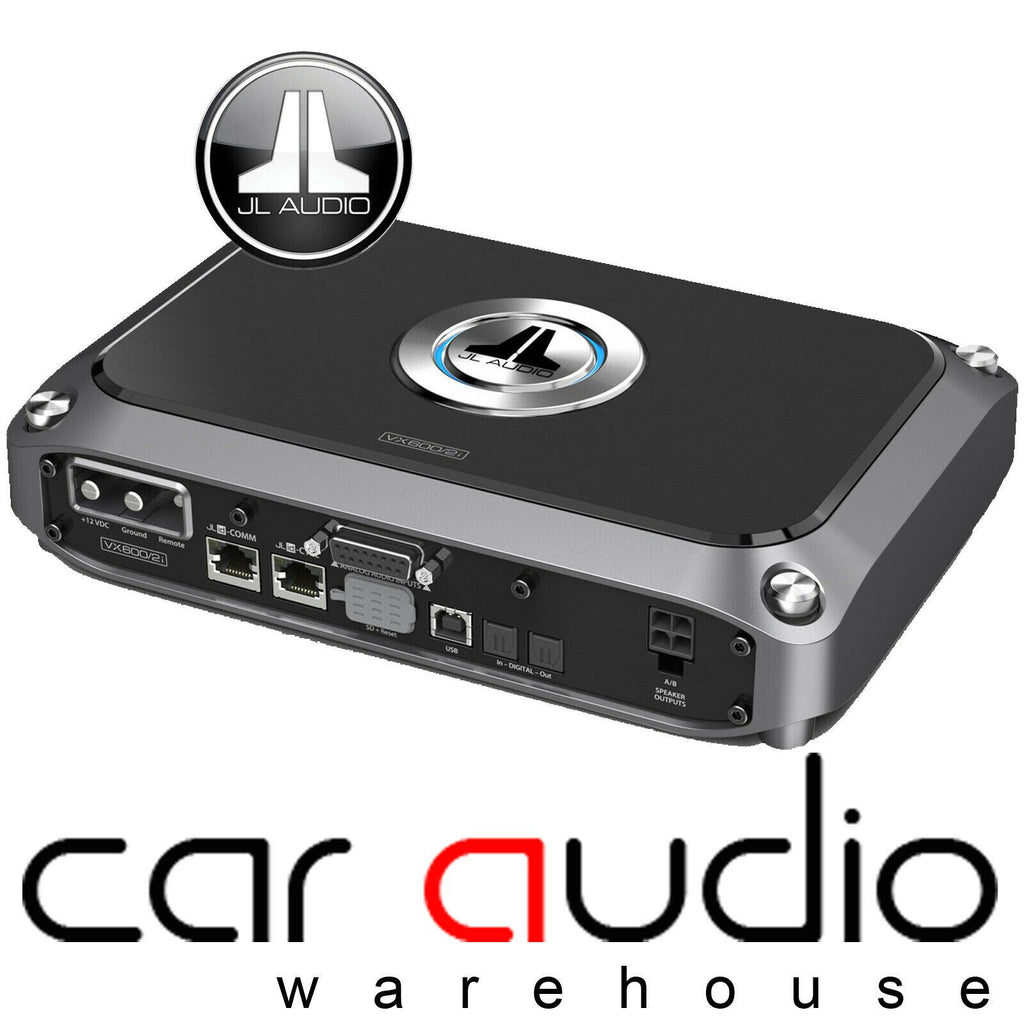

JL Audio VX600/2I 600 Watts 2-Channel Class D Car Amplifier with Integrated DSP
2-Channel Class D Full-Range Amplifier with Integrated DSP, 300 W x 2 @ 2 Ω / 180 W x 2 @ 4 Ω - 14.4V
Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.
With our second-generation NexD2™ technology, the VX600/2i full-range amplifier outputs up to 180 watts per channel into 4 ohms, or a powerful 300 watts into 2 ohms. It can also be bridged into 4 ohms to generate a stunning 600 W x 1.

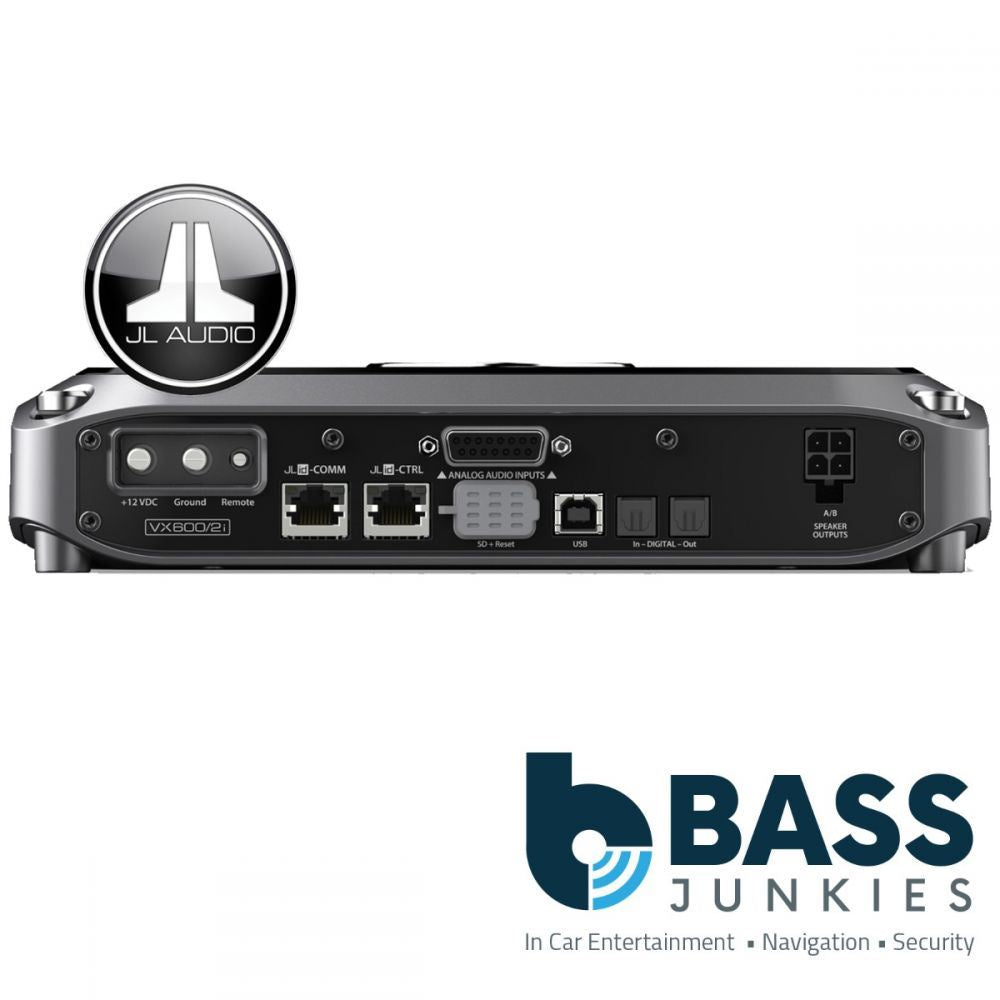

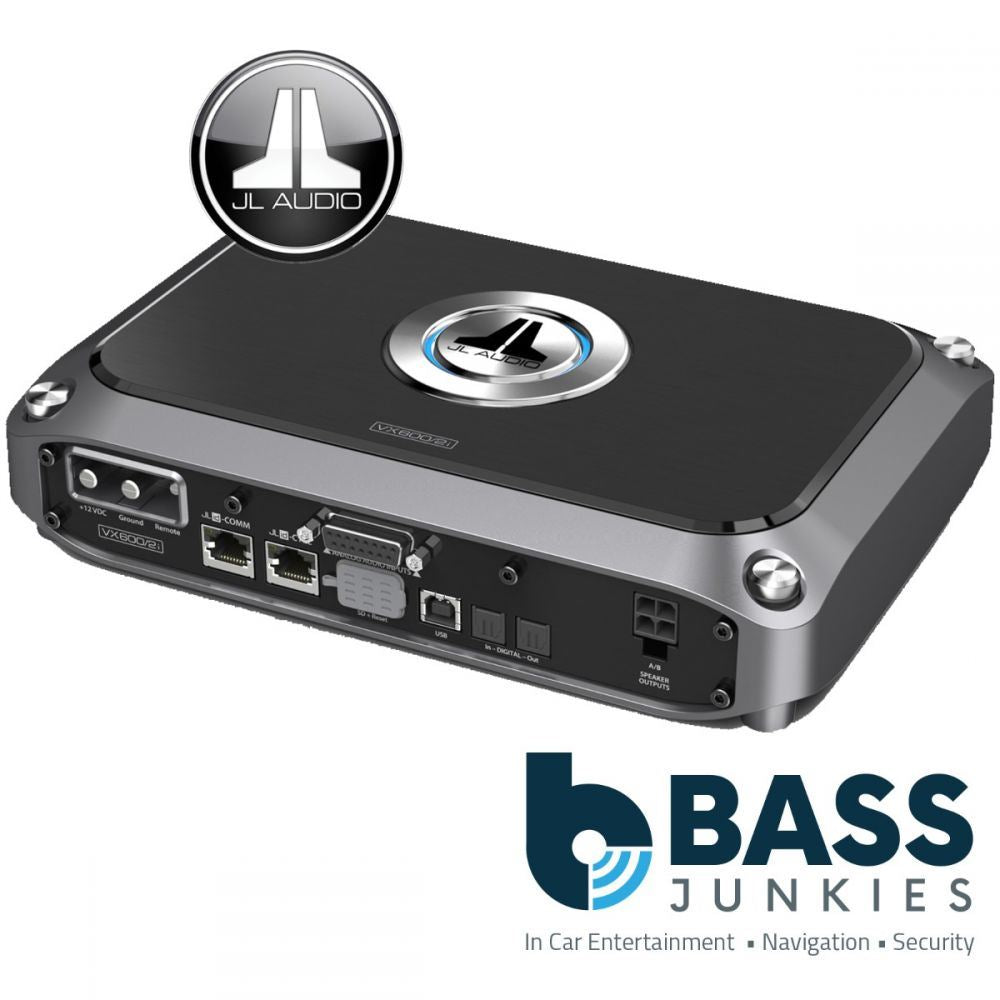

The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.
Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.

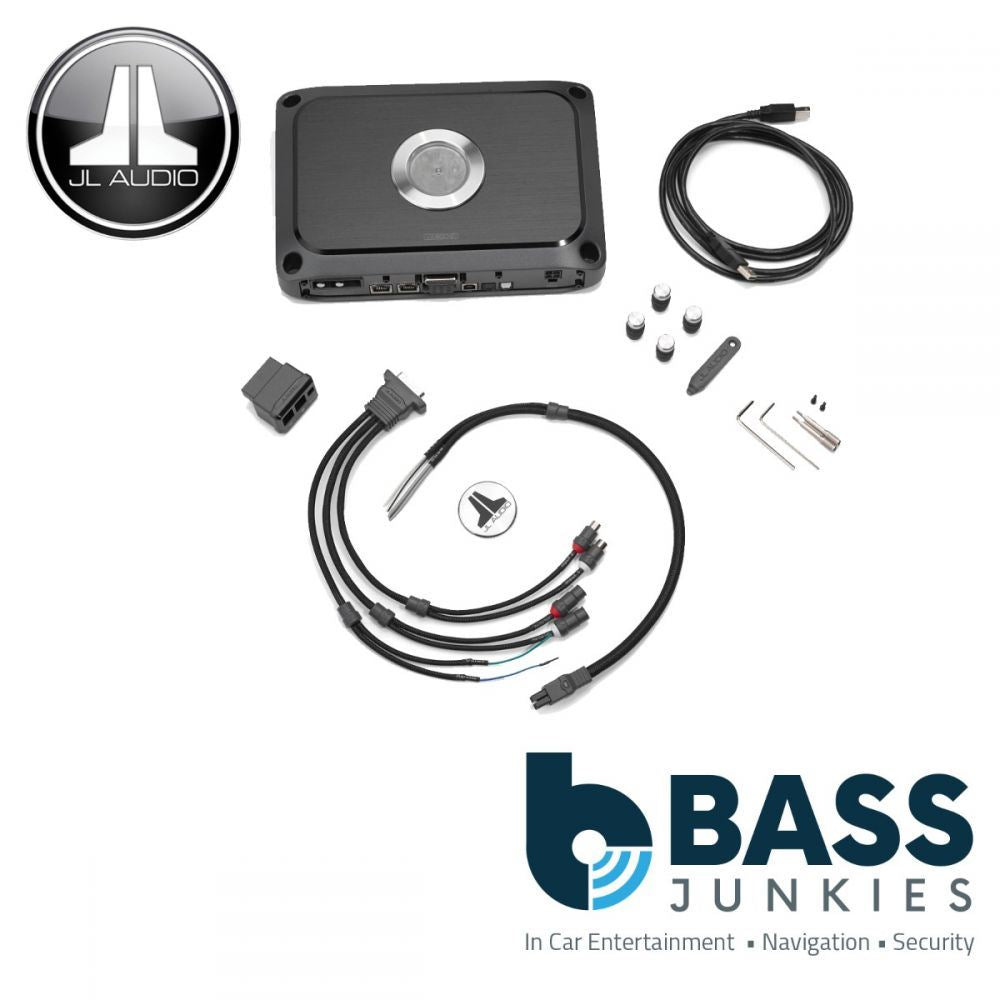

What's Included:
- Power Connector (for 4 AWG wire)
- Analog Input/Pre-Out Harness
- Speaker Output Harness
- 6 ft A/B USB Cable
Specifications:
Rated Continuous (RMS) Power @ 14.4 V
| Bridged @ 4Ω |
600 W RMS x 1 |
| @ 4 Ω |
180 W RMS x 2 |
| @ 2 Ω |
300 W RMS x 2 |
Rated Continuous (RMS) Power @ 12.5 V
| @ 4 Ω |
140 W RMS x 2 |
| Bridged @ 4Ω |
450 W RMS x 1 |
| @ 2 Ω |
225 W RMS x 2 |
General Specifications:
S/N Ratio, referred to 1 W
(Digital Inputs)
|
78 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Fuse Rating |
50 A (AFS, AGU or MaxiFuse™) |
| Input Voltage Range @ RCA Inputs |
200 mV - 16 V RMS |
S/N Ratio, referred to highest rated power
(Analog Inputs)
|
99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| THD+N @ Rated Power |
<1% @ 2 Ω per Ch. |
| Damping Factor @ 2 Ω |
>50 / 50 Hz |
| Frequency Response |
12 Hz - 24 kHz (+0, -1dB) |
S/N Ratio, referred to 1 W
(Analog Inputs)
|
76 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
S/N Ratio, referred to highest rated power
(Digital Inputs)
|
100 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω |
>100 / 50 Hz |
| Min.Copper Power / Ground Wire Gauge |
4 AWG wire |
"
