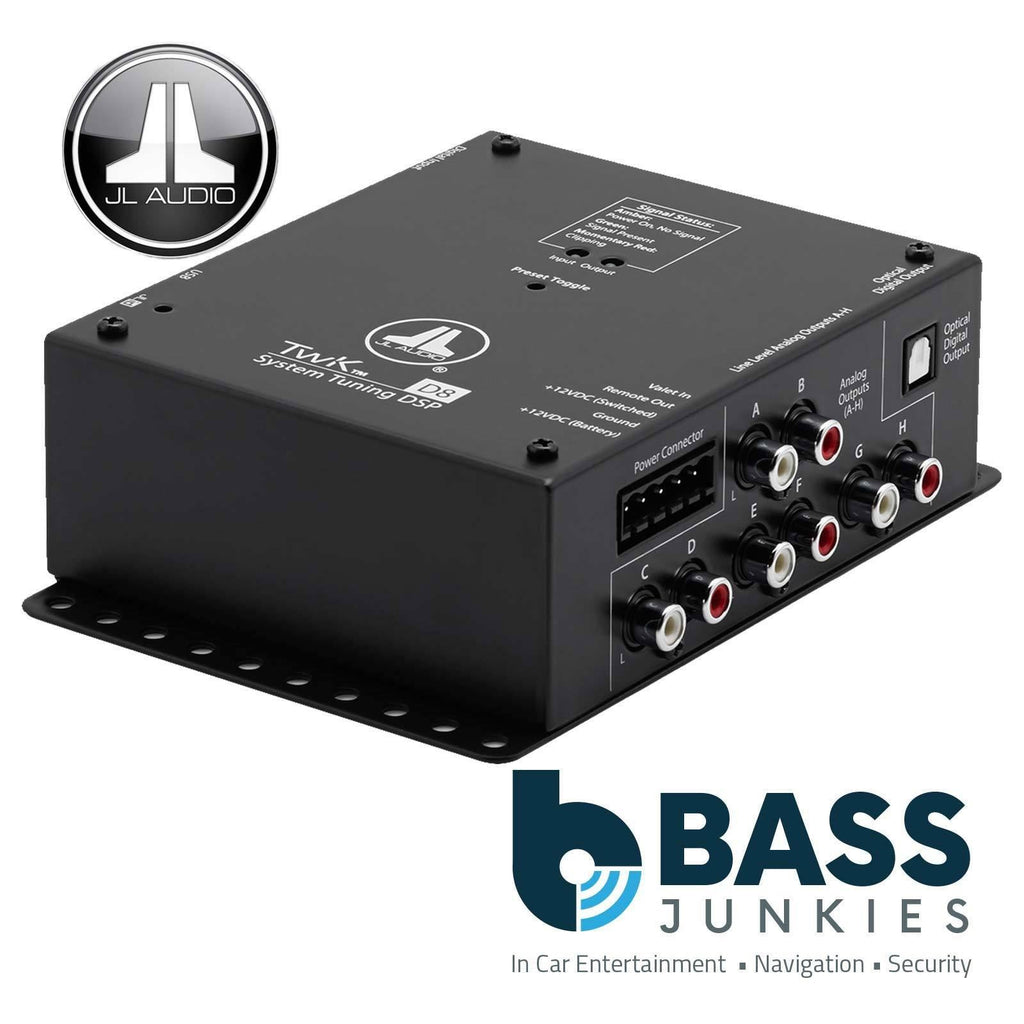

JL Audio TWK-D8 - System Tuning DSP Controlled By Tun Software - Digital Input
Specifications:
- 8-channel digital signal processor with optical digital input
- DSP adjustments and settings made via computer running JL Audio's TwK-TuN app
- Three Project Levels of tuning:
- Basic: (10-minute set-up time) guided channel setups, basic crossover functions, 10-band graphic EQ, no delay
- Advanced: (30-60-minute set-up time) adds crossover options, limited parametric EQ, delay functions
- Expert: full manual controls with input mixer, parametric EQ, signal diagnostics
- optical digital input only
- 8 analog preamp outputs (RCA), 1 digital output (optical)
- all input channels assignable to any output channel
- channel settings can be separate or linked together
- 10-band EQ (graphic in Basic, parametric in Advanced and Expert modes)
- time alignment in 0.02 ms increments
- fully adjustable high- and low-pass filters
- selectable filter slopes (6, 12, 18, 24, 30, 36, 42, 48 dB/octave)
- DRC-200 wired remote control included
- dimensions: 4-5/16"W x 1-7/8"H x 5-1/4"D
