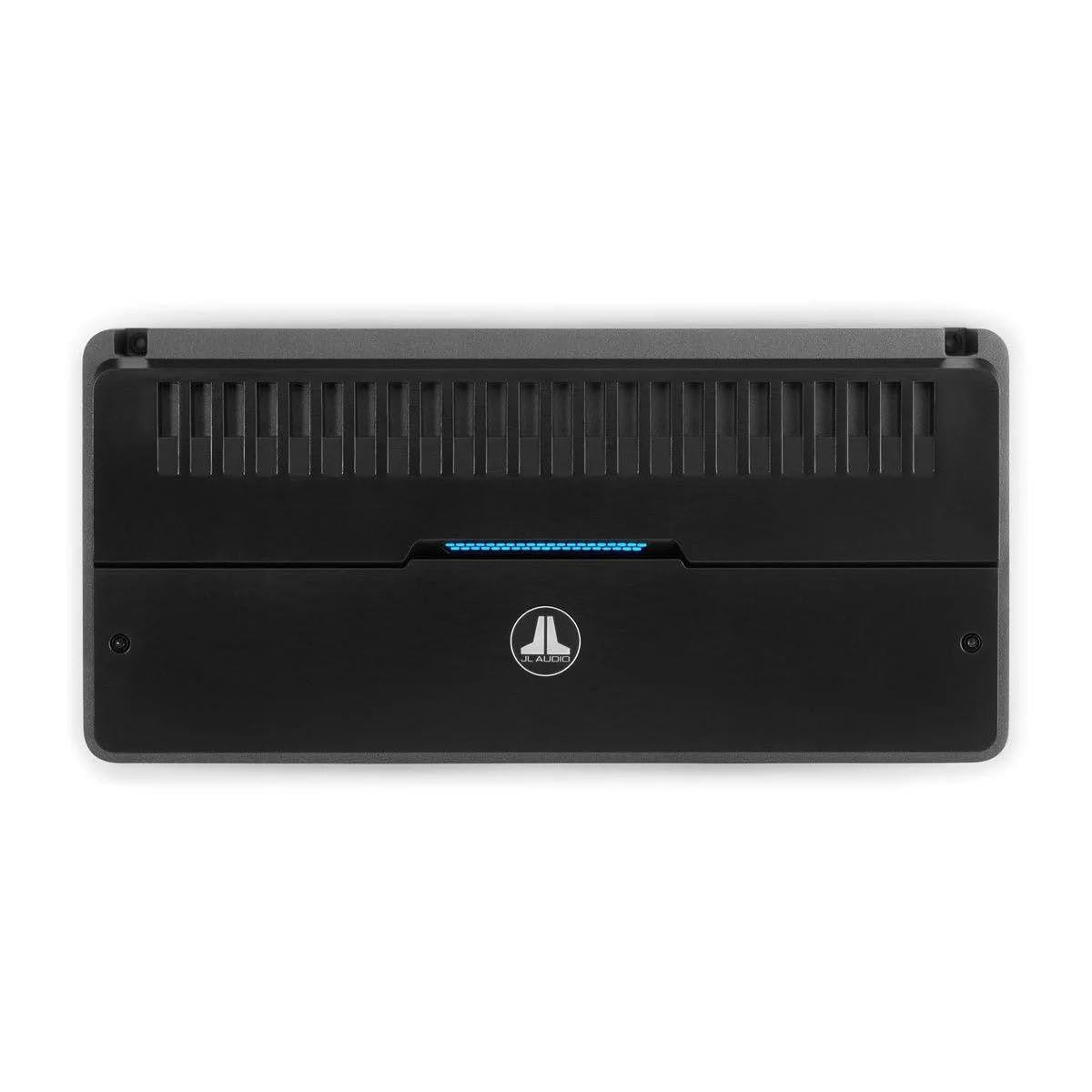

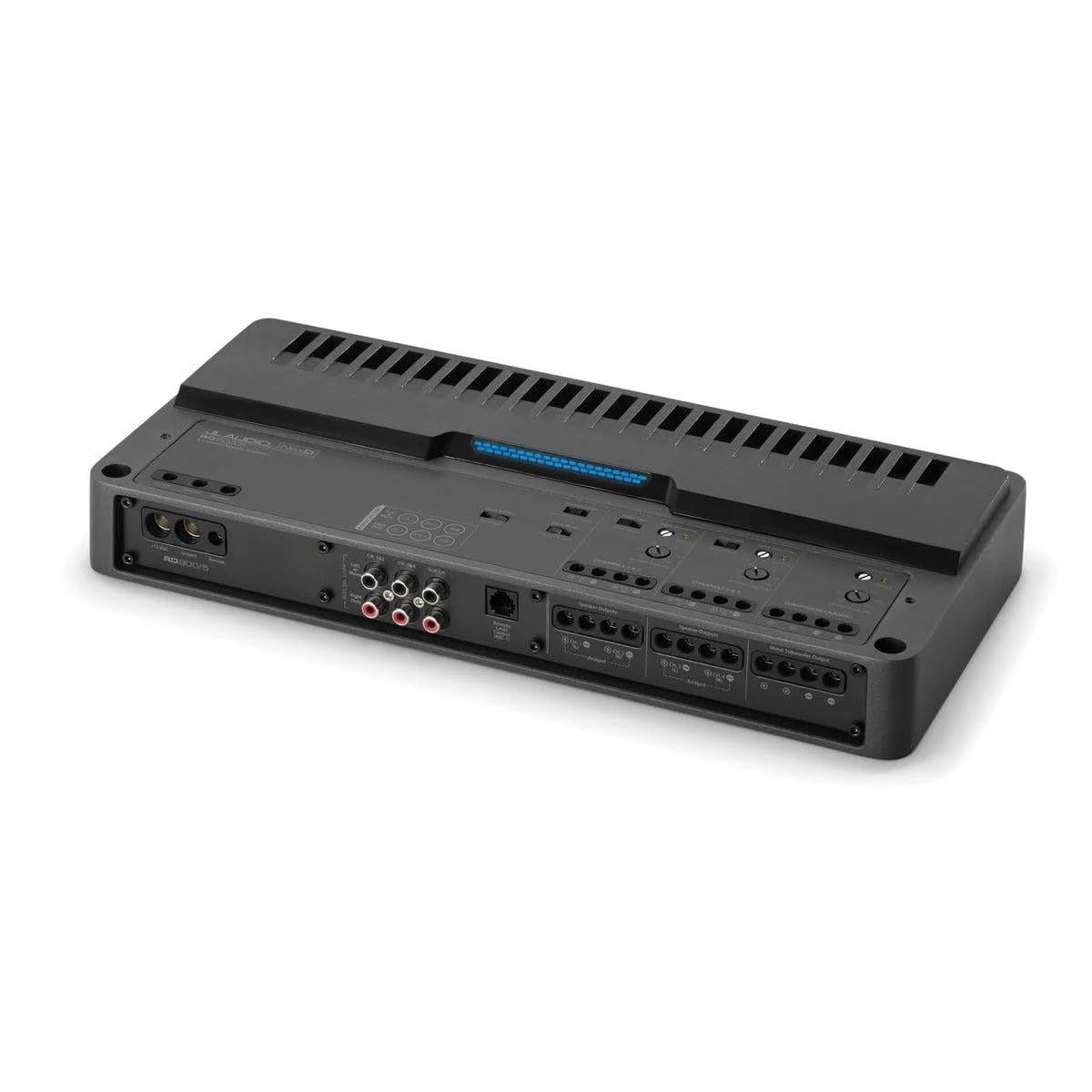

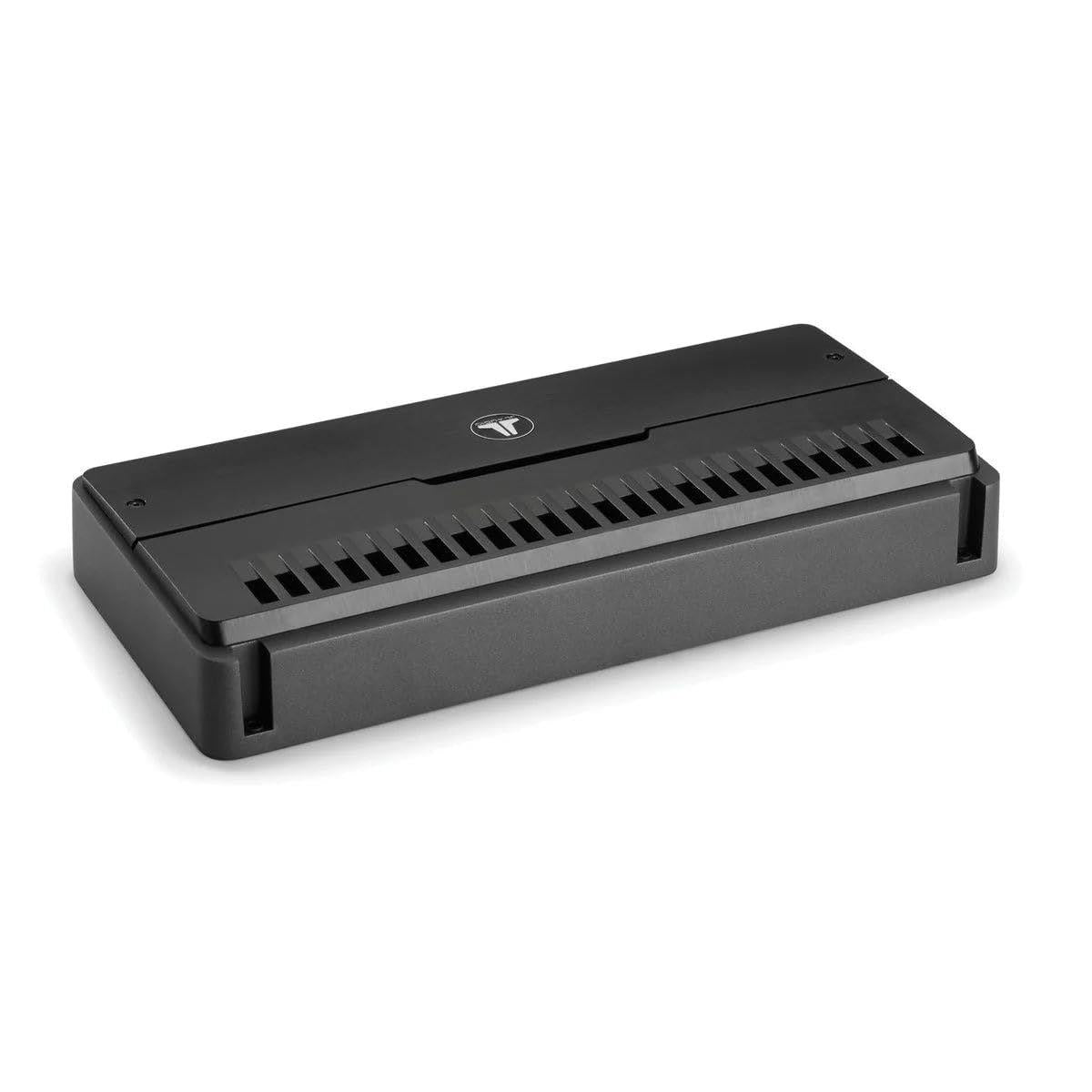

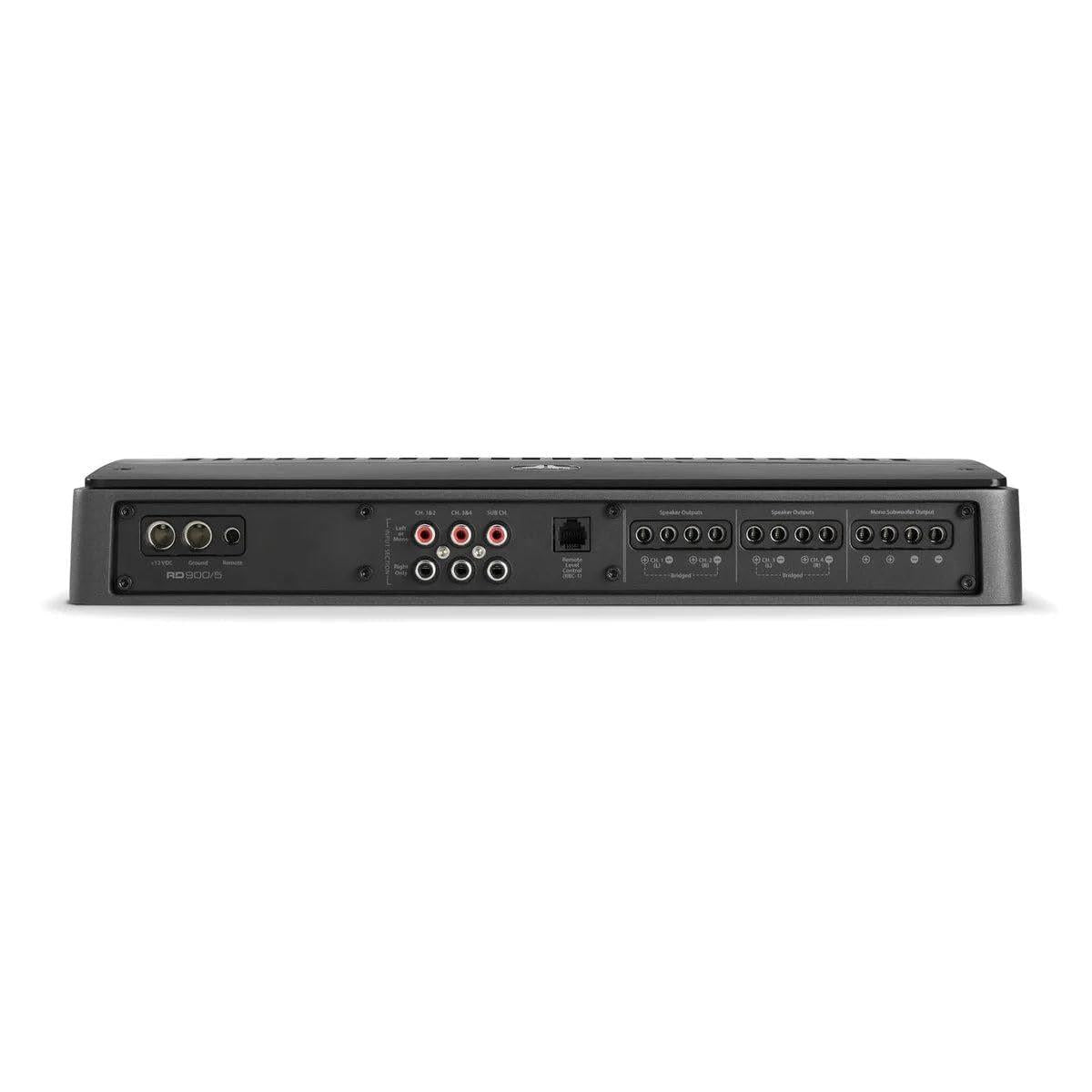

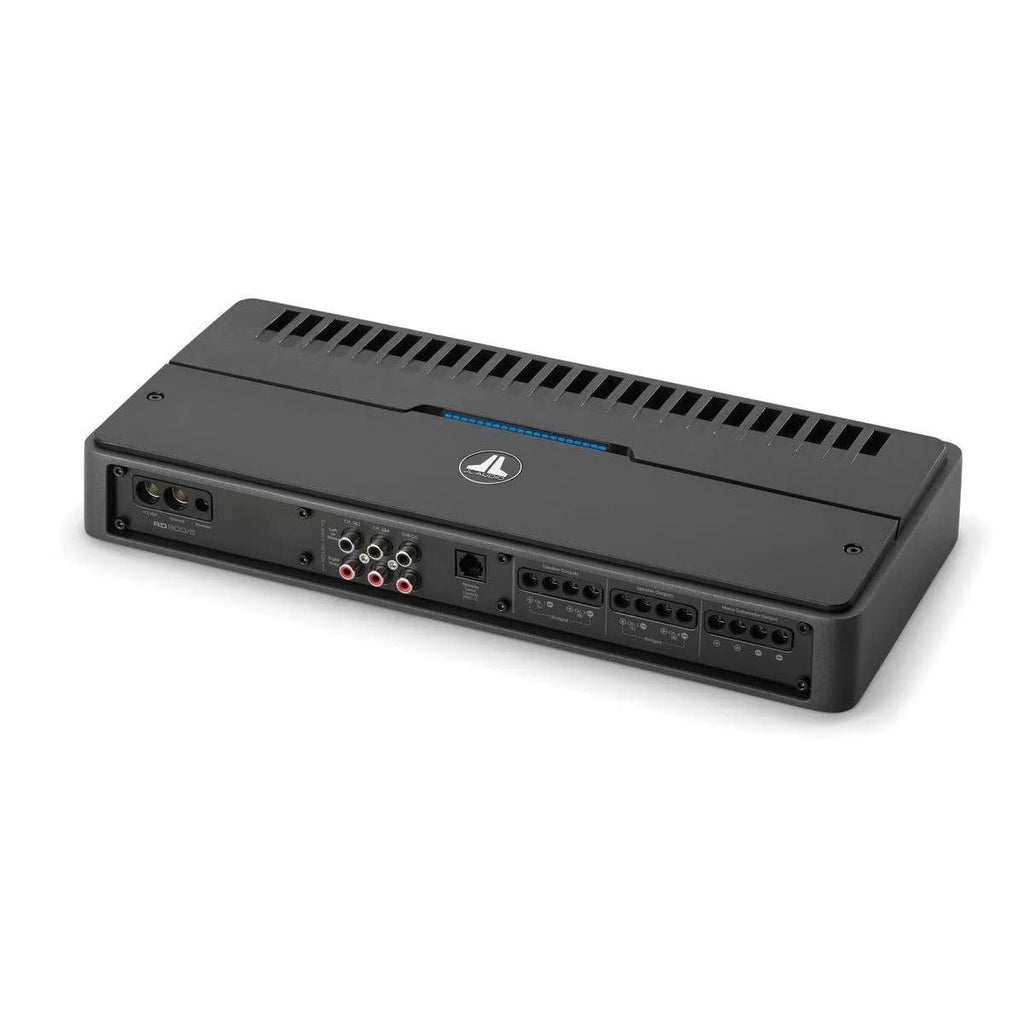

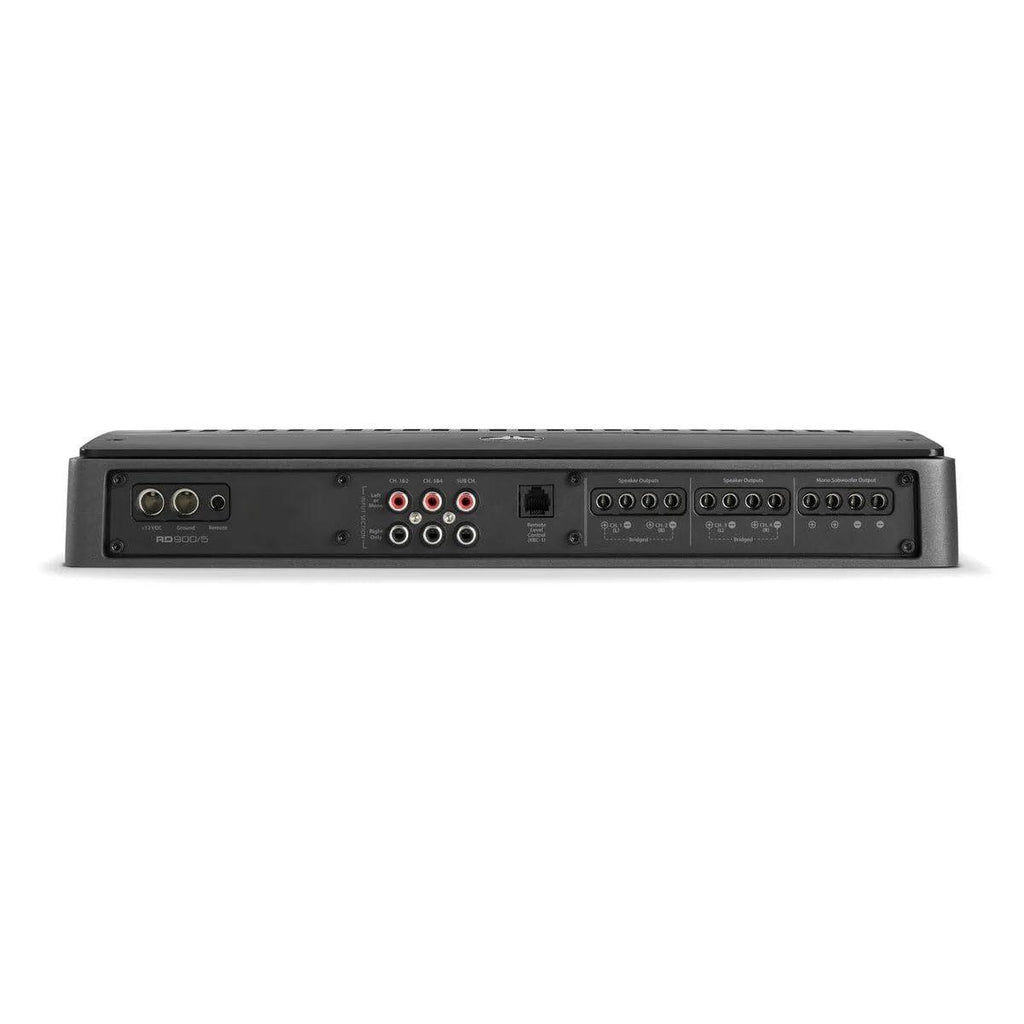

JL Audio RD900/5 PLUS - 900 Watts 5 Channel Class D Car Speaker & Subwoofer Amplifier
The look is amazing, and the performance backs it up. Designed as a total “one-box solution,” this RD series amplifier from JL Audio can comfortably drive a complete 4-satellite speaker system plus a subwoofer — all with a robust 900 watts of power.
Small size, minimal heat and lots of power — Class-D amplifier design offers significant advantages. And our NexD™ switching technology adds even more, using enhanced pulse width modulation techniques to boost the amplifier’s bandwidth while minimizing distortion and improving efficiency.
Churning out 900 watts of total power — 100 watts from each of its 4 channels into a 2-ohm load (14.4 volts, 1% THD) plus a robust 500 watts for a subwoofer — this RD series amp brings stunning output to your audio system. Each pair of main channels is also fully bridgeable, enabling an ultrapowerful 3-channel amplifier setup.
Each of the amplifier’s main channels is equipped with a 12-decibel/octave high-pass filter, with an additional band-pass filter on its rear channels and a dedicated low-pass filter for the subwoofer channel. All 3 crossovers offer continuously variable frequency selection from 50–500 Hz for precise filtering.

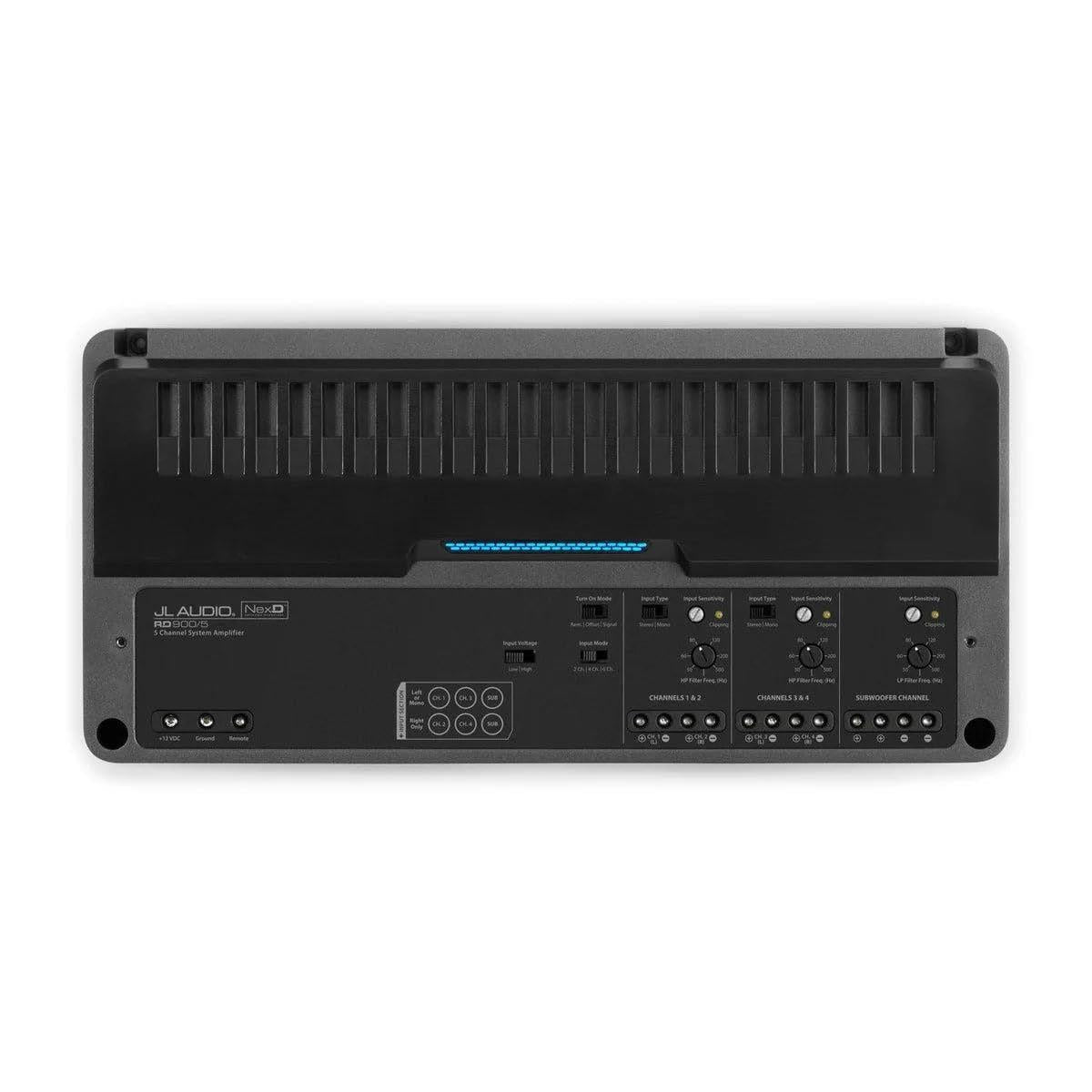

An LED clipping indicator light on the control panel lets you quickly set your amplifier’s input sensitivity, without the need for additional test equipment.
With “input type” switches on the stereo channel sections, RD series amps can eliminate the need for Y-adapters when bridging stereo output channels.
When used as a system amplifier, the band-pass crossover feature enables a two-way active configuration.
Features
- Operating voltage: 10-16 VDC negative ground
- Operating temperature: from -20°C to 65°C
- Amplifier class: Class D
- Frequency response: Main channels: 12 Hz - 22 kHz (+0, -1 dB); Subwoofer channel: 10 Hz - 500 Hz (+0, -1 dB)
- Rated power output @ 14.4 VDC input < 1% THD+N: Main channels @ 4 Ω: 70 W RMS x4; Subwoofer channel @ 4 Ω: 225 W RMS x1; Main channels @ 2 Ω: 100 W RMS x4; Subwoofer channel @ 2 Ω: 500 W RMS x1; Main channels @ 4 Ω bridged: 200 W RMS x2
- Input sensitivity: 200 mV - 8 V RMS, adjustable
- Input type: Differential-balanced
- Signal to noise ratio (A-weighted, 20 Hz - 20 kHz noise bandwidth): Main channels: > 104 dB (referred to rated power), > 84 dB (referred to 1 W); Subwoofer channel: > 103 dB (referred to rated power), > 83 dB (referred to 1 W)
- Damping factor: Main channels: > 150 @ 4 Ω / 50 Hz, > 75 @ 2 Ω / 50 Hz; Subwoofer channel: > 120 @ 4 Ω / 50 Hz, > 60 @ 2 Ω / 50 Hz
- Filter type: Channels 1 and 2: Active, 12 dB/octave, high-pass; Channels 3 and 4: Active, 12 dB/octave, high-pass or bandpass; Subwoofer channel: Active, 12 dB/octave, low-pass
- Filter frequency: Channels 1 and 2: 50 Hz - 5 kHz, adjustable; Channels 3 and 4: 50 Hz - 500 Hz, adjustable; Subwoofer channel: 50 Hz - 500 Hz, adjustable
- Recommended fuse: 80 A
- Protection circuits: Input under/over voltage, Over temperature, Output short circuit
- In the box: RD 5-channel system amplifier, Hex wrench, Documentation
