JL Audio HD900/5 - 100 Watts x 4 + 500 W x 1 Class D 5-Channel Car Amp Amplifier

JL Audio HD900/5 - 100 Watts x 4 + 500 W x 1 Class D 5-Channel Car Amp Amplifier

5-Channel Class D System Amplifier, 100 W x 4 + 500 W x 1

Thanks to its ability to act as a "one-box solution", the HD900/5 is ideal for installations where space is at a premium and sound quality is the paramount goal.

While extremely compact, this amazing amplifier will comfortably drive a complete high-performance car audio system: that is, four satellite speaker systems and a subwoofer system... with a very serious 900 watts of power!

Using our Single Cycle Control switching design and R.I.P.S. technology, the HD900/5 delivers 100 W x 4 to its four main channels, plus a very meaty 500 W to its subwoofer channel. Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion down, maximizing sound quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.

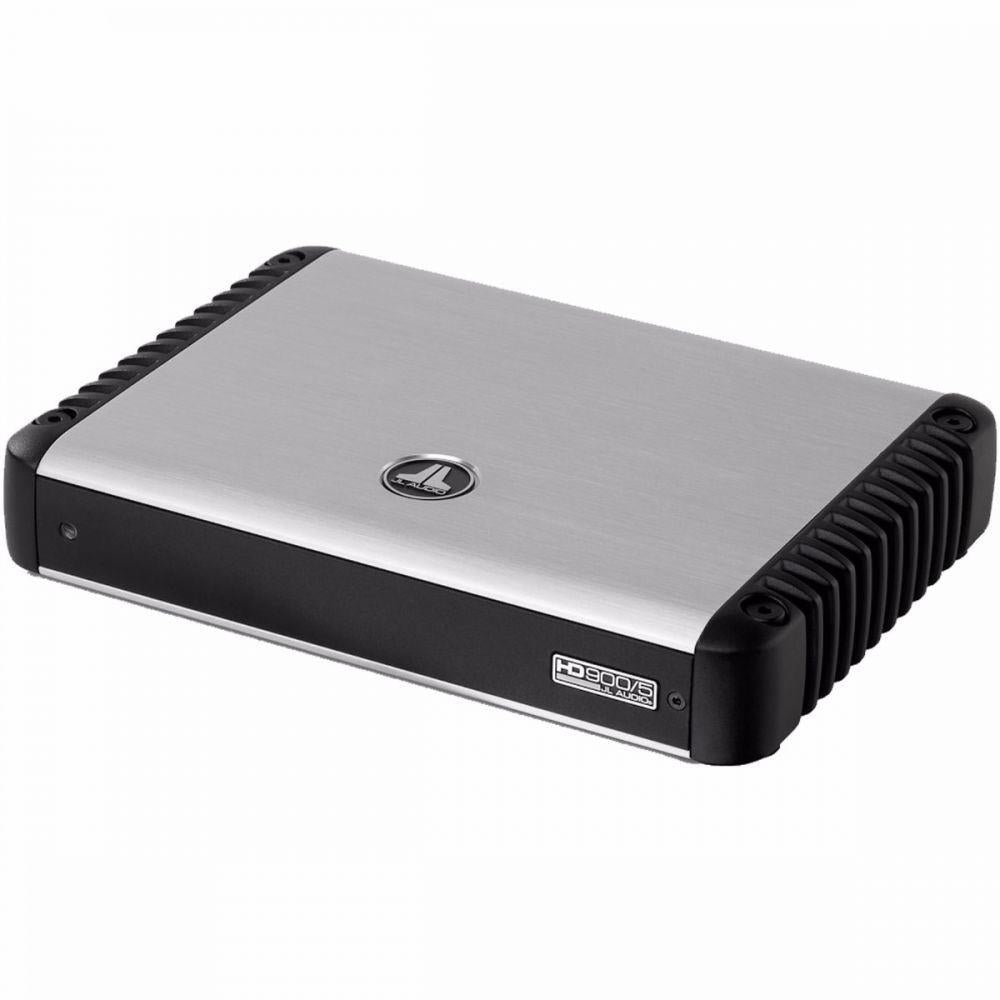

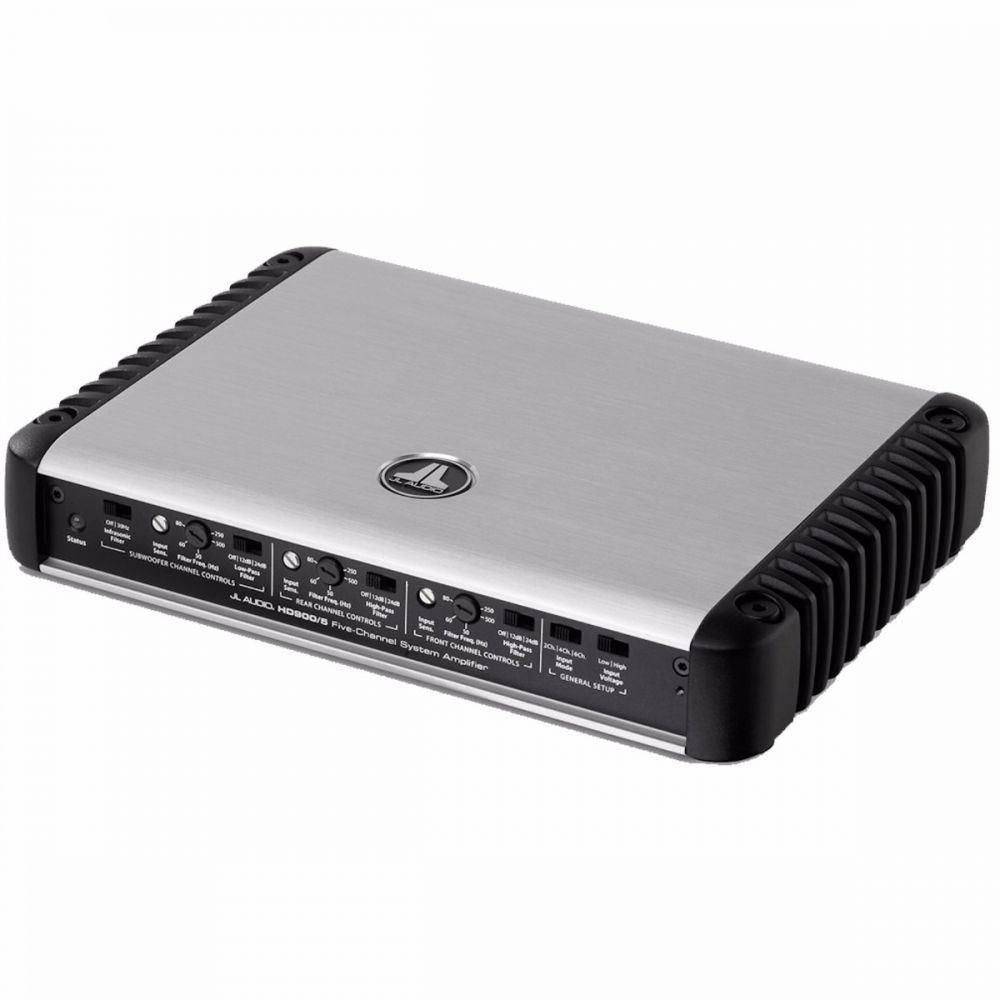

This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.

• Frequency Response (Main Channels): 12 Hz - 28 kHz (+0, -1 dB)
• Frequency Response (Subwoofer Channel): 12 Hz - 10 kHz (+0, -1 dB)
• S/N Ratio, referred to highest rated power (Main Channels): > 108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W (Main Channels): > 88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• Damping Factor @ 4 Ω: > 400 / 50 Hz
• Damping Factor @ 2 Ω: > 200 / 50 Hz
• THD+N @ Rated Power (Main Channels): < 0.03% @ 4 Ω
• THD+N @ Rated Power (Subwoofer Channel): < 0.05% @ 4 Ω
• Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
• Min. Copper Power / Ground Wire Gauge: Accepts up to 4 AWG wire
• Fuse Rating: 60 A (AFS, AGU or MaxiFuse™)
