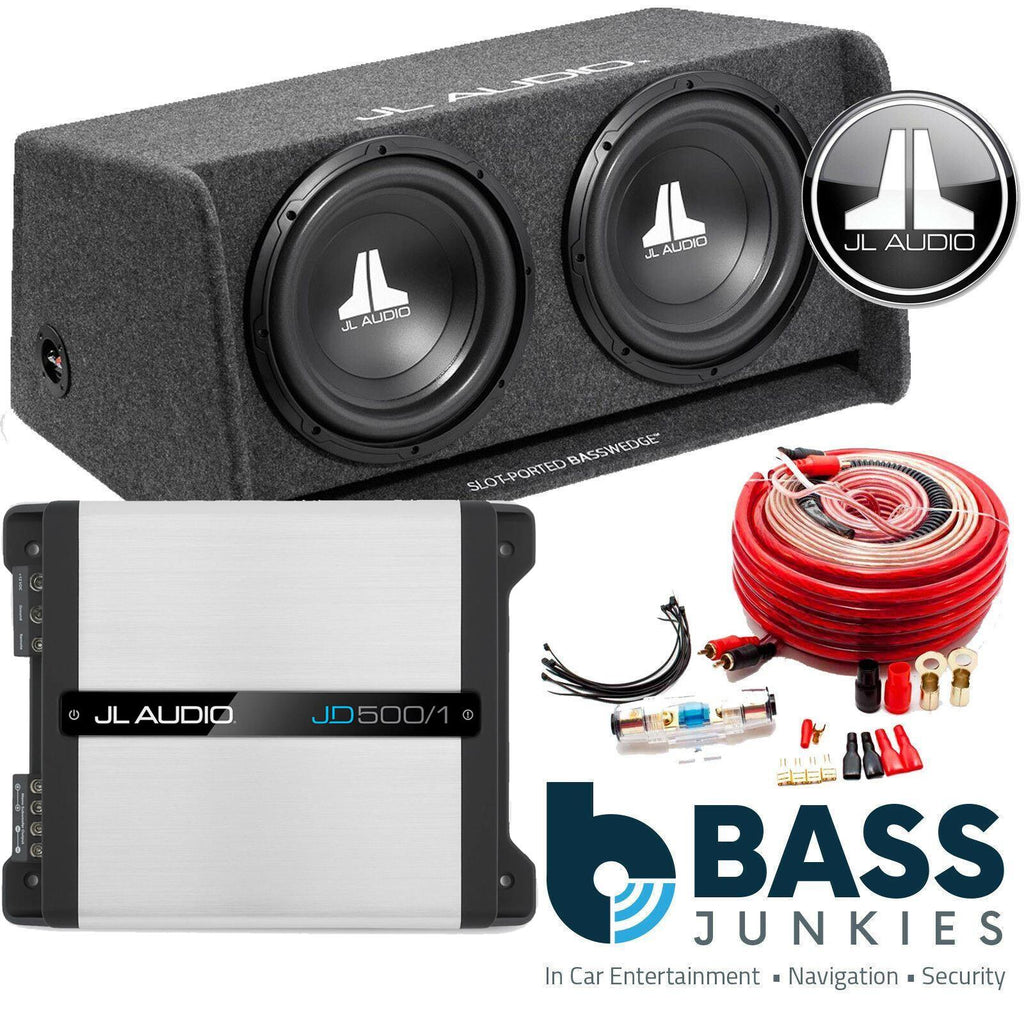

JL Audio CP212-W0V3 - Twin 12 inch 600 Watts Ported Enclosure Subwoofer Bass Box & JL Audio JD500.1 Amplifier with Complete Wiring Kit

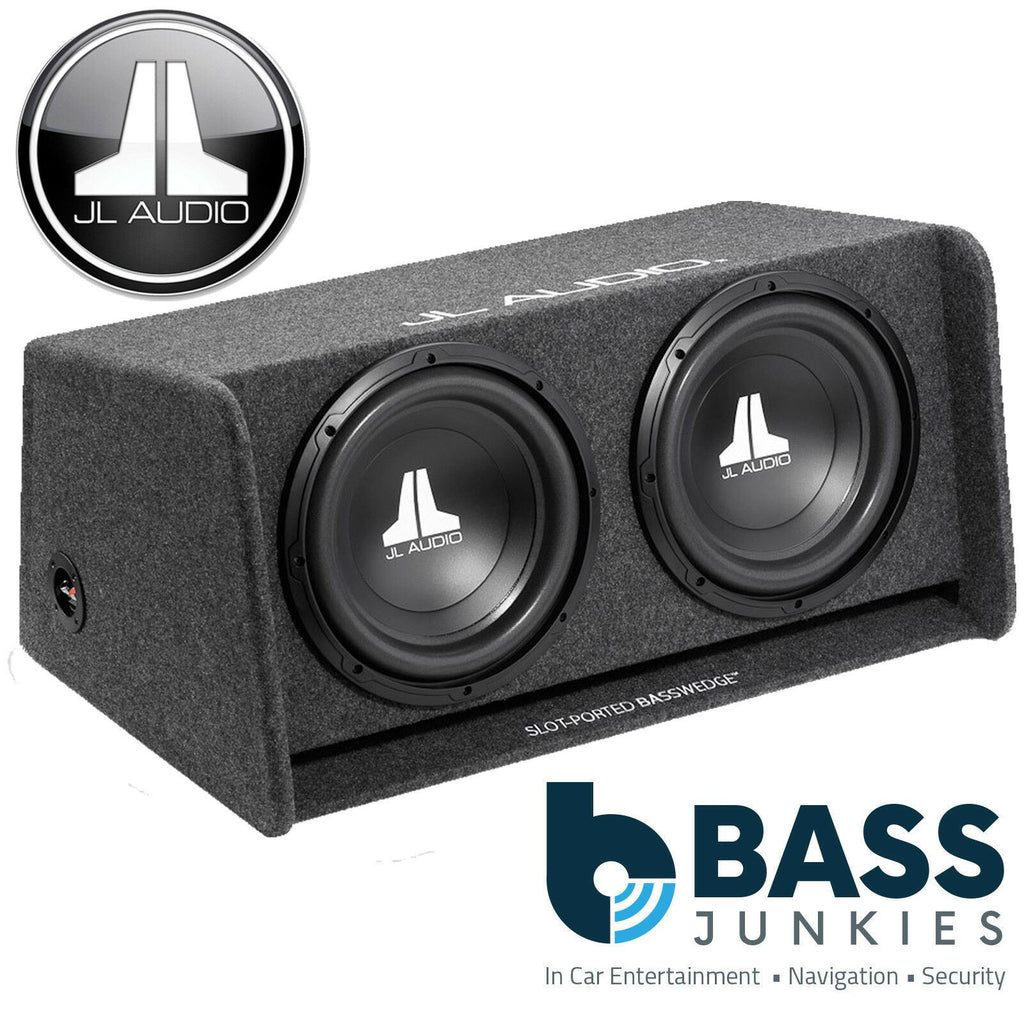

This powerful slot-ported BassWedge subwoofer system delivers awesome output at an unsurpassed value.
The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofer to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises.
The ultra-versatile BassWedge shape has extended sides so that it can be placed with the woofer firing out or straight down off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle.
This subwoofer system is shipped wired loaded and ready to connect via a push-button terminal.
JL Audio CP212-W0v3 Specifications
- 600 watt 4 ohm Double 12” Subwoofer Enclosure
- Finish: Dark gray high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and
- Slot-Ported BassWedge embroidered on the port mouth.
- Construction: MDF
- Recommended amplifier power: 150 - 600W
- Nominal Impedance: 4 Ohms
- 31-5/8"W x 15-1/4"H x 20-5/8"D1 x 16-5/8"D2

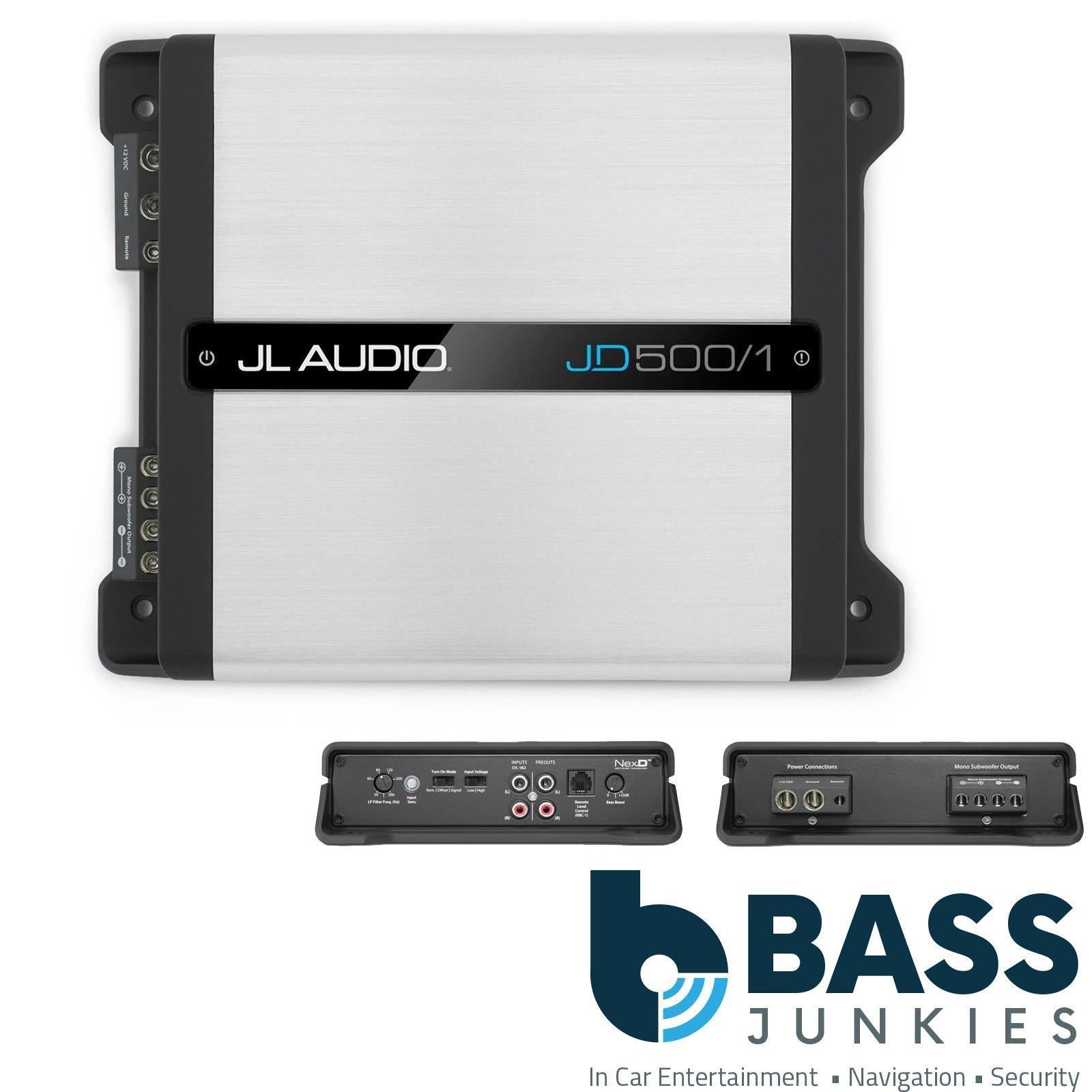

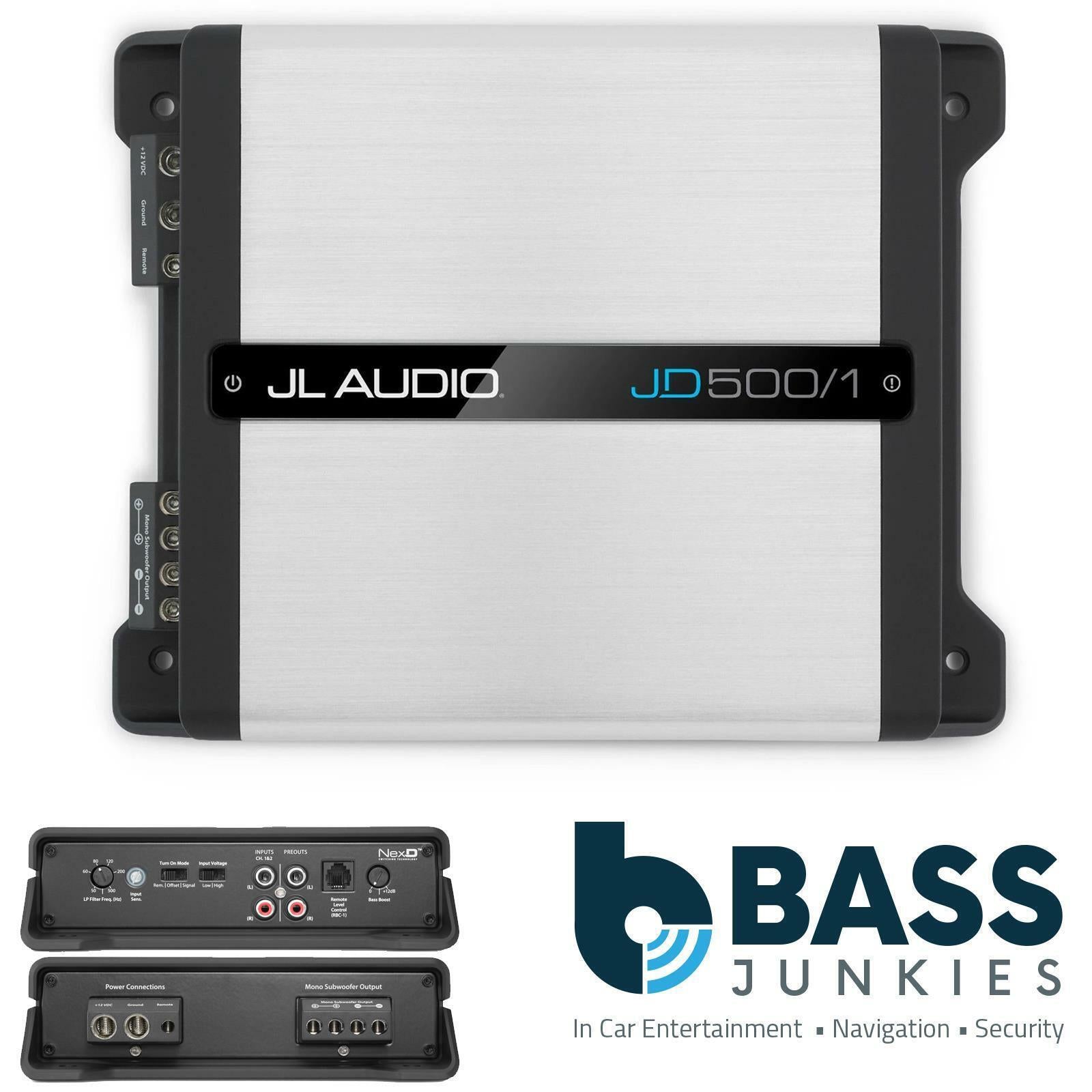

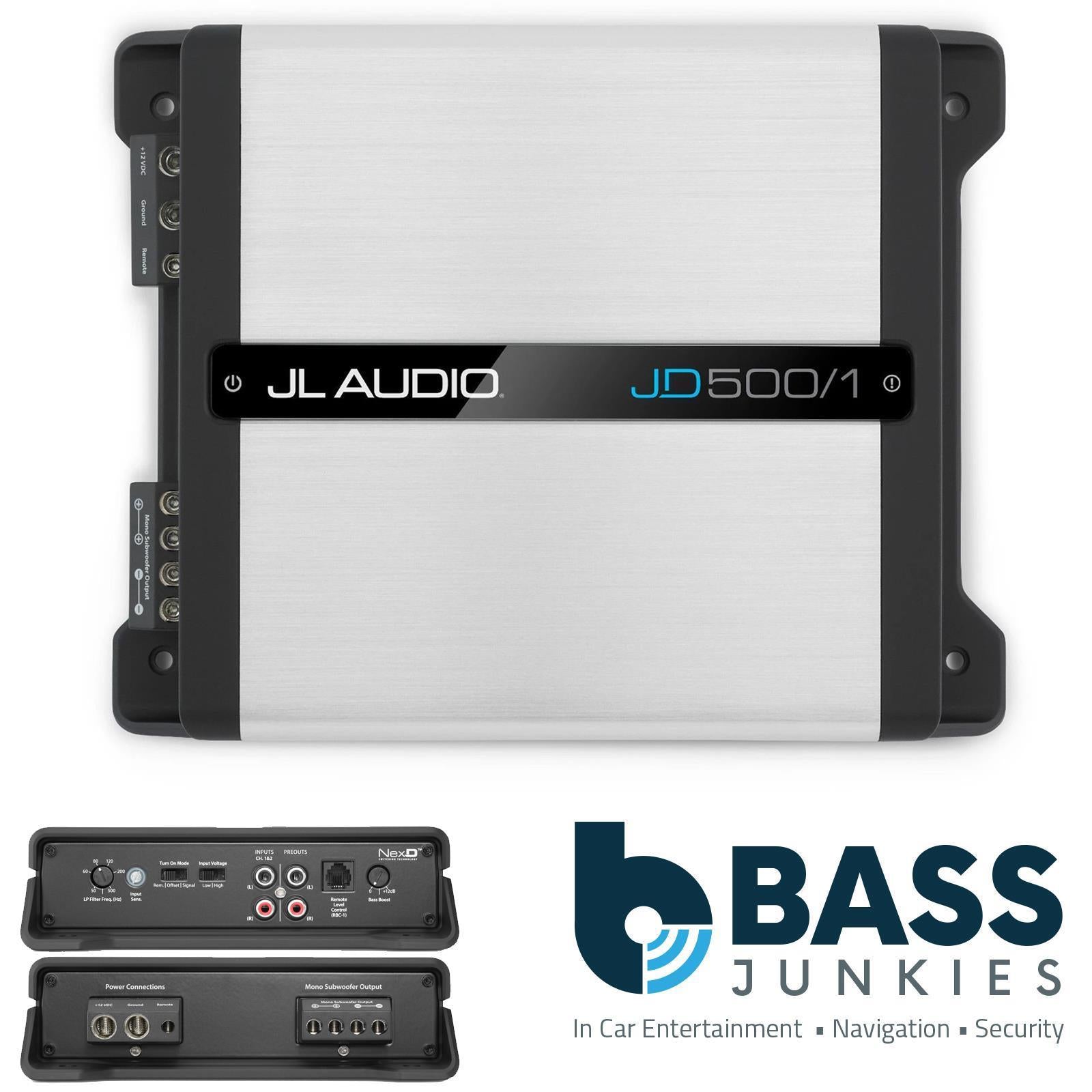

Monoblock Class D Subwoofer Amplifier
Designed to produce a whopping 500 watts into 2 ohms (14.4V, 1% THD), the JD500/1 amplifier is a great solution for powering subwoofers in a cost-conscious system. Our proprietary NexD™ switching technology delivers large amounts of real-world power output with excellent efficiency and ultra-low distortion.

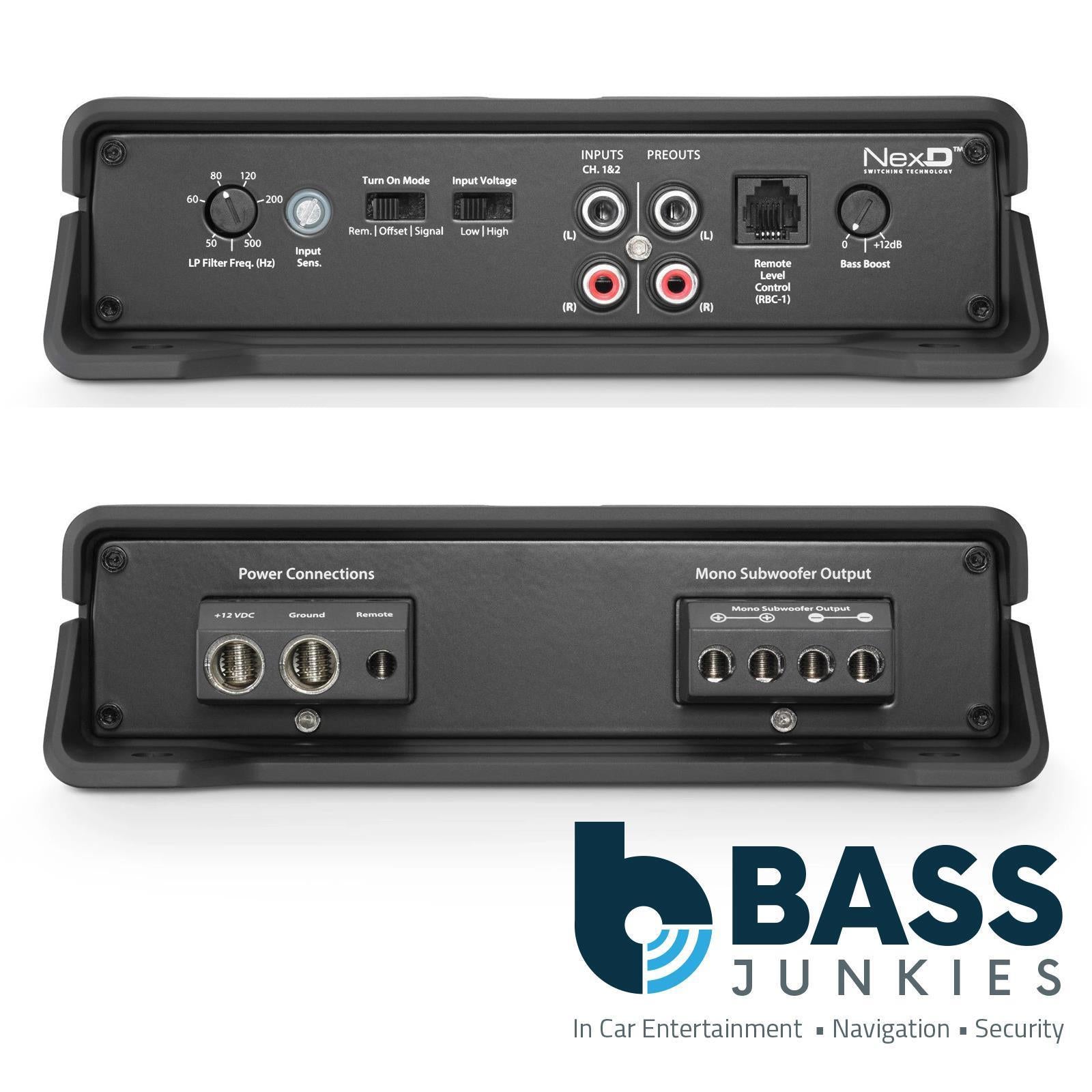

The JD500/1’s controls are located on the input panel. while the power and speaker connections can be found along the opposite end of its extruded aluminum chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balanced inputs are also on-hand, capable of accepting line-level and speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.
The JD500/1 is also equipped with an onboard LED-clipping indicator ring, surrounding the input sensitivity control. This useful feature lets you set your amplifier’s input sensitivity, quickly and accurately, without special equipment. With the addition of an RBC-1 remote level control (sold separately), you can control the subwoofer level from the driver’s seat.
JL Audio JL JD-500.1 Specifications:
- Class D Monoblock Subwoofer Amplifier
- Inputs: One Mono Pair RCA Low-Level
- Subwoofer Crossover: 12 dB/octave
- frequency selection from 50 - 500 Hz.
- NexDtm Switching Technology
- Preamp Output: Pass-through Buffered
- Bass EQ: 0 - +12dB @ 45 Hz
- Rated Power 14.4 V:
- 250W x 1 @ 4 ohm
- 300W x 1 @ 3 ohm
- 500W x 1 @ 2 ohm
- THD at Rated Power: 1% @ 2 ohms
- Frequency Response: 7 Hz - 500 Hz +/- 1.0 dB
- Input Range:
- 200mV - 2V RMS (Low-Level)
- 800mVV - 8V RMS (High-Level)
- Dimensions (L x W x H):
- 9.50" x 7.50" x 2.10"
- (242 mm x 190 mm x 53 mm)
- Optional RBC-1 bass controller
Whats Included
- 1 x JL 12 Double Bass Box Enclosure
- 1 x JL JD500.1 Amp
- 1 x Amp Kit
