JL Audio C3-650 JL Audio C3-650 6.5" 17cm 300 watt Component Car Door Speakers

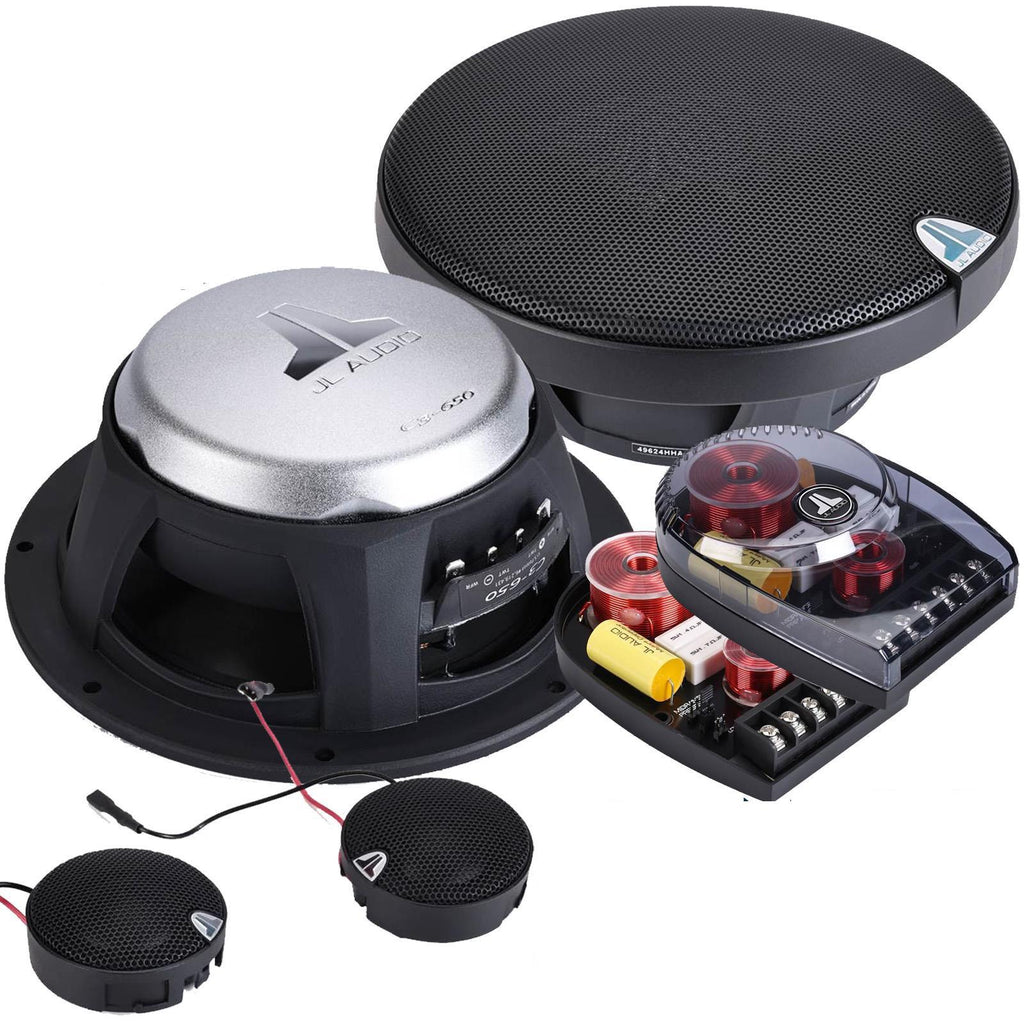

The JL Audio JLC3-650 2-Way Convertible Component / Coaxial System: 6.5-inch (165 mm) Woofer 1-inch (25 mm) Silk Dome Tweeter
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems the same product can be deployed in either configuration delivering outstanding audio power and quality in each application.

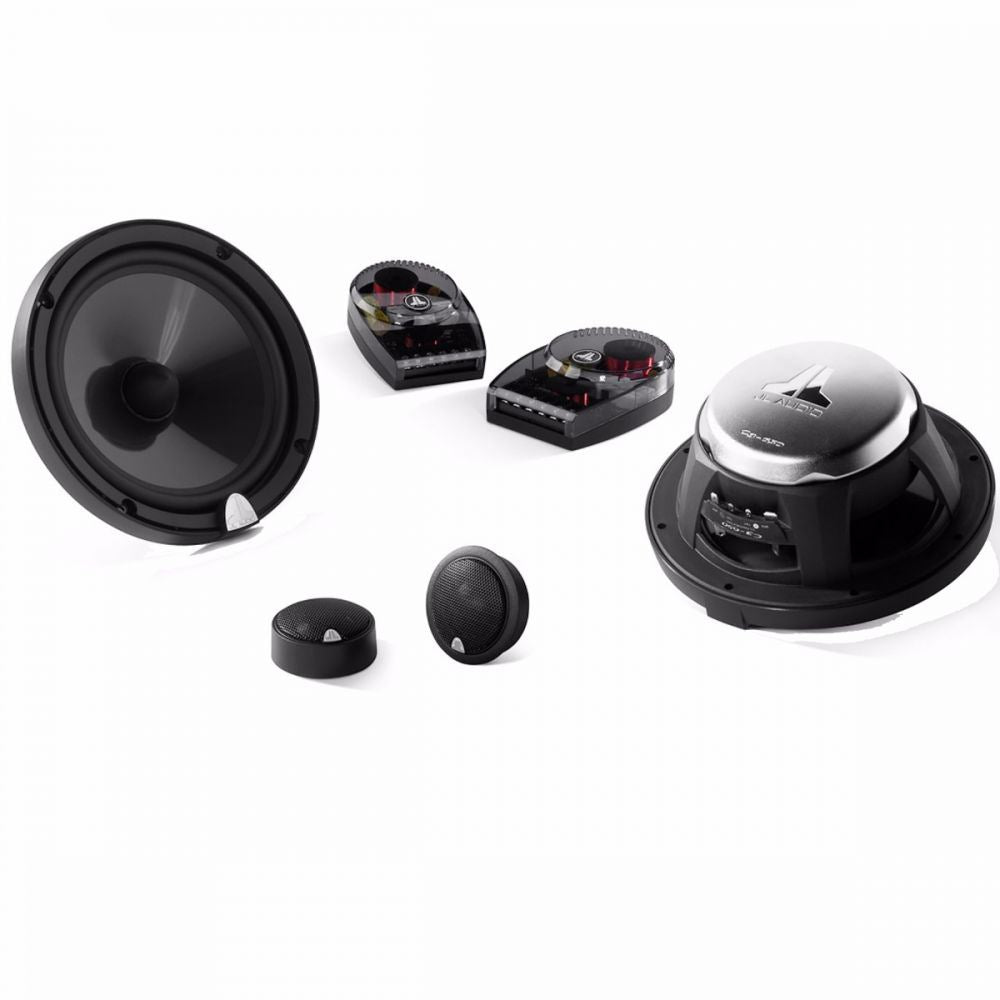

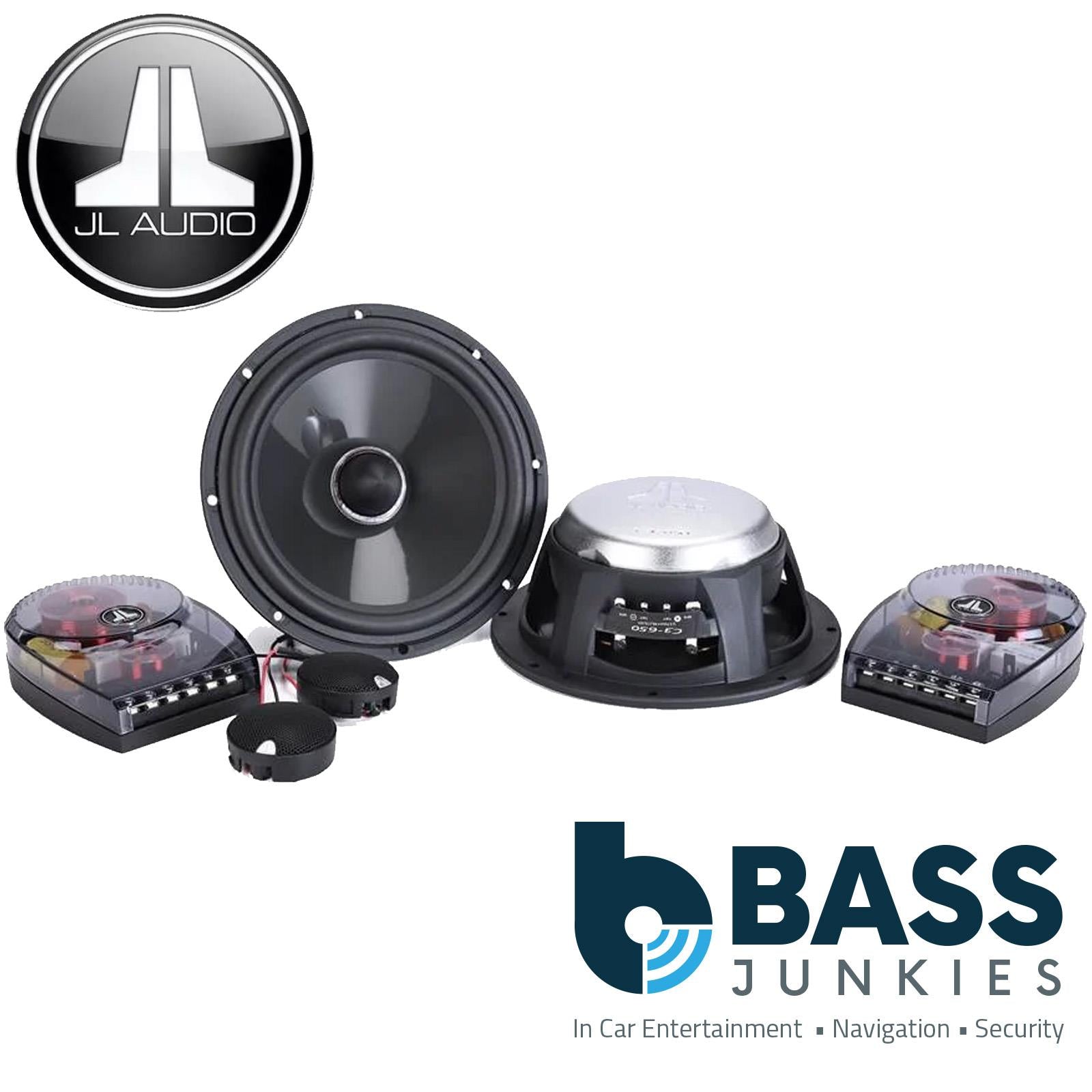

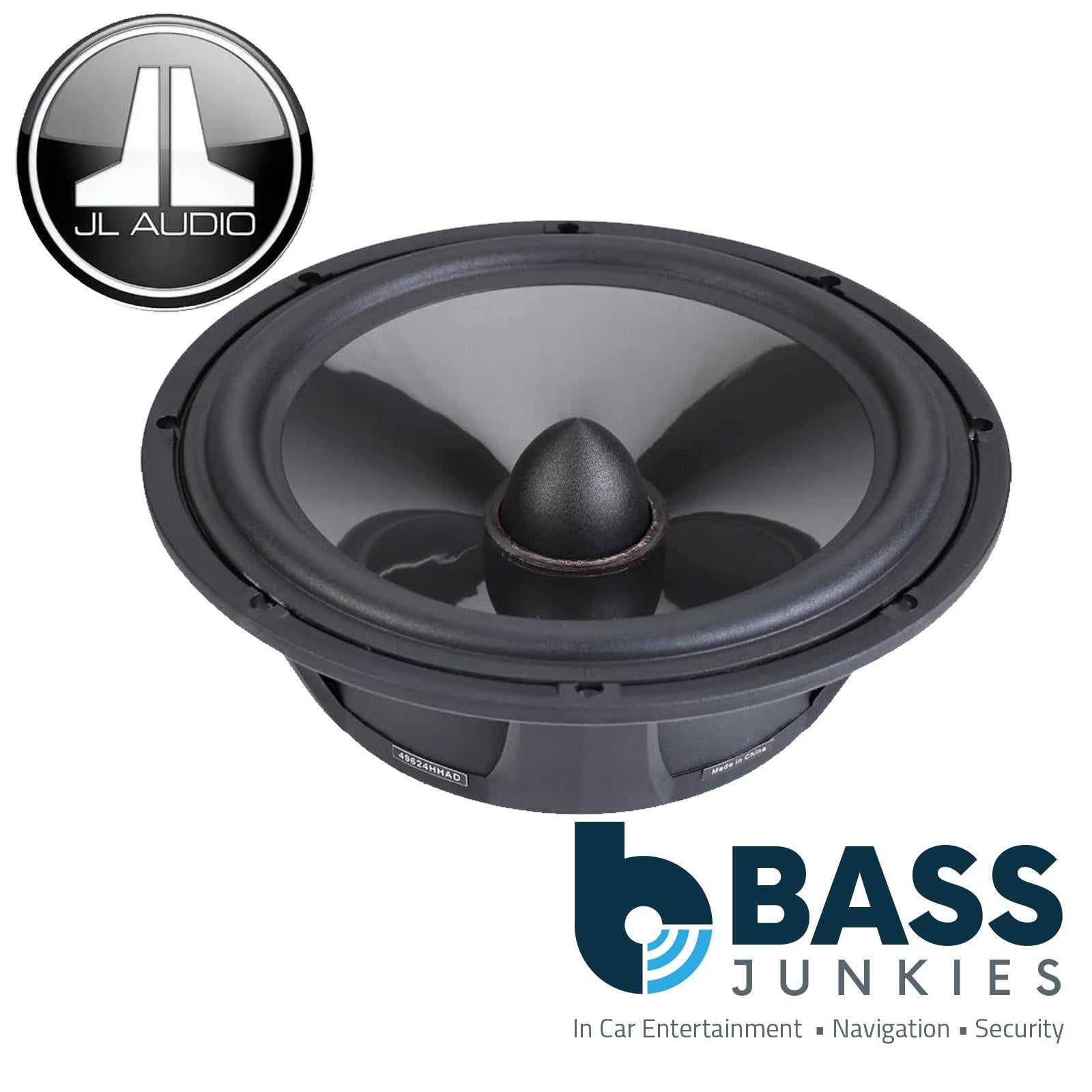

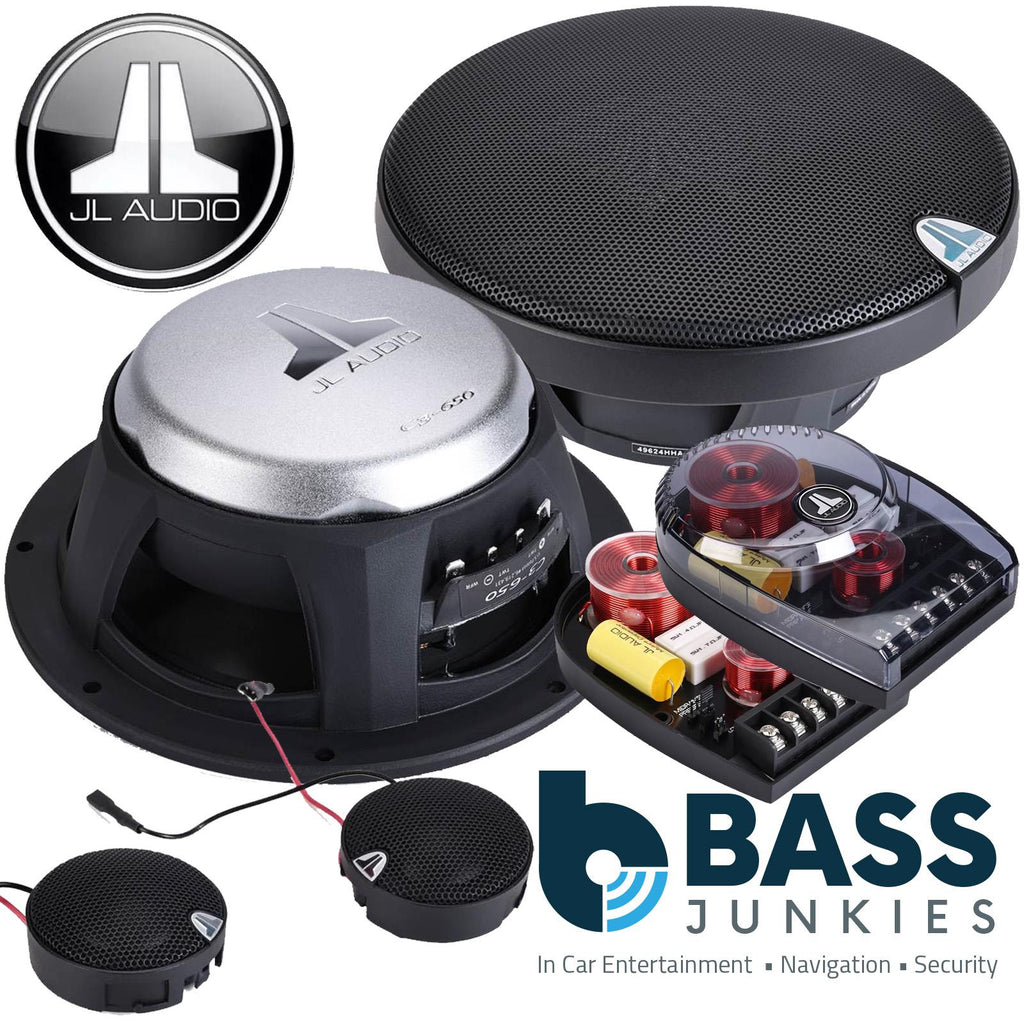

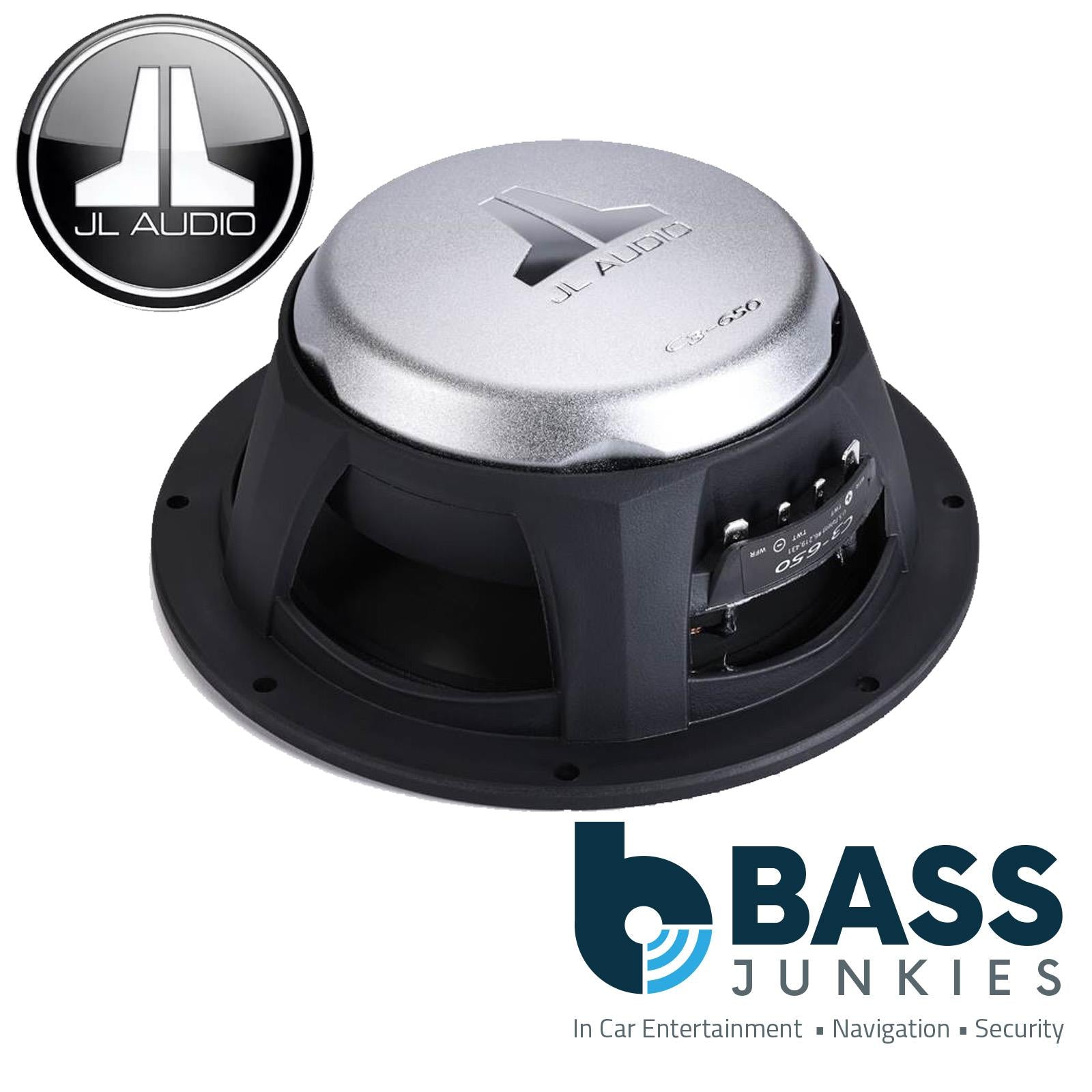

The C3-650 system features 6.5-inch (165 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audios vast woofer design experience and advanced modeling systems.

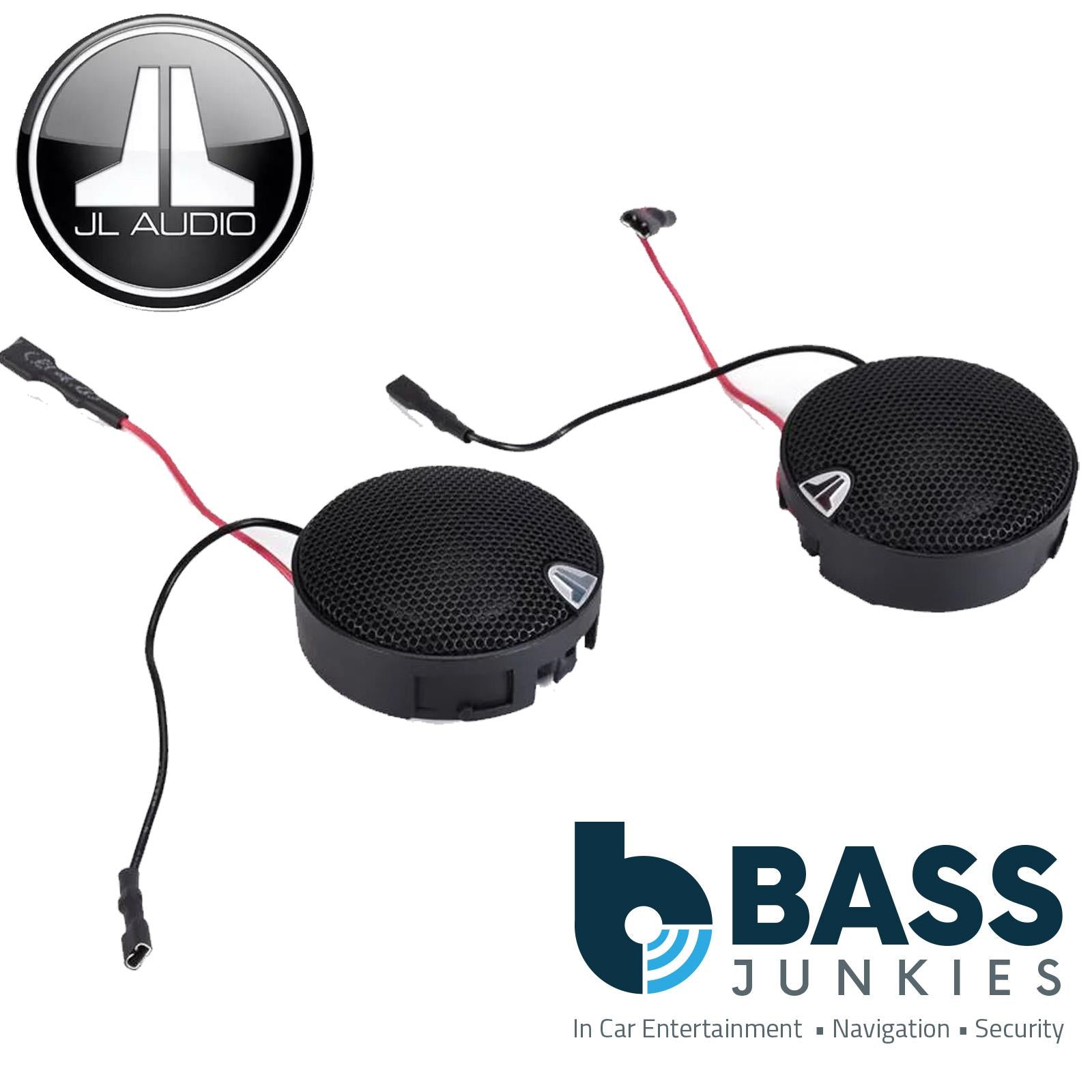

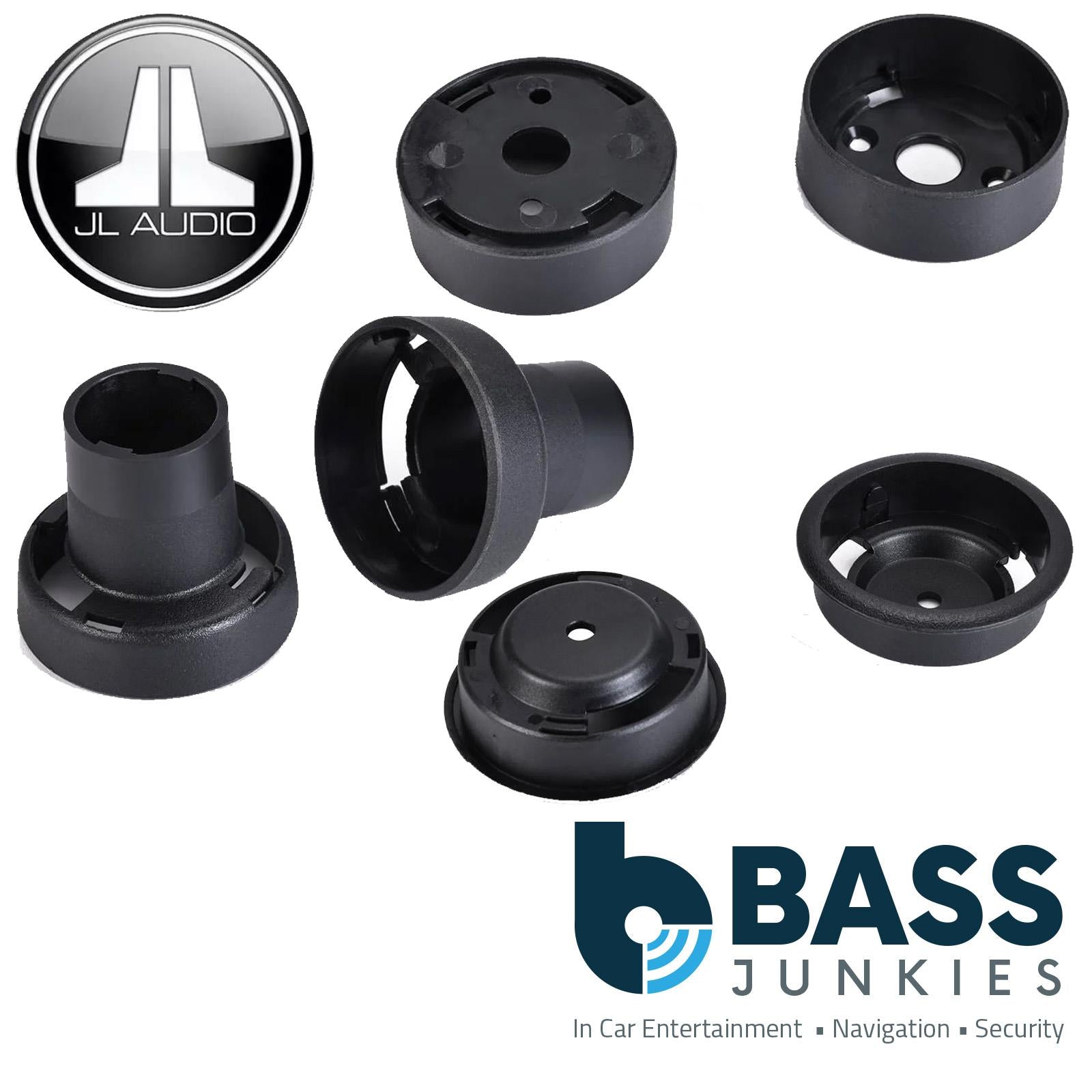

The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful extended response on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.

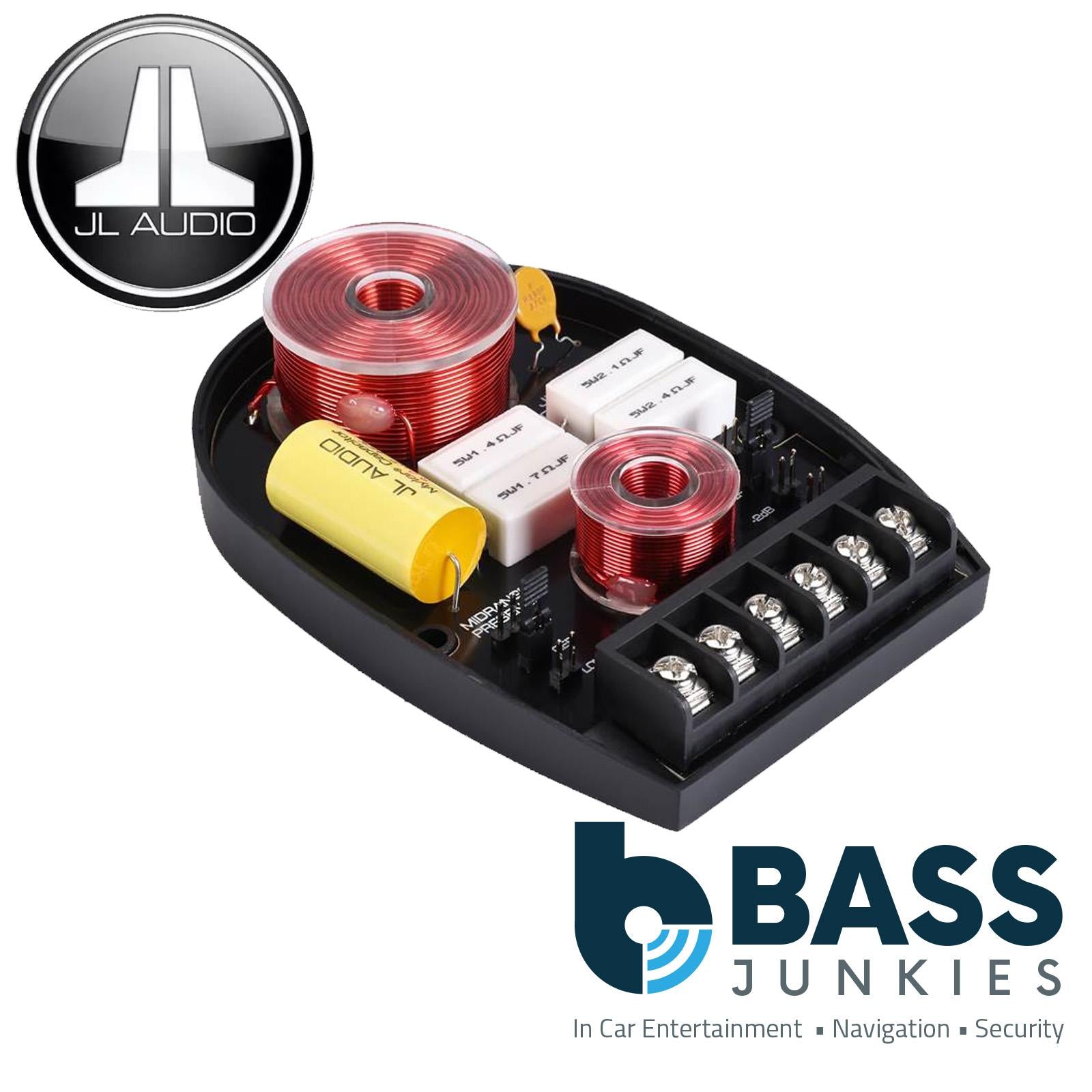

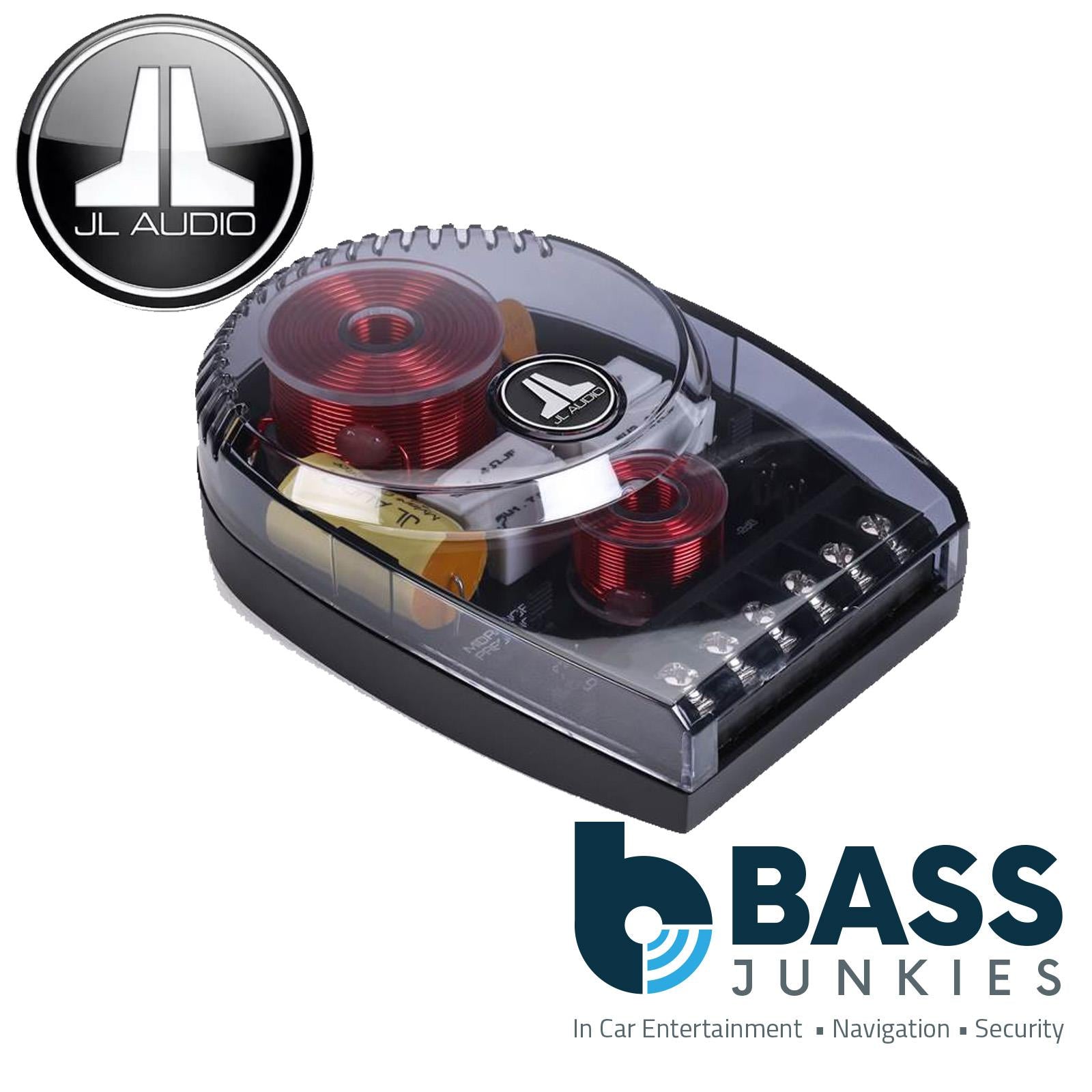

C3 crossover networks are compact and built with premium component parts including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided as well as three levels of mid-range presence adjustment for twelve possible voicing combinations!

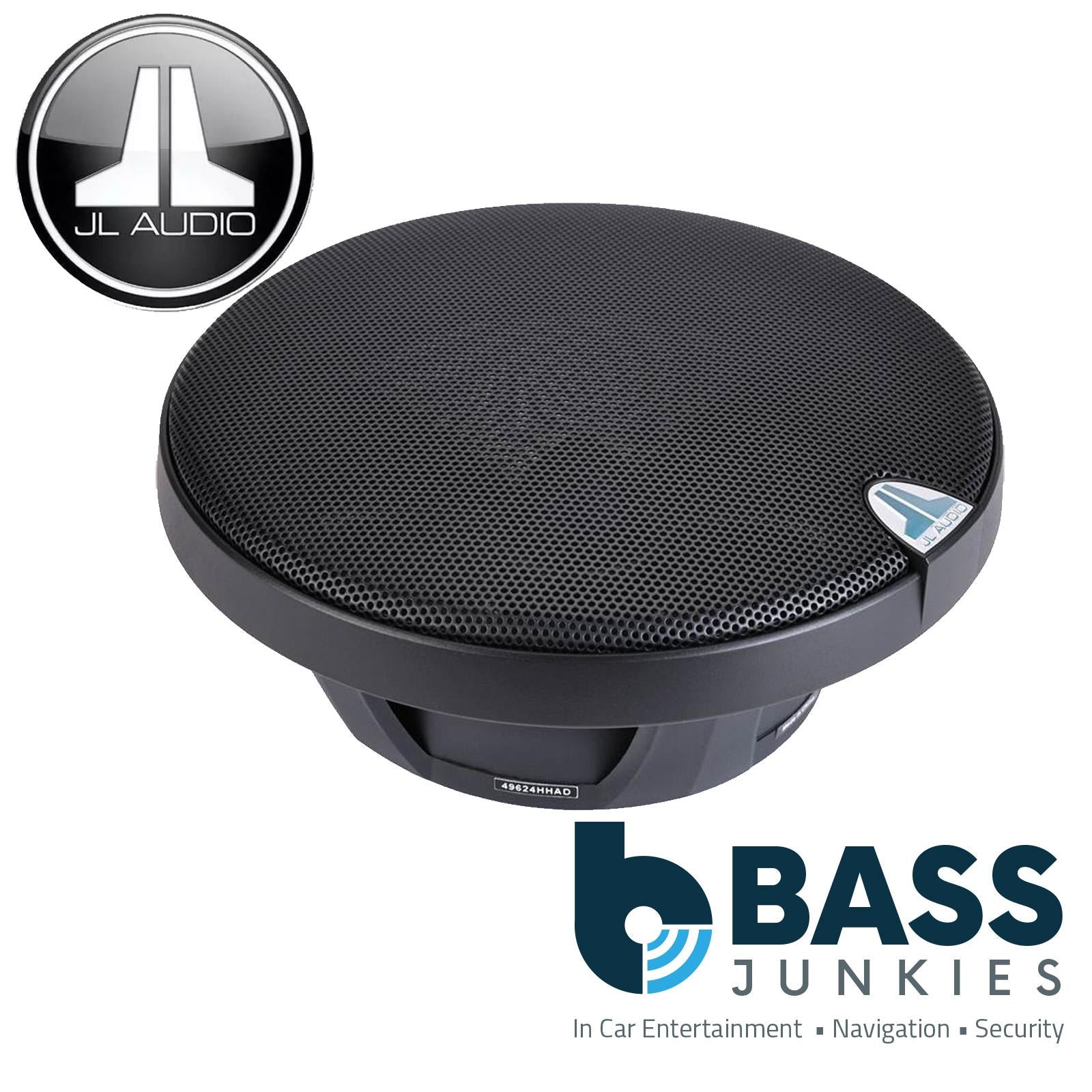

Woofer grilles are included each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Key Specifications:
- 6-1/2" Evolution Series 2-Way Convertible Component
- Speaker System
- Power Handling:
- Peak: 300 watts per set / 150 watts each side
- RMS: 150 watts per set / 75 watts each side
- Recommended RMS: 25-75 watts each side
- Quickly converts from coaxial to component system
- Phase plug replaces tweeter assembly in component system mode
- Impedance: 4 ohm
- Top-mount depth: 2-9/16"
- Frequency Response: 48-25 000 Hz ± 3 dB
- Sensitivity: 93 dB
- Efficiency: 90 dB @ 1W/1m 96 dB @ 1W/0.5m
