JL Audio C3-570 - 5" x 7" Inch Convertible Component/Coaxial Door Car Speakers
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
Many people mistakenly believe that an oval speaker cannot perform as well as a round one, leading to many instances of 5.25-inch speakers being installed into 5 x 7-inch openings. JL Audio has put in the engineering time and effort to create fantastic-sounding speakers that drop into oval openings and deliver equivalent performance to our 6.5-inch (165 mm) round speaker systems... guaranteed. So, don't make the mistake of losing cone area and efficiency by stepping down to a smaller round speaker... these ovals are as impressive as our round format systems.

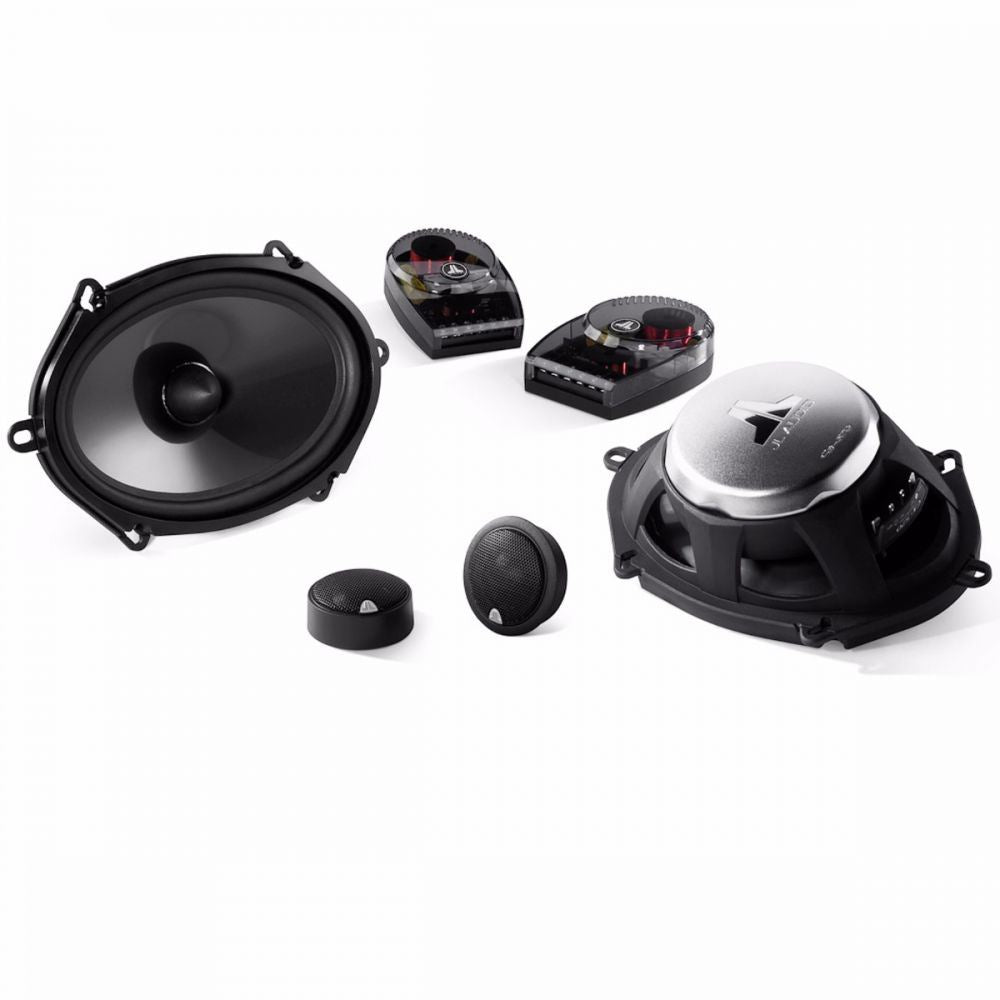

The C3-570 system features 5 x 7 / 6 x 8-inch (125 x 180 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.
C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!
Key Features:
- Continuous Power Handling (RMS) 75 W
- Peak Music Power 225 W
- Recommended Amplifier Power (RMS) 25 - 150 W / Ch.
- System Efficiency 90.0 dB @ 1 W / 1 m
- System Nominal Impedance 4 Ω
- System Frequency Response 48 Hz - 25 KHz ± 3 dB
Woofer Dimensions:
- Frame Outer Diameter* (A) 5.52 x 7.68 in / 140 x 195 mm
- Grille Tray Outer Diameter (B) N/A
- Motor Outer Diameter (C) 4.08 in / 104 mm
- Frontal Coaxial Tweeter Protrusion** (D) 0.78 in / 20 mm
- Frontal Grille Protrusion (E) N/A
- Mounting Hole Diameter (F) N/A
- Mounting Depth (G) 2.52 in / 64 mm
Tweeter Dimensions:
- Flush Mount Fixture Diameter (A1) 2.12 in / 54 mm
- Surface Mount Fixture Diameter (A2) 1.93 in / 49 mm
- Flush Mount Mounting Hole Diameter (B) 1.875 in / 48 mm
- Flush Mount Fixture Mounting Depth (C) 0.71 in / 18 mm
- Flush Mount Tweeter Frontal Protrusion (D1) 0.32 in / 8 mm
- Surface Mount Tweeter Frontal Protrusion (D2) 0.95 in / 24 mm
