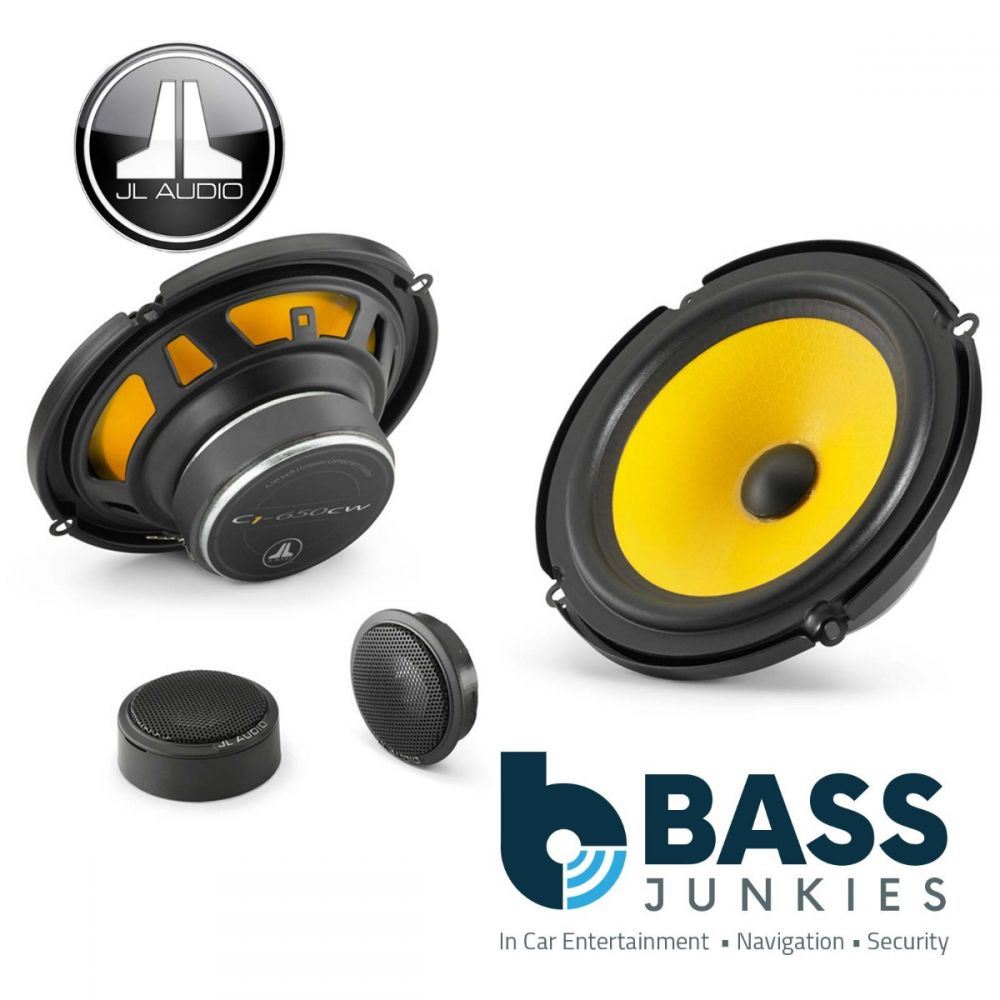

JL Audio C1-650 6.5" 16cm 165mm 450 Watts Yellow Cone Car Door Component Kit Speakers
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, multi-application adaptor rings are included for the C1-650 woofers, allowing easy, drop-in installation in vehicles equipped with oversized 6.5-inch and 6.75-inch speaker openings. Without the ring, the woofers will also fit into many "6-inch" speaker locations as well. Surface and flush mounts are included with C1 tweeters for maximum installation versatility.

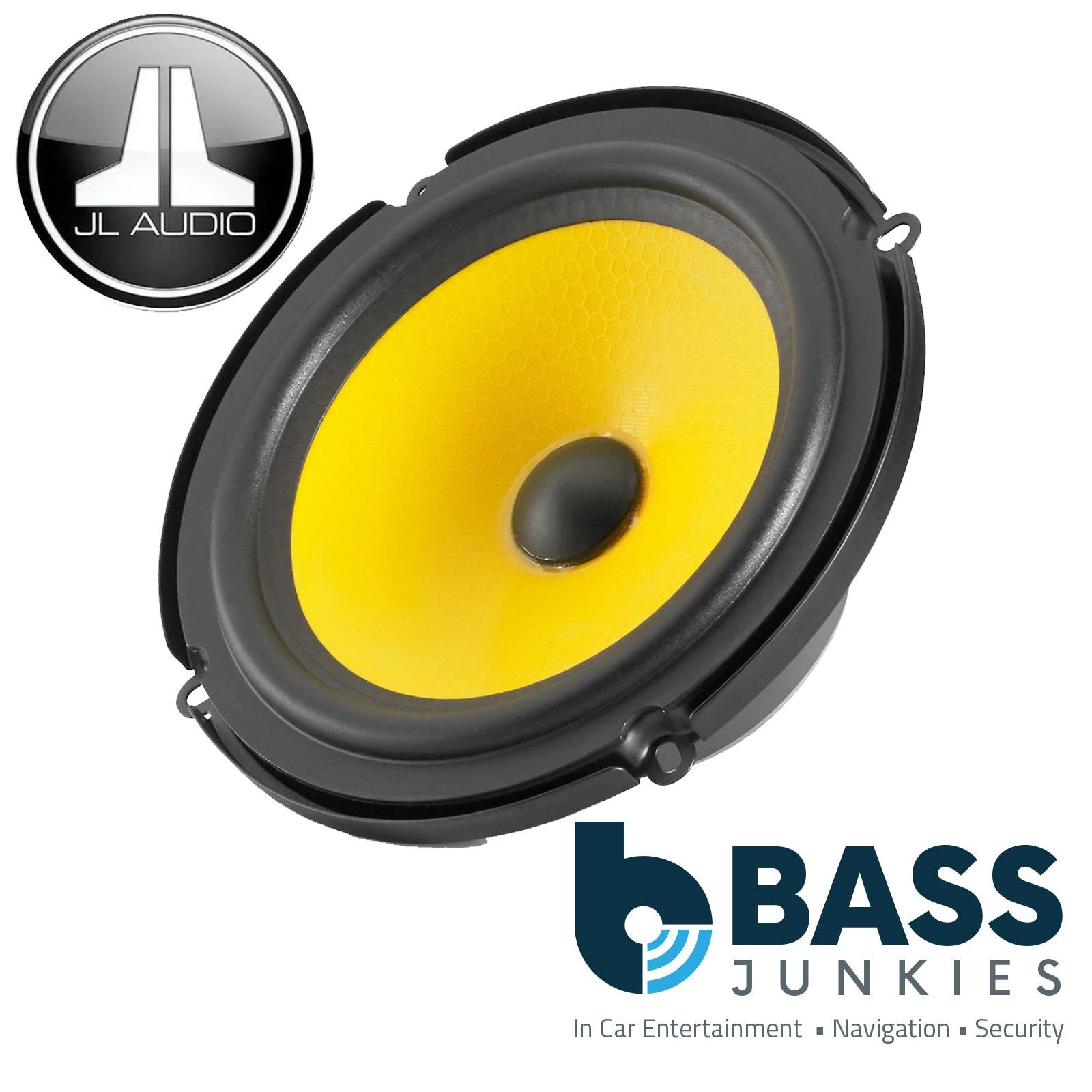

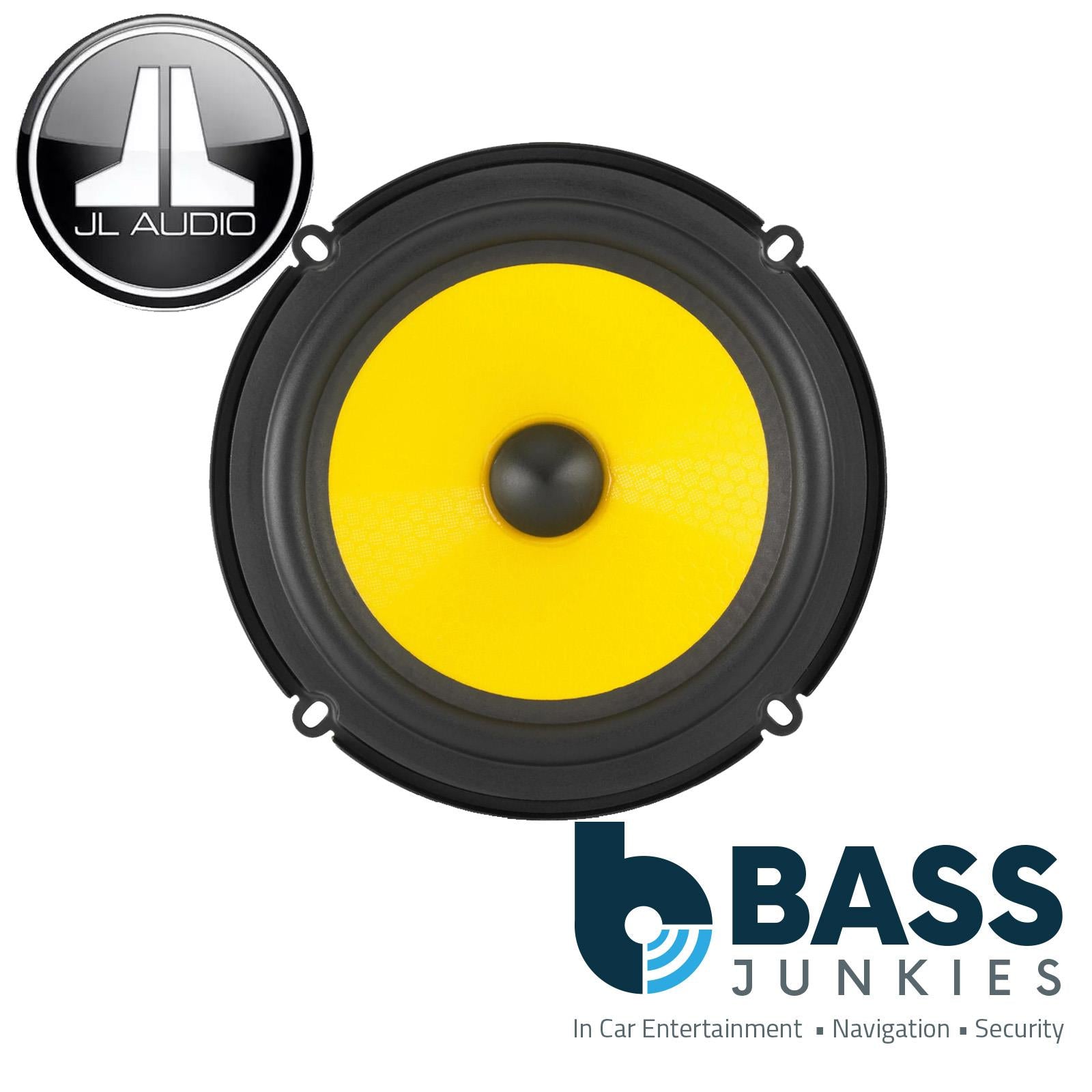

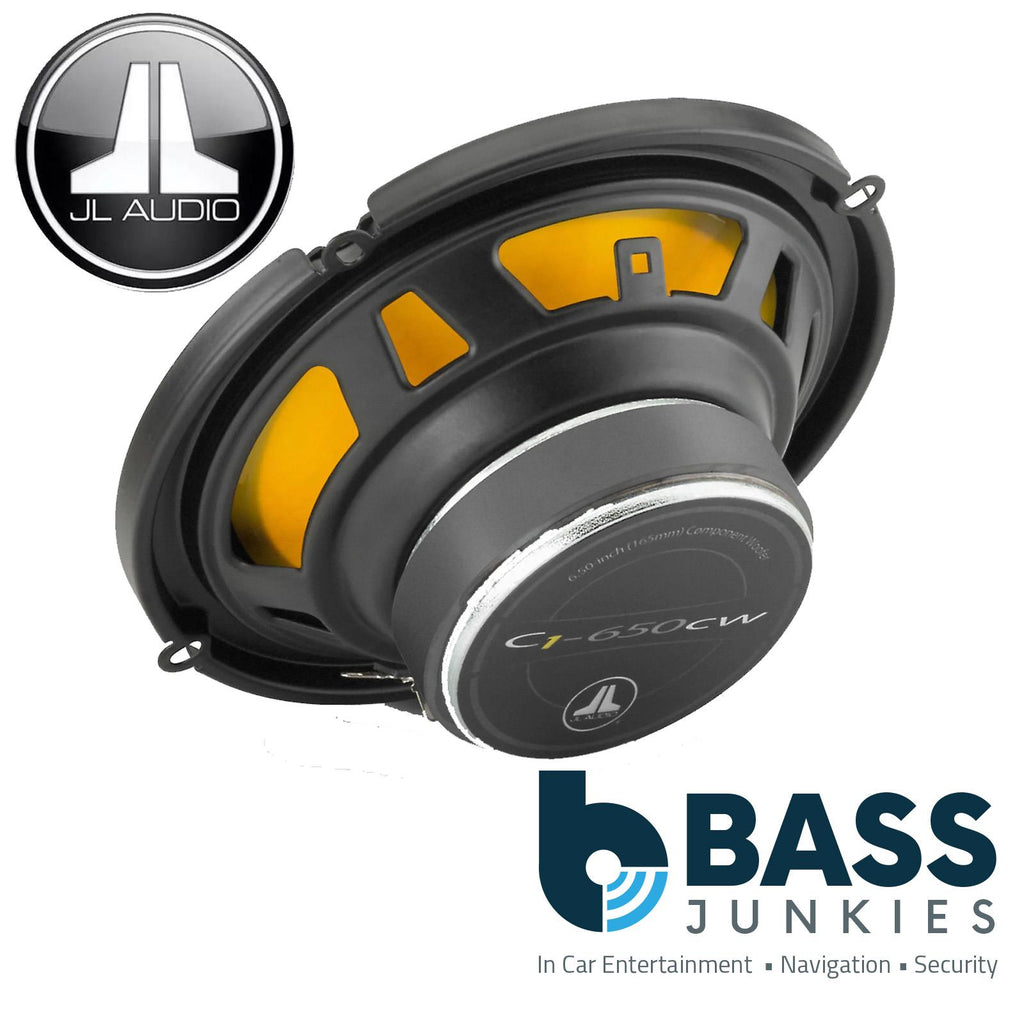

C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-650 is a proprietary, stamped, steel 6.50-inch (165 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control the voice coil's motion. Tinsel leads are carefully routed and attached to the spiders to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminium dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
JL Audio C1-650 Specifications:
- 6.5" C1 Series 2-Way Component System
- Power Handling:
- Peak: 450 watts per set / 225watts each side
- RMS: 100 watts per set / 50 watts each side
- Recommended Power Range: 10 - 75 watts RMS per channel
- Injection-molded mineral-filled polypropylene midwoofer cone
- Rubber midwoofer surround
- 75" Edge-driven aluminum dome tweeter
- Ferrite magnet motor structure
- Top-mount Depth: 2.44"
- Cutout Dimensions: 5.56"
- 4 ohms impedance
- Frequency Response: 48-24,000 Hz
- Sensitivity: 93dB
