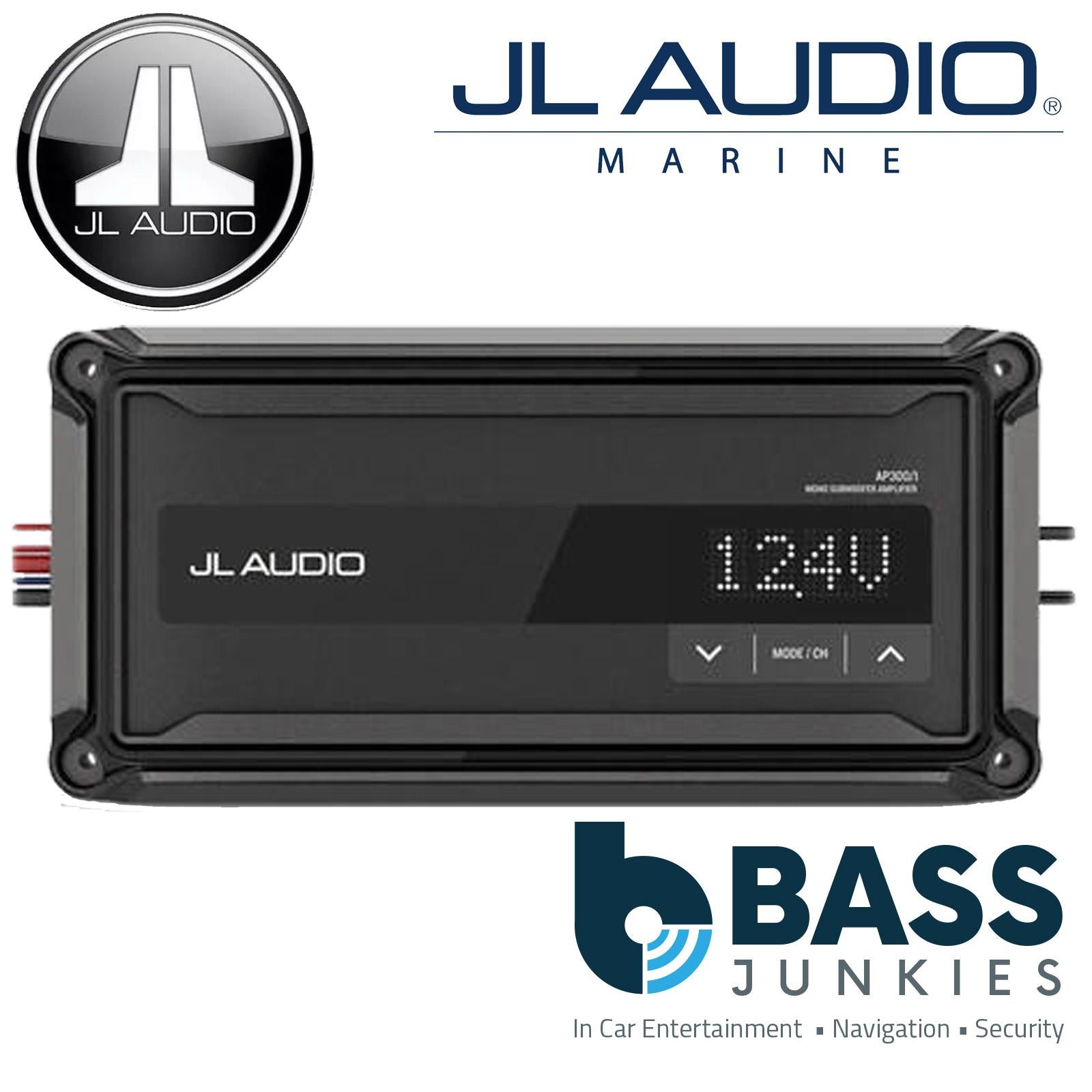

JL Audio AP300/1 - 300 Watts RMS Monoblock Car or Marine Class-D Amplifier

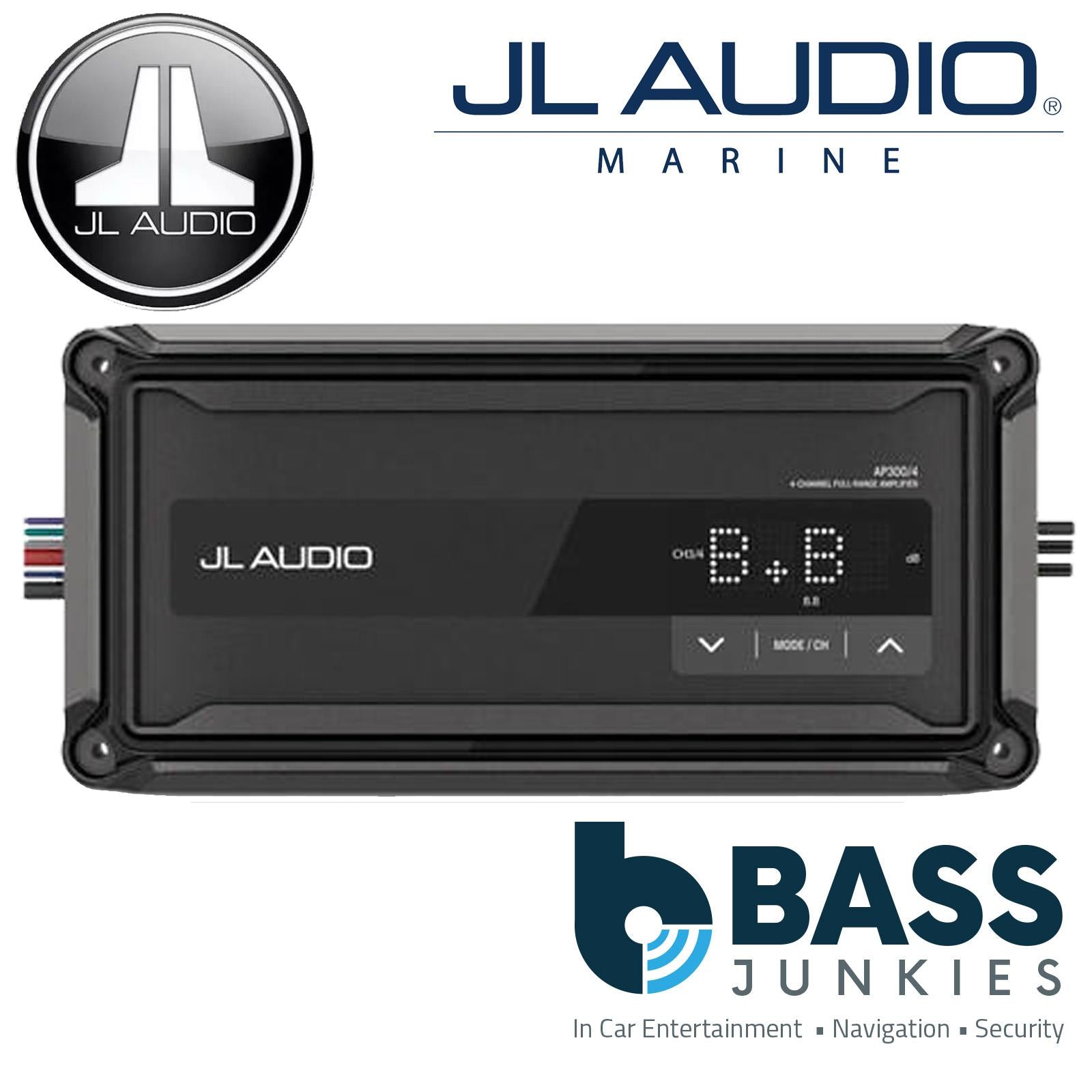

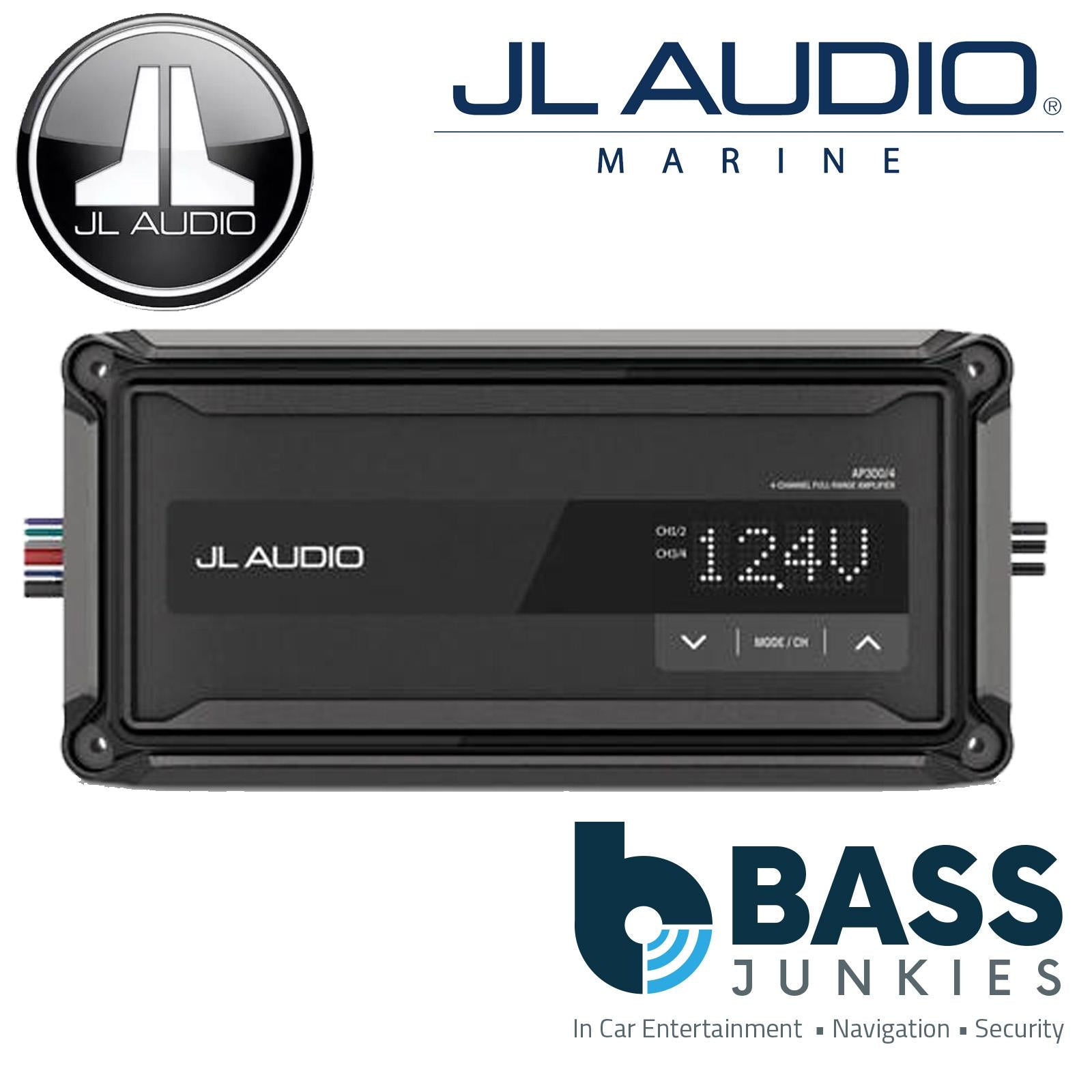

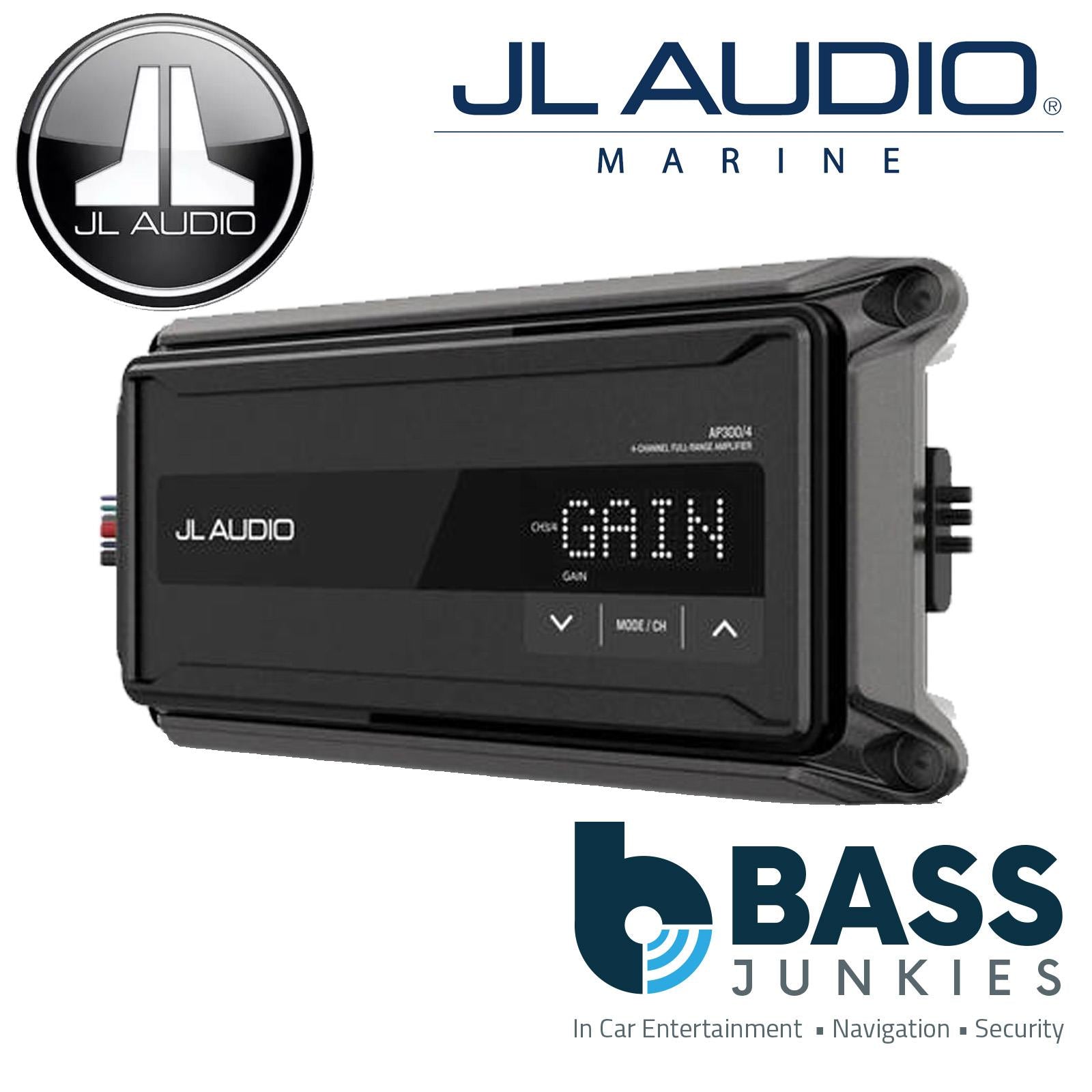

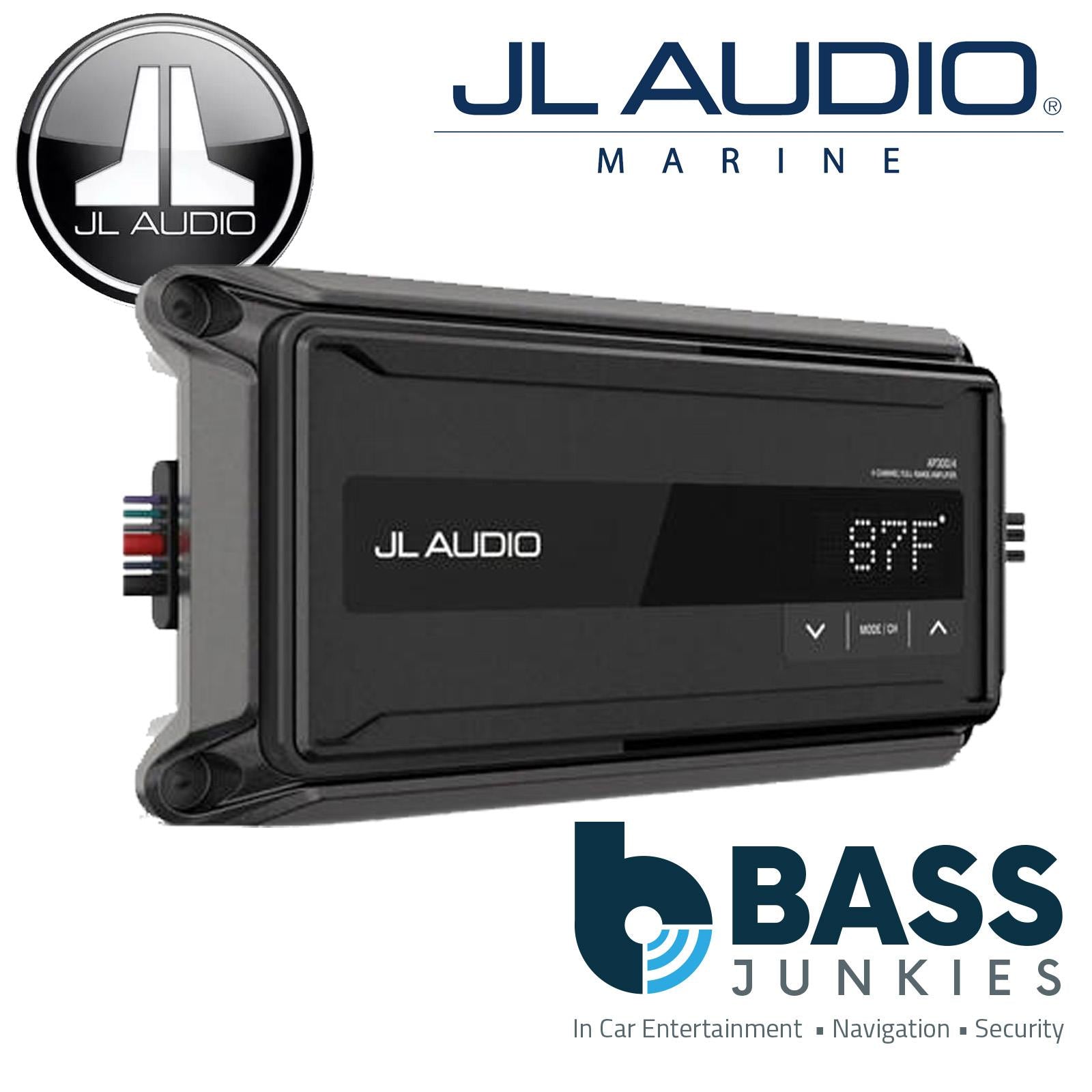

Power the moment with the ultracompact JL Audio AP amplifiers, available in monoblock, 4 channel with and without Bluetooth® technology, as well as 6 channel with staggered power — ideal for a system amplifier.
These Class-D amplifiers are IP67-rated (excluding cables) with tough cast-alloy water-resistant construction.
The monoblock, 4 channel and 6 channel feature built-in LCD displays for manual control.
For additional optimisation, pair with a Fusion® head unit with built-in DSP, and download the Fusion Audio smartphone app for selectable profiles. This enables the Easy Tune feature, which streamlines amplifier setup to ensure superior sound quality and system protection.

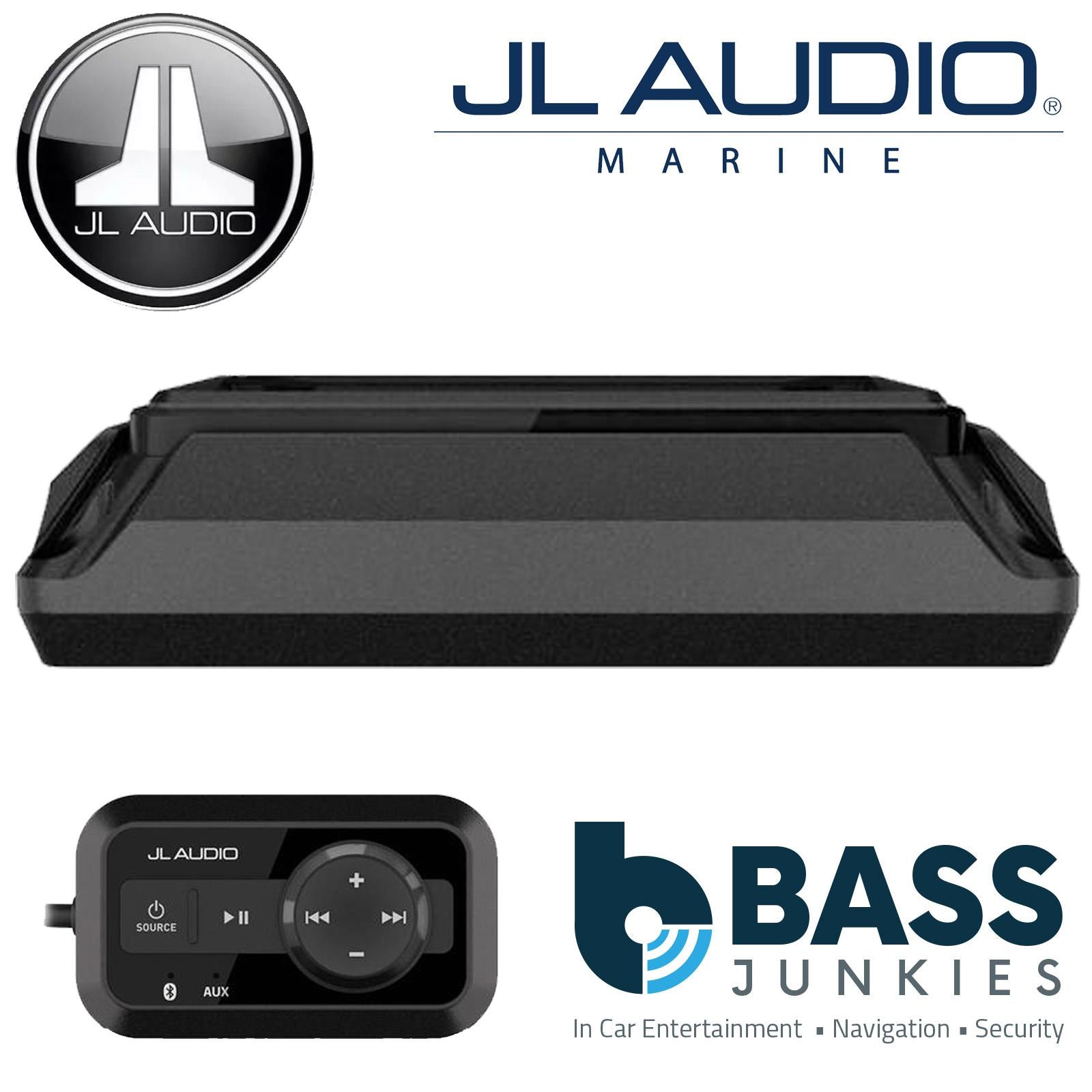

The 4 channel with Bluetooth pairs with your smartphone for seamless audio streaming and includes an IP67-rated wired remote that can be flush-, surface- or bar-mounted.
Features
- Power Output: Rugged Class-D amplifiers are available in monoblock (300 W RMS), 4 channel (300 W RMS), 4 channel with Bluetooth® technology (200 W RMS) and a staggered-power 6 channel (600 W RMS)
- Durability: Amplifiers are ignition protected and IP67-rated (excluding cables) for the toughest environments
- Streamline Setup: The monoblock (300 W RMS), 4 channel (300 W RMS) and 6 channel (600 W RMS) include a built-in LCD display for manual control as well as the Easy Tune feature, which streamlines amplifier setup to ensure superior sound quality and system protection
- Included Remote: The 4 channel with Bluetooth technology (200 W RMS) includes an IP67-rated remote and AUX input source selection
General:
- Channels: Monoblock
- Operating voltage: 9-16 VDC
- Water and dust rating: IP67
- Operating temperature: -20°C to 65°C
Audio:
- Amplifier class: Class D
- Rated continuous (RMS) power (14.4 V input @ 4 Ω < 1% THD): 1x 200 W
- Rated continuous (RMS) power (14.4 V input @ 2 Ω < 1% THD): 1x 350 W
- Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs: > 70 dB
- Frequency response (+0, -1 dB): 10 Hz - 500 Hz
- Input sensitivity @ RCA inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
- Input impedance: 11 kΩ (High), 20 kΩ (Low)
- Current consumption (Standby): < 1 mA
- Current consumption (Idle): 700-750 mA
- Fuse rating: 35 A
- Recommended fuse type(s): AFS, AGU or MaxiFuse™
- Min. copper power / Ground wire gauge: 4 AWG wire
- Protection circuits: Input under/over voltage, Over temperature, Output short circuit
In the box:
- JL Audio AP300/1 amplifier
- Four mounting screws
- Documentation
