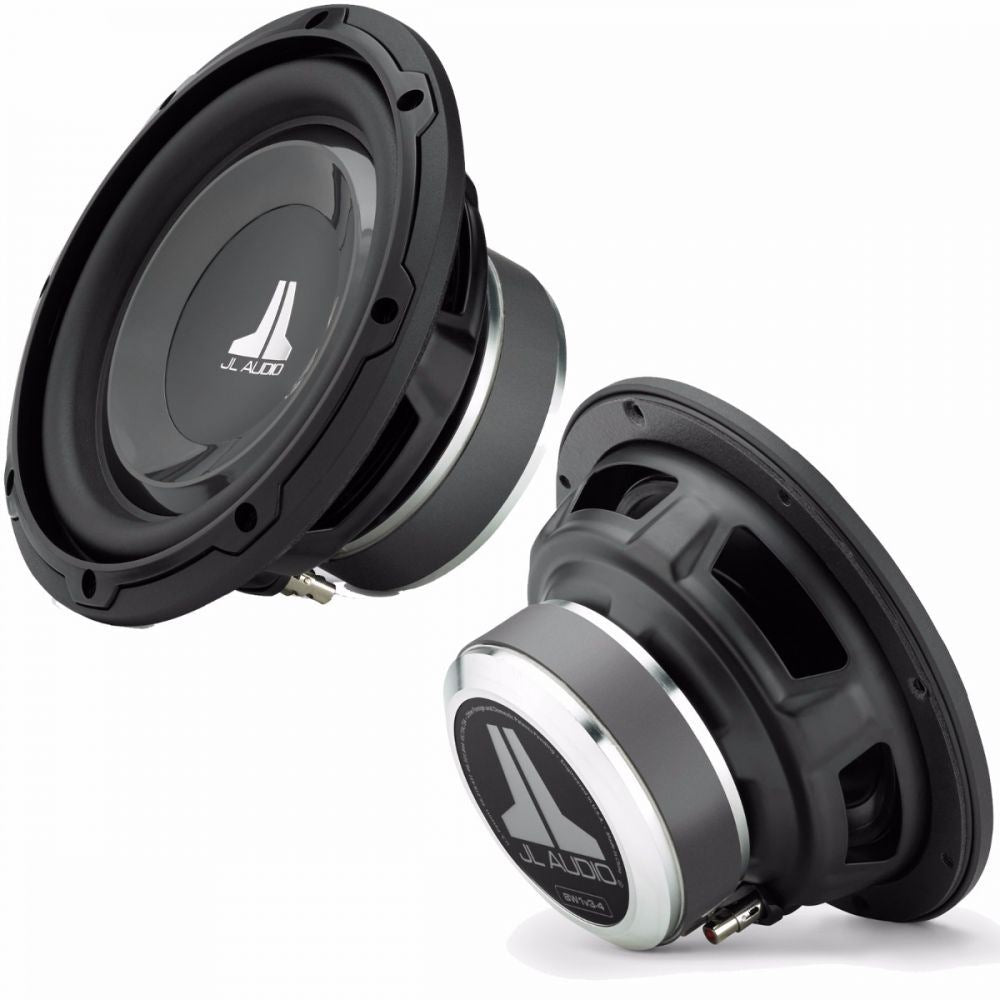

JL Audio 8w1v3-4 8" Inch 20cm 150 Watts 4 Ohms Single Car Sub Subwoofer
The 8W1v3 is an outstanding choice when space is very tight and amplifier power is moderate. It features shallow mounting depth (3.86 in. / 98 mm) and a compact motor structure, allowing it to comfortably fit in a lot of spaces where a typical 8-inch driver will not. Lacking a pole vent, the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.
The 8W1v3-2 is best used with amplifier power in the 50W - 150W range and is optimized to operate in a compact 0.350 cu. ft. (9.90 l) sealed enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
Key Specifics
- 8" 4-ohm subwoofer
- Mineral-filled polypropylene cone with nitrile-butylene rubber surround
- Power range: 50-150 watts RMS
- Frequency response: 28-250 Hz
- sensitivity: 84.8 dB
- Nominal Diameter 8.0 in / 200 mm
- Overall Diameter (A) 8.5 in / 216 mm
- Mounting Hole Diameter (B) 7.09 in / 180 mm
- Bolt Hole Circle Diameter (C) 7.85 in / 199 mm
- Motor Outer Diameter (D) 4.72 in / 120 mm
- Mounting Depth (E) 3.86 in / 98 mm
- Driver Displacement 0.018 cu ft / 0.51 L
- Net Weight 7.4 lb / 3.4 kg
- Warranty: 1 year
