JL Audio 12W1V3-4 12" 300 Watts Car Subwoofer & JL Audio JX500/1D 500 Watts Monoblock Car Amplifier & Bass Box Kit
JL Audio 12W1V3-4 Subwoofer
The 12W1v3 is a lightweight 12-inch driver with excellent performance capabilities at moderate power levels. It features moderate mounting depth with no pole-vent, so the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.
The The 12W1v3-4 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 1.10 cu. ft. (31.5 l) sealed enclosure.
Key Specifics:
- Continuous Power Handling (RMS) 300 W
- Recommended Amplifier Power (RMS) 75 - 300 W
- Nominal Impedance (Znom) 4 Ω
- Nominal Diameter 12.0 in / 300 mm
- Overall Diameter (A) 12.5 in / 318 mm
- Mounting Hole Diameter (B) 11.0625 in / 281 mm
- Bolt Hole Circle Diameter (C) 11.7 in / 297 mm
- Motor Outer Diameter (D) 5.25 in / 133 mm
- Mounting Depth (E) 5.41 in / 137 mm
- Driver Displacement 0.052 cu ft / 1.47 L
- Net Weight 12.2 lb / 5.5 kg
- Free Air Resonance (Fs) 26.21 Hz
- Electrical “Q” (Qes) 0.535
- Mechanical “Q” (Qms) 8.2
- Total Speaker “Q” (Qts) 0.502
- Equivalent Compliance (Vas) 2.706 cu ft / 76.63 L
- One-Way Linear Excursion (Xmax)* 0.45 in / 11 mm
- Reference Efficiency (no) 0.25%
- Efficiency (1 W / 1 m)** 86.1 dB SPL
- Effective Piston Area (Sd) 81.426 sq in / 0.0525 sq m
- DC Resistance (Re) 3.915 Ω
JL Audio JX500/1D Amplifier
This rugged and reliable Class D monoblock uses a robust MOSFET power supply design that delivers rock-solid bass performance at a very affordable price.
Targeted specifically for subwoofer applications, the JX500/1D includes a low-pass filter with continuously variable cutoff frequency selection from 50-200 Hz. It also features a variable bass boost at 45 Hz. with up to 12 dB of boost and an optional remote level control. Dedicated hi-level inputs are included, in addition to conventional low-level RCA inputs, making it easy to integrate with a variety of OEM and aftermarket head units.
| @ 4 Ω |
300 W RMS x 1 |
| @ 3 Ω |
400 W RMS x 1 |
| @ 2 Ω |
500 W RMS x 1 |
| @ 1.5 Ω |
N/A |
Bass Box Dimensions:
- Overall dimensions (W x D x H):
- 405 x 400 x 375mm approx
Please Note: Bass Box carpet colour can vary depending on availability at the time.

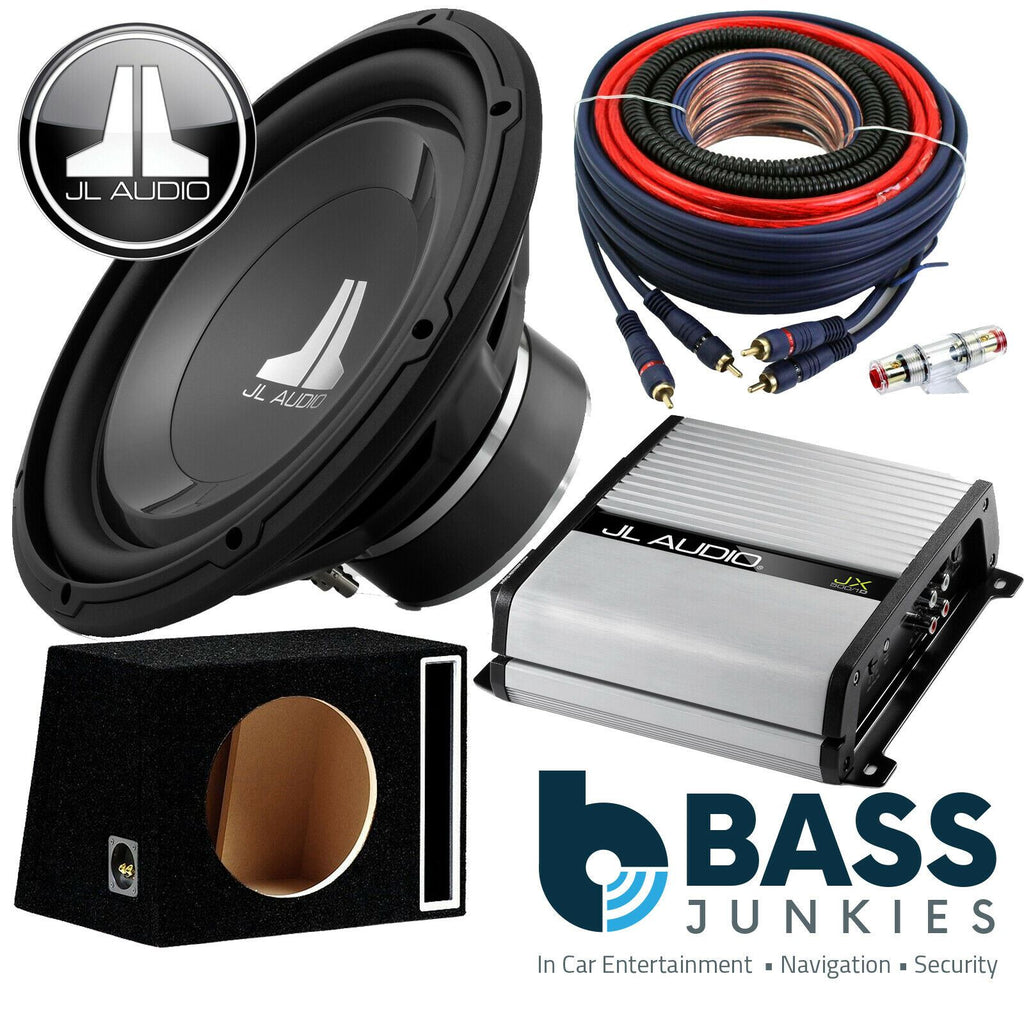

What's Included In This Kit:
- JL Audio Subwoofer
- JL Audio Amplifier
- 12" Bass Box Enclosure
- 8 AWG Amplifier Wiring Kit
