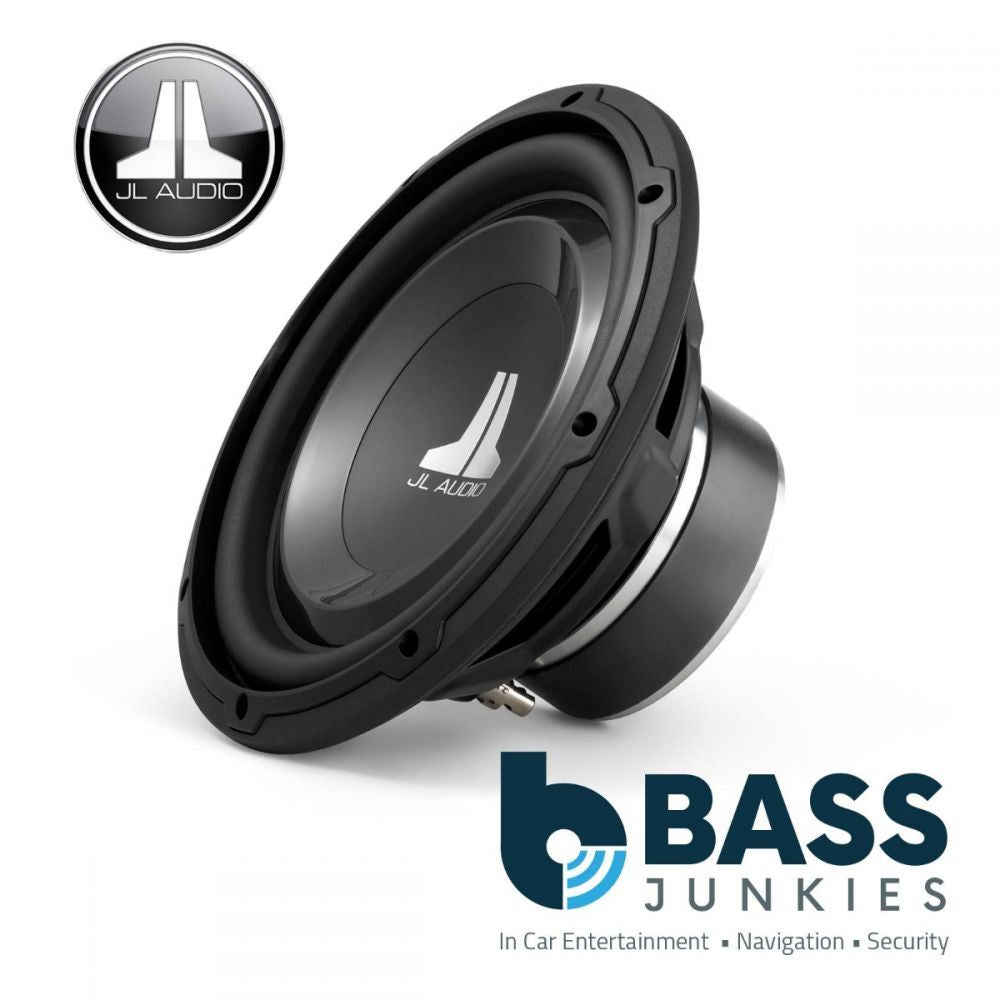

10W1V3-4: 10-inch (250 mm) Subwoofer Driver 4Ω Ohm
The 10W1v3 is an outstanding choice when space is very tight and amplifier power is moderate. It features shallow mounting depth (4.6 in. / 117 mm) and a compact motor structure, allowing it to comfortably fit in a lot of spaces where a typical 10-inch driver will not. Lacking a pole vent, the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.
Key Specifics:
- Continuous Power Handling (RMS) 300 W
- Recommended Amplifier Power (RMS) 75 - 300 W
- Nominal Impedance (Znom) 4 Ω
- Nominal Diameter 10.0 in / 250 mm
- Overall Diameter (A) 10.5 in / 267 mm
- Mounting Hole Diameter (B) 9.0625 in / 230 mm
- Bolt Hole Circle Diameter (C) 9.7 in / 246 mm
- Motor Outer Diameter (D) 4.92 in / 125 mm
- Mounting Depth (E) 4.6 in / 117 mm
- Driver Displacement 0.037 cu ft / 1.05 L
- Net Weight 9.9 lb / 4.5 kg
- Free Air Resonance (Fs) 26.15 Hz
- Electrical “Q” (Qes) 0.475
- Mechanical “Q” (Qms) 7.243
- Total Speaker “Q” (Qts) 0.446
- Equivalent Compliance (Vas) 1.533 cu ft / 43.41 L
- One-Way Linear Excursion (Xmax)* 0.45 in / 11 mm
- Reference Efficiency (no) 0.16%
- Efficiency (1 W / 1 m)** 84.2 dB SPL
- Effective Piston Area (Sd) 53.584 sq in / 0.0346 sq m
- DC Resistance (Re) 3.902 Ω
