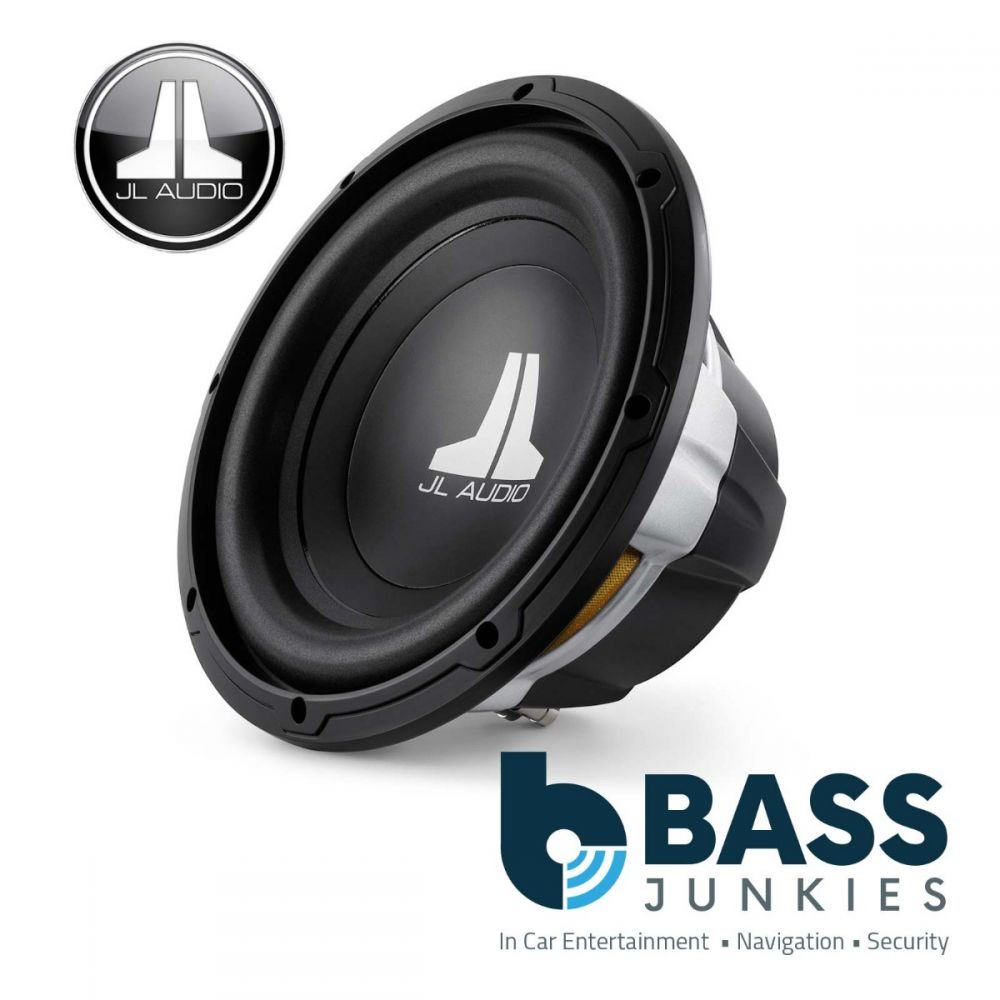

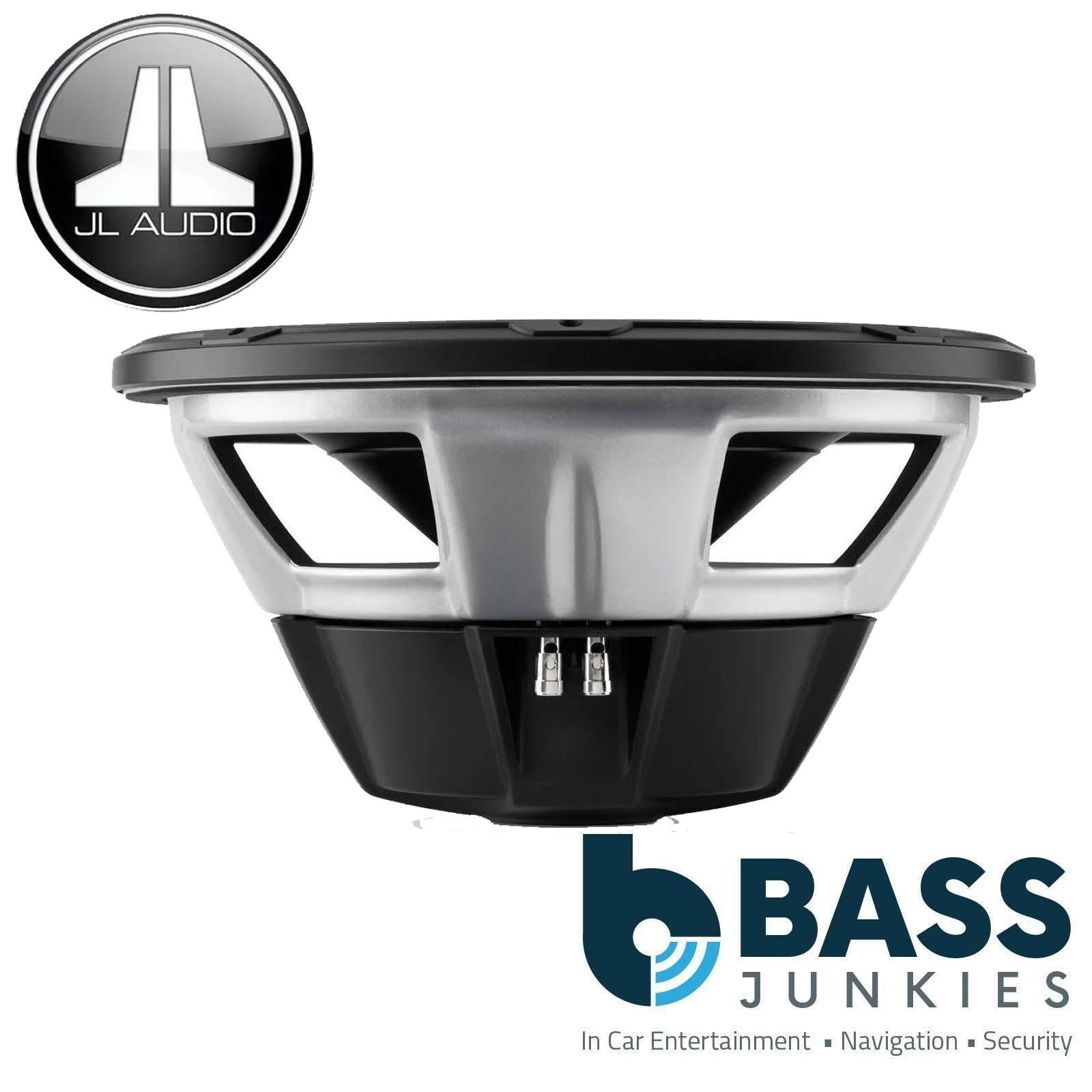

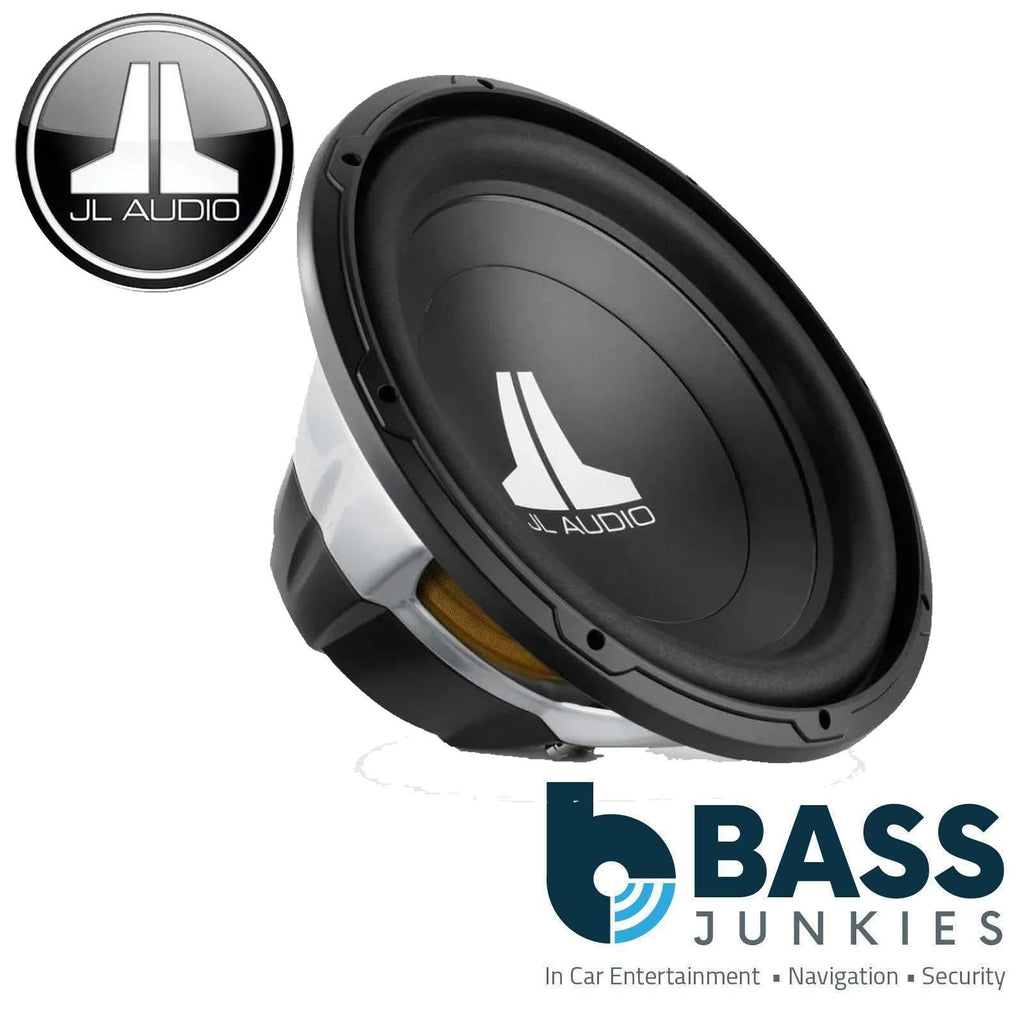

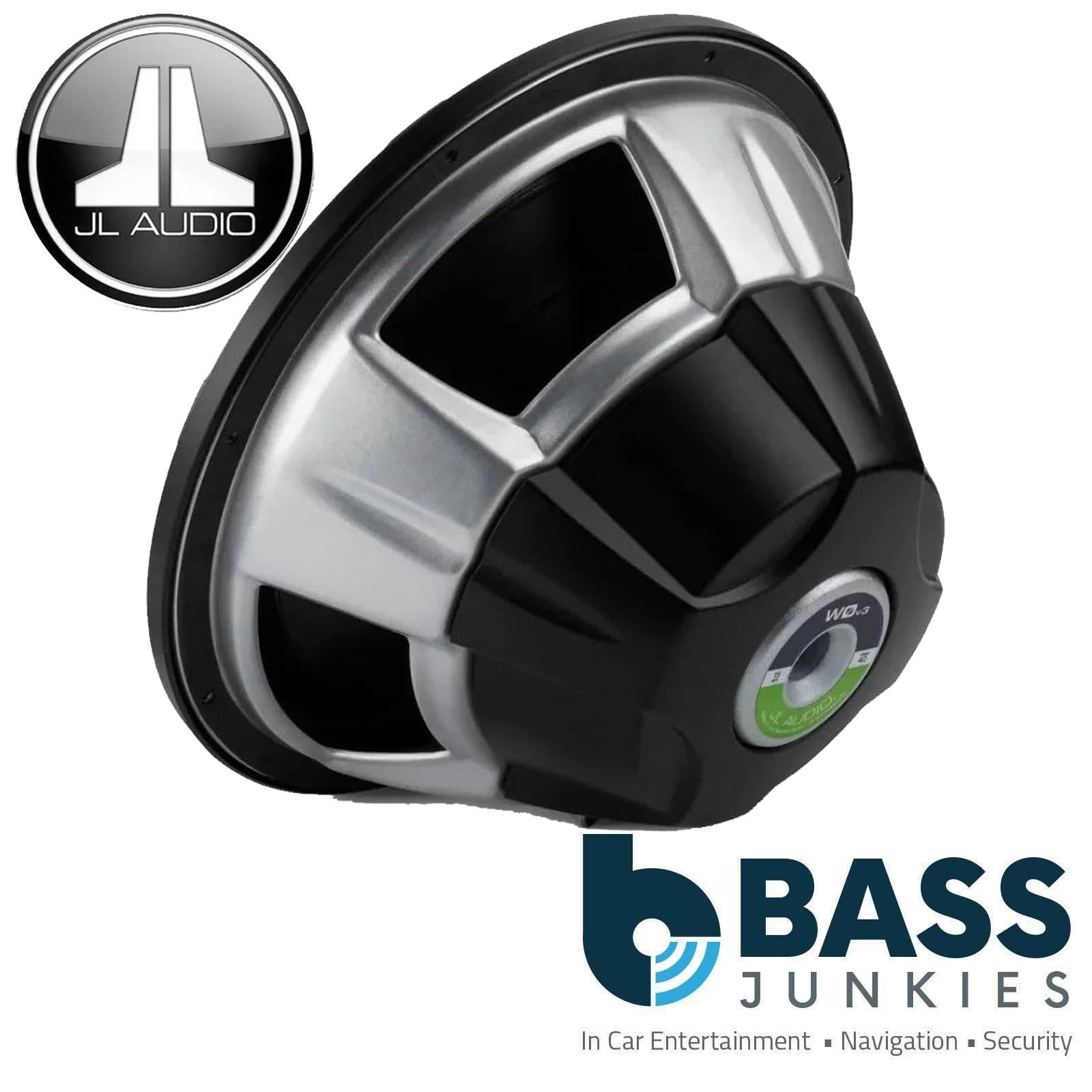

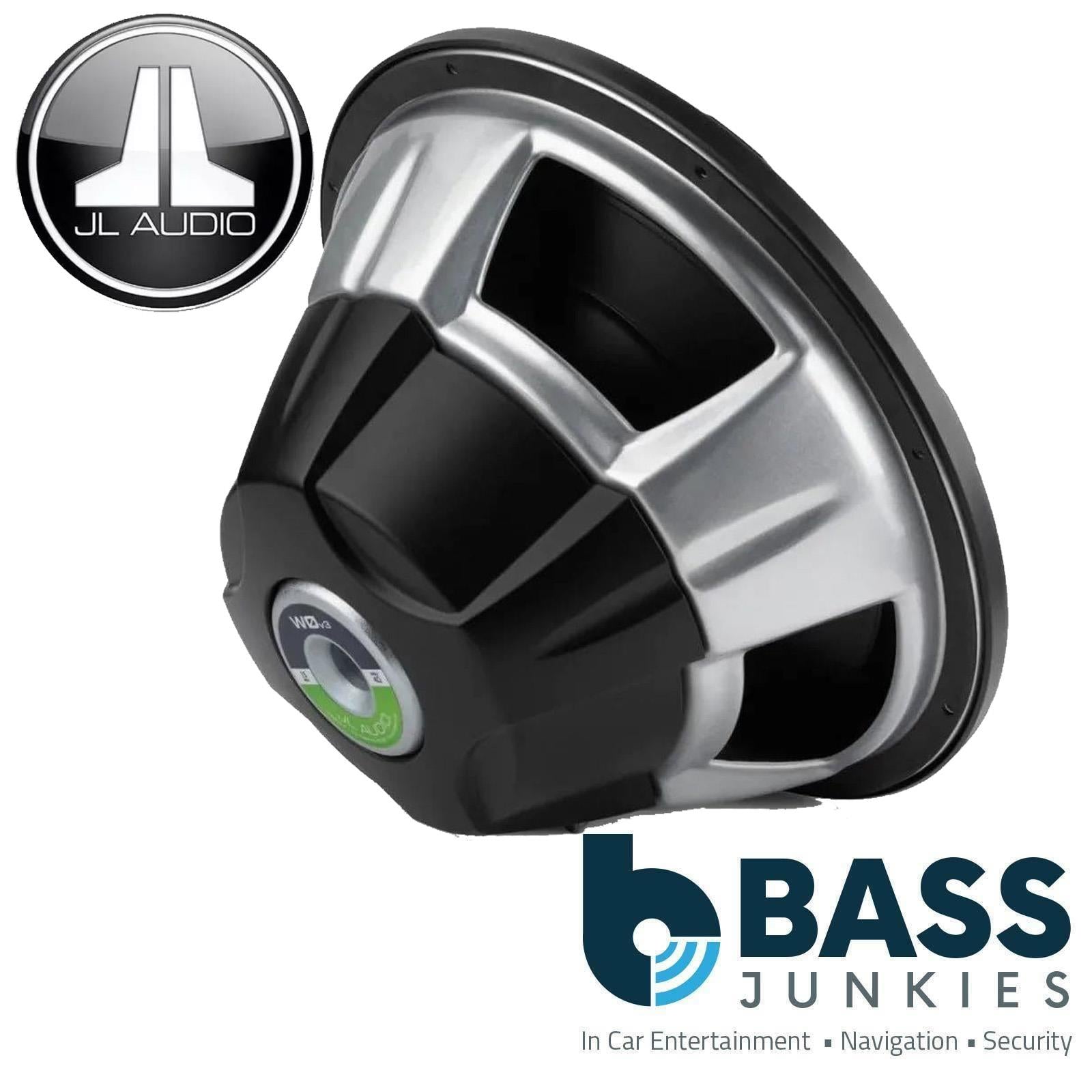

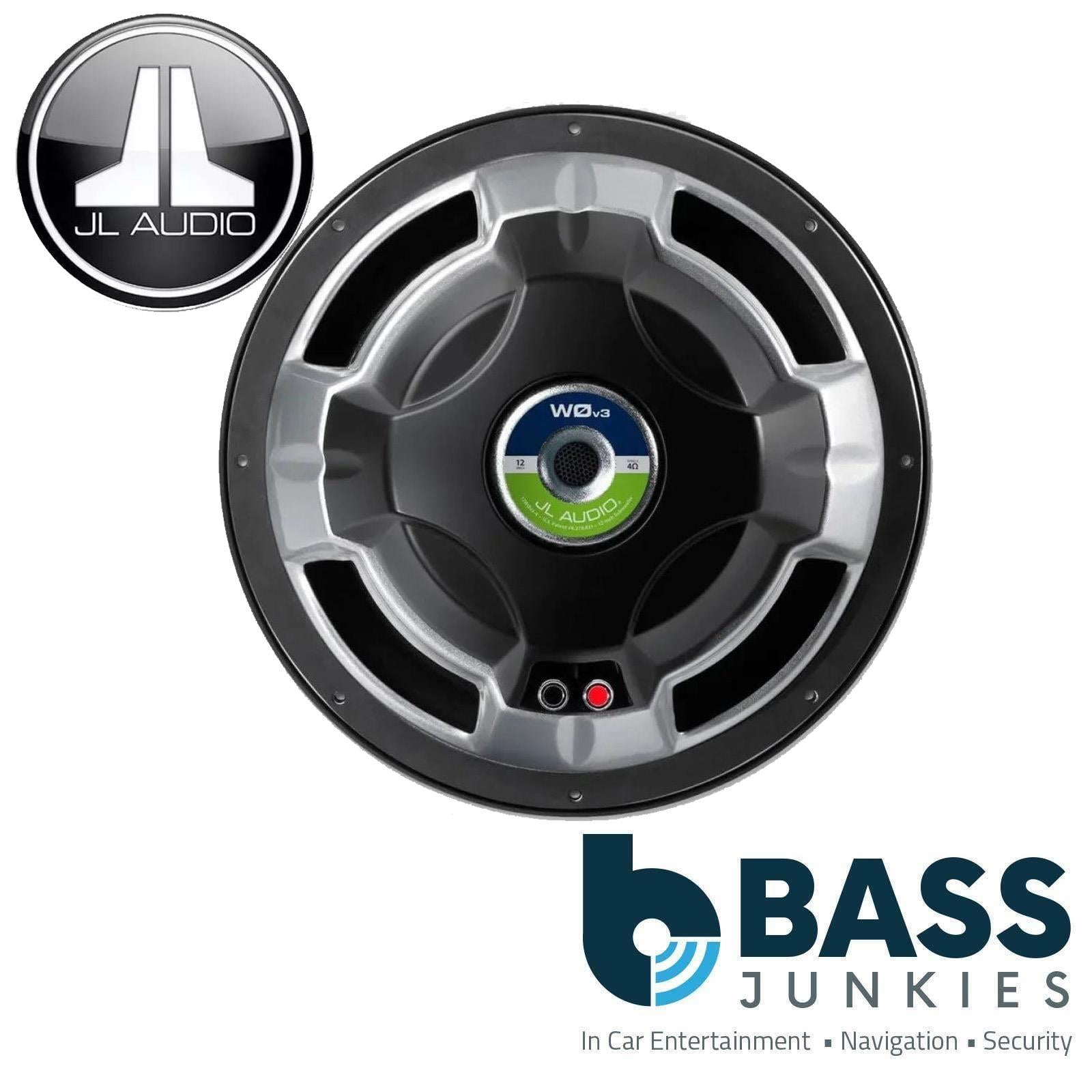

JL Audio 10w0v3-4 10 Inch 25cm 300 Watts 4 ohm Car Sub Subwoofer
The 10WOV3-4 is a rugged performer with excellent excursion capability and linearity and an overall performance envelope that puts it right at the top of its price class. It features a beefy 2 in. diameter voice coil and our patented Elevated Frame Cooling design for enhanced power handling and reliability.
The W0v3s incorporate a new terminal and a lead-wire system woven into the spider along with a new metallic silver frame finish that looks great in any installation.
When the going gets loud the W0v3s are built to perform like no other woofers in their price class making them ideal for those seeking high performance from an affordable subwoofer system.
Specifications:
- Continuous Power Handling (RMS) 300 W
- Recommended Amplifier Power (RMS) 75 - 300 W
- Nominal Impedance (Znom) 4 O
- Free Air Resonance (Fs): 32.09 Hz
- Electrical “Q” (Qes): 0.640
- Mechanical “Q” (Qms): 10.752
- Total Speaker “Q” (Qts): 0.604
- Equivalent Compliance (Vas): 1.095 cu. ft. / 31.01 liters
- One-Way Linear Excursion (Xmax)*: 0.45 in. / 11.4 mm
- Reference Efficiency (no): 0.154%
- Efficiency (1W/1m)**: 84.07 dB SPL
- Effective Piston Area (Sd): 48.909 sq. in. / 0.0316 sq. m.
- DC Resistance (Re): 4.280 ohm
- Nominal Impedance (Znom): 4 ohm
- Thermal Power Handling (Pt): 300W
- Driver Displacement: 0.034 cu. ft. / 0.96 liters
- Net Weight: 7.50 lbs. / 3.40 kg
