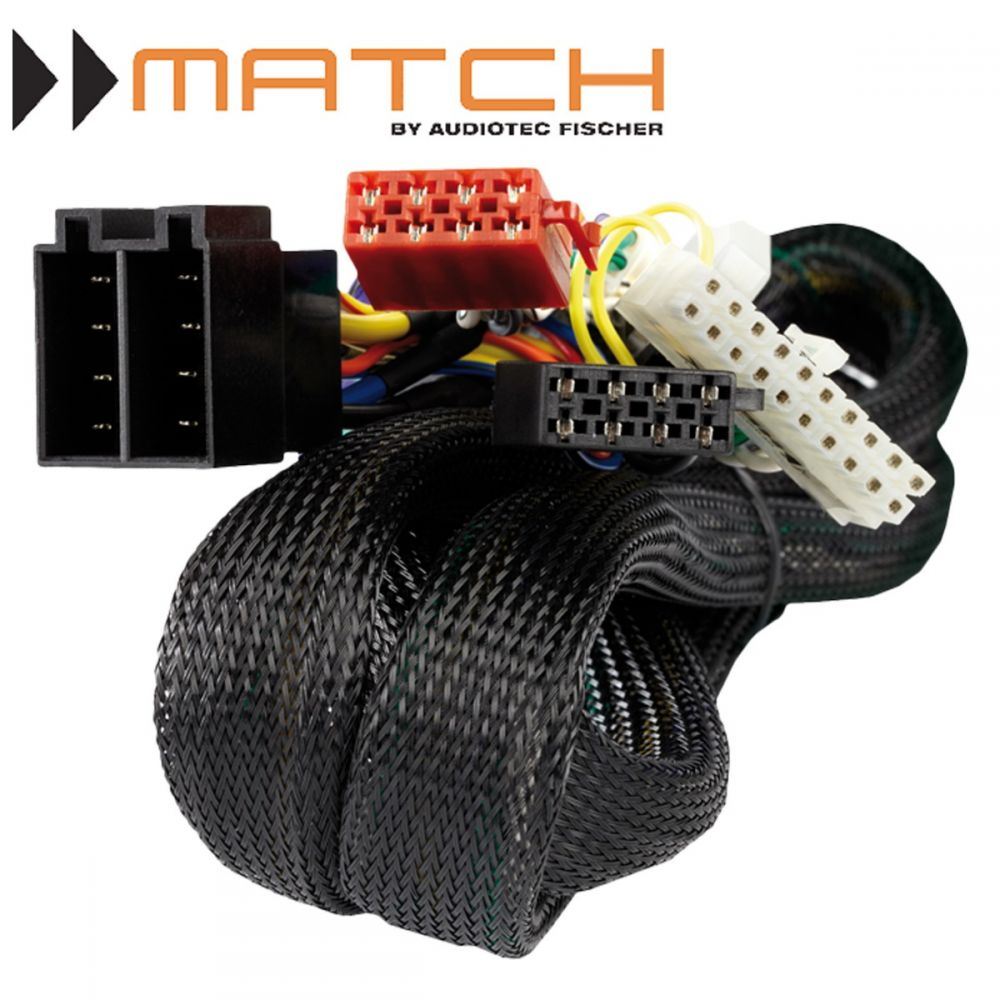

Match PP-ISO 5 - 5 Metre ISO to Amplifier Adapter Interface - OEM Plug and Play Amplified Solution
The ready-made PP-ISO cable harness for all MATCH Plug & Play amplifiers and micro amplifier M 5DSP is intended for the easy connection of the amplifiers to radios with ISO-connectors.
For car radios without ISO connectors an additional ISO-adaptor (PP-AC cable harness) is needed, which has to be connected between the ISO cable harness (PP-ISO) and the car radio
Features:
- Plug & Play connector for an easy connection of a PP-amplifier (20 pole MOLEX connector)
- ISO-connection (for connecting the factory car radio via ISO-connector and socket)
- Integrated fuse
- Permanent and ignition plus configurable
- Dual power wires
- Snake-Skin jacket to protect single wires
Specification:
Cable harness length
|
5.00 meter |
| Connections |
1 x 20-pole MOLEX connector
2 x ISO male connector (chamber A and B)
2 x ISO female connector (chamber A and B)
|
Compatible With:
- MATCH PP 86DSP
- MATCH PP 82DSP
- MATCH PP 62DSP
- MATCH PP 52DSP
- MATCH M 5DSP
Included:
1 x Plug & Play cable harness MATCH PP-ISO 1 (5.00 m)
