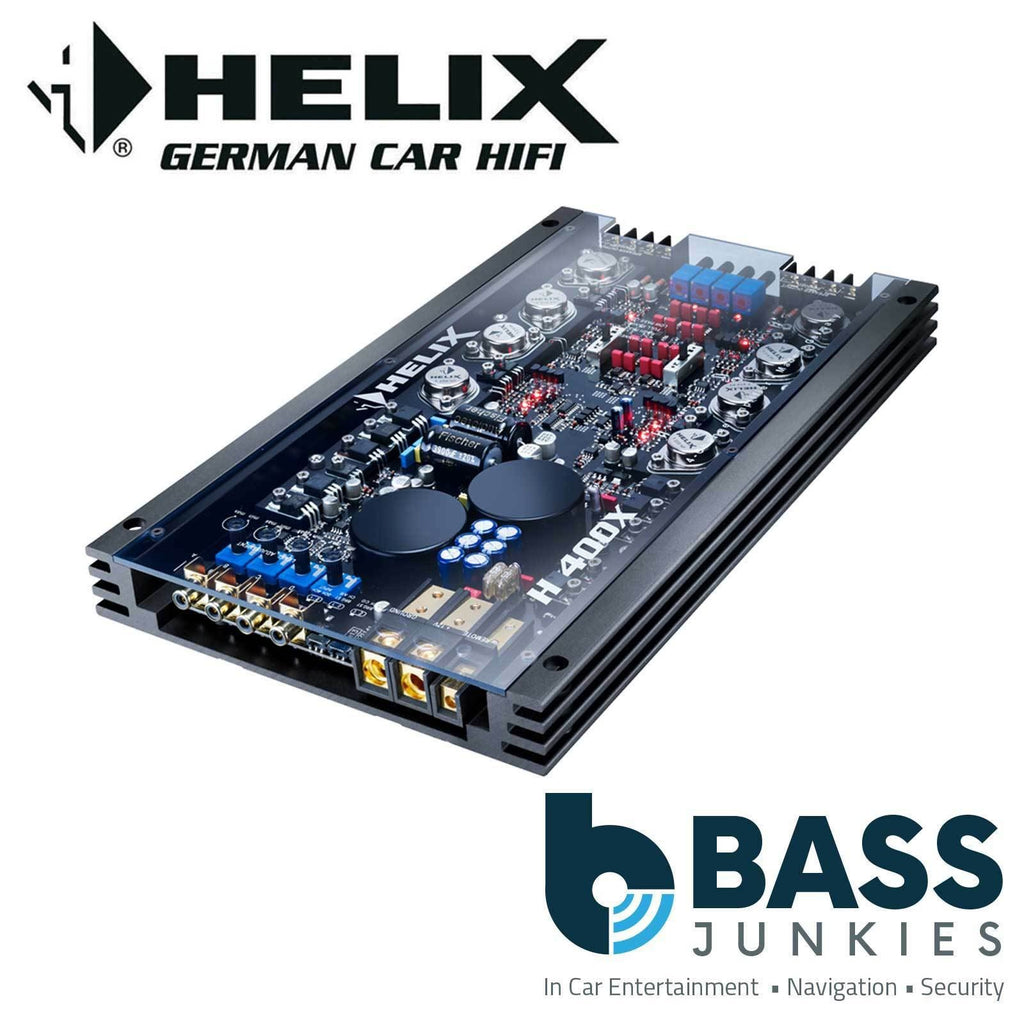

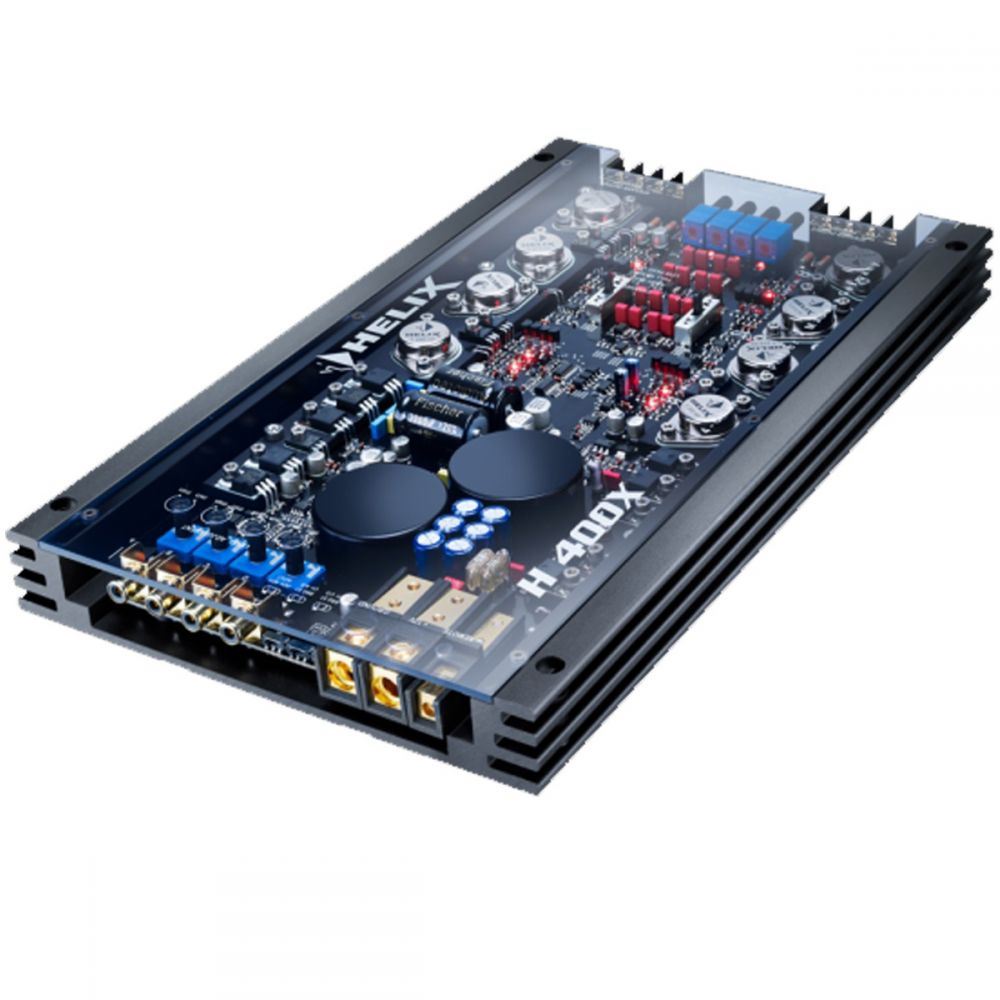

HELIX H 400X - 4 Channel 1000 Watts Class A/B Car Amp Amplifer with integrated, active crossover
The best of both worlds - extremely fast driver stages combined with extremely load-stable and stream-filling "afterburners" in bipolar technology. This is the recipe for success of the particularly flat amplifier, which can not be disturbed by a sophisticated processor control. Continuing to improve over the years, the power packs with the characteristic, transparent housing cover have reached a tonal level that is not only unrivaled in this price and performance class.
Features:
- Extremely stable amplifier in a particularly flat design
- Enormously fast driver stages for minimal distortion
- Processor control of all output stage parameters
- Integrated, active crossover with high pass, low pass and bandpass
- "Input Mode" switch for flexible distribution of input signals
- RMI (Realmixed Input) to form an optimized left and right channel sum signal
- Intelligent electronic protection against overheating, overvoltage and undervoltage, short circuit at the loudspeaker output, impedance underrun and faulty connection
- 24-carat gold-plated, massive connection terminals for permanent lossless signal and power transmission
- Power supply terminals for cable cross sections up to 25 mm²
- Made exclusively from selected components in Germany
Specifications:
| Power RMS / Max. |
|
| - @ 4 ohms |
4 x 70/140 watts |
| - @ 2 ohms |
4 x 125/250 watts |
| - @ 1 ohm |
- |
| - bridged to 4 ohms |
2 x 250/500 watts |
| - bridged to 2 ohms |
- |
| amplifier technology |
Class AB |
| inputs |
4 x RCA
1 x Remote In
|
| input sensitivity |
Cinch 0.7 - 8 volts |
| Input impedance RCA |
10 kOhm |
| Input impedance high level |
- |
| outputs |
4 x speaker output |
| Output voltage RCA |
- |
| Signal converter for the digital input |
- |
| frequency range |
20 Hz - 20,000 Hz |
| Bass Boost |
- |
| highpass |
15 Hz - 4,000 Hz adjustable |
| lowpass |
15 Hz - 4,000 Hz adjustable |
| bandpass |
15 Hz - 4,000 Hz adjustable |
| Subsonic |
- |
| phase |
- |
| Slope high / low pass |
12 dB / oct. |
| Slope Subsonic / Low Pass |
- |
| Signal-to-noise ratio digital input |
- |
| Signal-to-noise ratio analog input |
110 dB (A-weighted) |
| Harmonic distortion (THD) |
<0.009% |
| damping factor |
> 300 |
| operating voltage |
9 - 17 volts |
| No-load current |
2200 mA |
| fuse |
2 x 25 A LP mini plug-in fuse |
| Additional features |
Active, adjustable crossover, input mode switch, color protection system |
| Dimensions (H x W x D) |
31.5 x 200 x 336 mm |
