Grundig GX-3800 Double Din + Fitting Kit - to fit Opel Corsa 2014-

Grundig 6.8" Apple Android + Full Screen Fitting kit Opel Corsa 2014-

Stereo Information:
The Grundig GX-3800 double din head unit with a 6.8" capacitive touch screen. Featuring both Apple Carplay and Android Auto, the product has a 32bit True Colour touch control monitor providing crystal clear visuals for viewing your entertainment on the go. The unit also features smartphone mirroring with direct control using the touchscreen and full HD 1080p media playback. Additionally, the GX-3800 uses built-in hands-free calling and music streaming, USB phone charging, and a 24-bit digital audio processor with 13 band true EQ and dynamic bass booster to provide fantastic audio quality and adjustability that any audiophile can enjoy.

Universal window mount DAB aerial included

Features:

• Touch Screen
• FM,AM,MW Radio
• DAB/DAB+
• Window
• USB Playback
• Video


  Music


  Phone Charge


  Smart Phone Connectivity
• Android Auto
• Apple CarPlay
• Android Mirror
• iPhone Mirror
• 24Bit DSP Audio

Specifications:

• TFT Monitor section
  Screen Size: 6.8inches


  Display Resolution: 1024x600 dots


  Contrast Ratio: 500
• USB interface section
• USB Standard: USB 2.0 Full Speed


  Sile System: FAT 16/32


  Maximum Current: DC 5V⚎1.5A


  S/A Converter: 24Bit
• Bluetooth Section
• Communication: Bluetooth Ver 4.1


  System Output: Bluetooth Standard Power Class 2


  Maximum Communication Range: Approx. 10meters


  Frequency Band: 2.4 GHz


  Compatible Bluetooth Porfiles: HFP/SPP/A2DP/AVRCP/PBAP


  Supported Codecs: SBC (Sub Band Codec)
• Radio section
• Frequency (FM) range: 87.5-108.0MHz


  Frequency (AM)(MW) range: 522-1620 KHz


  Usable sensitivity
  13.2 uV (FM)


  44.7 uV (AM)(MW)
• DAB section
• Frequency Range BANDIII: 174.928-239.200MHz


  Sensitivity: -98dBm


  S/N Ratio(dB): 82dB
• Video section
• Color System of External Video Input: NTSC/PAL


  External Video Input (RCA/3.5m Jack): 1 Vp-p /75Ω
• Audio Section
• Maximum Power: 50W x4


  Continuous Power Output (RMS): 22W x4


  Preout Level (V): 4V/10k Ω


  Preout Impedance: ≤1.3k Ω 4-8 Ω


  Output Frequency Band: 20-20000Hz
• General
• Operating Voltage: 14.4V [10.5-16V]


  Operational Temperature Range: -20℃ −+ 80℃


  Maximum Current Consumption: 15A
• Supported Formats
• Support Audio Formats
  MP3/WMA Bit rate:16-320 Kbps,VBR


  WMA Version V9 or earlier


  ID3 Tag Version 1.0/1.1/2.2/2.3/2.4
  Support Video Formats
  MPEG 1 (.mpg,mpeg), 720x480(30fps)


  MPEG 2 (.mpg,mpeg), 720x480(30fps)


  MPEG 4 (.mp4,avi), 720x480(30fps)
  Support File / Folder Formats
  Directory nesting up to a maximum of 8 Levels


  Number of tracks/titles: maximum 999


  Number of albums/folders:m aximum 99

Fitting Kit Information:

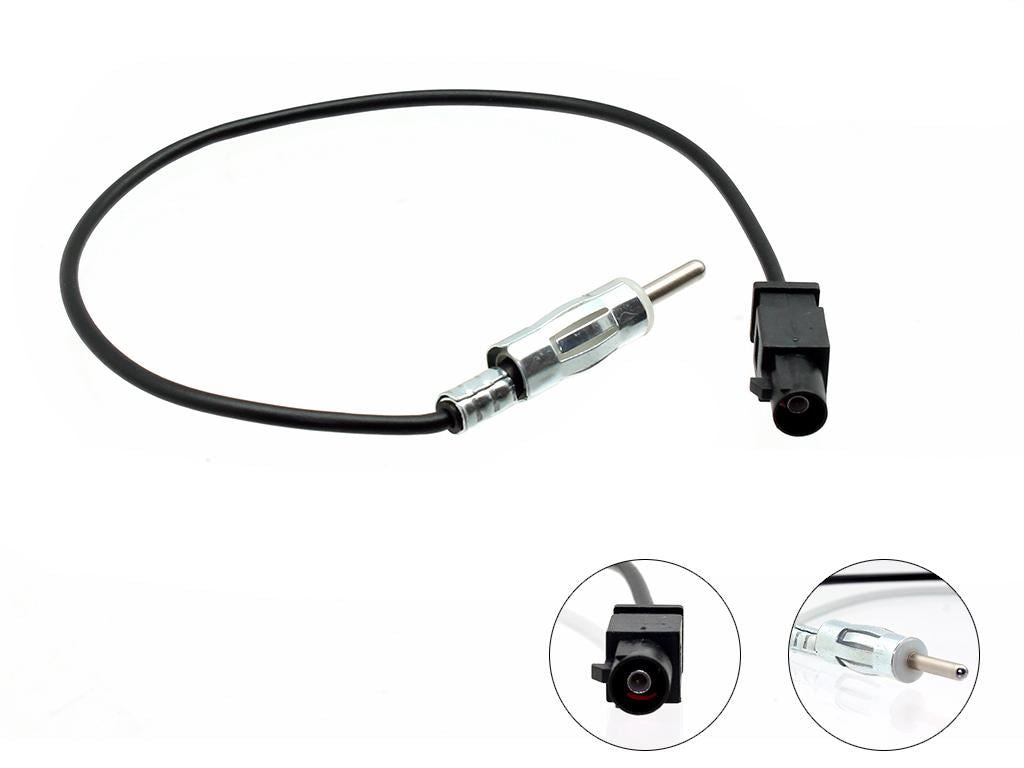

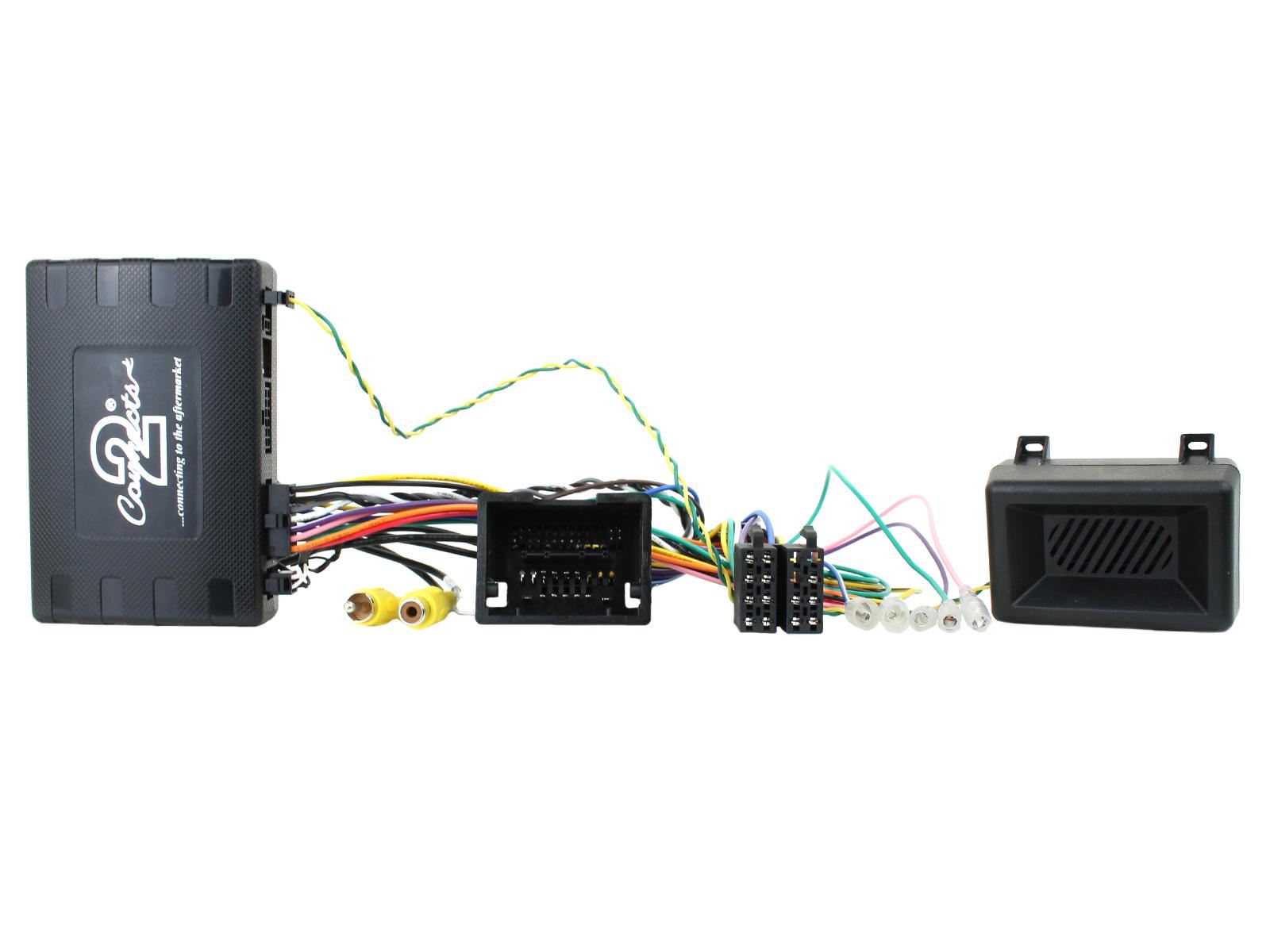

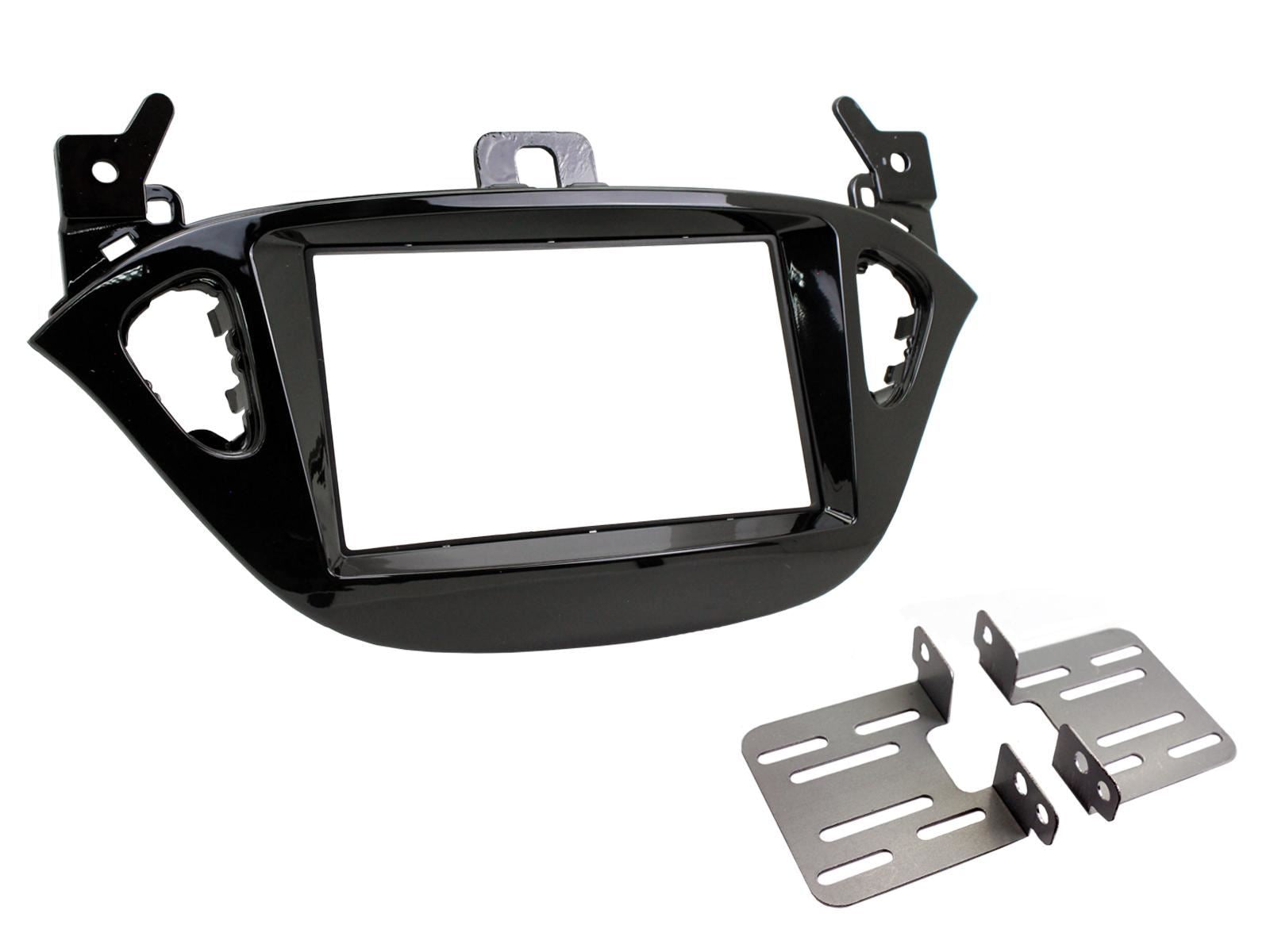

Vauxhall/Opel Installation Kit. Supplied With Piano Black Double DIN Fascia, FAKRA Antenna Adapter, Infodapter & Universal PatchleadFeatures & Benefits

• This product has been developed through carefully documented data and research. Connects2 Ltd. cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.

This kit is designed to fit the following vehicles:

• Opel Adam 2013-2021 Connection:OEM Specific
• Opel Corsa 2014-2019 Connection: OEM Specific
• Vauxhall Adam 2012-2019 Connection: OEM Specific
• Vauxhall Corsa 2014-2019 Connection: OEM Specific

What you will receive when you purchase this listing:
Grundig GX-3800
Fitting Frame

ISO connector

Warranty Card

Instruction Manual

Universal DAB Aerial

Vehicle specific fitting kit which fits vehicles listed above.

DISCLAIMER:
Please check the plugs and connections in our picture matches the plugs and connections in your vehicle before you make your purchase. If unsure please message us with pictures of the plugs and connections so we can advise further.
