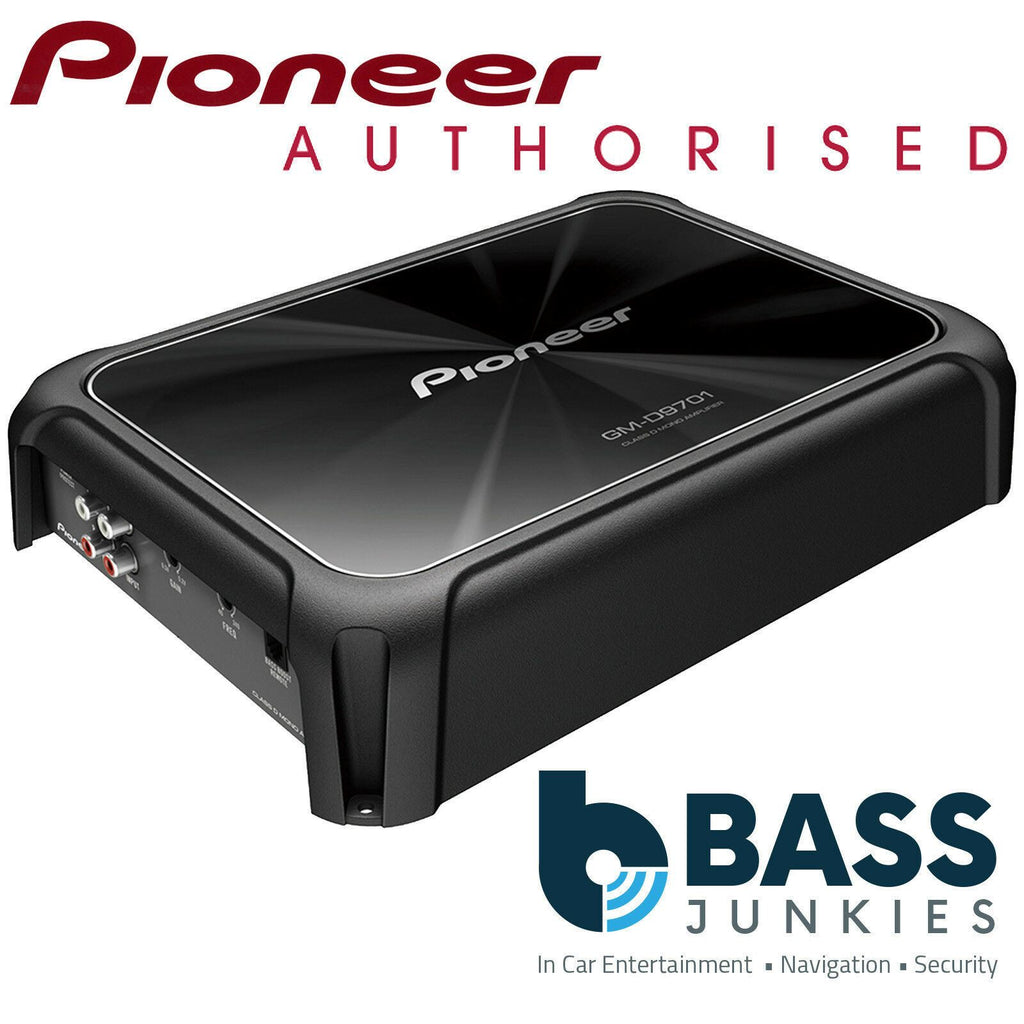

Pioneer GM-D9701 2400 Watts Class D Mono Monoblock Car Stereo Bass Amp Amplifier
Big Power, Small Size
Pioneer’s new extra-efficient Class-D digital amplifiers mark a dramatic improvement in power output capability, yet are 50% smaller than the current GM-Series Class-AB amplifiers. That makes them more versatile in terms of installation as well as performance.
Improved Circuit Design
To prevent circuit shutdown, Pioneer's new digital amplifier circuit "Protection Control System" senses its internal temperature and automatically moderates input level accordingly. Stable, durable circuitry lessens the risk of high input power for the unit to achieve 1 O connection. This design enhances the flexibility to connect multiple subwoofers to a system.
Variable Low Pass and High Pass Filter
For extra flexibility, a variable LPF makes audio frequency more adjustable according to subwoofer characteristics and personal listening preferences. The GM-D9701 LPF is adjustable from 40 Hz to 240 Hz
Speaker Level Inputs
The GM- speaker level inputs allow you to connect your OEM unit (or any unit that doesn't have the typical RCA-type inputs) without having to buy add-on adapters. So, the install goes faster, you save money, and you've got a Pioneer amp in your vehicle.
Turn Up The Bass
Every new Pioneer Class-D amplifier has a wired bass boost remote control for optimal bass level adjustment according to listening preferences and music characteristics.
Pioneer GM-D9701 Specifications:
- Maximum Output Power
- 1 x 1000 Watts (4 ohm)
- 1 x 1600 Watts (2 ohm)
- 1 x 2400 Watts (1ohm)
- Frequency response 10 - 240 Hz
- Distortion 10W, 100 Hz ref. < 0.5 %
- S/N ratio > 100 dB
- Bass Boost Remote Control
- Frequency 50 Hz, Level 0-18 dB
- LPF 40 - 240 Hz (-12 dB/oct)
- RCA terminals
- Speaker Terminals Block-type
- Speaker line input sensor turn-on sensor
- Input level control RCA (0.2V - 6.5V)
- SP (0.8V - 16V)
- Max. Current consumption (A/4O) 39 A
- Chassis size (W x H x D) 302 x 60 x 215 mm
- Unit weight 3.3kg
