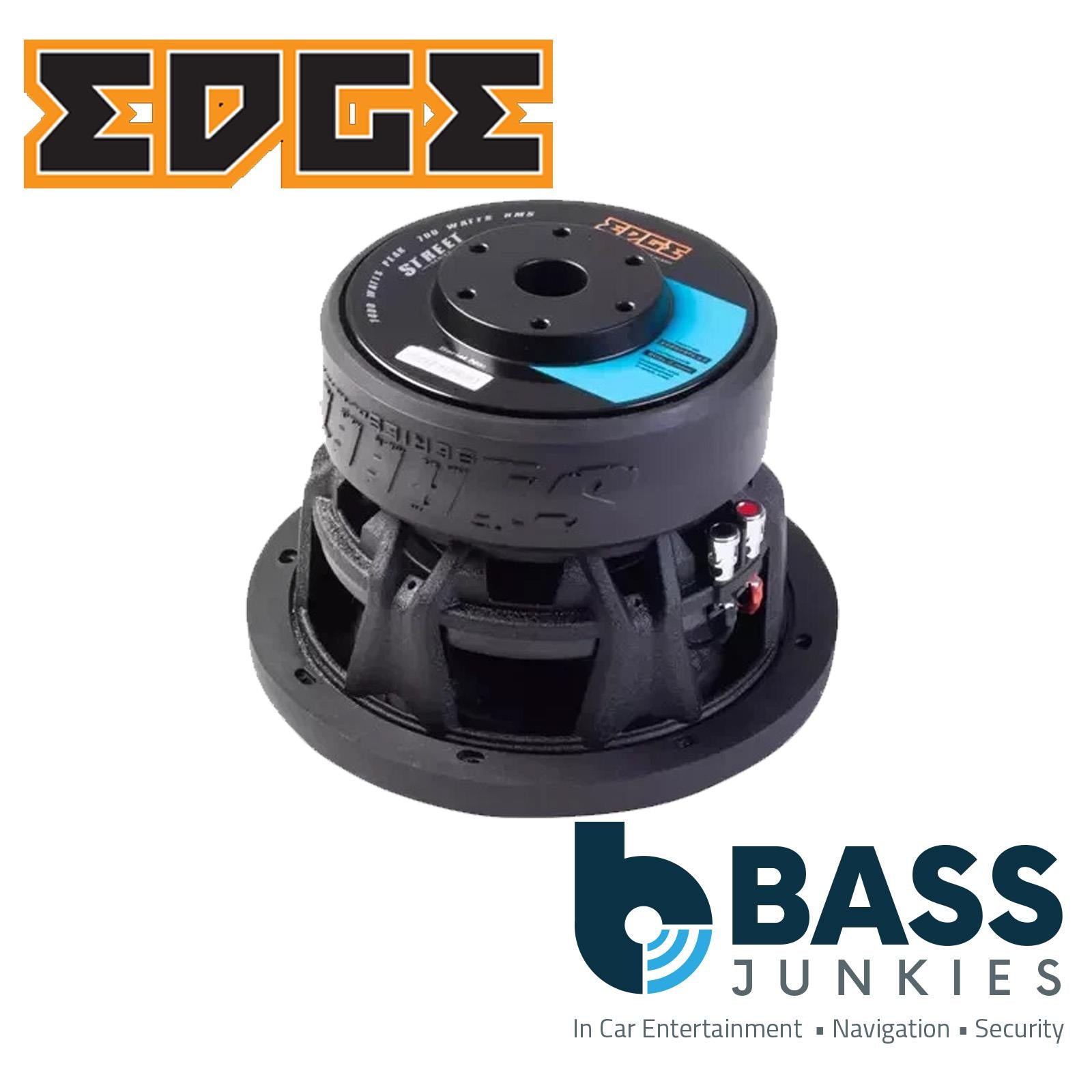

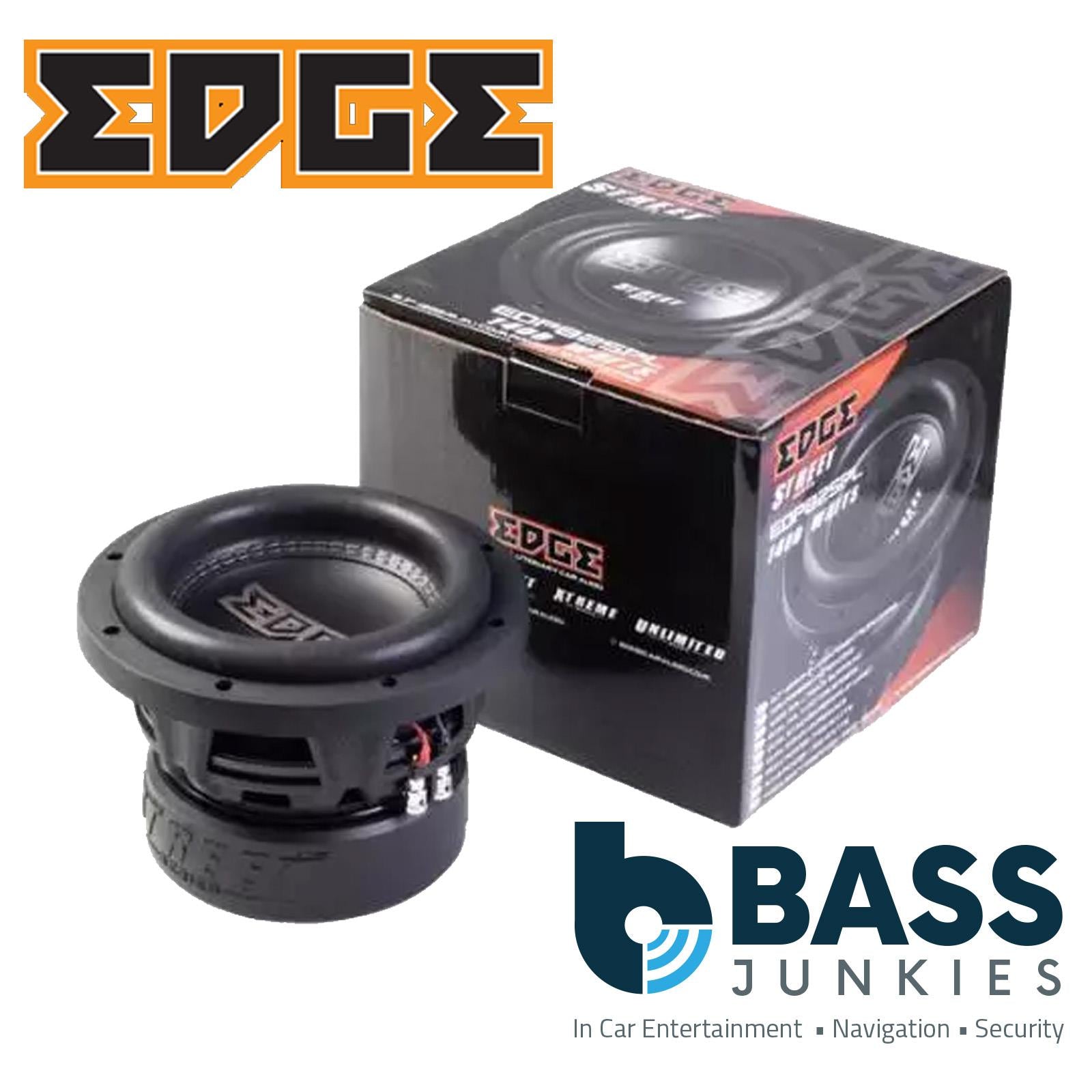

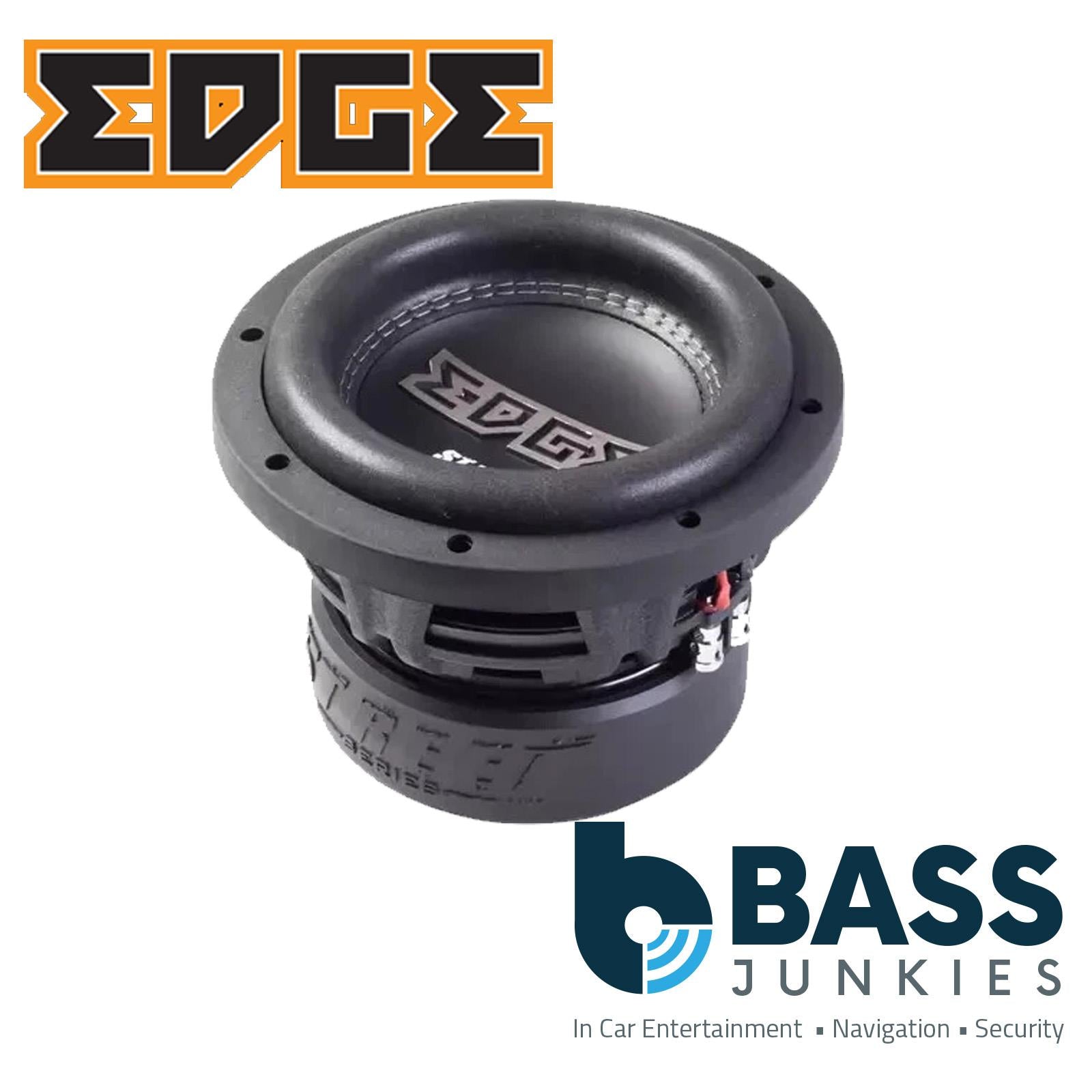

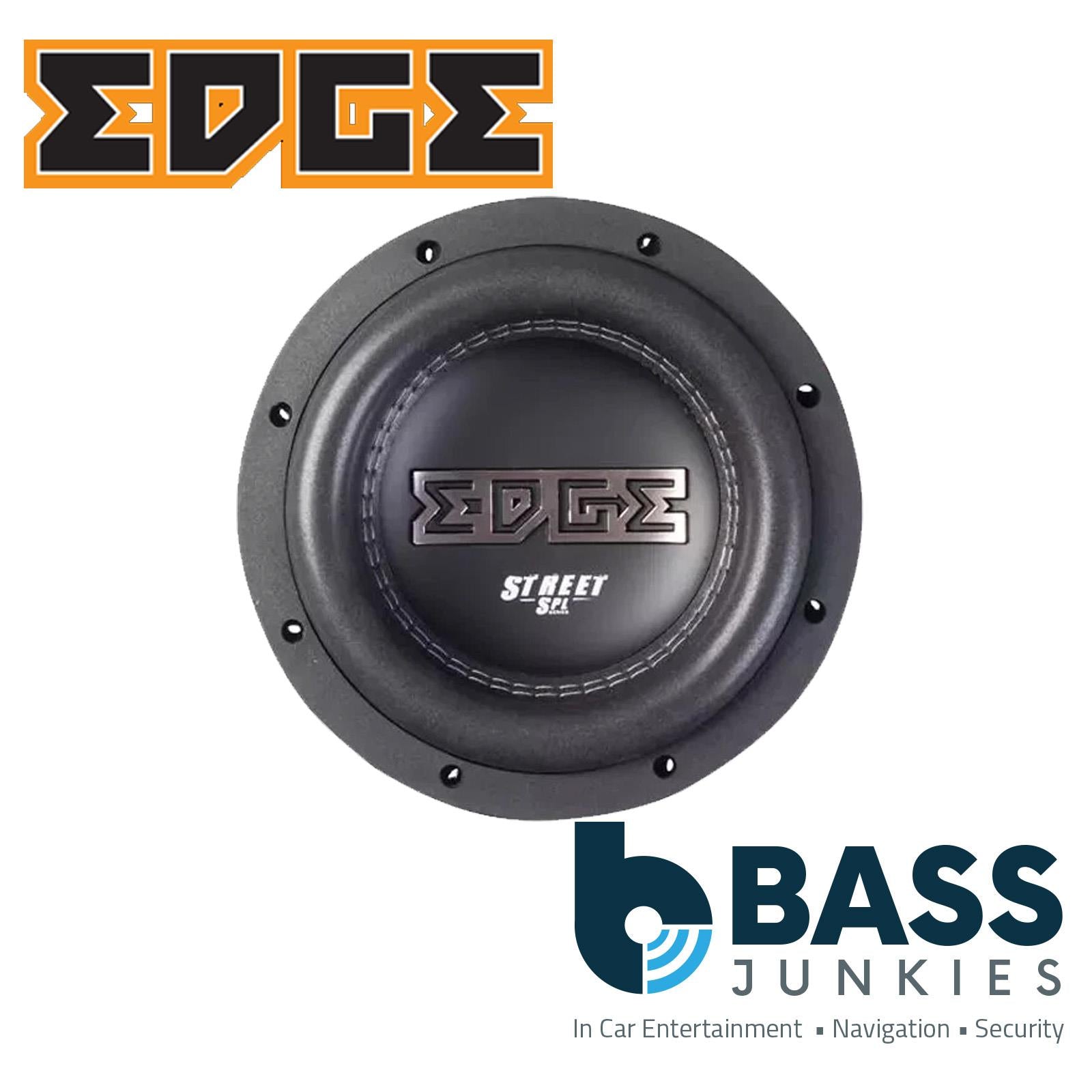

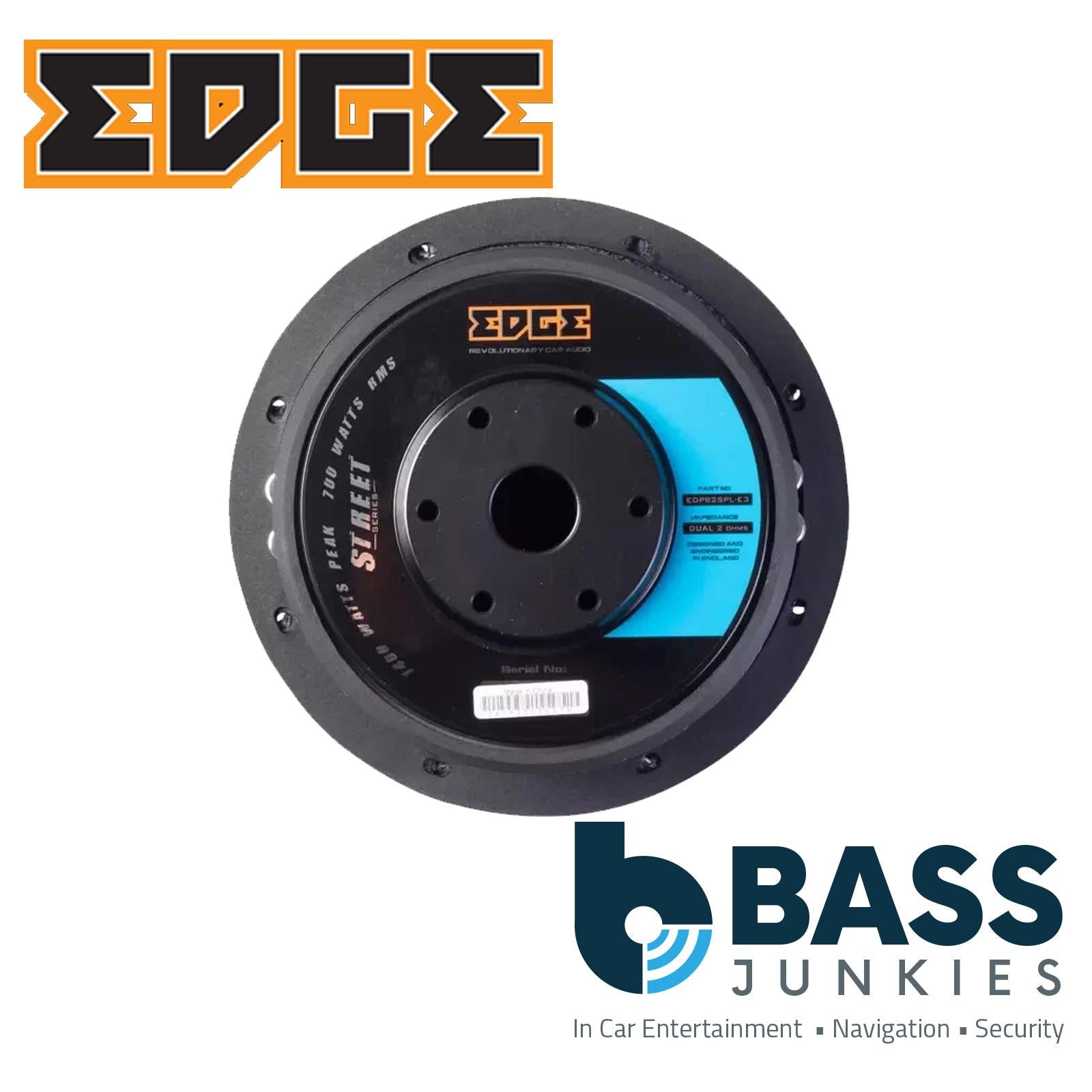

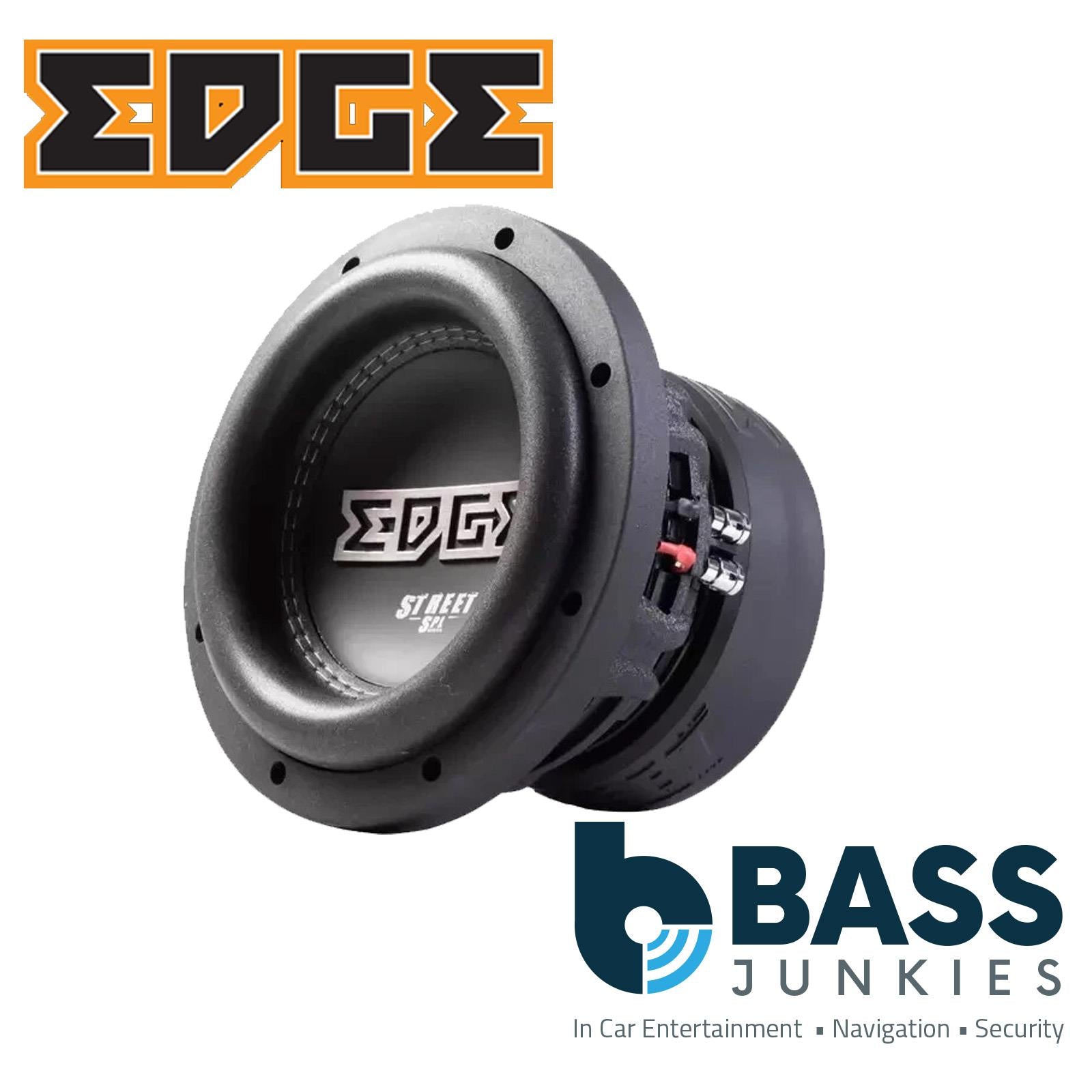

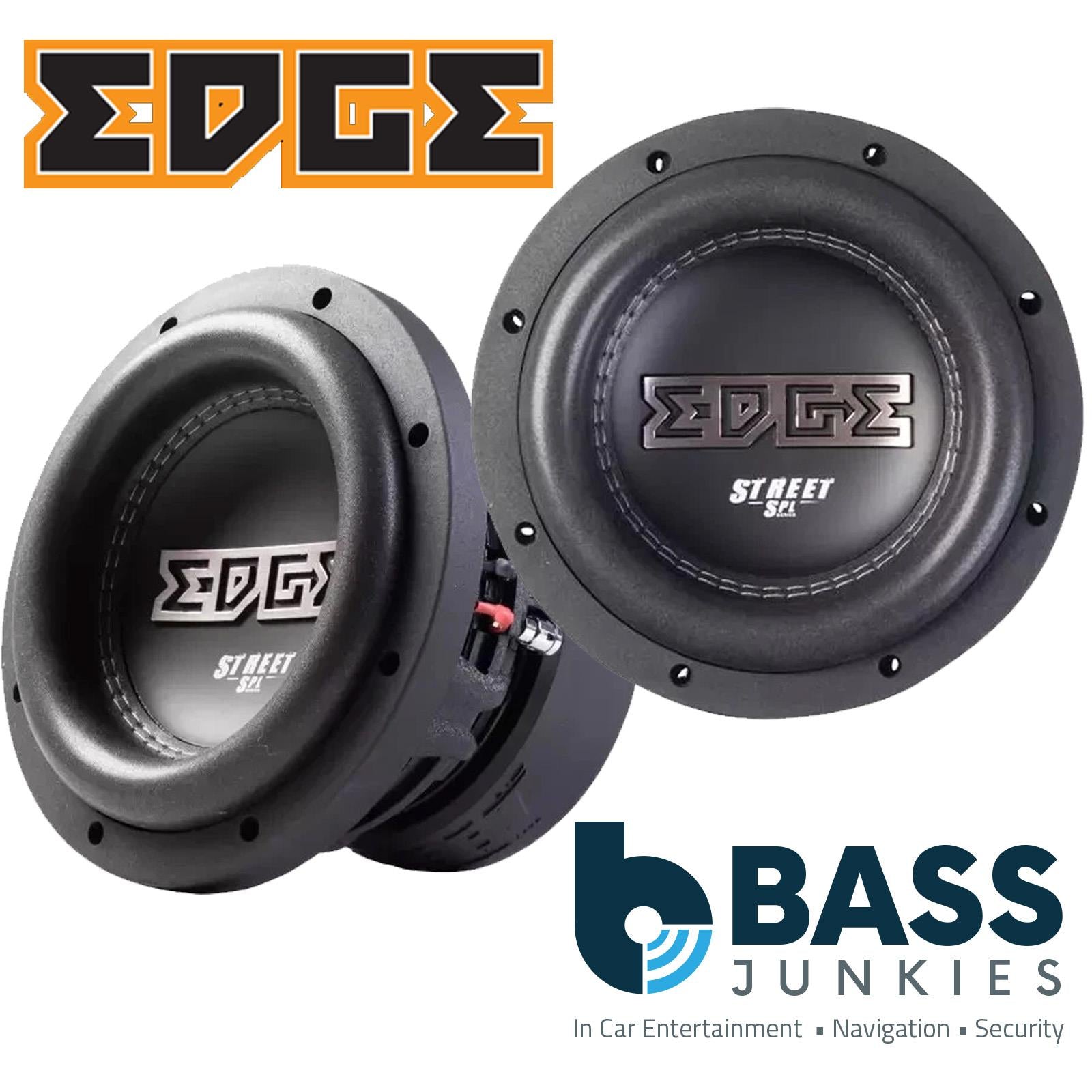

Edge EDP82SPL-E3 - 1400 Watts 8" Inch 20cm Dual 2 Ohm Car SPL Sub Subwoofer
Unleash the power of music with EDGE’s Street Series subwoofers.
Based on its bigger 12” sibling, the EDP122SPL-E3, the new 8” EDP variant captures the same design features of the larger variant and shrinks them to fit the 8” frame. Powerful magnet and motor assembly, double stitched surrounds and tied off with a limited edition EDGE one piece dustcap. These subwoofers deliver deep, resonant bass that shakes your core. Topped off with with polycotton spiders and non-pressed paper cones, these subwoofers are designed for durability and performance.
The 8” variant features a large 2.5” 4 layer voice coil , to squeeze every bit of performance out of this 8” driver.
BEST SOUND - Double stitched High roll foam surround and paper composite cone make for lightweight but strong soft parts allowing for massive output from these sub-woofers.
PREMIUM DESIGN - Custom tooled reinforced die cast angular torsion basket for increased strength.
BEST ENGINEERING - Bumped 8mm T-yoke allow high levels of excursion without colliding with the backplate.
BEST POWER HANDLING - The 2.5” voice coil and custom designed soft parts result in great power handling for the 8” driver of 700W RMS.
PAPER COMPOSITE CONE: Strong non-pressed paper cone to deliver extreme levels of SPL.

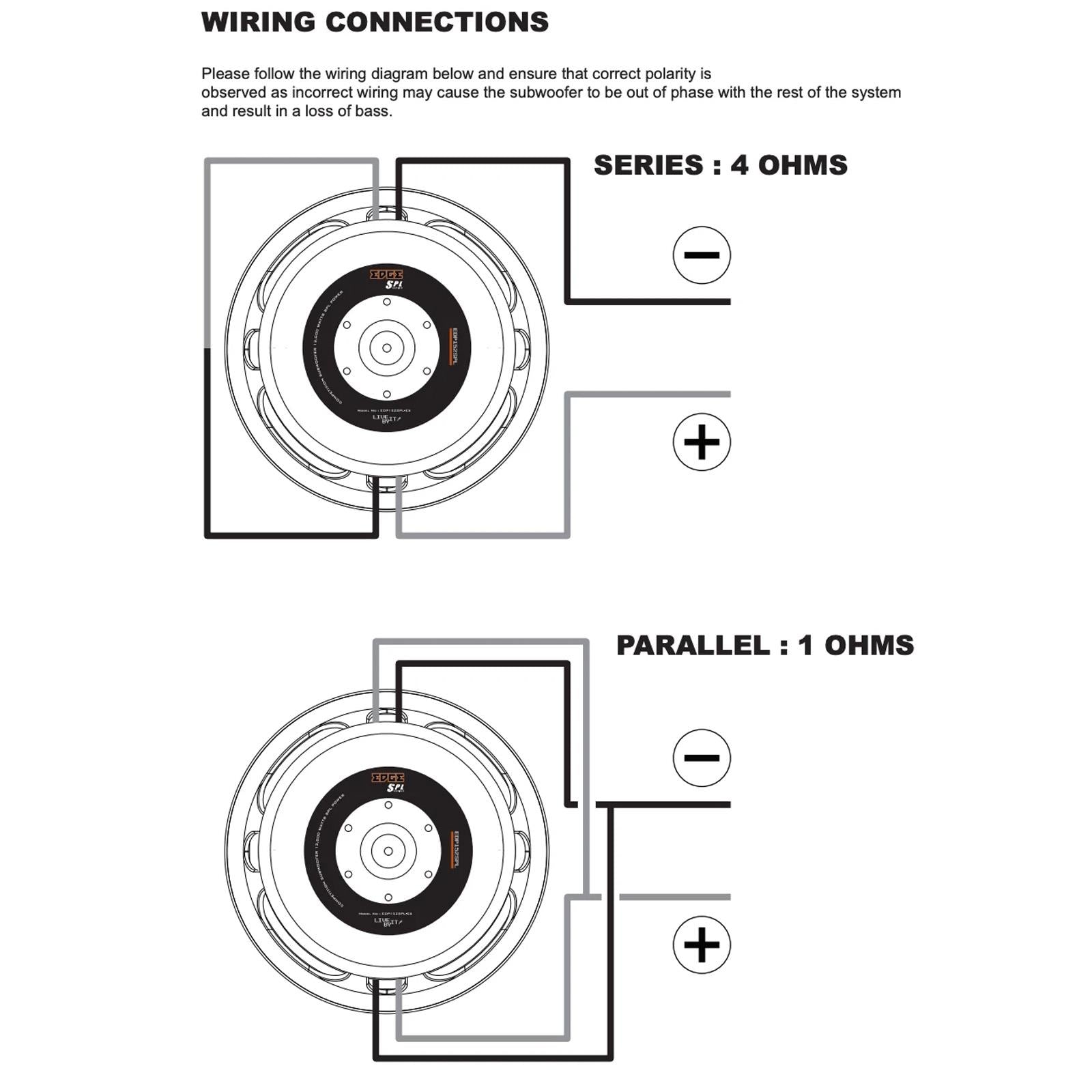

DUAL VOICE COIL: Dual voice coil subwoofer with convenient spring terminals flexible wiring options when connecting to the subwoofer.
JUMBO FOAM SURROUND: Wide roll foam surround to cope with large amounts of excursion.
FEMM MOTOR: Large oversized ferrite magnets provide extreme levels of magnetic force for cone control and resposiveness for tight deep bass.
STITCHED: Double stitched surround delivers anunparalleled mechanical bond between the cone and surround.

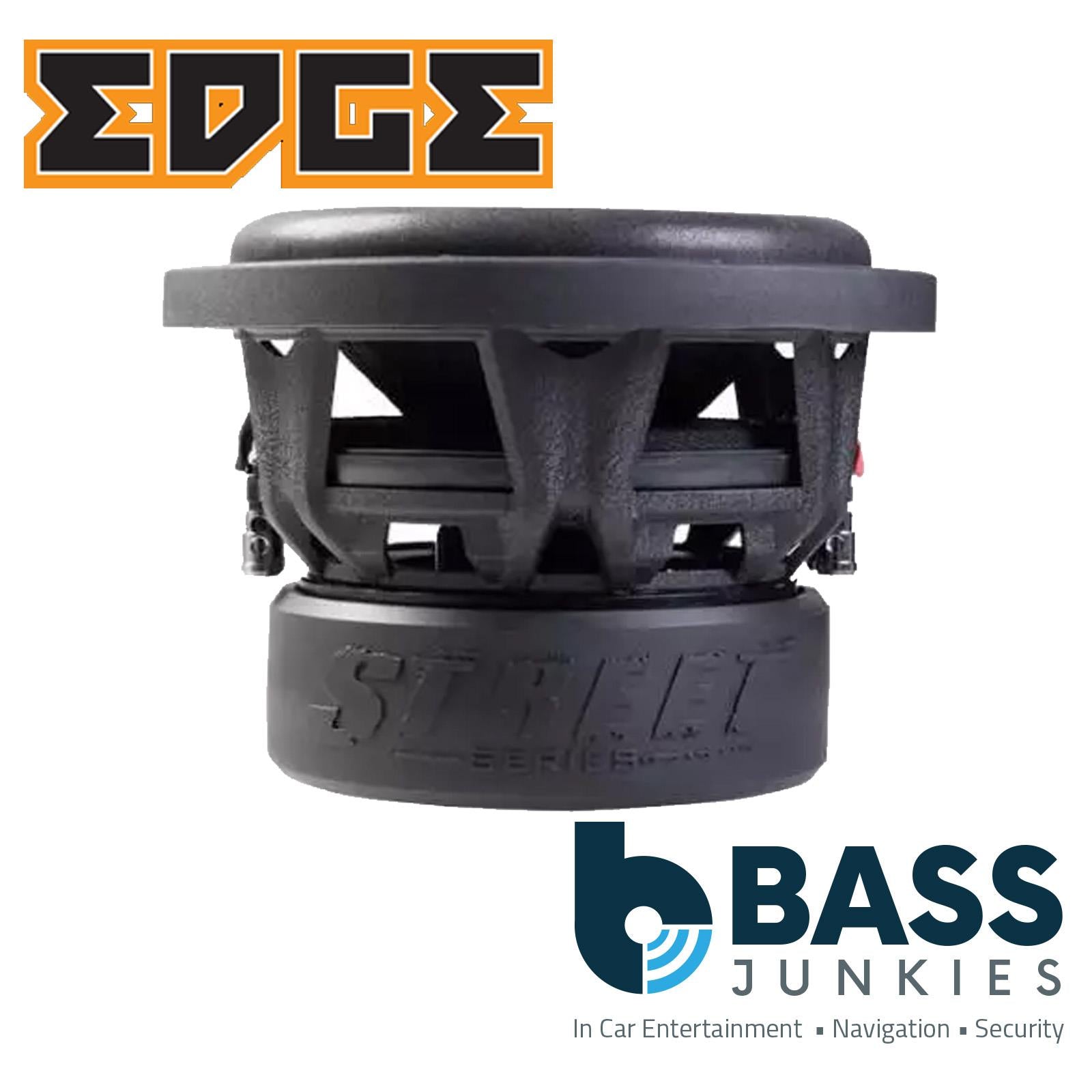

TORSION BASKET: Brand new custom tooled torsion basket made from cast aluminum for extreme rigidity, supporting the massive moving motor parts.
Features
- Model: EDP82SPL-E3
- Type: Subwoofer
- Speaker Size:8” (222mm)
- Peak: 1400W
- RMS Power: 700W
- Sensitivity: 83dB
- Frequency Response: 35Hz - 850Hz
- Impedance: Dual 2 Ohms
- Mounting Depth: 5.5” (140mm)
- Mounting Diameter: 7.3” (185mm)
- Xmax14mm
- Fo: 49.1Hz
- QTS: 0.421
- Vas: 5.913L
