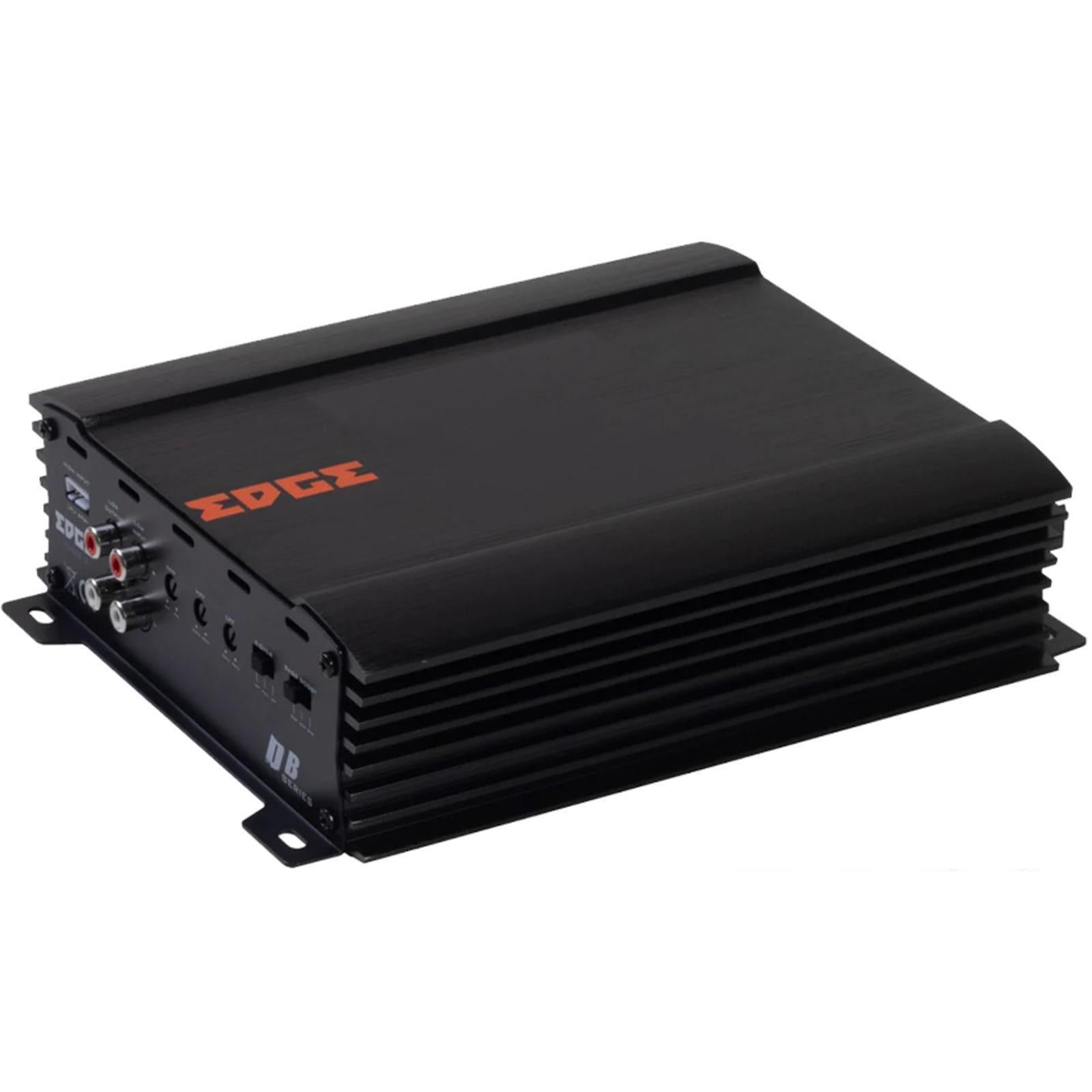

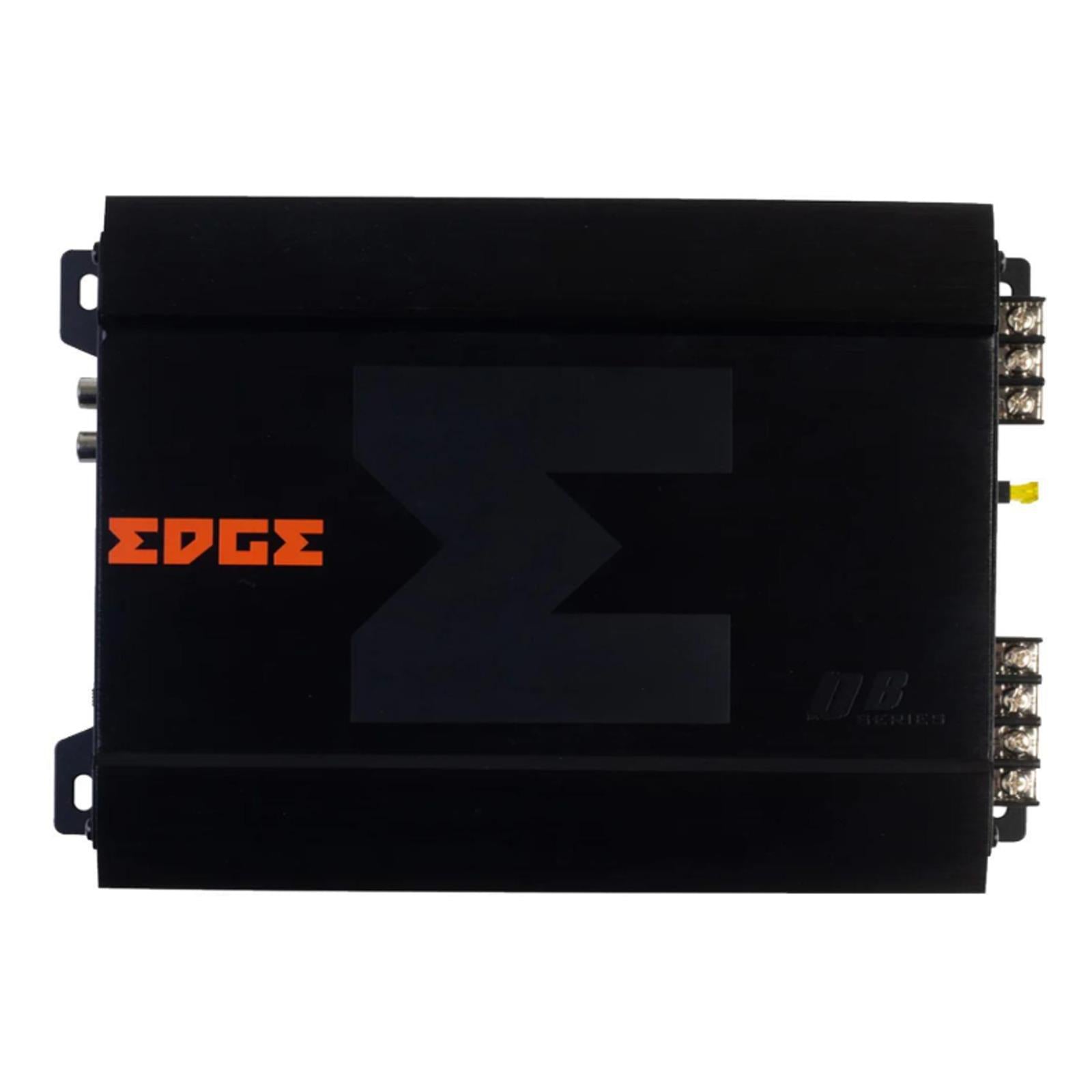

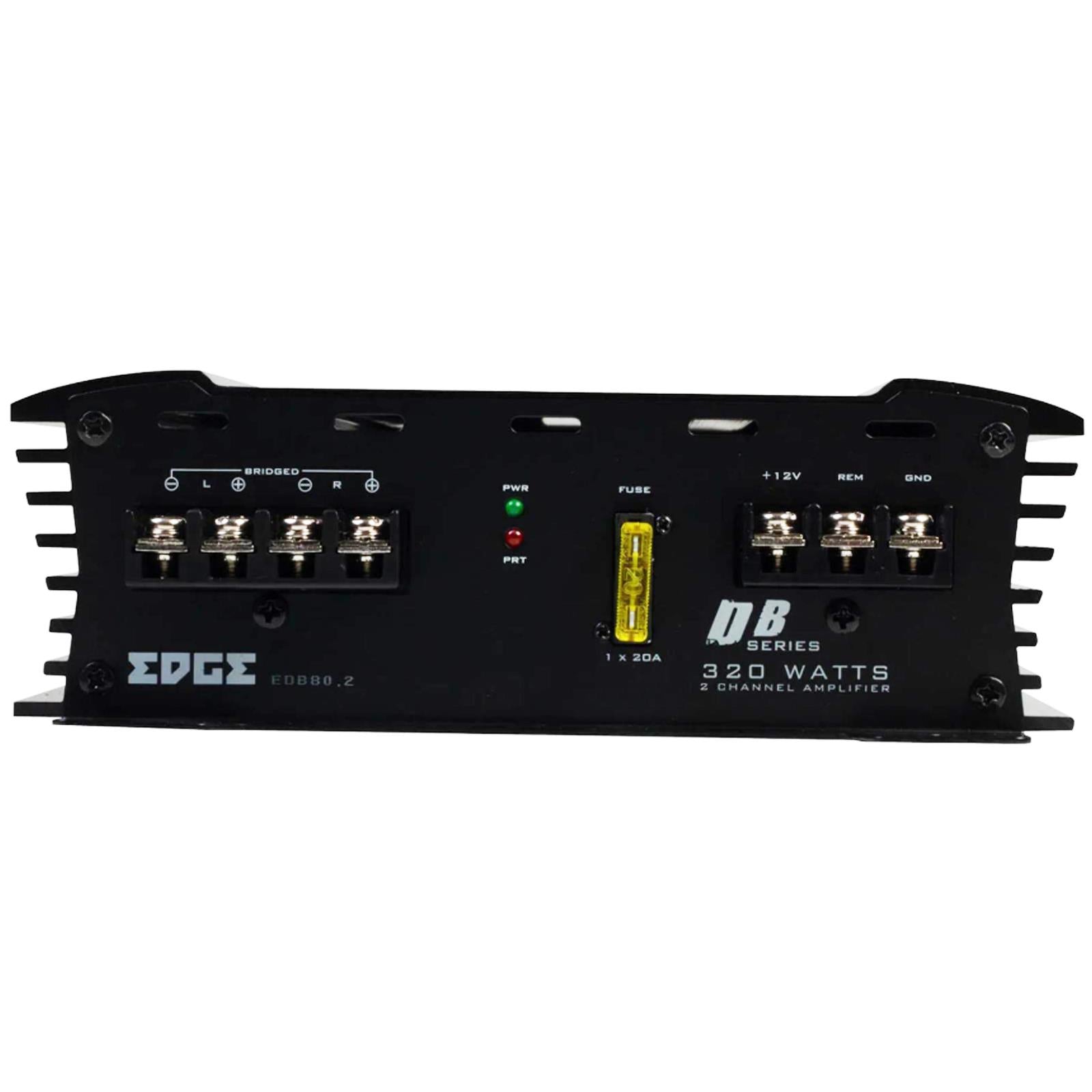

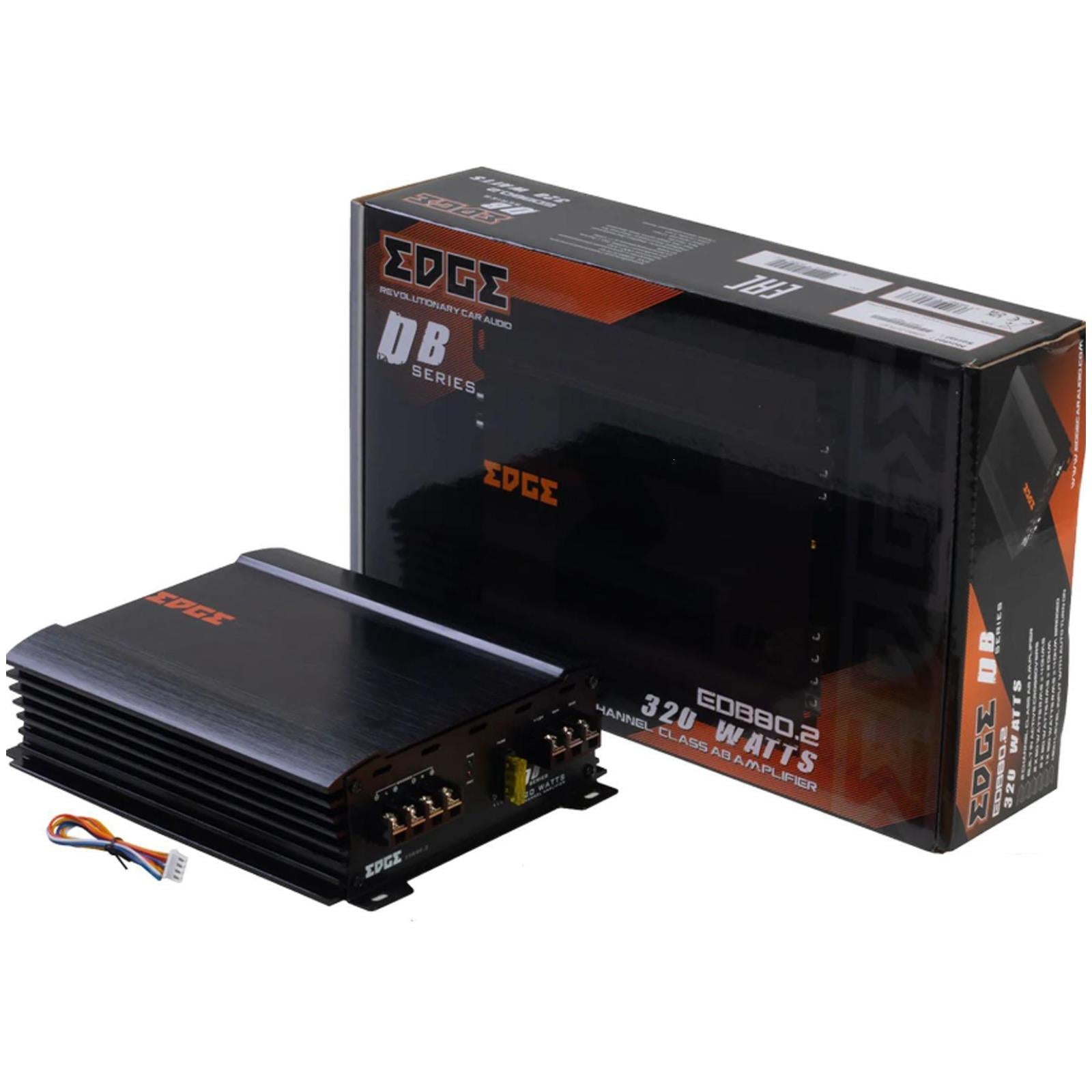

Edge EDB80.2LITE-E2 - DB Lite Series 320 Watts 2 Channel Car Amp Amplifier
The EDGE EDB80.2LITE-E2 from the DB Lite Series is a compact, high-performance 2-channel car amplifier designed to deliver clean, powerful sound to your speakers or subwoofers. With up to 320 watts of max power, this amp is built to provide strong, distortion-free audio in tight installation spaces. Featuring Class AB topology, it ensures high efficiency and crystal-clear sound reproduction — ideal for powering midrange, tweeters, or a single subwoofer setup.
Key Features:
-
2-Channel Power: Perfect for powering two speakers or bridging to run a single subwoofer.
-
High-Efficiency Class AB Topology: Offers superior sound quality and stable power output.
-

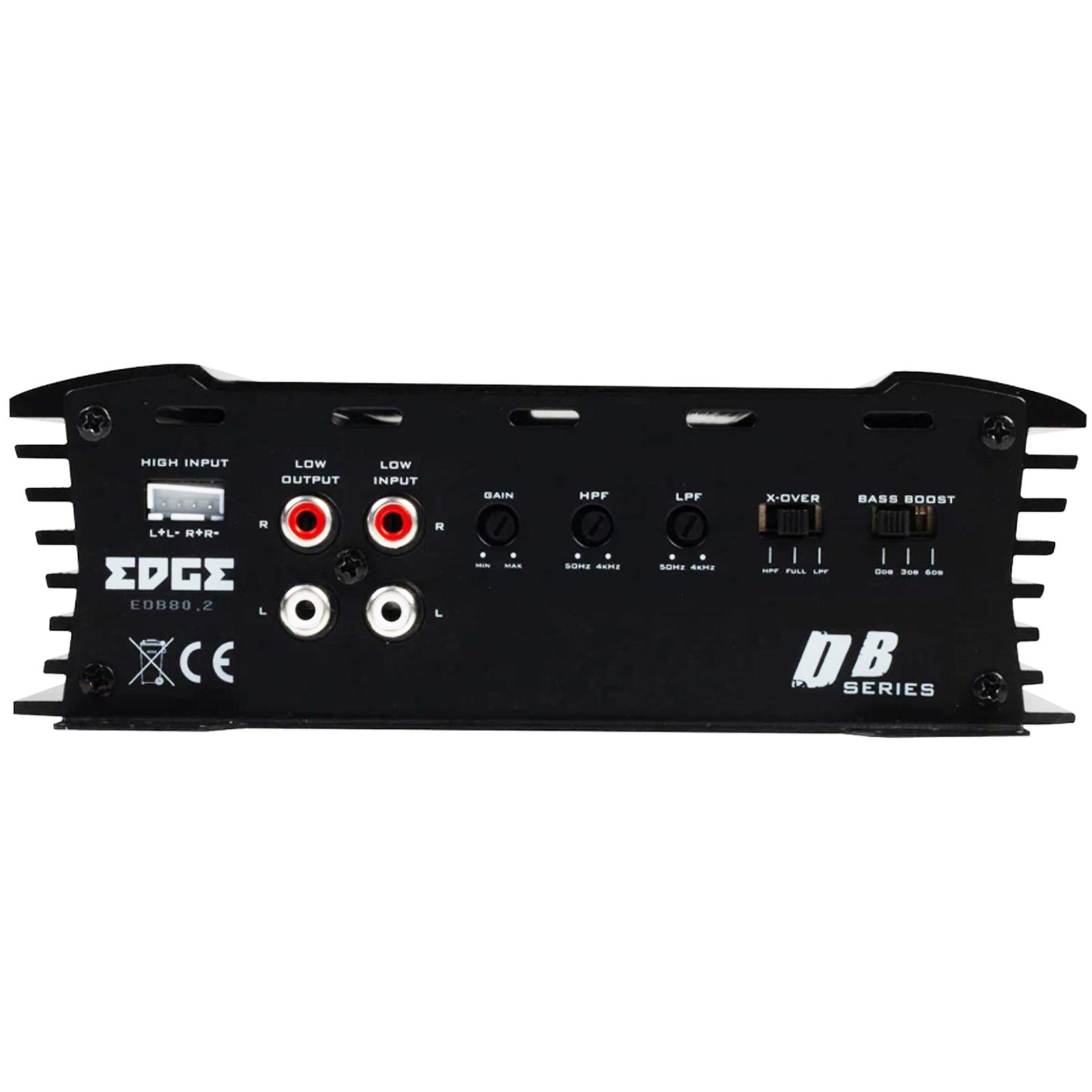

Built-In Active Crossovers: Adjustable HP/LP/Flat modes (50Hz – 4kHz) for precise tuning.
-
Bass Boost Circuit: Enhances low-frequency impact for deeper, stronger bass.
-
Compact Aluminium Heatsink: Keeps the amplifier cool while saving space during installation.
-
Universal Compatibility: Designed to pair perfectly with the full EDGE DB speaker and subwoofer range.
-
Ideal for Entry-Level Systems: Powerful, efficient, and reliable for any small to medium car audio setup.
Specifications:
-
Type: 2 Channel Amplifier
-
RMS @ 4Ω: 2 × 60W / 1 × 160W (bridged)
-
RMS @ 2Ω: 2 × 80W
-
Maximum Power Output: 320W
-
Frequency Response: 20Hz – 20kHz
-
Crossover Type: HP / LP / FLAT
-
Crossover Range: 50Hz – 4kHz
-
Topology: Class AB
-
Dimensions (H × W × D): 58mm × 178mm × 230mm (2.3" × 7" × 9.1")
