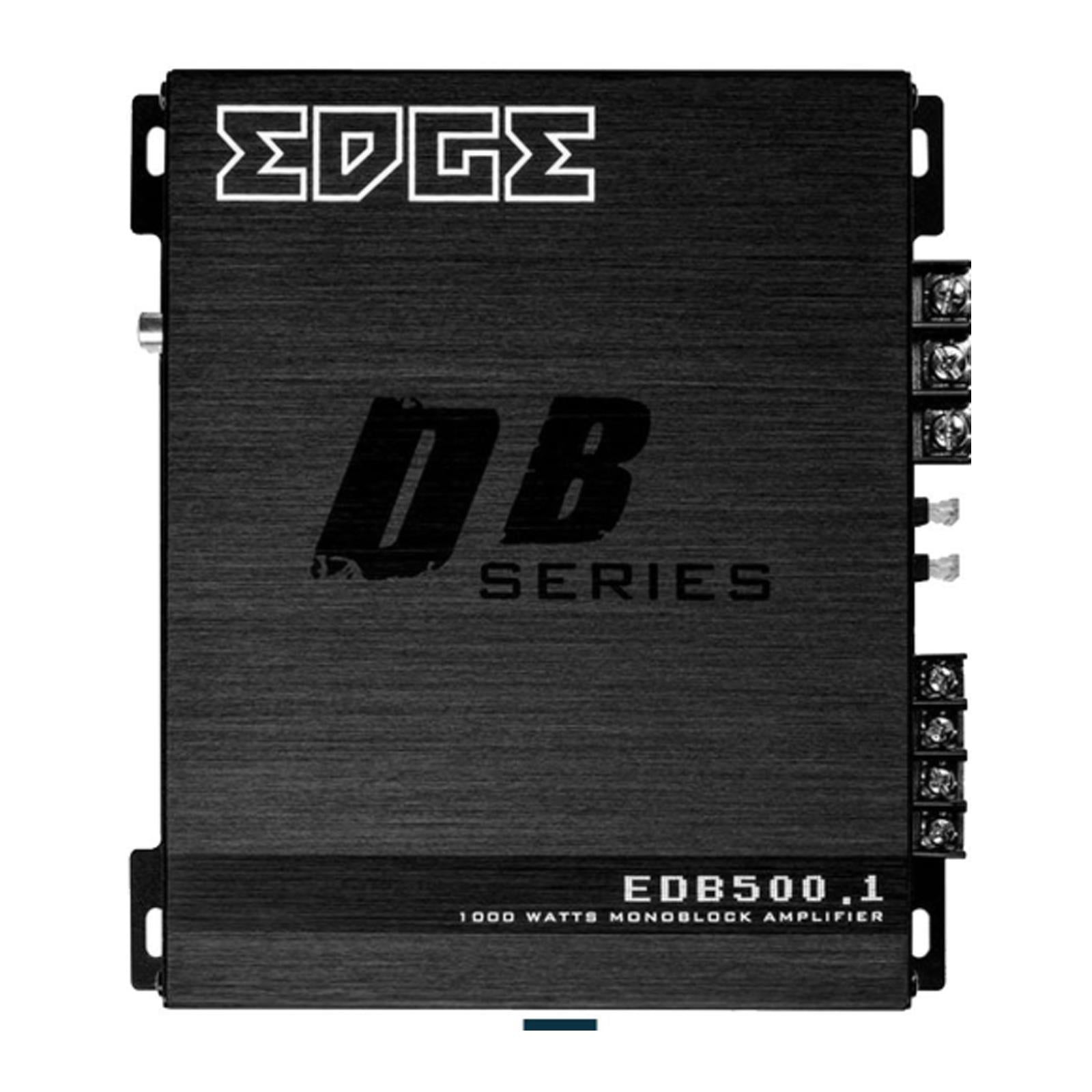

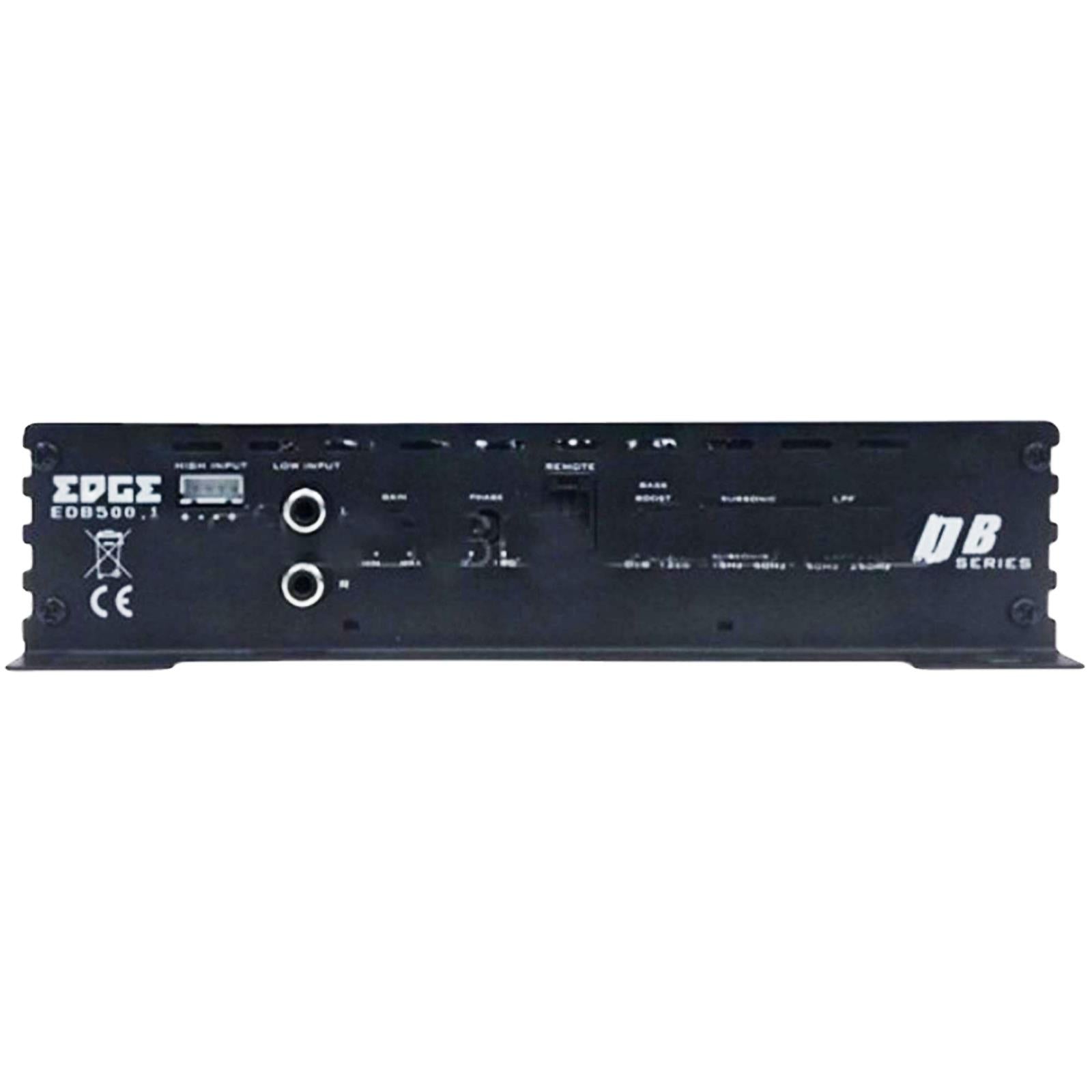

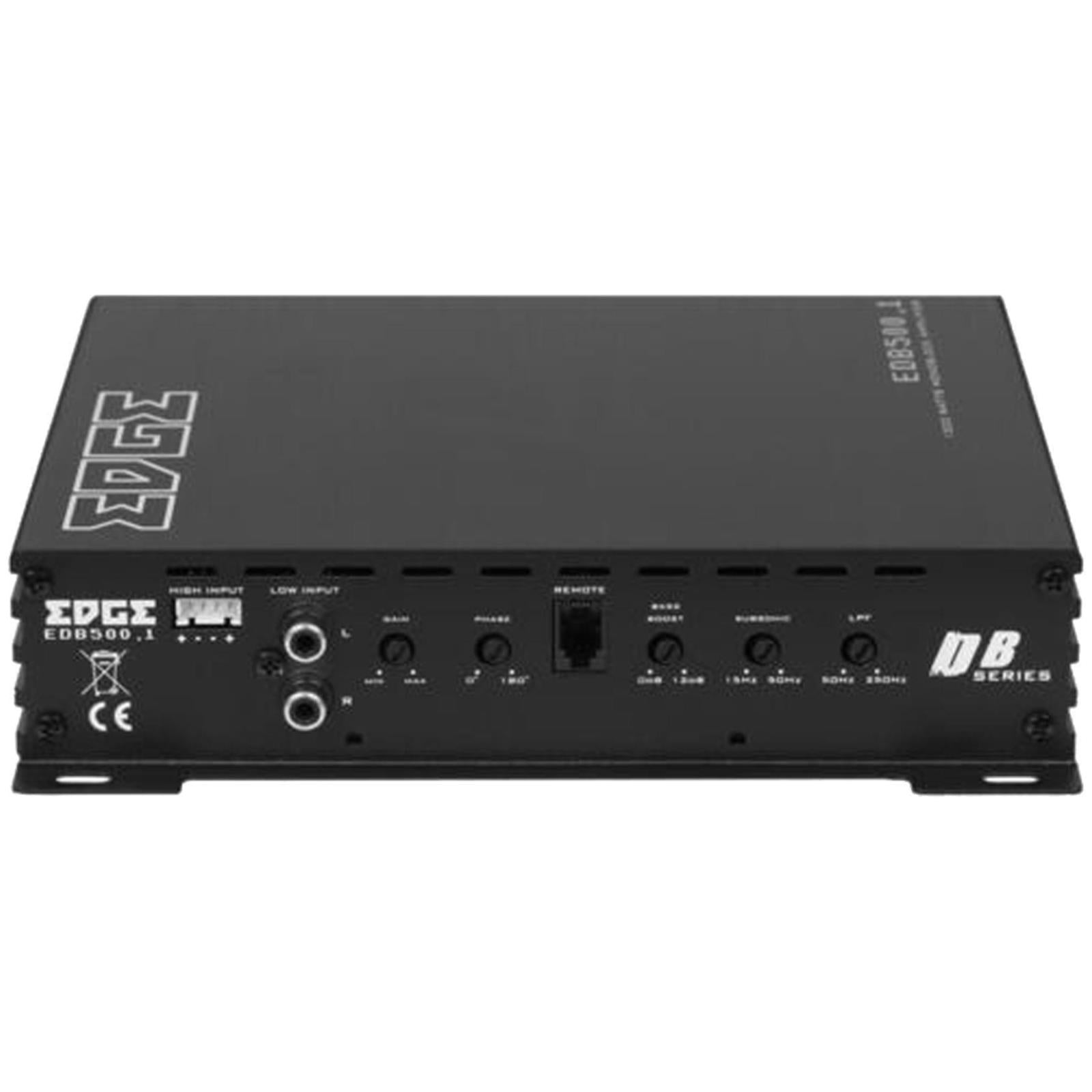

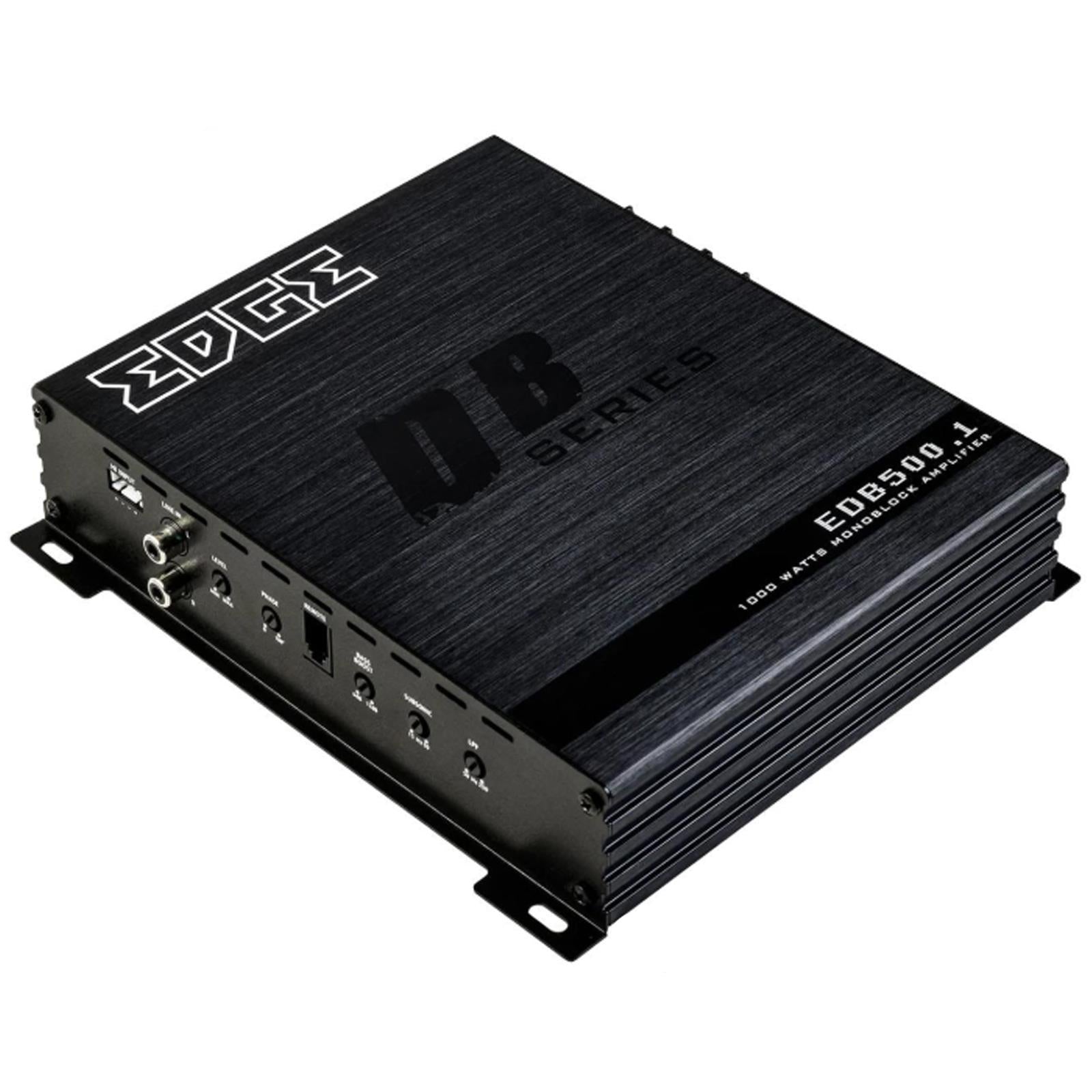

EDGE EDB500.1-E9 DB Series 1000W Monoblock Car Amplifier Class-D Sub Amp
The EDGE EDB500.1-E9 from the DB Series is a powerful, efficient, and compact monoblock amplifier engineered to deliver serious bass performance. Producing up to 1000 watts maximum output, this amp is the perfect match for powering subwoofers in small to mid-sized car audio systems. Built with Class D topology, it provides exceptional power efficiency and cooler operation — all in a slim aluminium chassis designed for tight installs.
Whether you’re upgrading an existing setup or building a new system, the EDB500.1-E9 combines clean power, deep low-end response, and flexible tuning to get the most out of your subs.
Key Features:
-
Powerful Monoblock Output: Delivers strong, clean bass for subwoofers.
-
Class D Efficiency: High power with minimal heat and compact design.
-
Built-In Active Crossovers: Fine-tune your system with selectable Low Pass and Subsonic filters (15Hz–250Hz).
-
Bass Boost Circuit: Adds extra low-end impact for deeper, harder-hitting bass.
-
Extruded Aluminium Heatsink: Durable and efficient cooling for reliable performance.
-
Compact Design: Perfect for under-seat or discreet installations.
-
DB Series Compatibility: Designed to pair seamlessly with EDGE DB subwoofers and speakers.
Technical Specifications:
-
Type: Monoblock (Single Channel)
-
RMS Power @ 4Ω: 1 × 200W
-
RMS Power @ 2Ω: 1 × 350W
-
RMS Power @ 1Ω: 1 × 500W
-
Maximum Power Output: 1000W
-
Frequency Response: 15Hz – 250Hz
-
Crossover Type: LP / Subsonic
-
Crossover Range: 15Hz – 250Hz
-
Topology: Class D
-
Dimensions (H × W × D): 46mm × 185mm × 205mm (1.8" × 7.3" × 8.1")
