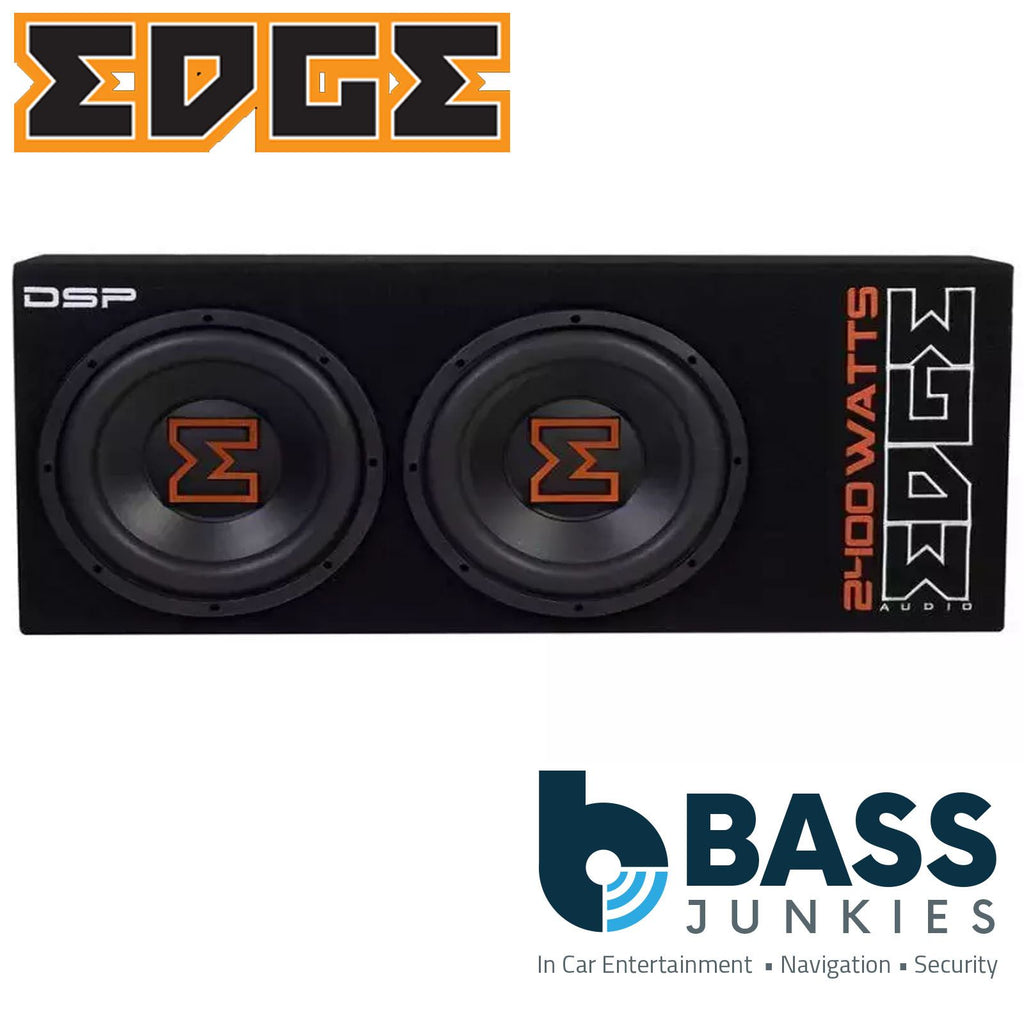

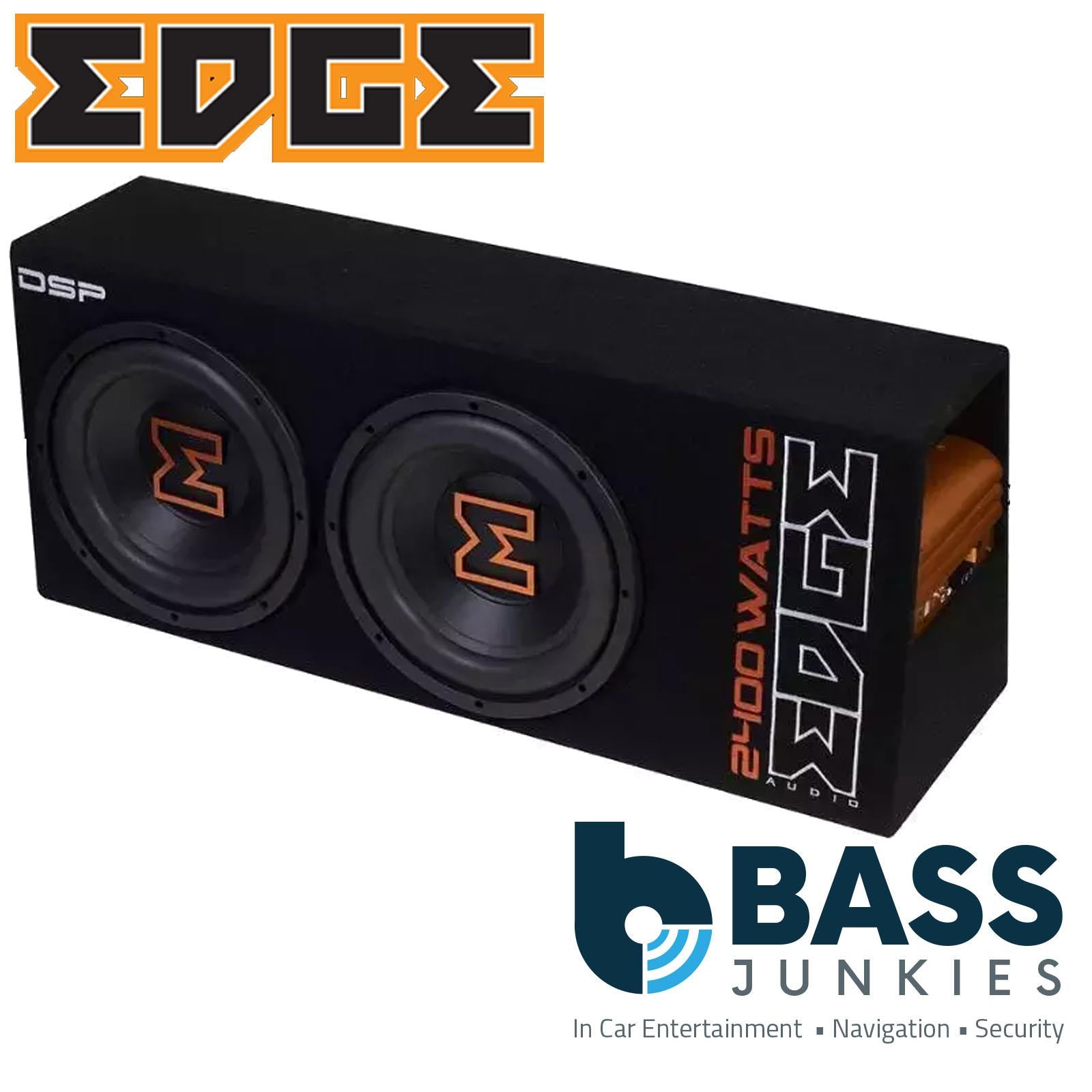

EDGE EDBX12TADSP-E3 - 2400 Watts 12" Twin Active Car Subwoofer Bass Box & Built In DSP
The all new DBX series bass enclosures deliver the highest level of technology ever seen at this price
The MDF slot ported enclosure features a custom tooled amplifier heatsink that smooths the airflow to reduce turbulence and port noise
The ultra efficient Class D amplifier features a powerful DSP front end that gives the user full control over the 8 band parametric EQ, subsonic filter, low pass filter, phase and time delay via the smartphone app that allows setup from the drivers seat
The DBX series features three models from the compact 10 to the powerful 12" twin ensuring that there is an enclosure to match any vehicle and performance goals of even the most demanding user
Features
- Class D Monoblock power amplifier with DSP
- Auto turn on circuit
- Low level input
- High level input
- Slot ported enclosure via smartphone app
- Remote bass level control
- Phase/LPF/ Subsonic/Time delay/Parametric EQ control
Specifications
- Model: EDBX12TADSP-E3
- Driver: EDBX12 x2
- Type: Slot ported enclosure
- RMS Power: 800 watts
- Peak Power: 2400 watts
- Impedance: 4 Ohms
- Frequency Response: 25Hz - 250Hz
- Configuration: Bass reflex
Installation
- Dimensions (H x W X D): 375mm x 900mm x 298mm (14.8" x 35.4" x 11.7")
