| EDGE EDBX10ADSP-E3 - 900 Watts 10" Active Bass Box Enclosure with DSP & Wiring Kit The all new EDGE DBX Series bass enclosure delivers the highest level of technology on the market for these prices. Our DSP front end gives the user the ability to control features such as: parametric EQ, subsonic filter, low pass filter and phase, all available via the smartphone app (on Android and iOS). Customers can expect the usual excellent EDGE Audio build quality from our new DBX range and some of the key points are: - BEST TECHNOLOGY - Unique to market DSP technology integrated into an active enclosure with an in house developed APP.
- POWERFUL DESIGN - Solid well structured MDF enclosure design with an accurately calculated port for optimal performance and output.
- BEST FEATURES - The APP and DSP for this enclosures gives features not seen before. Full control of EQ, phasing, Q factors and slopes, all to give better bass control.
- HIGH POWER - Our most powerful active enclosures ever in the EDGE range with an efficient class D amplifier with a hand engineered and designed port mouth.
This range of active bass enclosures are available in 3 models - 10 inch, 12 inch and 12 inch Twin ensuring there is an enclosure no matter the vehicle or driver demands. This listing is for the most popular size 10" single, it comes complete with a simple universal wiring kit to have you up and running with everything you need to install included in the box. The EDBX10ADSP-E3 is an active bass enclosure with DSP (Digital Signal Processing) technology. It is part of the DBX series, which offers advanced features and technology at an affordable price point. The App controlled DSP built into an Active box is also an industry 1st! EDBX10ADSP-E3 Key Features: - MDF Slot Ported Enclosure: The enclosure is made of Medium Density Fiberboard (MDF) and features a slot port design. This design helps in enhancing bass response and reducing turbulence and port noise.
- Custom Tooled Amplifier Heatsink: The enclosure includes a specially designed amplifier heatsink. This heatsink helps in dissipating heat generated by the amplifier, ensuring efficient operation and maintaining optimal performance.
- Ultra Efficient Class D Amplifier: The active bass enclosure is equipped with a Class D amplifier, known for its high efficiency and compact size. Class D amplifiers are capable of delivering significant power while minimizing heat dissipation.

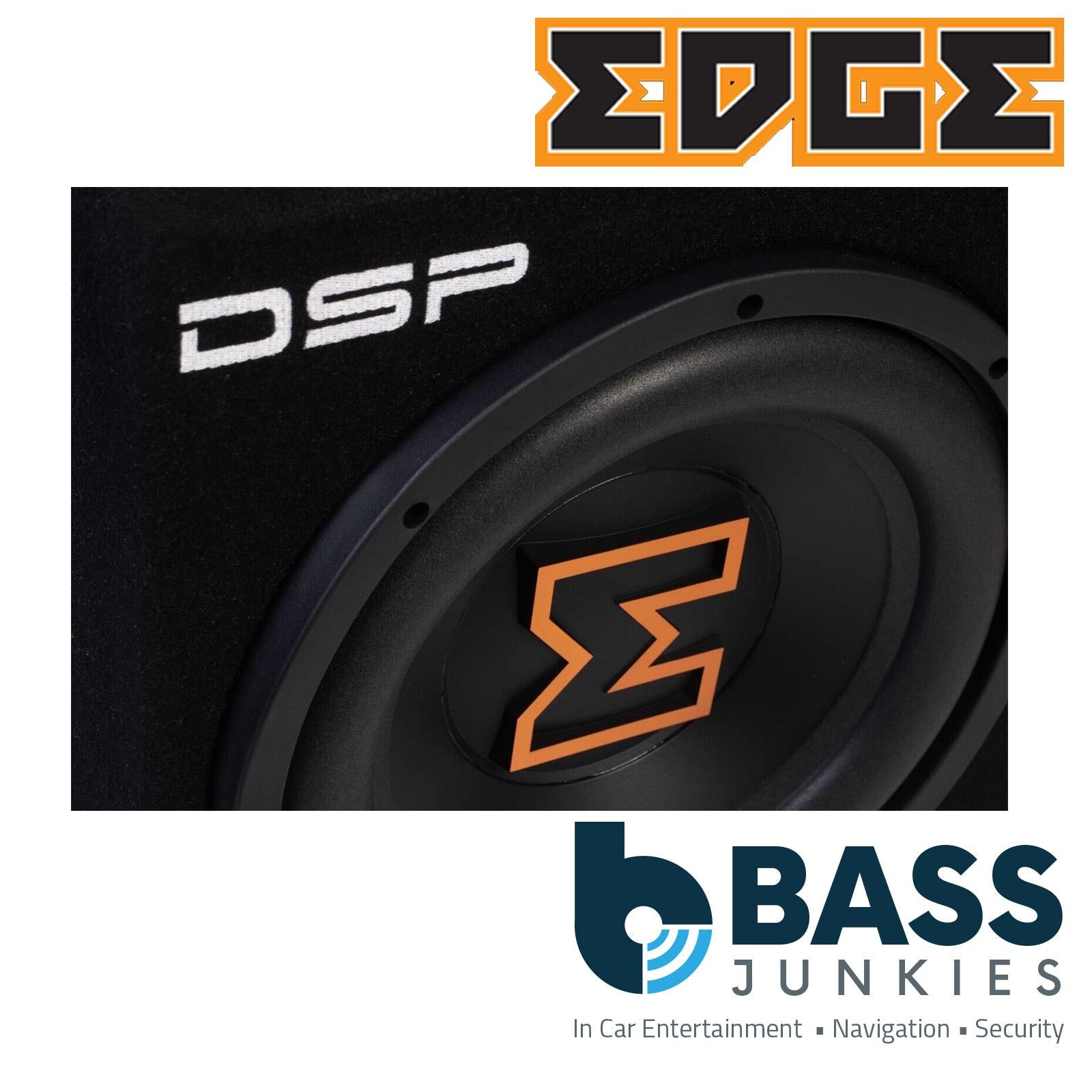

- Powerful DSP Front End: The EDBX10ADSP-E3 incorporates a powerful DSP front end. DSP technology allows for precise control and manipulation of the audio signal, providing various audio processing capabilities.
- Parametric EQ: The DSP front end enables the user to have full control over the parametric EQ (Equalizer). This feature allows you to fine-tune the frequency response of the bass enclosure to suit your preferences and the acoustics of your vehicle.
- Subsonic Filter: The subsonic filter helps in removing very low-frequency signals that might cause distortion or damage to the speakers. It ensures that only the desired bass frequencies are reproduced accurately.
- Low Pass Filter: The low pass filter determines the upper frequency limit for the bass signals. It ensures that only the appropriate frequencies are sent to the bass enclosure, eliminating unwanted higher frequencies.
- Phase Control: The EDBX10ADSP-E3 offers phase control, which allows you to adjust the phase relationship between the bass enclosure and the rest of your audio system. Proper phase alignment can enhance bass response and overall sound quality.

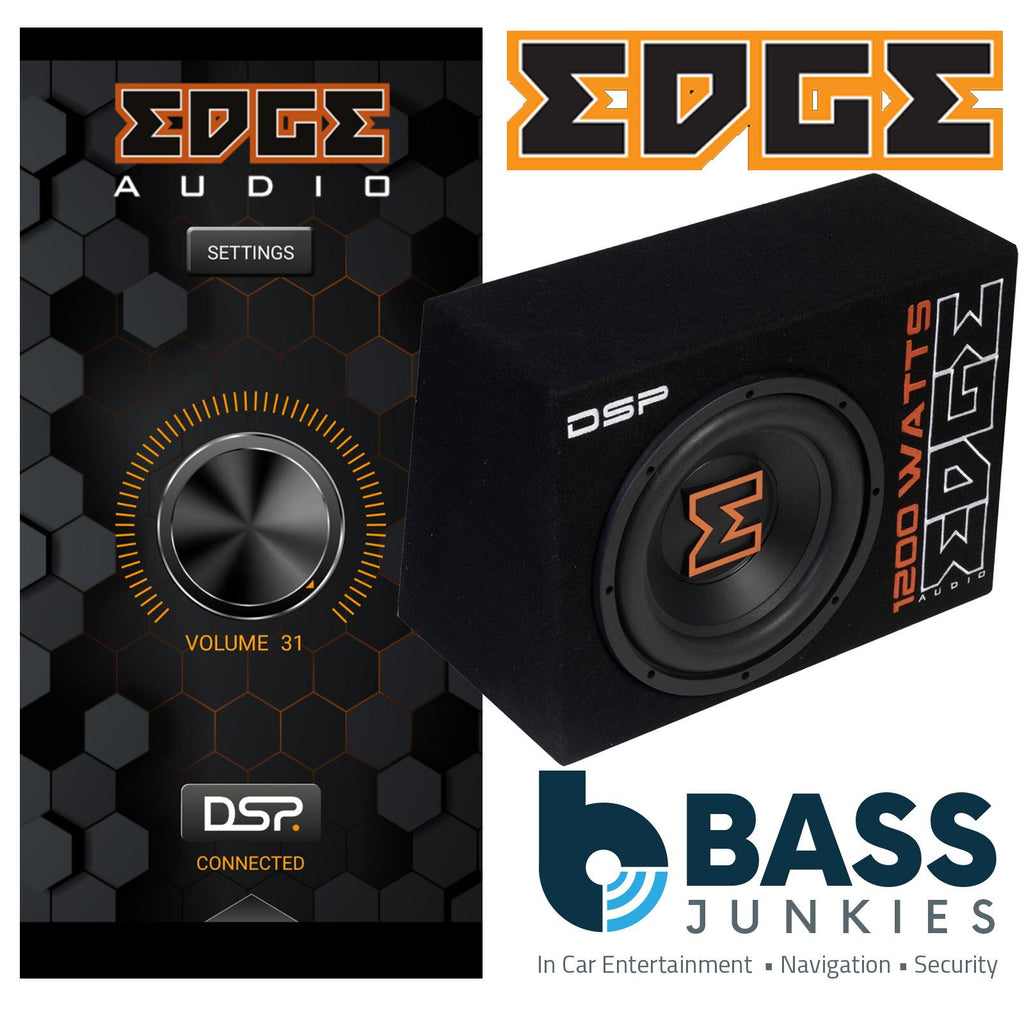

- Smartphone App Control: The setup and control of the EDBX12ADSP-E3 can be done conveniently through a smartphone app. This feature allows you to make adjustments and customize the settings from the driver's seat, without the need for manual adjustments on the enclosure itself.
EDBX10ADSP-E3 Enclosure Specification: - Model: EDBX10A-E2

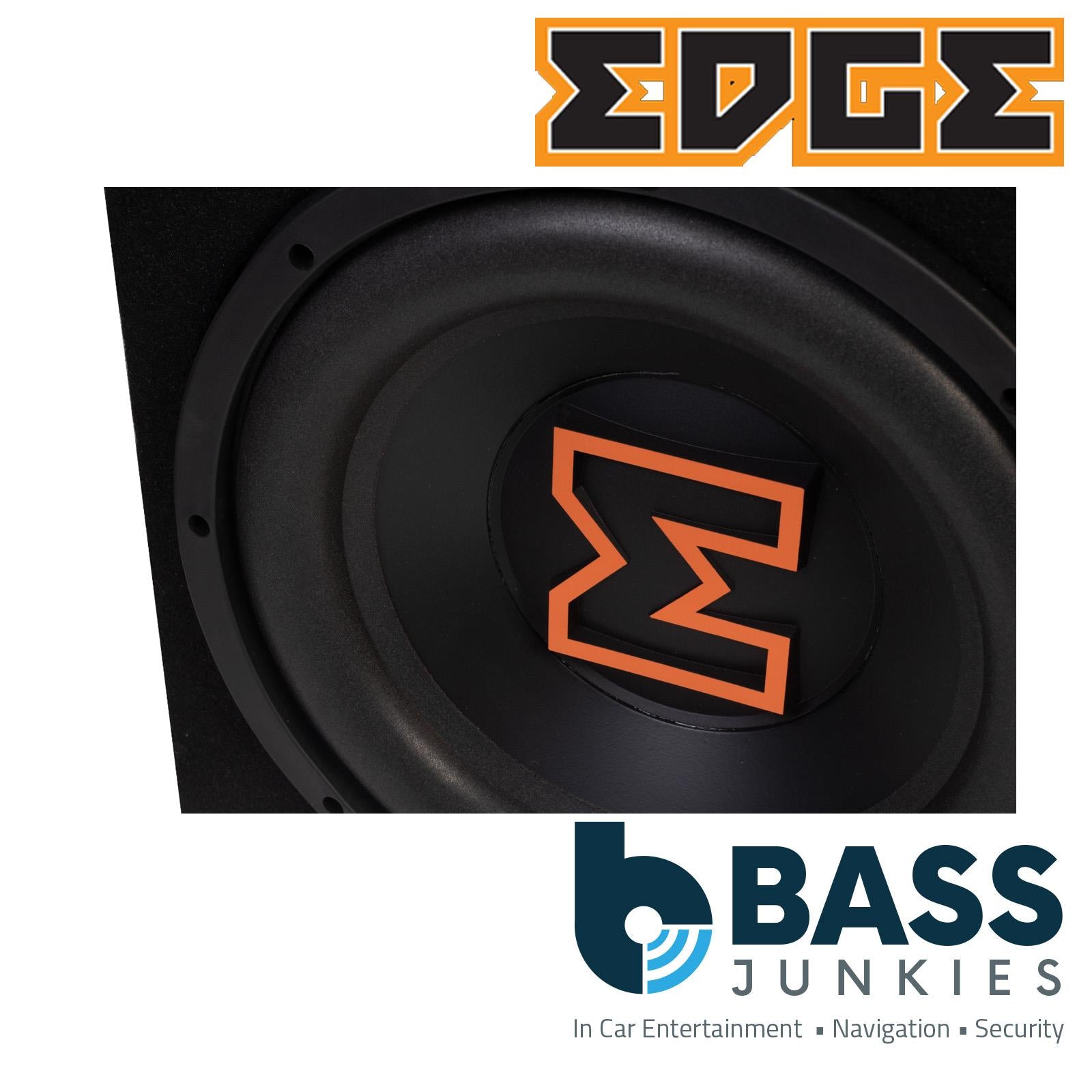

- Driver: EDBX10
- Type: Slot ported enclosure
- RMS Power: 300 watts
- Peak Power: 900 watts
- Impedance: 4 Ohms
- Frequency Response: 25Hz - 250Hz
- Configuration: Bass reflex
- Dimensions (H x W X D): 375mm x 500mm x 298mm (14.8" x 19.7" x 11.7")

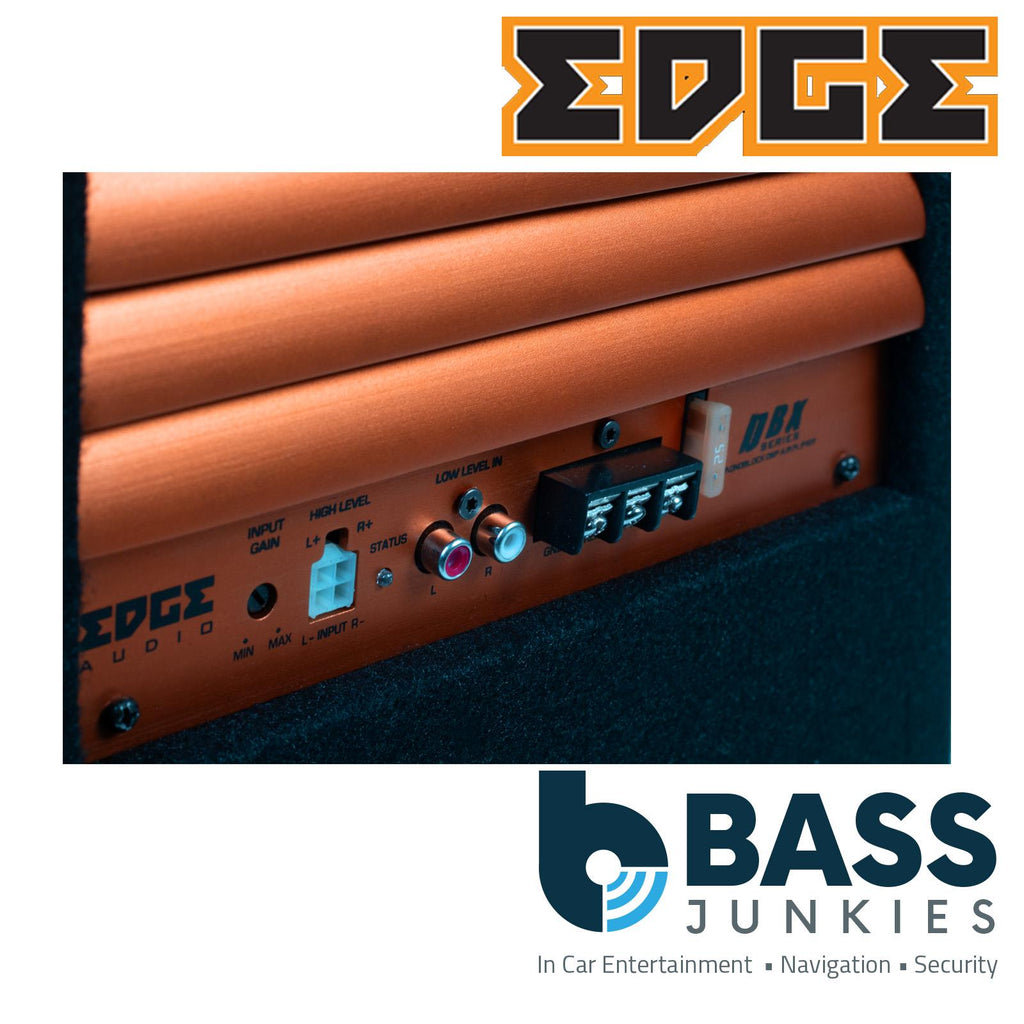

Amplifier Features: - Class D Monoblock power amplifier with DSP
- Auto turn on circuit
- Low level input
- High level input
- Slot ported enclosure via smartphone app
- Remote bass level control
- Phase / LPF/ Subsonic / Parametric EQ control
|
