Echomaster SS-NP2 - Car Van EU Style Number Plate 3 Eye Rear Reversing Parking Sensor & Buzzer Kit
Reversing Parking System with Buzzer and three Sensors fitted on a Standard UK Style Number Plate Frame.
This clever reverse parking kit features a 3 sensor bar designed to fit on the rear car number plate.
This eliminates the need for cutting sensors into the car's bumper and the combined number plate frame design makes fitting very easy.
The system activates when reverse gear is engaged and emits a multi-tone audible alert. As the object behind is approached the beeps become closer together allowing you to judge the distance effectively.

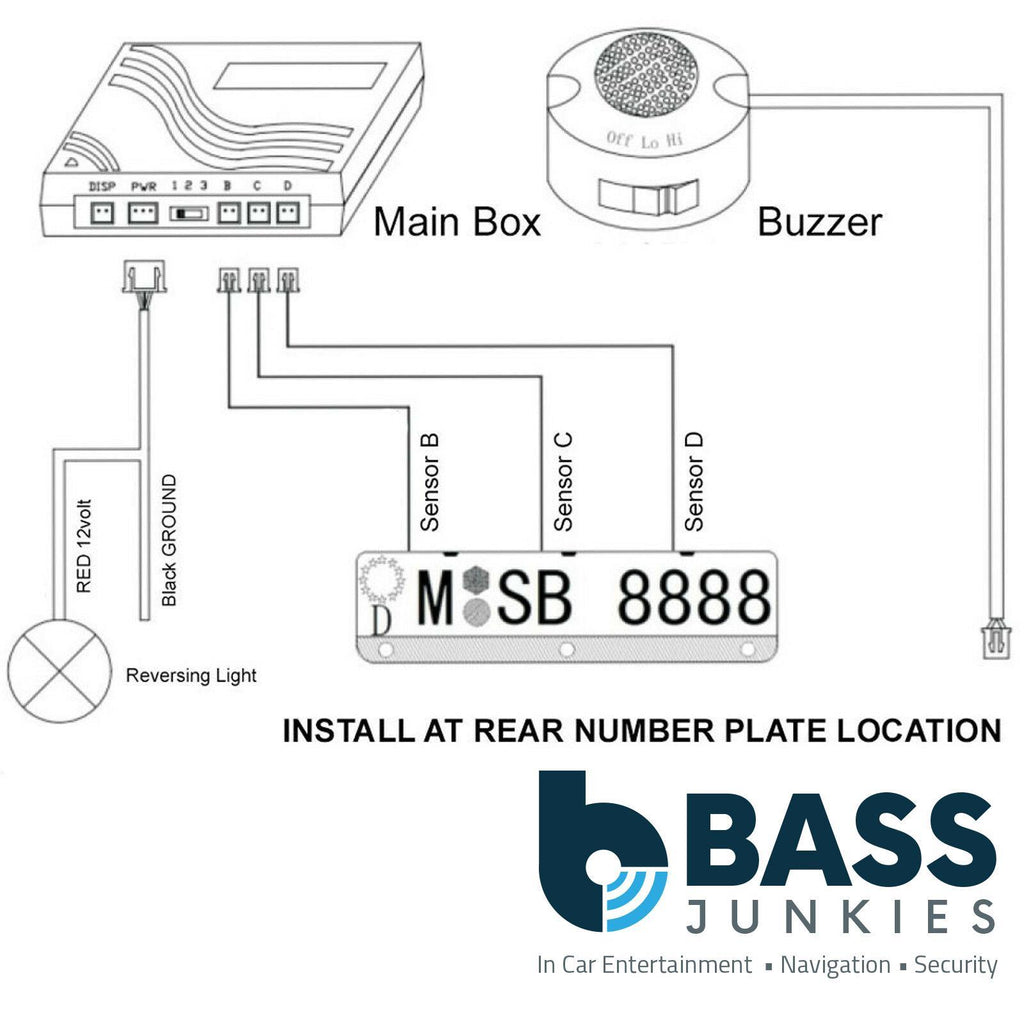

Kit includes:

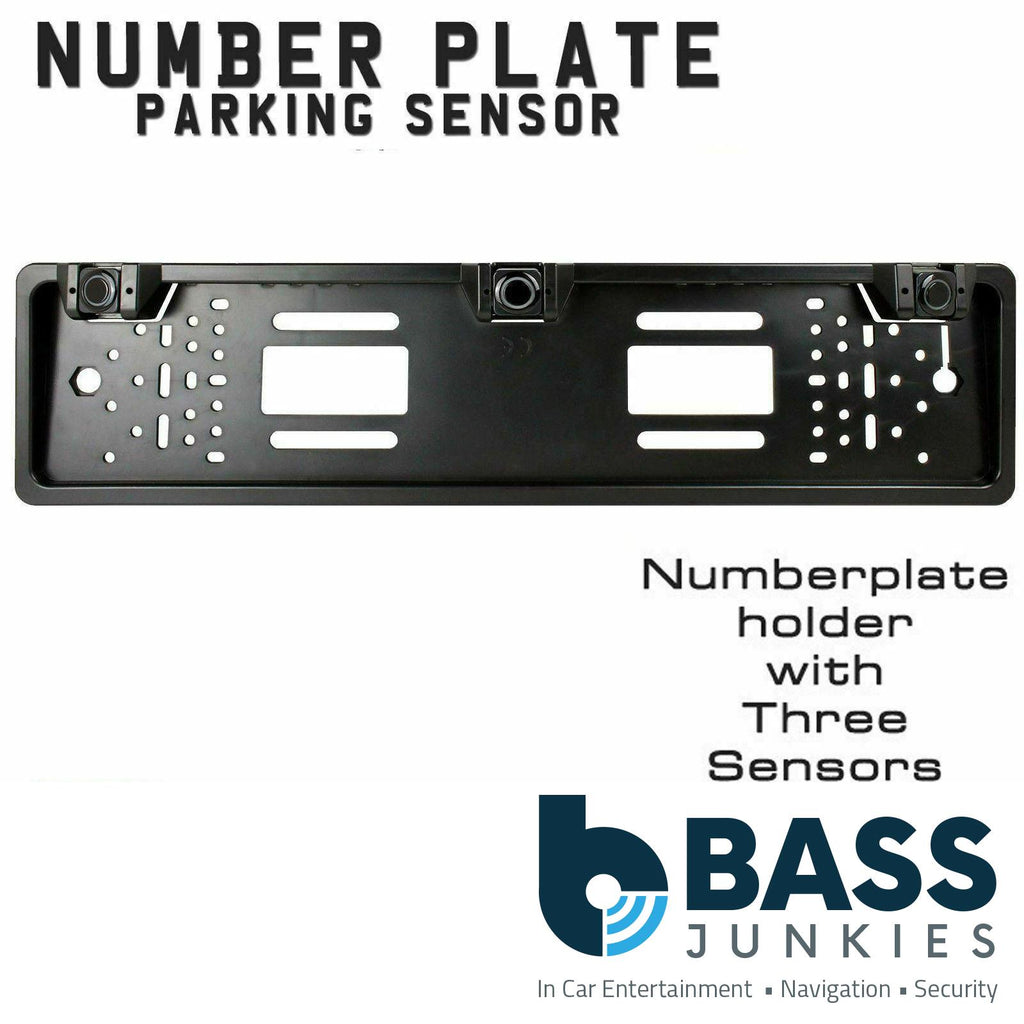

- Number Plate Holder with three sensors fitted
- Main unit with power cable to connect to reverse light
- Buzzer provides audible alert.
- 3M double sided sticky pads for mounting the main unit and buzzer
Technical parameters:
- Operating range: 9V ~ 16V DC
- Power Consumption: 3 Watts
- Operating Temperature: -20c to +70c
- Detecting distance: 0.3m to 2m
- Detecting angle: H> 60 degree - V>60 degree
Dimensions
- Width - 52.5cm Approx
- Length - 13.5cm Approx
- Depth - 3cm Approx
The fitting instructions are included
Please note this kit ONLY fits standard UK style number plates and must be situated in the centre of the vehicle and not to one side.
Installation note: You might need to extend the cables on some vehicles with the number plate on the rear door. You might need to drill a hole when fitting into the bumper.
