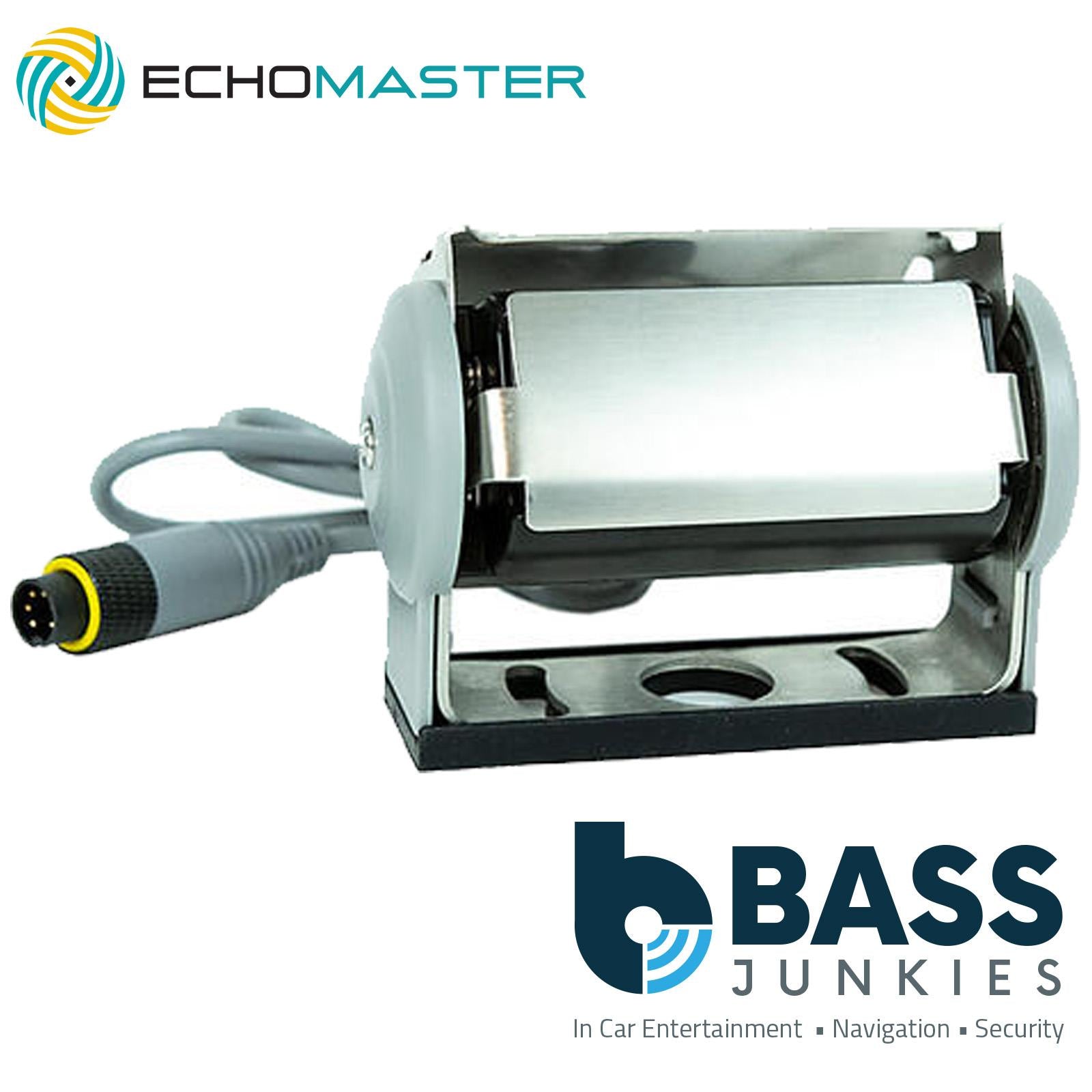

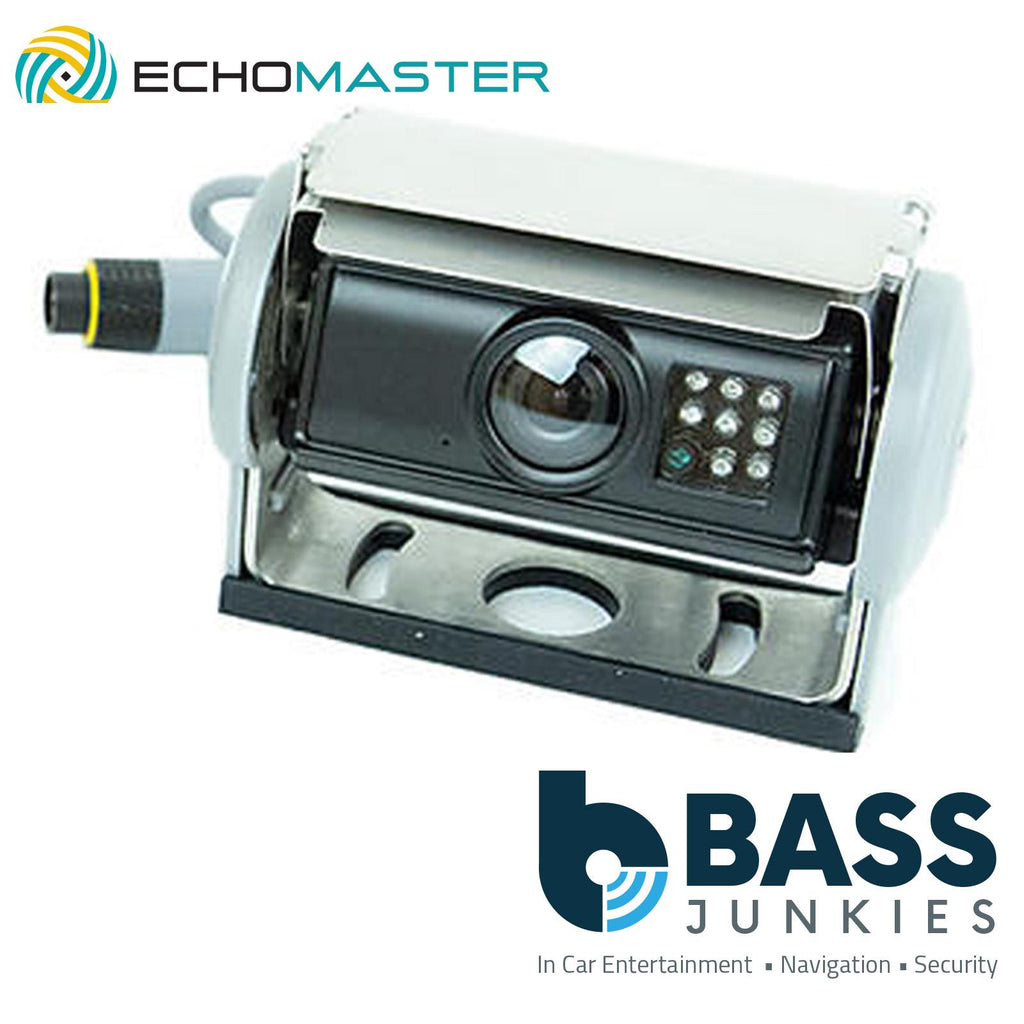

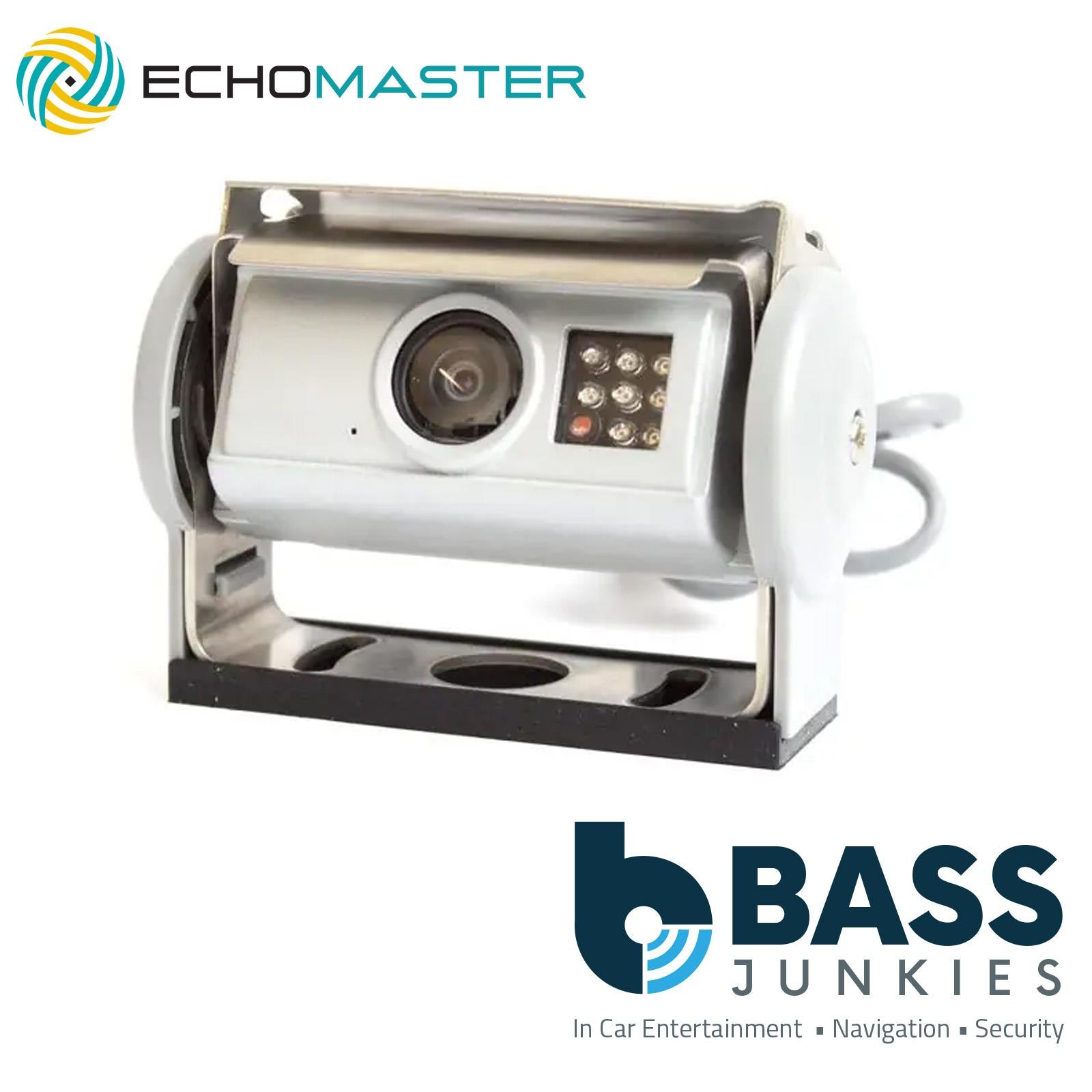

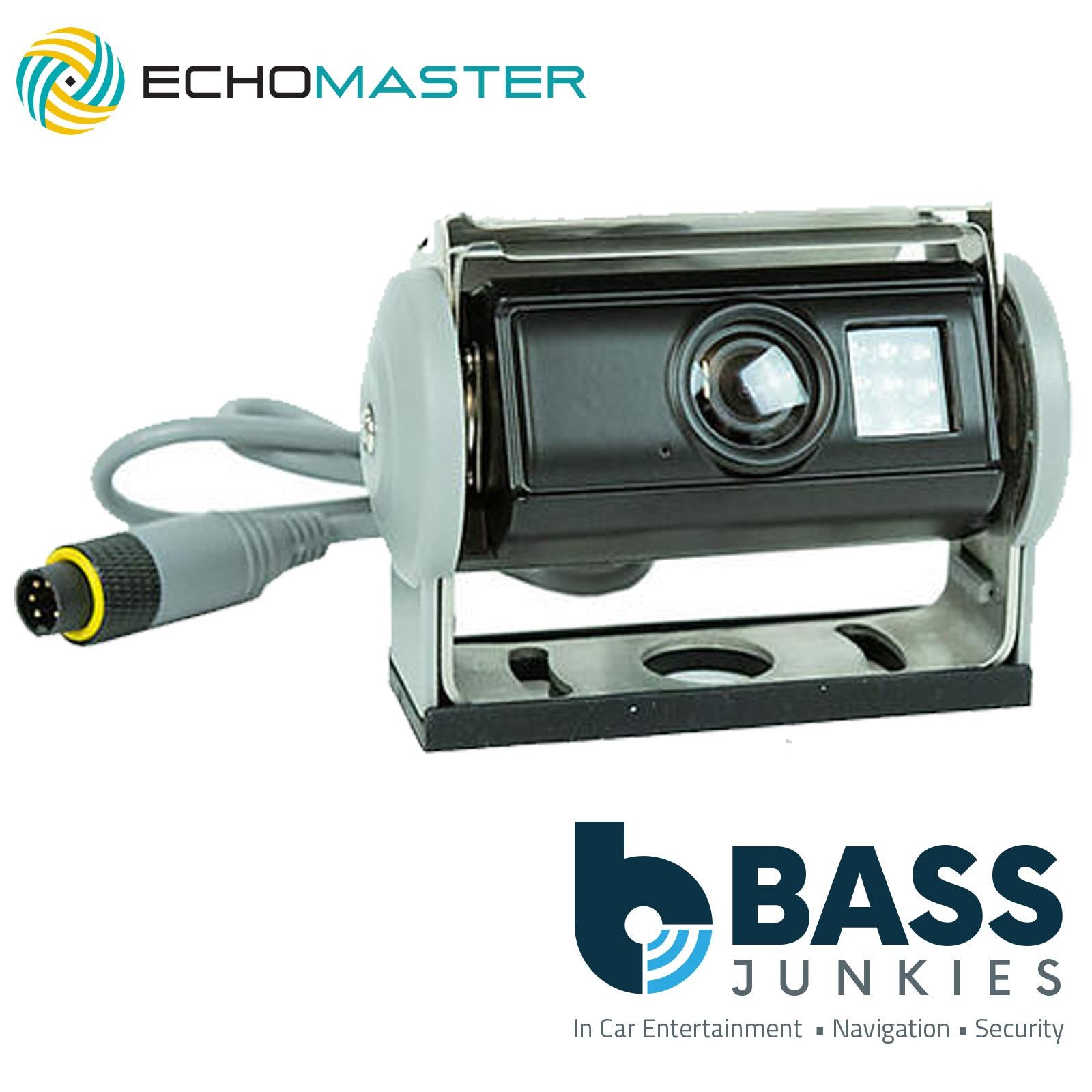

Echomaster CAM-HS1 - Heavy Duty Commercial Truck, JCB Tractor Rear View Camera with Motorized Shutter
Powerful and robust reversing camera that is well suited for rough environments. The camera has a motorized shutter that protects the lens from dirt.
However, should the camera get dirty, the camera can withstand rough conditions, thanks to IP69K waterproofing.
The CAM-HS1 has built-in IR lighting that makes reversing easier in the dark.

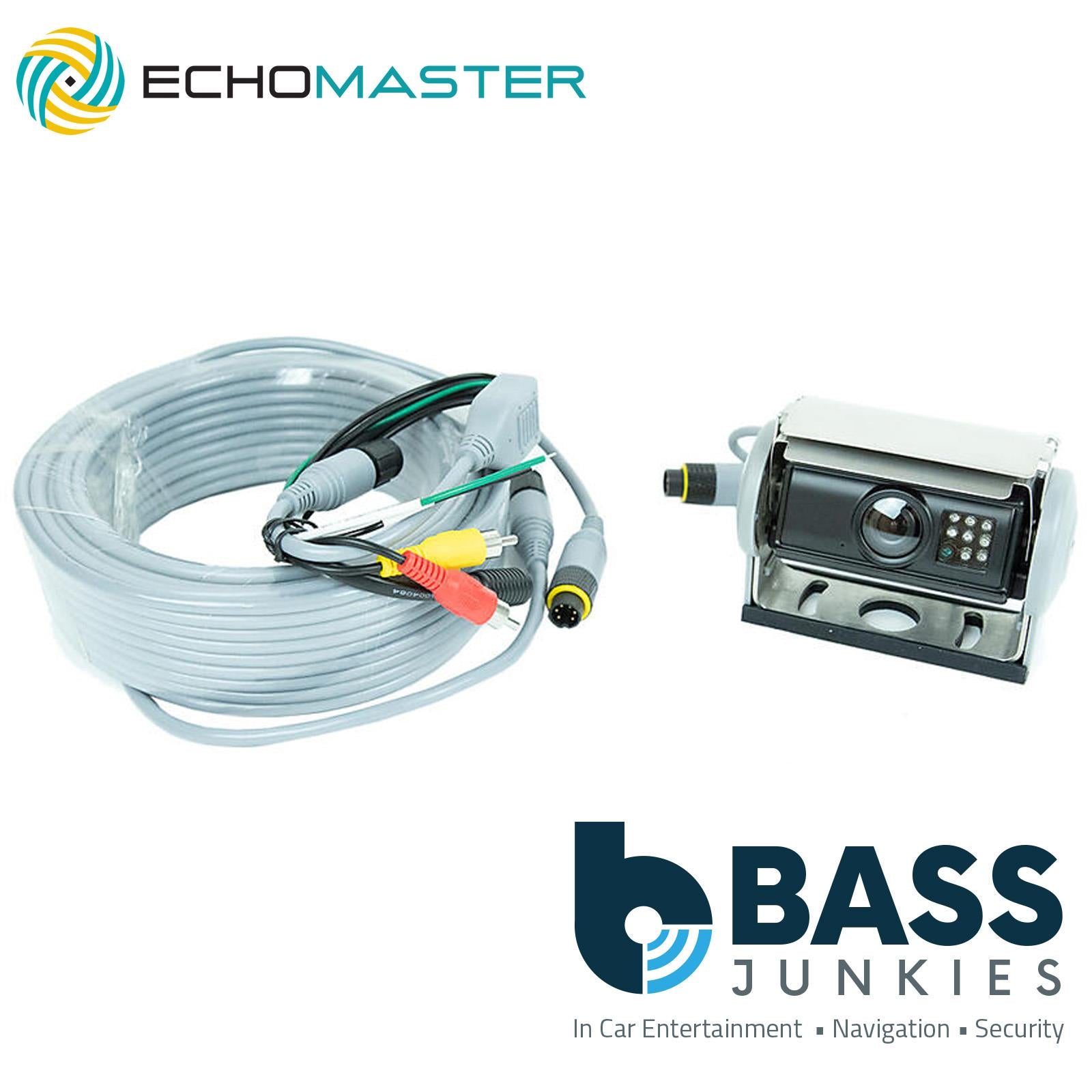

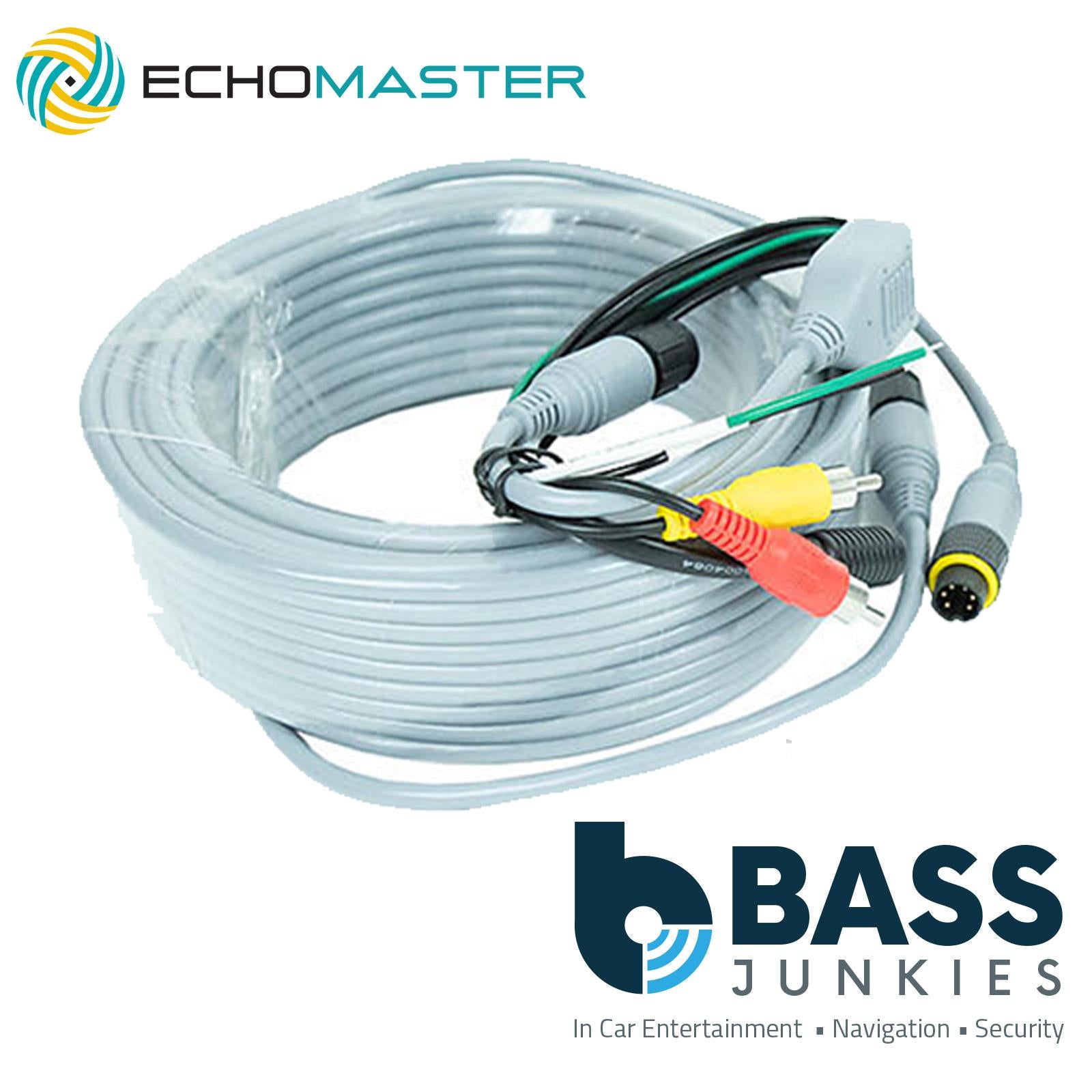

The camera comes with a 20-meter long system cable that is long enough for most applications, whether for a passenger car, van or camper. (Same as CAM80)
Overview:
- Black camera body with gray side brackets
- 1/4" CMOS sensor
- Works down to 0.1LUX
- IP69K rated
- Automatic heated lens

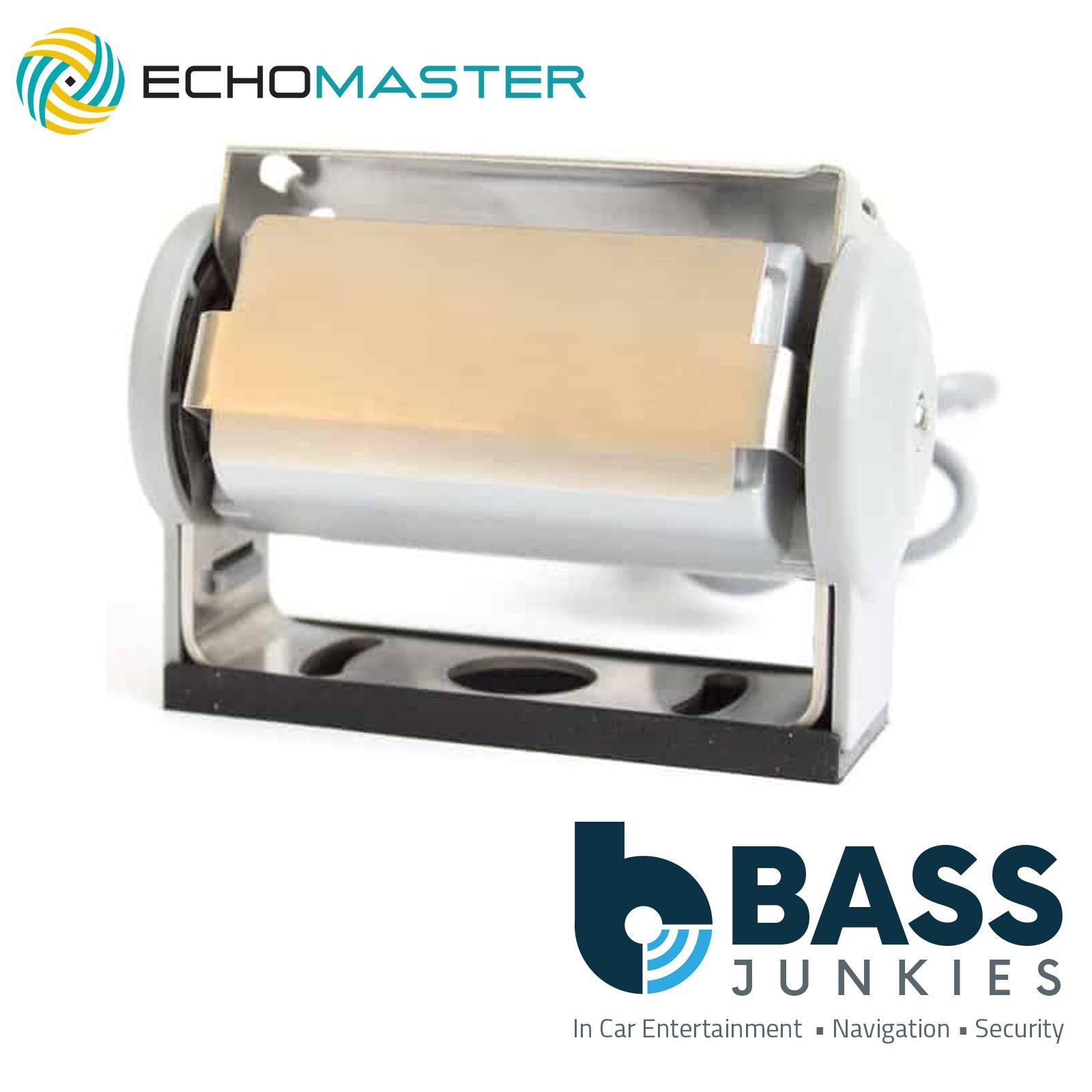

- Motorized stainless steel shutter that closes when camera is not in use to keep lens clean
Specifications:
- Sensor type: 1/4" CMOS sensor
- 8 LEDS
- Resolution: 682x504 (342,364 pixels)
- Image angle: 110 degrees
- Audio: Yes
- Dimension: 106 x 68 x 54mm
- Operating voltage: 11 – 16 volts
- Operating temperature: -20 to +65 degrees Celsius
- Power consumption: <150mA
- Video standard: PAL
- Viewing Angle 110 degrees
- Mirror Image YES
- Normal Image YES
- Water/Debris-Proof IP69K
- Power Supply 11-16Volt
- Working Temp -20ºC - +65ºC
- System PAL NTSC
- TV Lines 420 N/A
- Resolution 682 x 504 N/A
Dimensions (mm)
- D (54) x W (106) x H (68)
