Connects2 CTKBM011 BMW 3 Series E90/ E91/E92/E93 2006 - 2012 - Car Stereo Double Din Fascia Steering Wheel Stalk & Reverse Sensor Interface Adaptor Kit (Black Finish Cigarette Lighter Ashtray Reclocator)
This interface connects a compatible car stereo with a joystick input (blue line-in or 3.5mm jack) or wire SWC input fly lead on the back of the unit to keep the existing stalk/steering wheel controls of the vehicle and the rear reverse parking sensors and also maintains the sound of other bongs/chimes like seat belt, park break, low fuel, etc
Please makes sure your Stereo has this feature on the rear before purchasing this part.
Steering Wheel Control (SWC) Features
Steering Wheel Control interfaces allow plug and play installation of a new aftermarket car stereo head unit into a vehicle whilst maintaining use of the exsisting steering wheel volume, track up and down and mobile phone answering controls if factory fitted.
Mobile Phone Buttons (MPB) Features
Mobile Phone Buttons Support feature allows you to use Phone Buttons on the Steering Wheel if already factory fitted with any compatible an aftermarket Bluetooth Head Unit you install.
Compatible Vehicles
- BMW E90 3 Series: Saloon (2006 Onwards)
- BMW E91 3 Series: Touring (2006 Onwards)
- BMW E92 3 Series: Coupe (2006 Onwards)
- BMW E93 3 Series: Cabriolet (2006 Onwards)
Non amplified systems only
Kit fits vehicles fitted with Automatic Air Conditioning, Rear Parking Sensor & Heated Seats

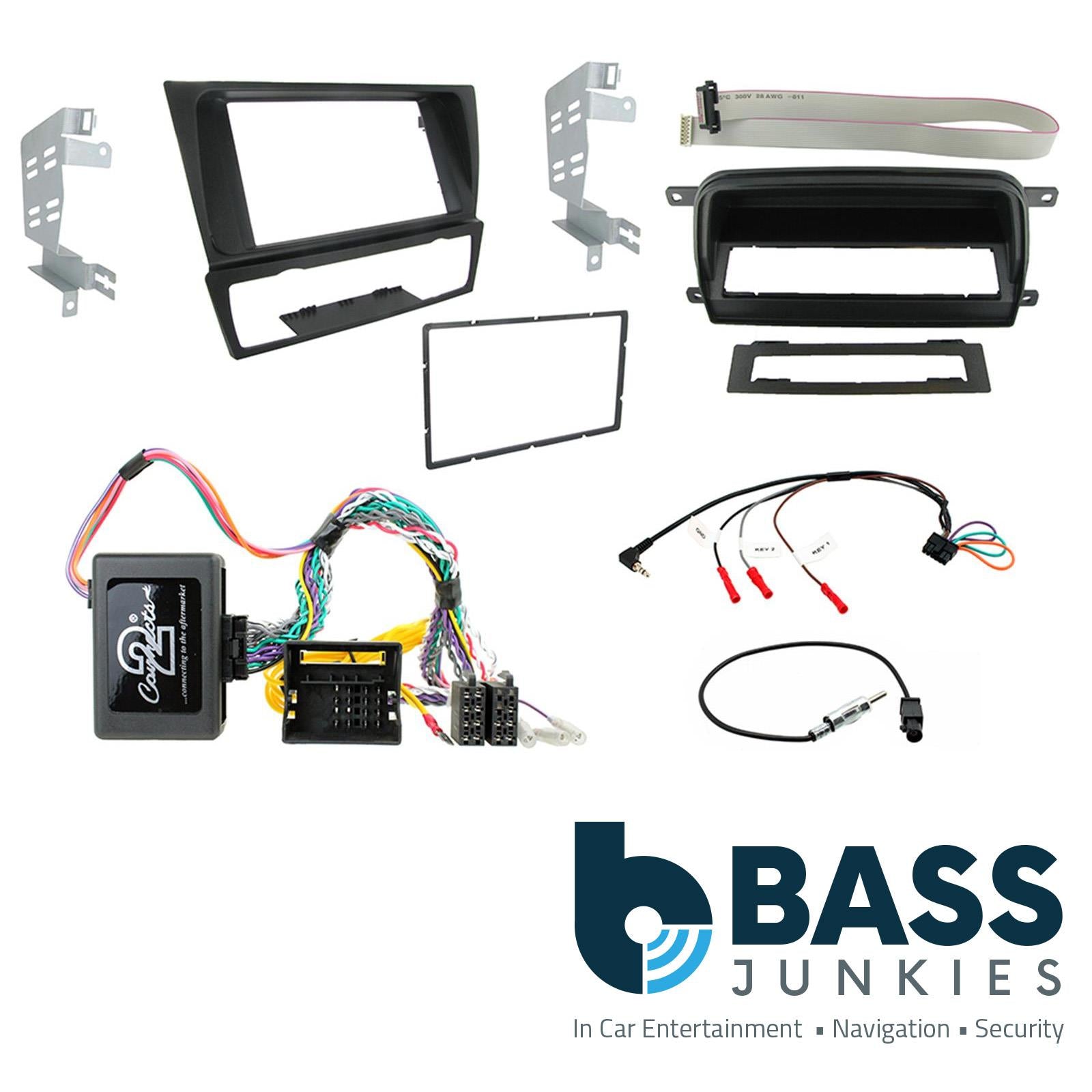

What’s Included in the Kit
-
Double Din Fascia Adaptor (Black Finish)
-
Ash Tray Kit (Black Finish)
-
Reverse Sensor Adaptor
-
Steering wheel Control Adaptor
-
Patch Lead
-
Aerial Adaptor
Installation tips
The lose yellow wire on our SWC interface MUST be connected directly to battery to give a permanent 12V feed or the kit will not work
This panel is designed to fit most Japanese branded double din units such as Kenwood, Pioneer, JVC, Sony, Alpine and Clarion
If you are fitting a non-branded unit from china with brands such as Erisin, EONON Pumpkin and Xtron, there is a VERY high possibility YOU will have to modify, cut and trim this panel to suit the stereo and accommodate it in your dash.
These panels are designed based on Japanese stereo's which are a uniformed standard size, stereos from china can be different sizes and we cannot guarantee the stereo will fit without modification and we can not be held responsible.
If the panel is supplied with side brackets then the stereo cage is not used to fit the radio.
Please note every effort is made to get the parts listed within the listing correct to the best of our knowledge but we can not be responsible for vehicles on a change over year from the manufacturer
It is your responsibility to ensure the compatibility and we recommend that the parts pictured in our listing are compared to the actual connectors/parts in your vehicle before you make your purchase or you will have to return the incorrect item at your cost. If still unsure please contact us via the eBay messaging system with pictures that must be attached of the wiring and connections that you are trying to install so our tech guys can help and advise before you make your purchase.
