Kenwood DNR-992RVS Car 10.1 inch Navigation System Digital Media AV Receiver HD Display Enhanced Wireless Smartphone Connections & Digital Radio DAB+ Media Stereo
Upgrade your factory audio system with latest Kenwood Navigation systems that adopts a 10.1 inch HD display providing room for more information that is large and easy to see with just a glance. Includes the industry leading Garmin navigation software for Truck, Trailer & Van, offering a variety of display options to make your driving easy. Wireless Smartphone Connections to Access Maps, Phone, Music and Messages from your phone without connecting any cables. Includes CarPlay, Android Auto & Wireless Mirroring for Android. 4 Camera inputs which allow for the utmost in convenience, flexibility and safety. Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance
Key Features
- 10.1" HD (1280 x 720px) LCD display for sharp, high-contrast images, vivid colors and superior wide viewing angle Floating Panel Mechanism with 3-way Position Adjustment
- Wi-Fi built-in for convenient wireless connection with a compatible smartphone
- Supports CarPlay & Android Auto wirelessly or connected via USB
- Supports Wireless Mirroring for Android including 2-way touch control capability
- Equipped with the industry leading Garmin navigation system offering a variety of display options to make your driving easier Routes suggested according to the RV, Truck or Car Profile. Camper contact by NKC, ACSI & HERE campsites
- 3 Years Garmin map care
- DAB+ radio tuner for noise & interference free reception and crystal-clear digital stereo sound
- Bluetooth(R) Wireless Technology for hands-free calls and music streaming. (Available functions depend on cell phone)
- Compatible with Hi-Res Audio which provides greater sound clarity and detail than standard compressed digital audio formats
- Featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety
- Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements
- Steering wheel remote control adapter & OEM Display interface ready (Optional car specific interface required)
General Features
- 2 DIN Size
- Security Code Function
- Selectable GUI Background Wallpaper
- Key Illumination Variable color
- Rotary Encoder & Control Knob
- Touch sensor
- Installer Memory
- Back-up Memory
- Attenuator with Smooth Volume Return
- Optional IR remote controller KCA-RCDV340
- Digital Clock (24H)
- Built-in Bluetooth
- DAB Tuner Built-in
- Wifi built-in
- Made for iPod
- Works with Apple CarPlay
- Works Wireless with Apple CarPlay
- Works with Android Auto
- Works Wireless with Android Auto
- Wireless Mirroring for Android
- HDMI input for video playback
- Dashcam Link
Multimedia GUI Features
- Software updates via USB
- Top Menu Customize
- Multi Widgets Multi (up to 4), Clock, Weather & Photo Frame Widget
- Animation
- Multi touch function (Garmin navigation)
- R-CAM interrupt
- R-CAM Caution On Screen Display
- R-CAM Parking Guide Lines customizable
- Front Camera Interruption
- Front view camera mirror
- DashCam Control
- 22 languages
Monitor Features
- In-Dash
- 10.1 inch Wide HD screen(1280 x 720p)
- LCD backlight LED
- Display Mode Full/Auto/Normal
- Screen Adjustments Noon/Night Mem/Brightness/Tint/Colour/Contrast
- Dimmer function Manual/Sync/Navi Sync
- Dimmer Level Sync / On / Off
- Visual Source Mode Mirroring/CarPlay/Android Auto
- Touch Panel Capacitive
- Display film Anti-Fingerprint/Anti-Reflection/Anti-Glare
- High Definition Display
- Mechanism type Floating screen
- Tilt mechanism control
- Forward/backward mechanism control(fixed by screws)
- Up/Down mechanism control
- NTSC/PAL
- Display Off Mode
Audio features
- Max Output Power 4 x 50W
- Pre-out 3RCA:Front/Rear/Subwoofer
- Pre-out Output Level 5V
- Volume Offset
- 2 Zone Control
- Att.(-20dB)with smooth Volume Return
Multimedia DSP Features
- DSP Chip AK7738
- Position Control
- Position Preset 4 Presets
- Position Cabin Size
- Parametric Equalizer
- Parametric Equalizer 13 Bands
- Preseted Parametric Equalizer Settings
- Manual Parametric Equalizer Settings
- High Pass Filter HPF
- Low Pass Filter Non-Fading
- 3-Way X'Over
- Source DSP Memory
- Channel Level Control
- Space Enhancer
- Supreme
- Realizer
- Loudness
- Stage EQ
- Bass BoostDrive EQ+
- Speaker Size & Location Control
- Listening postion control / Time Alignment
Playable Audio / Video File
- AAC, MP3,WMA, WAV, FLAC, Ogg Vorbis
- DSD high resolution audio format
- MPEG1/2, MPEG4, WMV, H.264, mkv
- JPEG, BMP, PNG

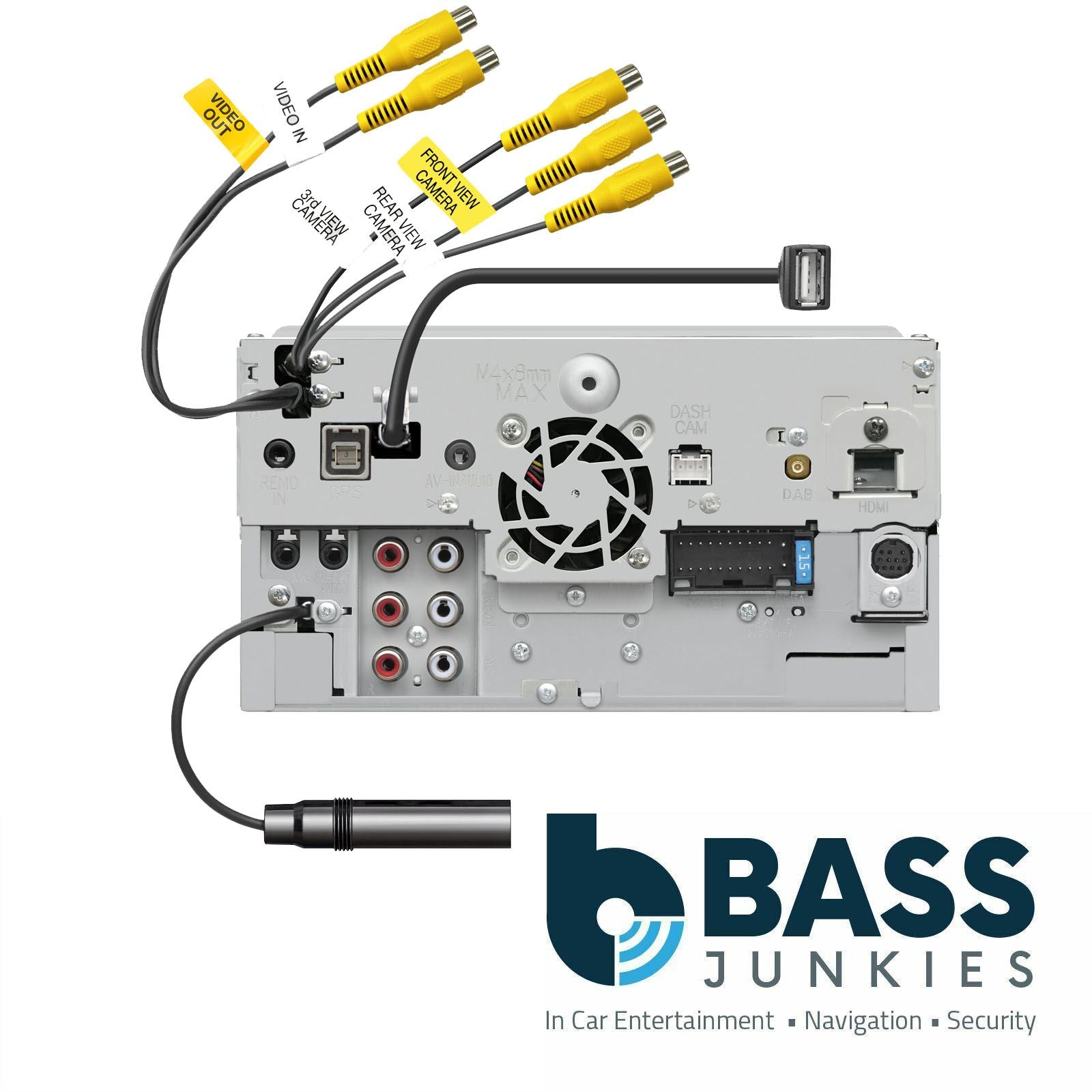

Connectivity
- USB / Wifi / Bluetooth
- Rear USB Terminal 20cm
- USB 2.0 High speed
- USB extension cable 1m
- Works with Apple CarPlay / Android Auto Wireless or Wired via USB
- Android Phone Control
- SD / SDHC / SDXC Max Capacity 2000GB
- 2 phones full time connection
- Audio Streaming A2DP (SBC/AAC)
- iPhone & Android automatic pairing via USB
- Remote App / Portal App Ready
- Music Mix Support
- WiFi Frequency Range Dual Band 2.4GHz / 5GHz
- IEEE standard 802.11a/b/g/n/ac
- Rear View Camera Input Dedicated RCA Video-in
- Front View Camera Input selectable Front / Dash Camera in
- HDMI Input
- Video Out RCA x 1
- Dashcam Link
Audio Specifications
- Maximum Power 50W x 4
- Output Power (DIN45324,+B=14.4v)22W x 4
- Output frequency band 20Hz-88kHz
- Preout Level 5000mV / 10kOhm
- Preout Impedance 300Ohm
- Speaker Impedance 4Ohm-8Ohm
