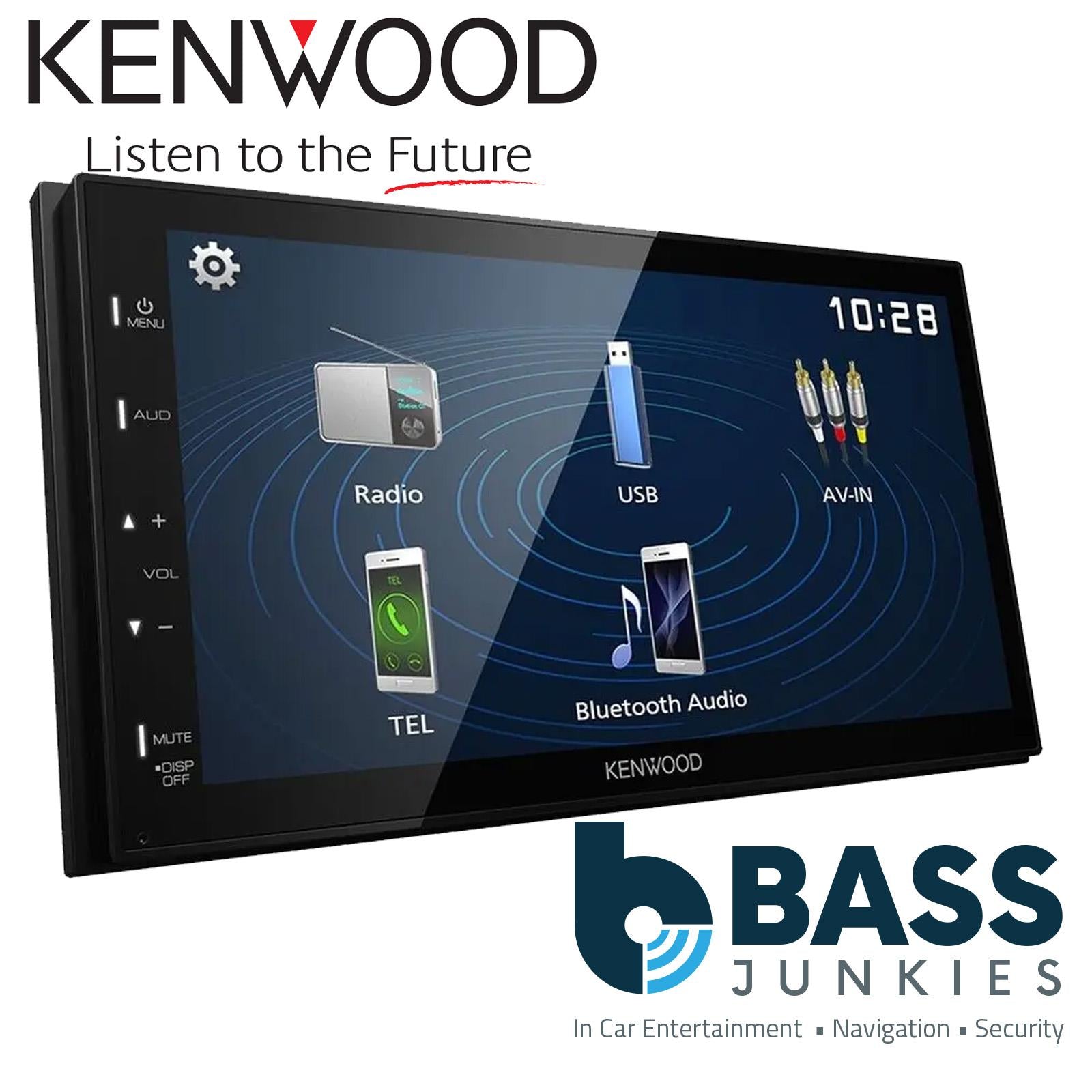

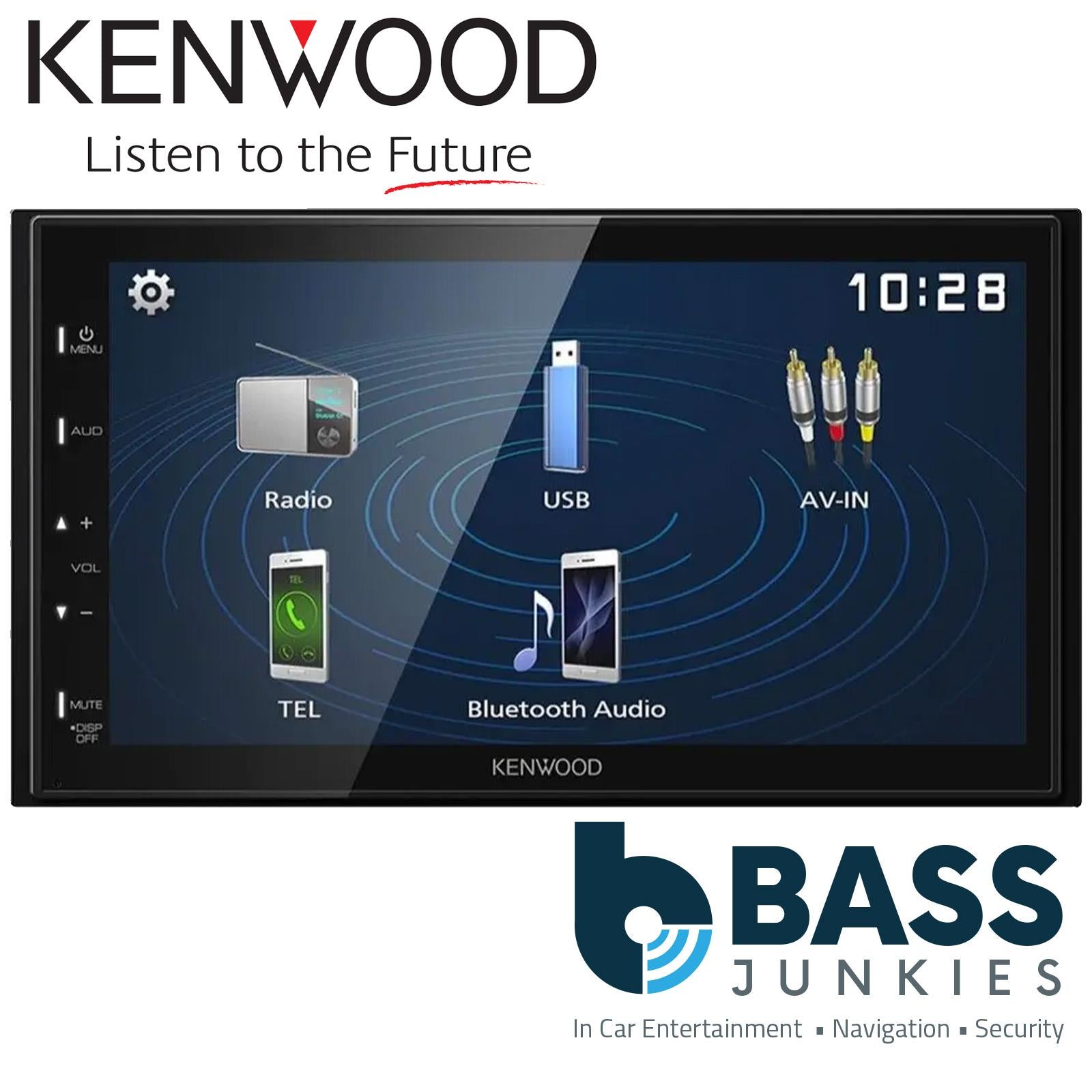

Kenwood DMX129BT 6.8" Mechless Android Mirroring Bluetooth USB Car Stereo

Kenwood DMX129BT 6.8” WVGA Digital Media AV Receiver Double Din Bluetooth Stereo USB (No CD Mechanism)

The DMX129BT with has a Convenient and Easy-to-Use Capacitive Touch Panel that Provides a high contrast ratio, crystal clear display and a vivid text. The unit Supports Android USB Mirroring that allows you to display and control your Android smartphone on the screen of the head unit. You can enjoy your favourite apps on a large display and with impressive sound quality. Before starting, just install the free app “Mirroring OB for KENWOOD” on your compatible Android smartphone and connect it to DMX129BT via a USB cable and Bluetooth. Sound quality enthusiasts will love t its crystal-clear digital stereo sound and the support of the playback of various types of video and music formats.

Key Features

• 6.8 "WVGA capacitive touch panel with sharp, high-contrast images, vivid colors and wide viewing angles
• Bluetooth Wireless Technology for hands-free calls and music streaming
• Supports Android USB Mirroring for seamlessly displaying and controlling your smartphone on the screen
• Rear, High Speed USB type-A port. Up to 1.5A Max Charge
• MP3-WMA-AAC-WAV-FLAC audio file playback
• MPEG1/2-MPEG4-H.264-MKV video file playback
• Time Alignment & 13-Band EQ for optimal sound tuning enhancements
• 2 Preouts(front/rear) + sub(mono) to connect external amplifiers and improve your sound system
• AV-in, Video-out and dedicated rear view camera input with parking guide lines
• Short body (75mm) for easy installation in a wider range of cars

General Features

• DIN Size 2 DIN
• Smooth GUI
• Key Illumination White
• Touch sensor
• Touch Sensor Tone
• Optional IR remote controller Yes, KNA-RCDV331
• Digital Clock (24H)
• ISO connector
• Built-in Bluetooth
• Android USB Mirroring

Monitor Features

• LCD type 6,8 inch Wide VGA
• LCD backlight LED
• Display Mode 3 Mode (Normal(default) / 16:9 / 4:3)
• Screen adjust: Brightness Yes
• Screen adjust: Tint (Only NTSC) Yes
• Screen adjust: Colour Yes
• Screen adjust: Contrast Yes
• Dimmer Level "High" (Default) / "Mid" / "Low"
• Touch Panel Capacitive
• Display Type Clear
• NTSC/PAL judge Yes (Auto)
• Display Off Mode Yes

Multimedia GUI Features

• OSDC Type Graphic
• Demonstration Mode Yes
• Opening Screen Type standard
• R-CAM interrupt Yes
• R-CAM Caution On Screen Display Yes
• R-CAM Parking Guide Lines Yes, Built-in, customizable
• Menu text in selectable language
  • English(Default)
  • Espagñol, Français
  • Deutch
  • Italiano
  • Nederlands
  • Suomi
  • Russian
  • Português
  • Polski
  • Türkçe
  • Cestina
  • Magyar

Tuner Features

• Station Select List
• FM Reception Yes
• AM Reception Yes, (MW Reception)
• Tuning mode Auto1 / Manual
• Up/Down Seek/Scan Yes
• Tuner Presets (FM/AM) 30 Presets (18FM / 12AM)
• Automatic Memory Entry (AME) Yes
• Radio Data System Yes
• Traffic Information Yes
• Local search Yes
• Auto TP search Yes
• Enhanced Other Networks Function (EON) Yes
• Program Type Function (PTY) Yes

Bluetooth General Features

• Max num. of regist. phones for HFP & A2DP 8 phones
• Hands Free Profile (HPF) V1.6
• Audio Streaming (A2DP) Yes, (SBC)
• Phonebook Access Profile (PBAP) Yes
• Number of PBAP entries Up to 1000 phonebook entries
• PBAP call history Up to 50 entries of dialed, received and missed calls
• Voice Control Yes
• Noise Canceller Yes
• Echo Canceller Yes
• High-quality noise canceling microphone included

Playable Audio file

• AAC (*.m4a) files are playable USB
• AAC (*.aac) files are playable USB
• MP3 files are playable USB
• WMA (.wma) files are playable USB
• WAV (.wav) files are playable USB
• FLAC files are playable USB

CE_Playable Video file

• MPEG1/2 files are playable USB
• MPEG4 files are playable USB
• H.264 files are playable USB
• mkv files are playable USB

USB Features

• Rear USB Terminal Yes
• USB Type 2.0 High speed Yes
• USB Mirroring for Android install "Mirroring OB for KENWOOD" from Playstore
• Tag Information Display Yes
• Album Art Display Yes
• Repeat/Scan/Random search Yes
• Repeat / Random Play Yes
• Repeat Play Folder / File
• Random play Folder
• Time code display Yes
• 1,5A Smartphone Quick Charge Yes

iPod Features

• Connection via: USB / BT
• Plug & Play Yes
• Made for iPhone Yes
• Tag Information Display Yes
• Time Code Display Yes
• List Access Yes
• Album art support Yes
• Random Play Yes
• Repeat Play Yes
• Skip Yes
• iAP over Bluetooth Yes

Audio features

• Max. Output Power (MOSFET Power IC) 4 x 45W
• Pre-out  2 Stereo RCA (Front/Rear) + 1 Mono RCA (Sub)
• Pre-out Output Level  2V
• Low Pass Filter (LPF) Yes, Subwoofer Freq. Control
• Subwoofer Reference Level Adj. Yes
• Balance/Fader Control Yes
• Beep On/Off Yes

Multimedia DSP Features

• Position Control Yes
• Position Preset 4 Presets
• Graphic Equalizer 13 bands
• G-EQ auto setting Yes
• G-EQ manual setting Yes
• G-EQ Number of Preset Preset x 8 + User set x 3 / All SRC
• Time Alignment 0 ~ 610cm
• High Pass Filter (HPF)  Yes
• HPF Cut Off Frequency 14
• HPF Cut Slope Level 4 steps
• Low Pass Filter (LPF) Yes (Non-Fading)
• LPF Cut Off Frequency 14
• LPF Cut Slope Level 4 steps
• Channel Level Control Yes
• Loudness Yes
• Bass Boost Yes
• X'over network

Video Features

• Audio Video Output Yes
• Audio/Video Input Yes
• Video-In for Rear-view Camera 1 dedicated video input (RCA)
• Parking Guide Line Yes

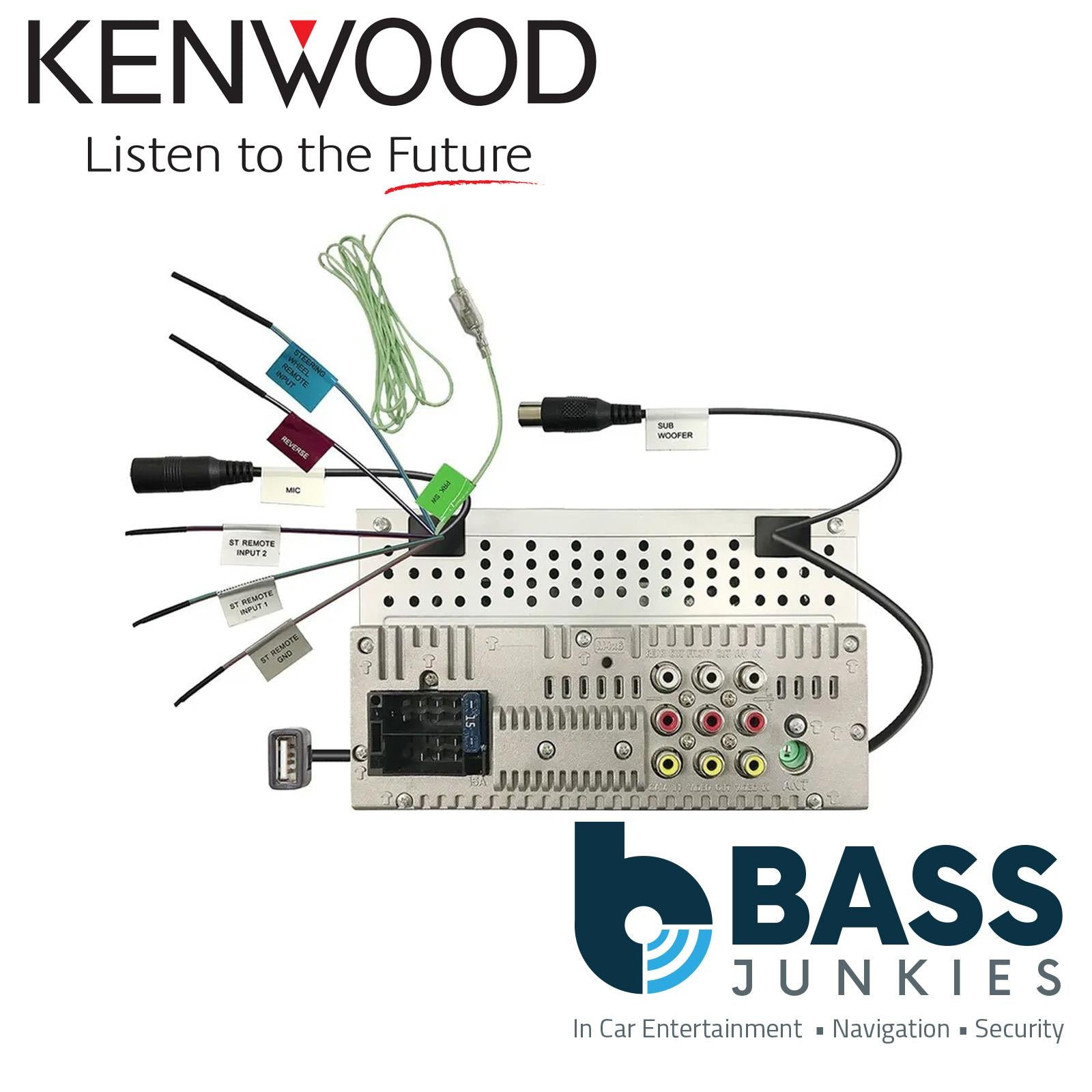

Connectivity

• USB interface 1x Rear
• OEM Wired Remote Control ready Yes
• Programmable OEM Steeringwheel Remote Function Yes
• Parking sensor (handbrake) wire Yes
• 2-way (Tel/Navi) mute wire Yes
• AV-Input (Non Switchable) (RCA)
• AV Output Video only (RCA)
• Reverse sensor wire Yes
• Rear View Camera Input  Dedicated RCA Video-in
• FM Antenna Input  JASO connector
• External microphone input 3,5mm mini-jack

Tuner Specifications

• FM range: 87.5Mhz - 108MHz (50Khz step)    Yes
• FM Usable Sensitivity 1.8μV/75ohm (S/N 16.2dBf)
• FM Quieting Sensitivity 19.2μV/75ohm (S/N 46dBf)
• FM Frequency Response  30Hz ~ 14kHz (± 3dB)
• FM Signal to noise ratio (Mono) 50dB
• FM Stereo Separation (1kHz) 35dB
• MW range: 531kHz - 1611kHz (9kHz step)  Yes
• MW Usable Sensitivity 99μV

Bluetooth specifications

• Technology Bluetooth V5.0
• Frequency 2.402 - 2.48 GHz
• Output power +8dBm(AVE), power class 1
• Maximum range Line of sight approx. 10 meter
• Handsfree profile (HFP) Yes, V1.6
• Advanced audio distribution profile (A2DP) Yes, V1.2
• Audio Codec SBC/AAC
• Audio/Video remote control profile (AVRCP) Yes, V1.5
• Phonebook access profile (PBAP) Yes, V 1.2

USB Specifications

• USB Version compatibility USB 2.0 High Speed
• File System FAT 16/32 / exFAT / NTFS
• Maximum Supply current 1500mA
• D/A Converter 24bit
• S/N Ratio 99 dB (1kHz)
• Dynamic Range 99dB

Audio Specifications

• Maximum Power 45W x 4
• Output Power (DIN45324,+B=14.4v) 16W x 4
• Preout Level 2000mV / 10kOhm,
• Preout Impedance  ≤ 1400Ohm
• Speaker Impedance 4Ohm ~ 8Ohm
• Graphical Equalizer 13-Band
• G. EQ. Frequency (Hz)  62,5Hz - 16kHz
• G. EQ. Gain (dB)  +/- 9dB
• Low Pass Filter Frequency (Hz)  80 / 120 / 160 / Off

Video Specifications

• Color System of External Video Input NTSC/PAL
• External Video Input Level (RCA) 1 Vpp / 75 Ohm
• External Audio Max. Input Level (RCA) 1.5 V / 25 kOhm
• Video Output Level (RCA) 1 Vpp / 75 Ohm

Monitor Specifications

• Screen size (Diagonal)  6.75 Inches Wide
• Screen Size (WxH) 151.8 x 79.7mm
• Display system Transparent TN LCD Panel
• Drive system TFT Active Matrix System
• Number of Pixels 1152000pixels (800(H) x 480(V) x RGB)
• Effective pixels 99.99%
• Pixel arrangement RGB Striped
• Back lighting LED (Light Emitting Diode)

General Specifications

• Operating voltage 14.4V (10.5 ~ 16V Allowable)
• Maximum Current Consumption 10A
• Dimensions (WxHxD) 182 x 112 x 75mm
• Weight 1300 gr.
