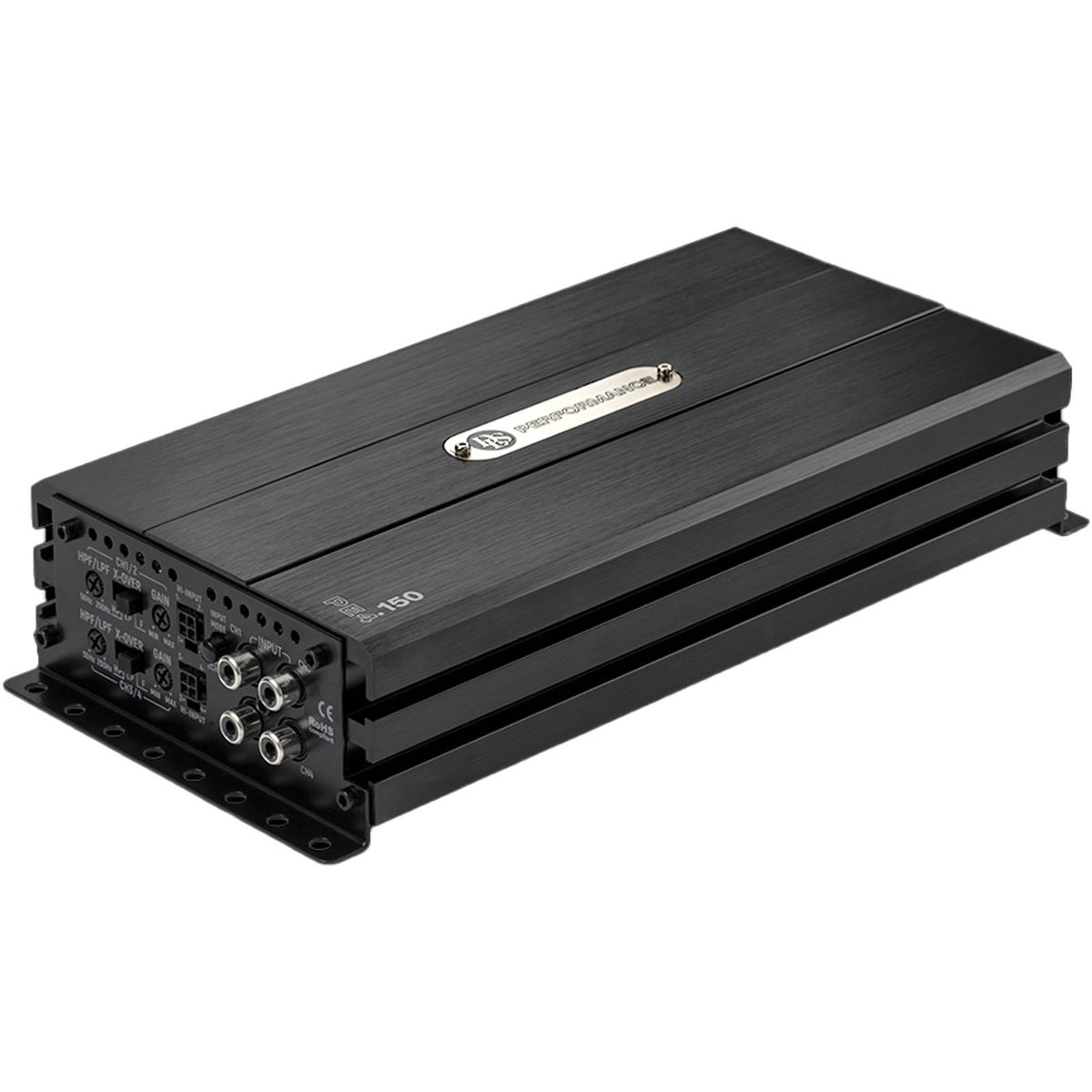

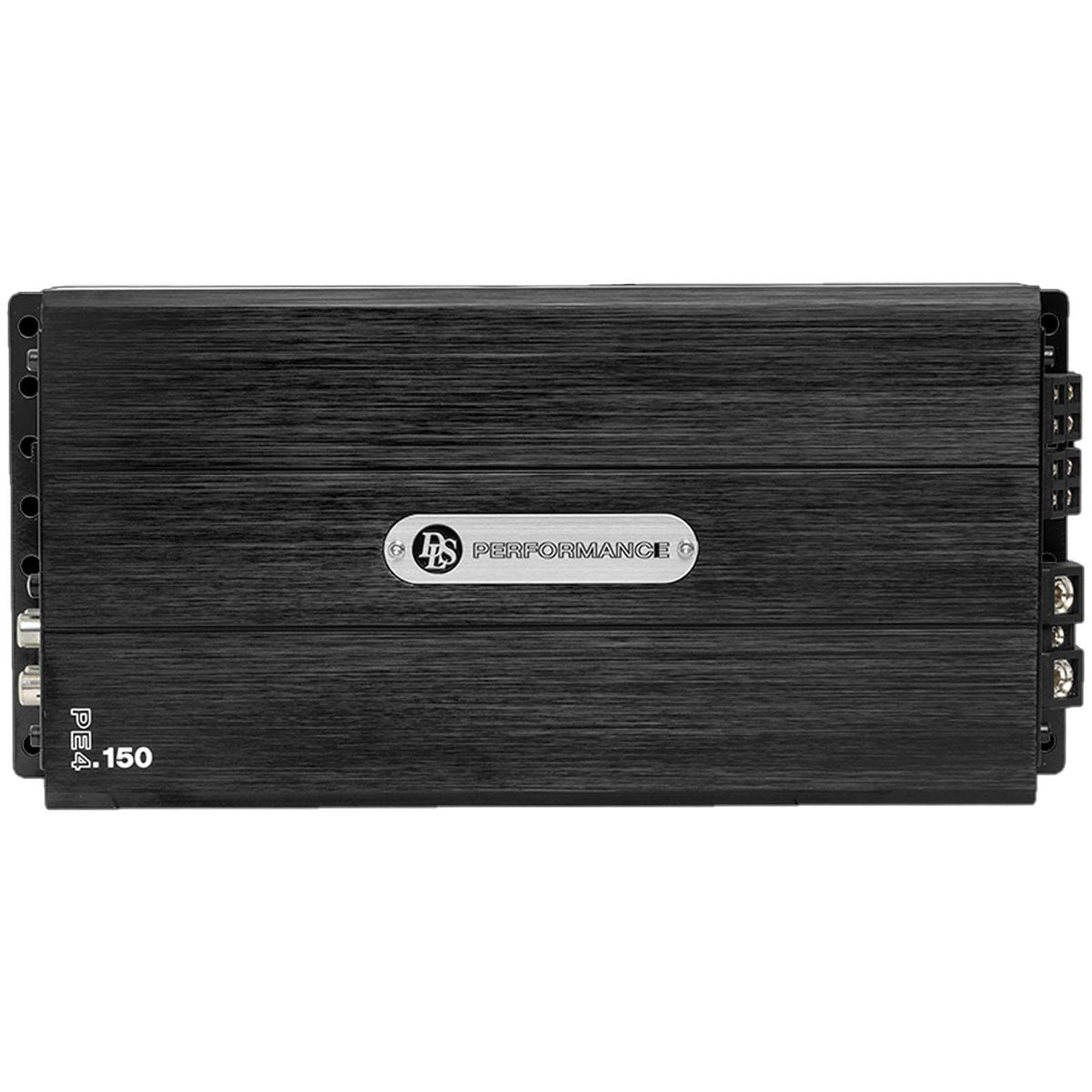

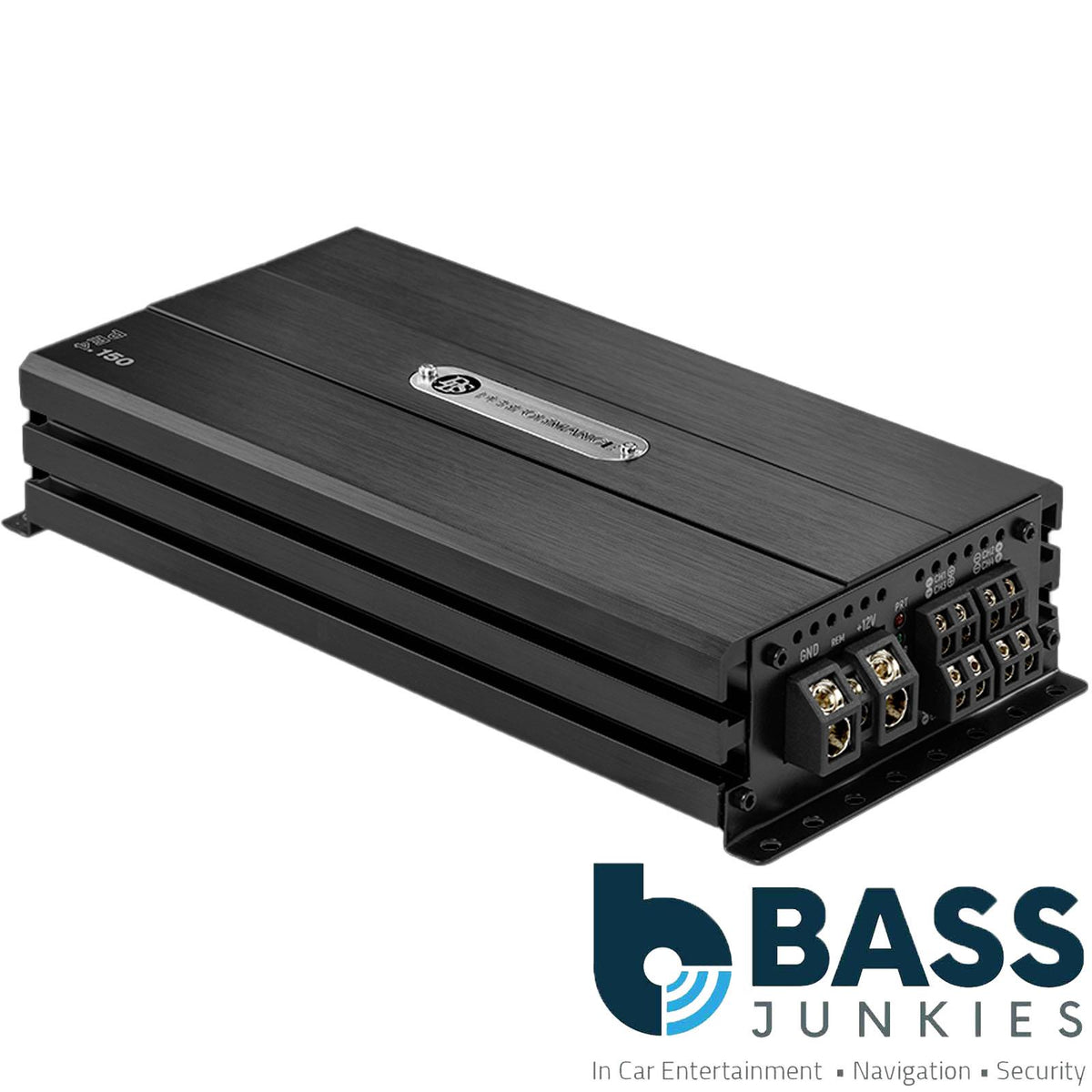

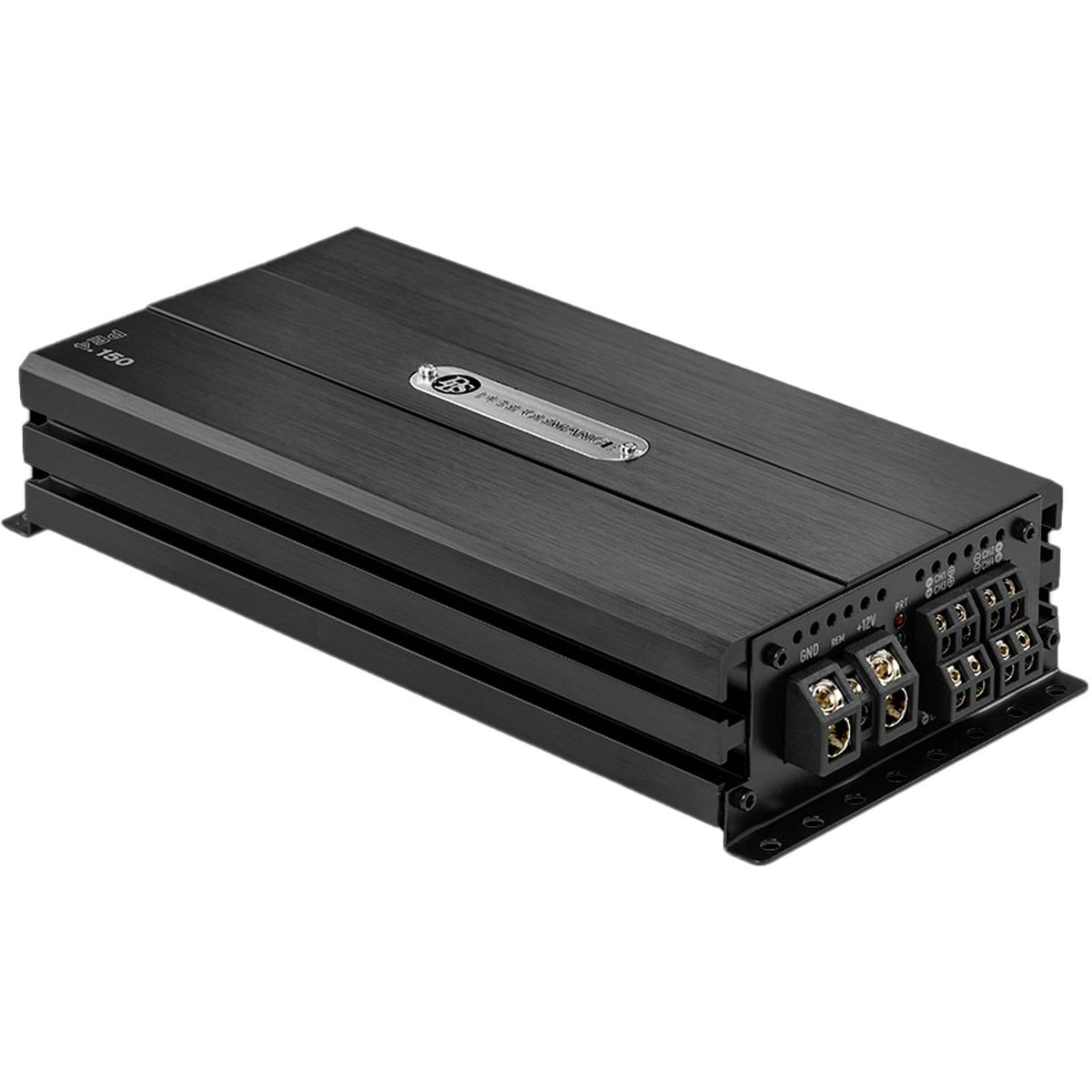

DLS Performance Evolution PE4.150 600W RMS 4-Channel Class D Amplifier
The DLS Performance Evolution PE4.150 is a powerful 4-channel Class D amplifier designed to deliver clean, balanced and controlled power to full-range car speakers and active audio systems.
Delivering up to 150 watts RMS across four channels at 2 ohms, the PE4.150 provides the headroom required to improve speaker clarity, control and musical dynamics at higher volume levels.
The amplifier can also be bridged to produce 300 watts RMS across two channels at 4 ohms, making it suitable for powering larger speakers, component systems or compatible subwoofers.
Designed around the DLS Natural Sound philosophy, the PE4.150 provides clear detail and strong dynamics without making the system sound harsh or overly aggressive.

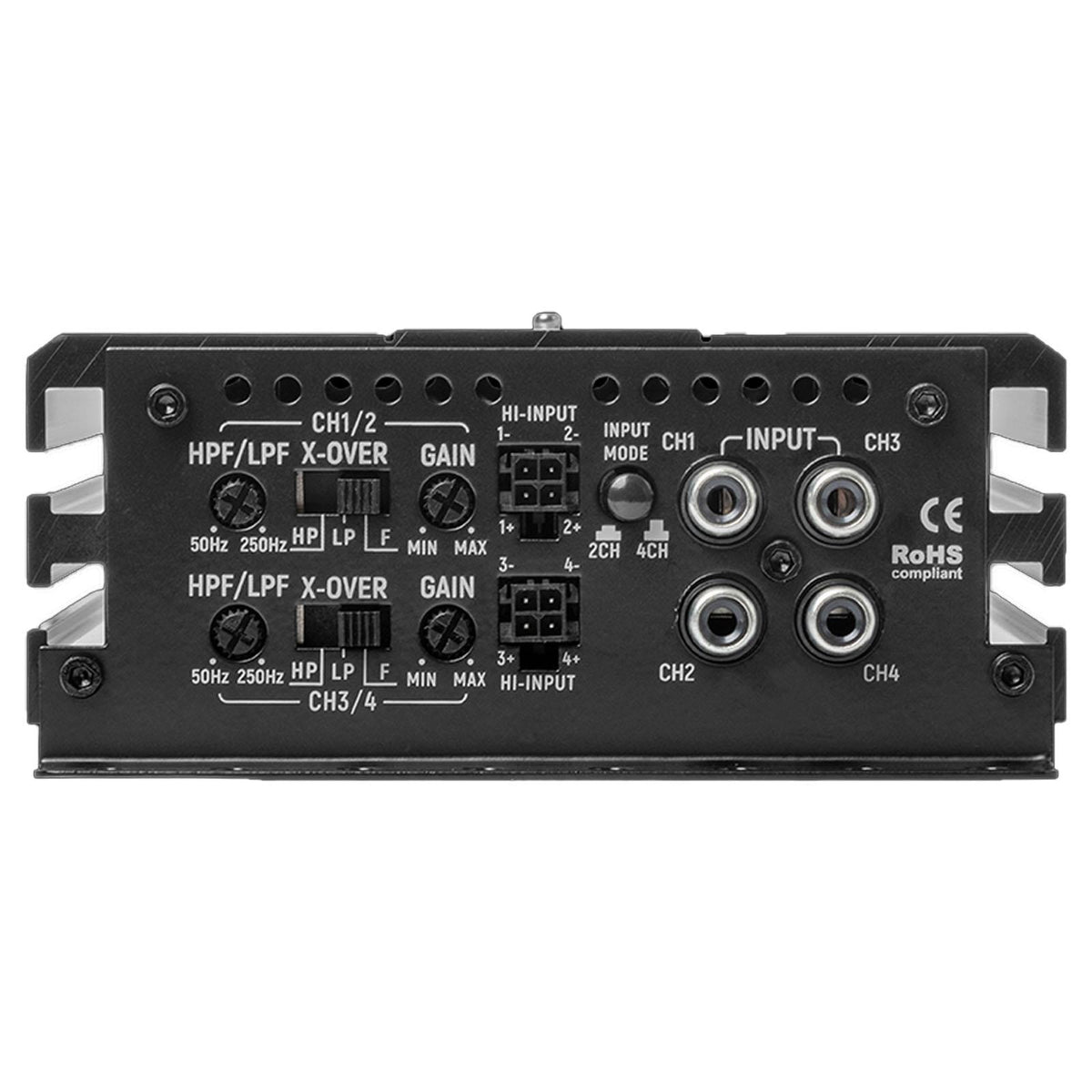

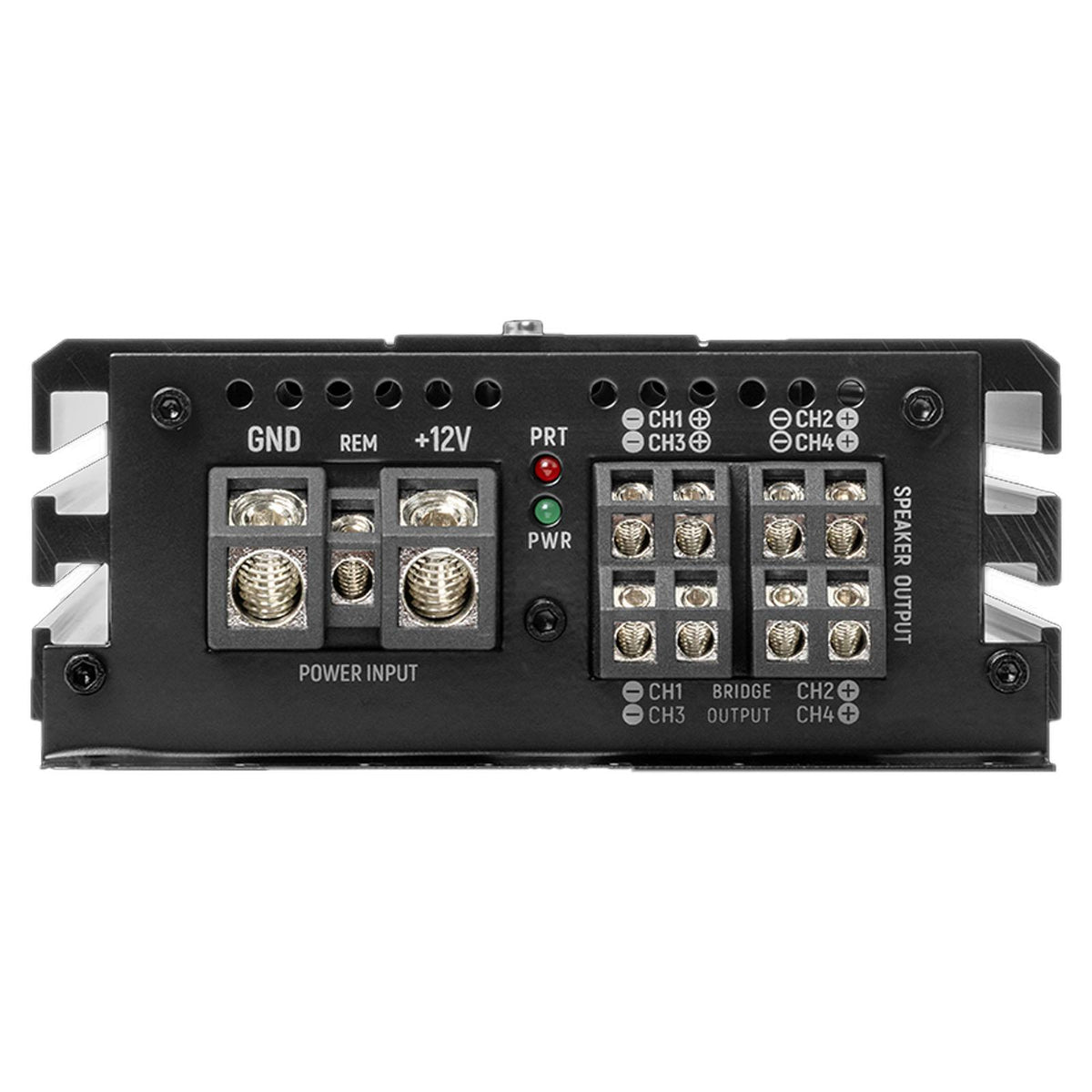

Low-level RCA and high-level speaker inputs allow integration with aftermarket stereos and compatible factory audio systems. Automatic Turn-On and Smart Load Circuitry provide easier connection to modern factory head units and amplified systems.
Adjustable high-pass and low-pass filters provide flexible system configuration for full-range speakers, component systems, active installations and bridged subwoofer applications.
Key Features:
- Four-channel car audio amplifier
- Efficient Class D amplifier design
- Bridgeable two-channel operation
- Suitable for full-range speakers and active audio systems
- Low-level RCA inputs
- High-level speaker inputs
- Automatic Turn-On functionality
- Smart Load Circuitry for factory-system integration
- Adjustable high-pass filters
- Adjustable low-pass filters
- EMI-optimised circuit boards for reduced electrical interference
- Compact installation-friendly chassis
RMS Power Output:
- 4 x 150 watts RMS at 2 ohms
- 4 x 100 watts RMS at 4 ohms
- 2 x 300 watts RMS bridged at 4 ohms
- Combined output at 2 ohms: 600 watts RMS
- Combined output at 4 ohms: 400 watts RMS
- Combined bridged output at 4 ohms: 600 watts RMS
Technical Specifications:
- Number of channels: Four
- Amplifier class: Class D
- Minimum stereo impedance: 2 ohms per channel
- Minimum bridged impedance: 4 ohms
- Frequency response: 10Hz�40,000Hz
- High-pass filter: 50Hz�250Hz adjustable
- Low-pass filter: 50Hz�250Hz adjustable
- Signal-to-noise ratio: Greater than 95dB, A-weighted
- Total harmonic distortion at 4 ohms: Less than 0.05%
- Idle power consumption: 0.8A
- Maximum power consumption: 59A
- Recommended fuse rating: 80A
- Dimensions: 125 x 274 x 52.5mm
- Weight: 1.8kg

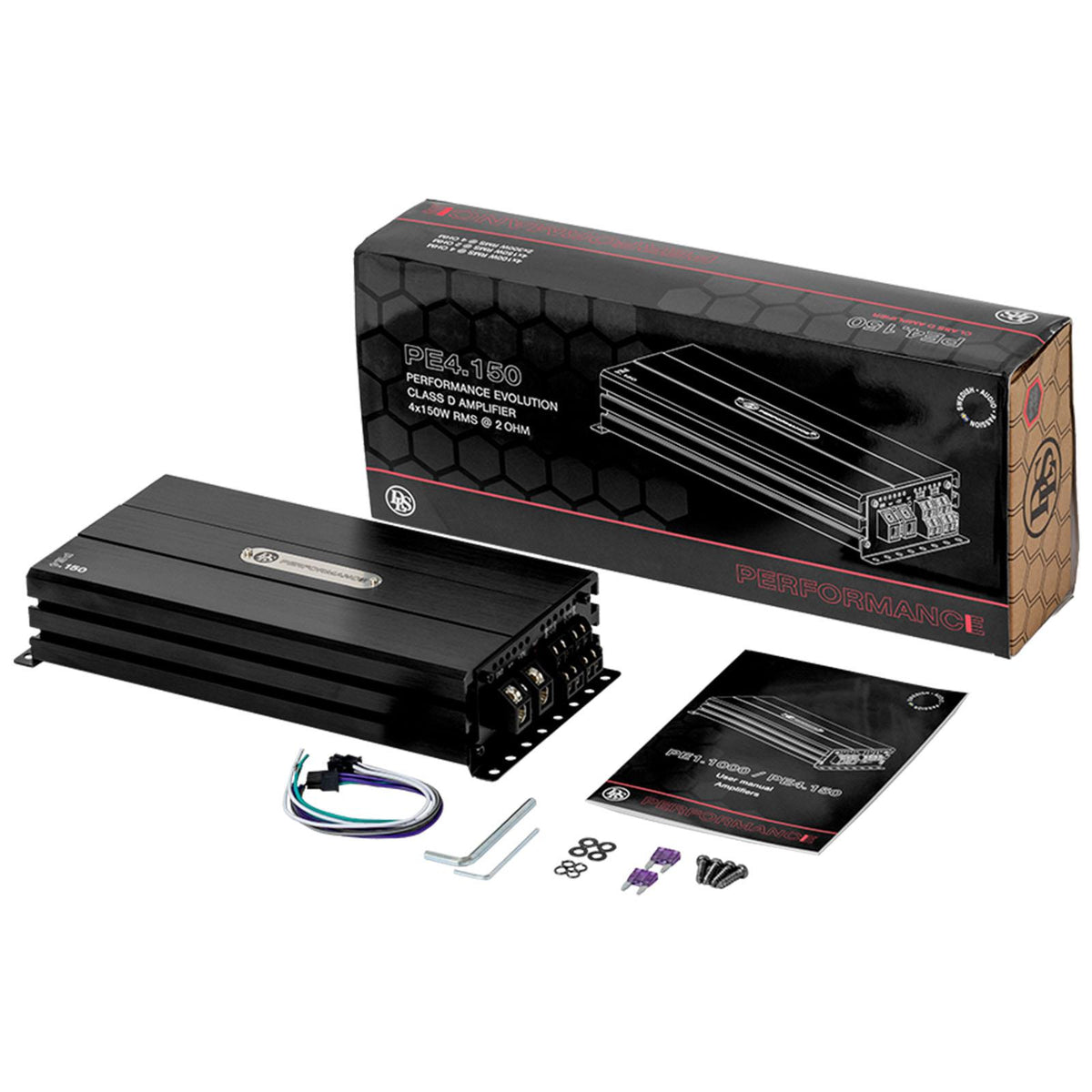

Package Contents:
- 1 x DLS Performance Evolution PE4.150 amplifier
- 1 x User manual
A suitable amplifier wiring kit, fuse and connection cables are required separately. Speaker impedance and power handling must be compatible with the selected amplifier configuration. Professional installation is recommended.
