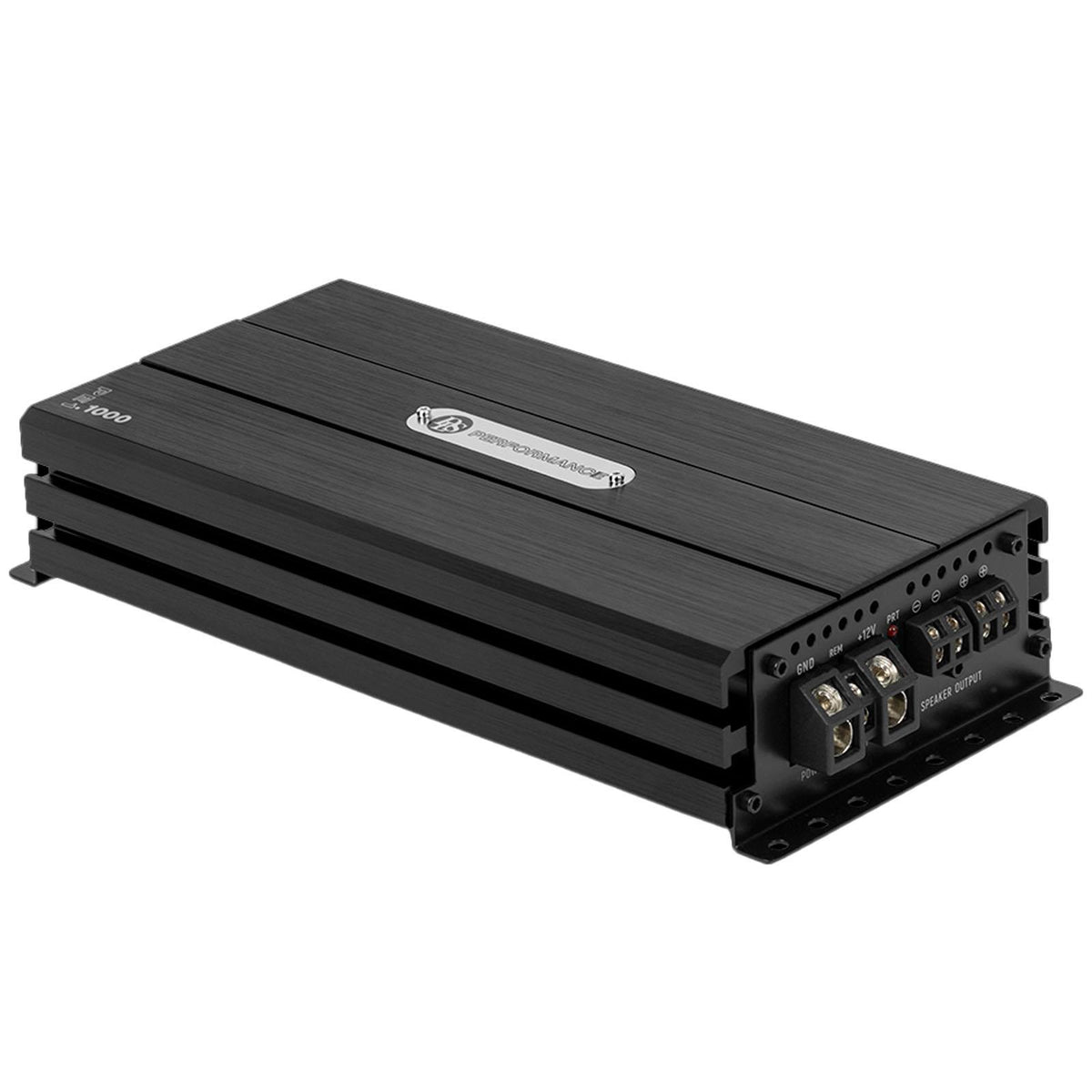

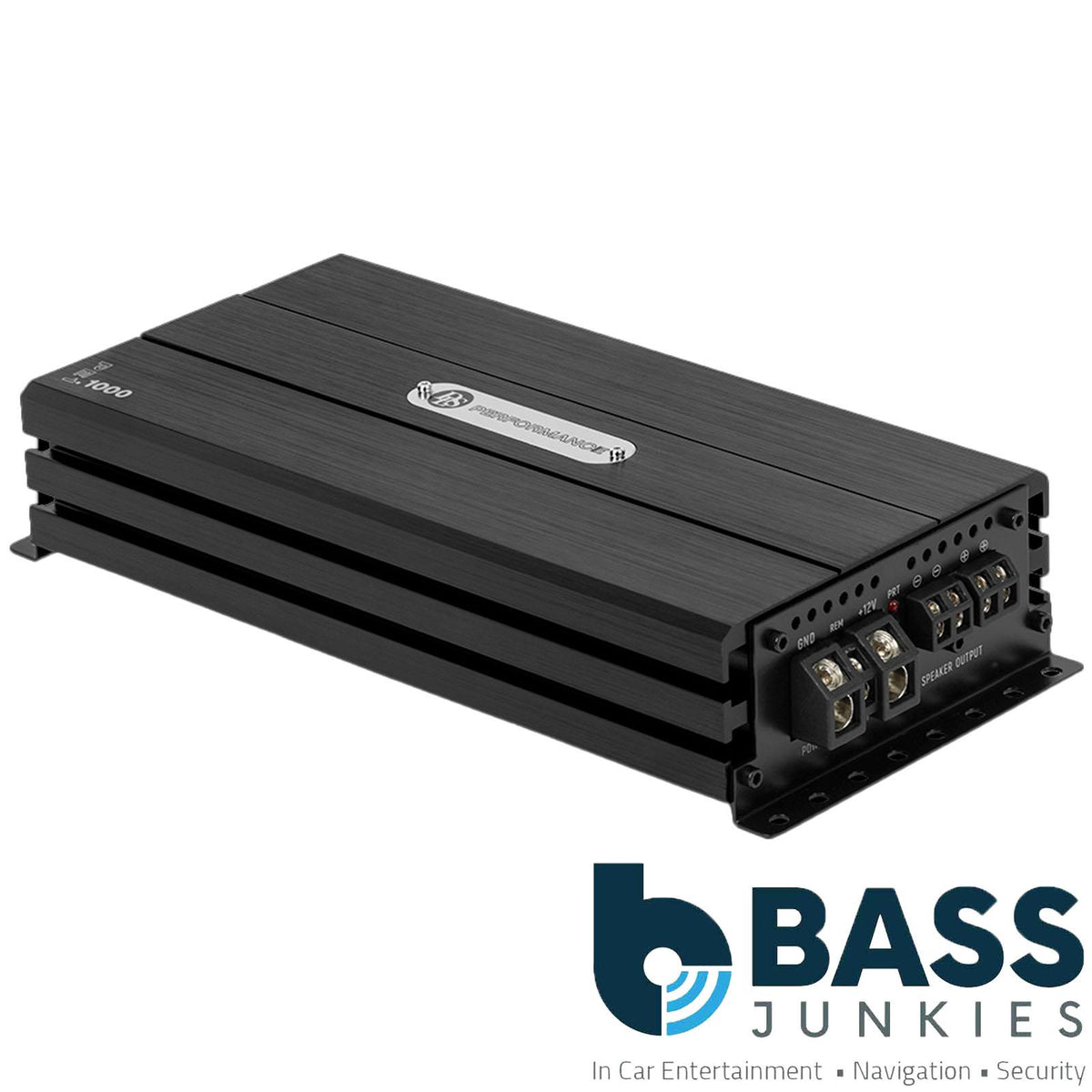

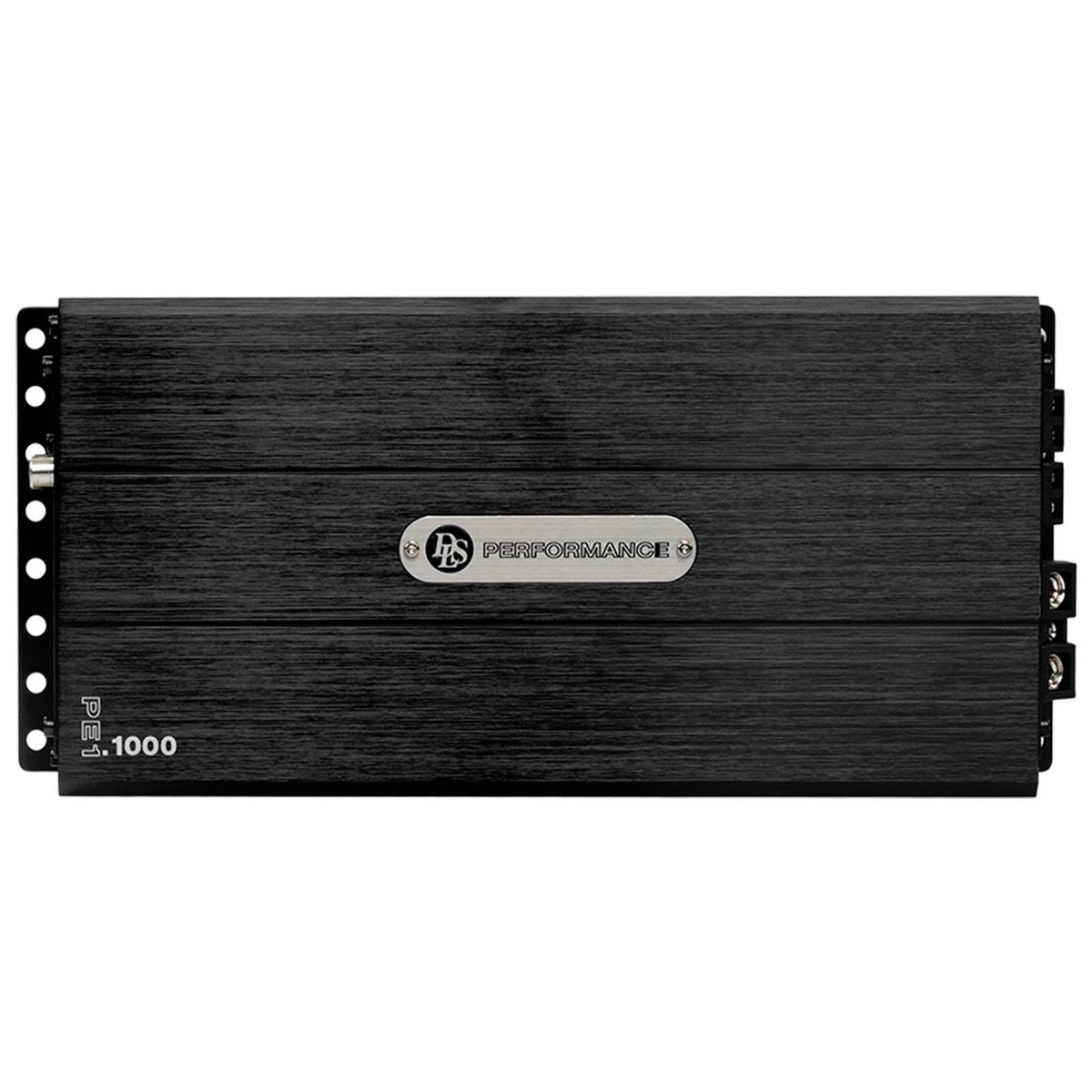

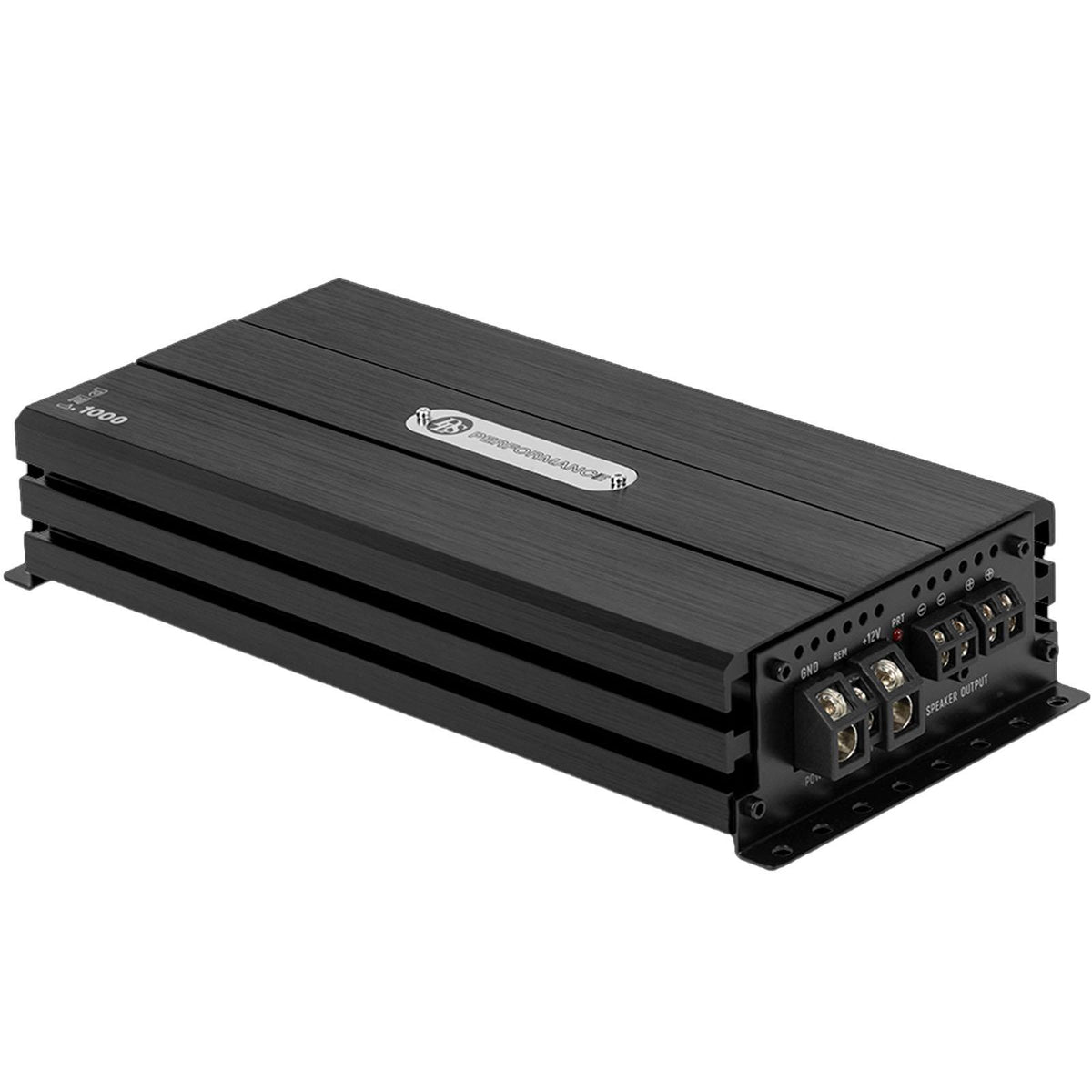

DLS Performance Evolution PE1.1000 1000W RMS Mono Class D Amplifier
The DLS Performance Evolution PE1.1000 is a powerful mono Class D amplifier designed to drive car subwoofers with precision, stability and control.
Delivering up to 1000 watts RMS at 1 ohm, the PE1.1000 provides the power required for demanding subwoofer systems while maintaining tight, musical and well-integrated low-frequency performance.
The amplifier is tuned around the DLS Natural Sound philosophy, producing strong dynamics and controlled bass without sounding overly aggressive or disconnected from the rest of the audio system.

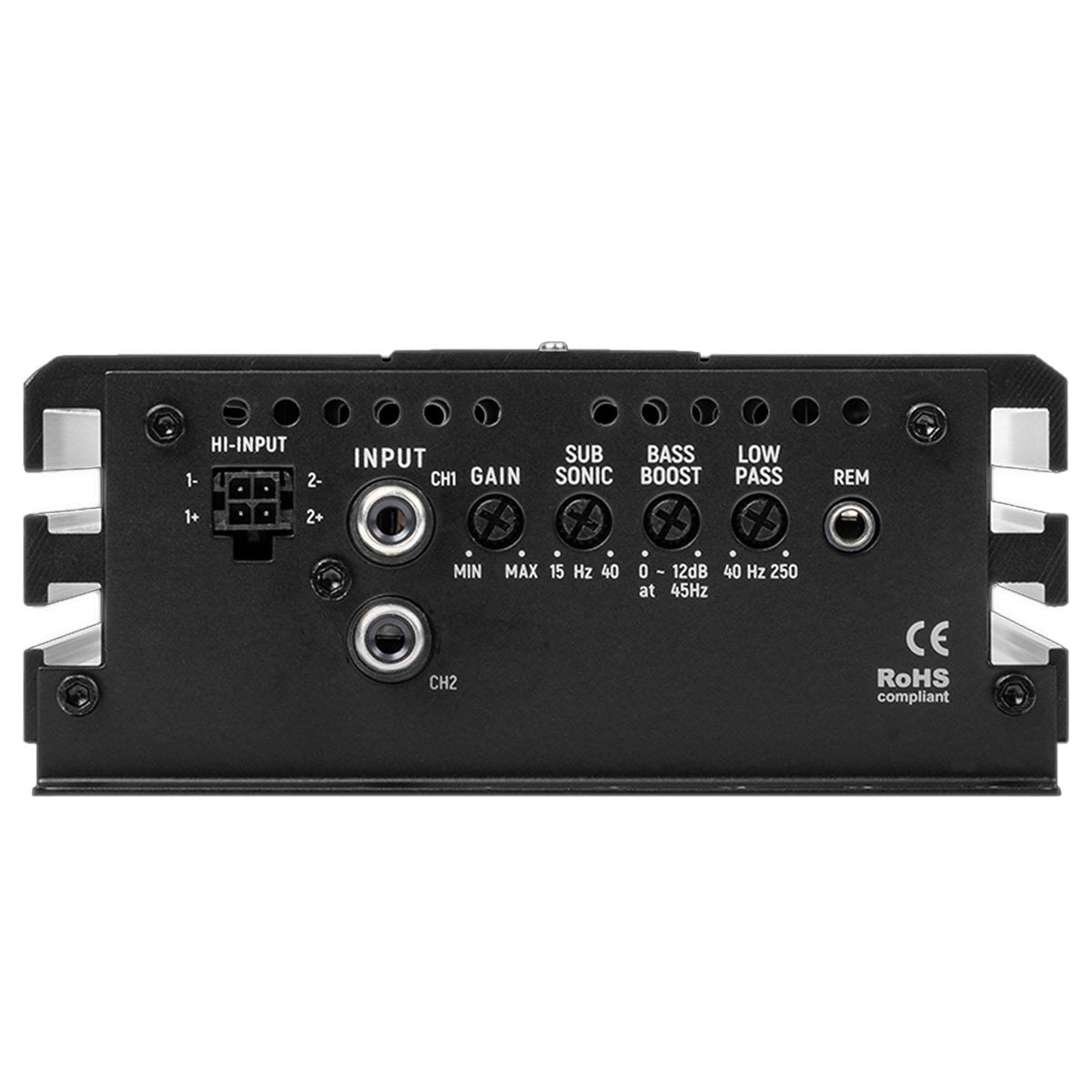

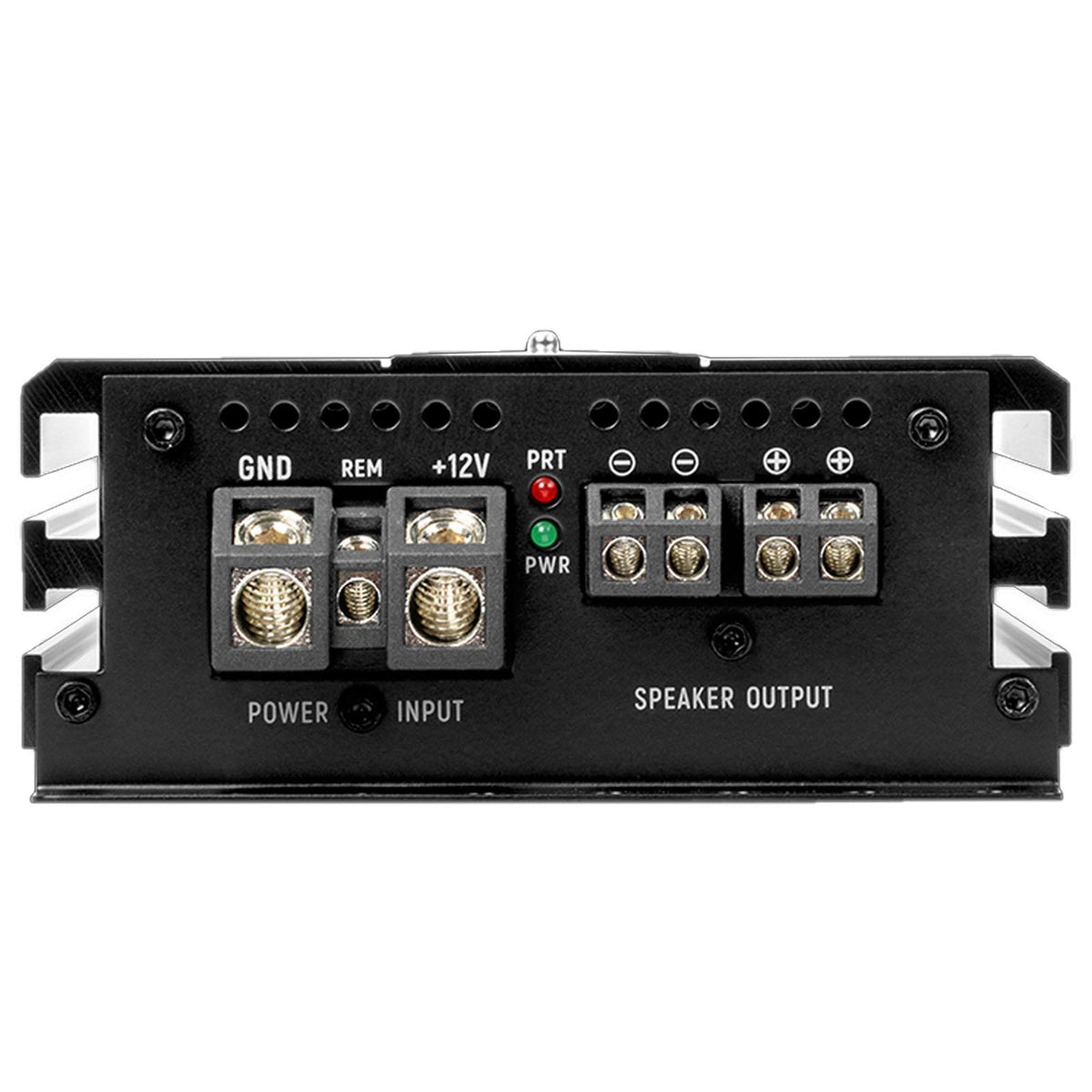

Low-level RCA and high-level speaker inputs allow the amplifier to integrate with aftermarket stereos and compatible factory audio systems. Automatic Turn-On and Smart Load Circuitry provide easier connection to modern factory head units and amplified systems.
Adjustable low-pass and subsonic filters allow the amplifier to be matched accurately to the connected subwoofer and enclosure. An adjustable bass equaliser provides up to 12dB of additional output at 45Hz when required.
Key Features:
- Mono subwoofer amplifier
- Efficient Class D amplifier design
- Stable operation down to 1 ohm
- Low-level RCA inputs
- High-level speaker inputs
- Automatic Turn-On functionality
- Smart Load Circuitry for factory-system integration
- Adjustable low-pass filter
- Adjustable subsonic filter
- Adjustable bass equaliser
- EMI-optimised circuit boards for reduced electrical interference
- Compact installation-friendly chassis
RMS Power Output:
- 1 x 1000 watts RMS at 1 ohm
- 1 x 750 watts RMS at 2 ohms
- 1 x 450 watts RMS at 4 ohms
Technical Specifications:
- Number of channels: Mono
- Amplifier class: Class D
- Minimum supported impedance: 1 ohm
- Frequency response: 15Hz�250Hz
- Low-pass filter: 40Hz�250Hz adjustable
- Subsonic filter: 15Hz�40Hz adjustable
- Bass EQ: 0 to +12dB at 45Hz
- Signal-to-noise ratio: Greater than 95dB, A-weighted
- Total harmonic distortion at 4 ohms: Less than 0.1%
- Idle power consumption: 0.9A
- Maximum power consumption: 116A
- Recommended fuse rating: 125A
- Dimensions: 125 x 274 x 52.5mm
- Weight: 2kg

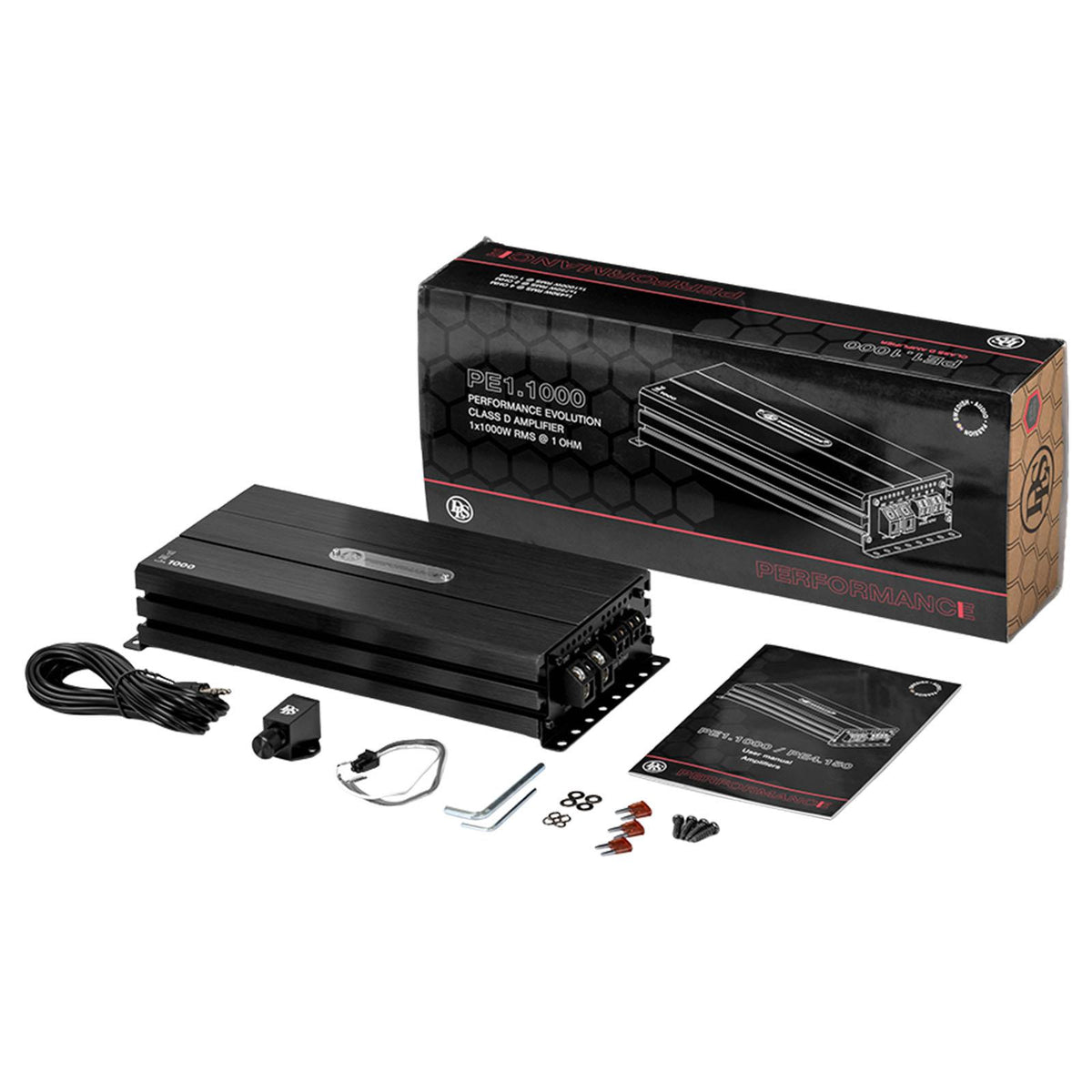

Package Contents:
- 1 x DLS Performance Evolution PE1.1000 amplifier
- 1 x User manual
A suitable amplifier wiring kit, fuse and subwoofer are required separately. The connected subwoofer�s final impedance and power handling must be compatible with the amplifier. Professional installation is recommended.
