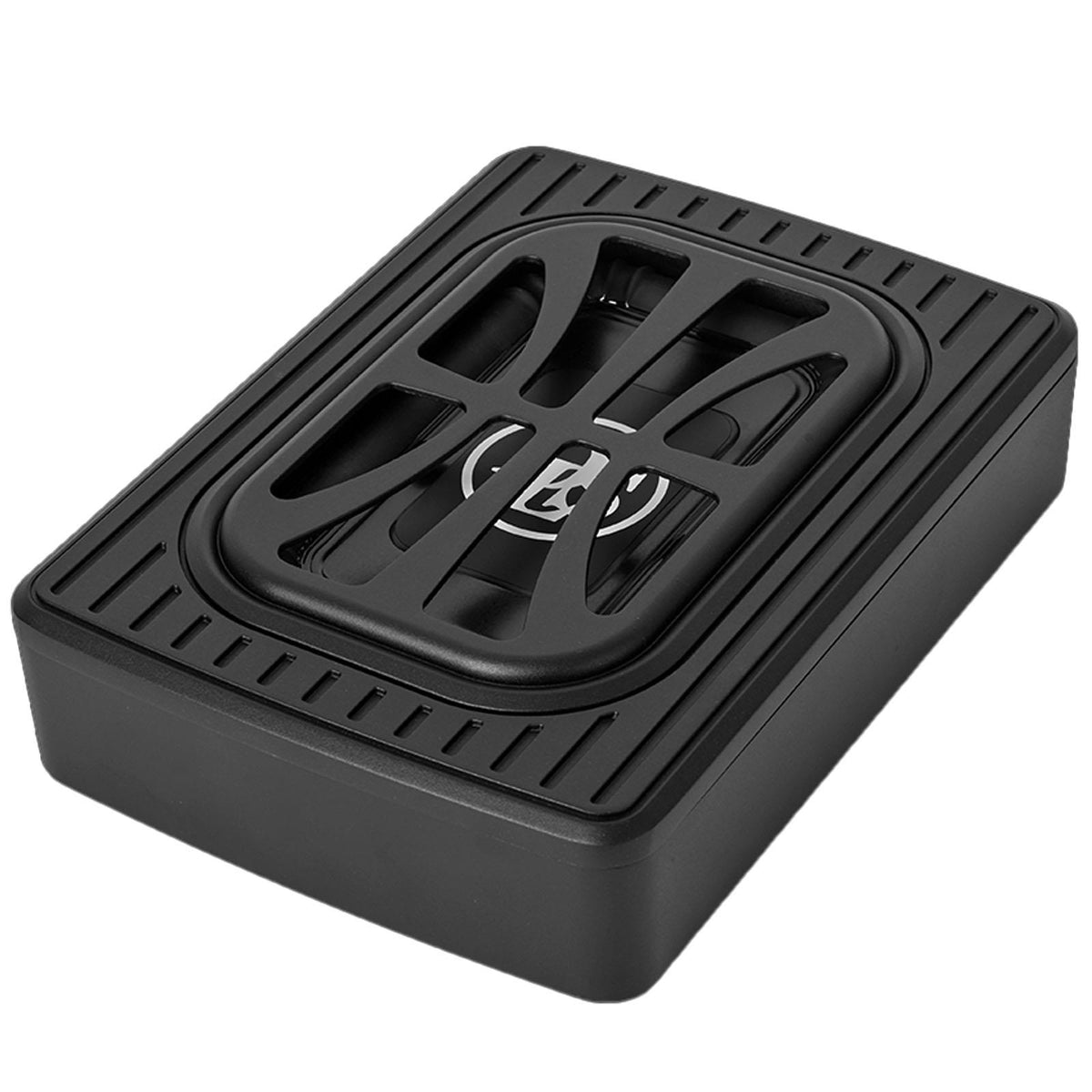

DLS Reference ACW68i24 6x8" 250W 24V Active Underseat Subwoofer
The DLS Reference ACW68i24 is a compact active subwoofer designed specifically for trucks, commercial vehicles and other vehicles operating with a 24-volt electrical system.
Combining a low-profile 6x8-inch subwoofer with an integrated Class AB amplifier, the ACW68i24 adds stronger bass, improved punch and greater musical depth without requiring a separate external amplifier or large enclosure.
Its compact 72mm-high design allows installation beneath a suitable seat, inside a storage compartment or within another confined area where a conventional subwoofer enclosure would not fit.
The Kick Bass function strengthens the important 70�100Hz region that factory systems often struggle to reproduce. This helps add definition, weight and impact to drums, basslines and other low-frequency content.
An adjustable Bass Optimise circuit provides control from -6dB to +6dB at 55Hz, allowing the bass response to be matched to the vehicle�s cabin and existing speakers.
High-level input, Automatic Turn-On and Smart Load Circuit technology allow straightforward integration with compatible factory audio systems and modern vehicle electronics. Built-in EMI and RFI filtering helps minimise unwanted electrical interference.
Important: This subwoofer is designed exclusively for 24-volt vehicle electrical systems. It is not suitable for standard 12-volt vehicles.
Key Features:
- Compact active subwoofer for 24V vehicles
- Suitable for trucks and compatible commercial vehicles
- Integrated Class AB amplifier
- Low-profile 72mm-high enclosure

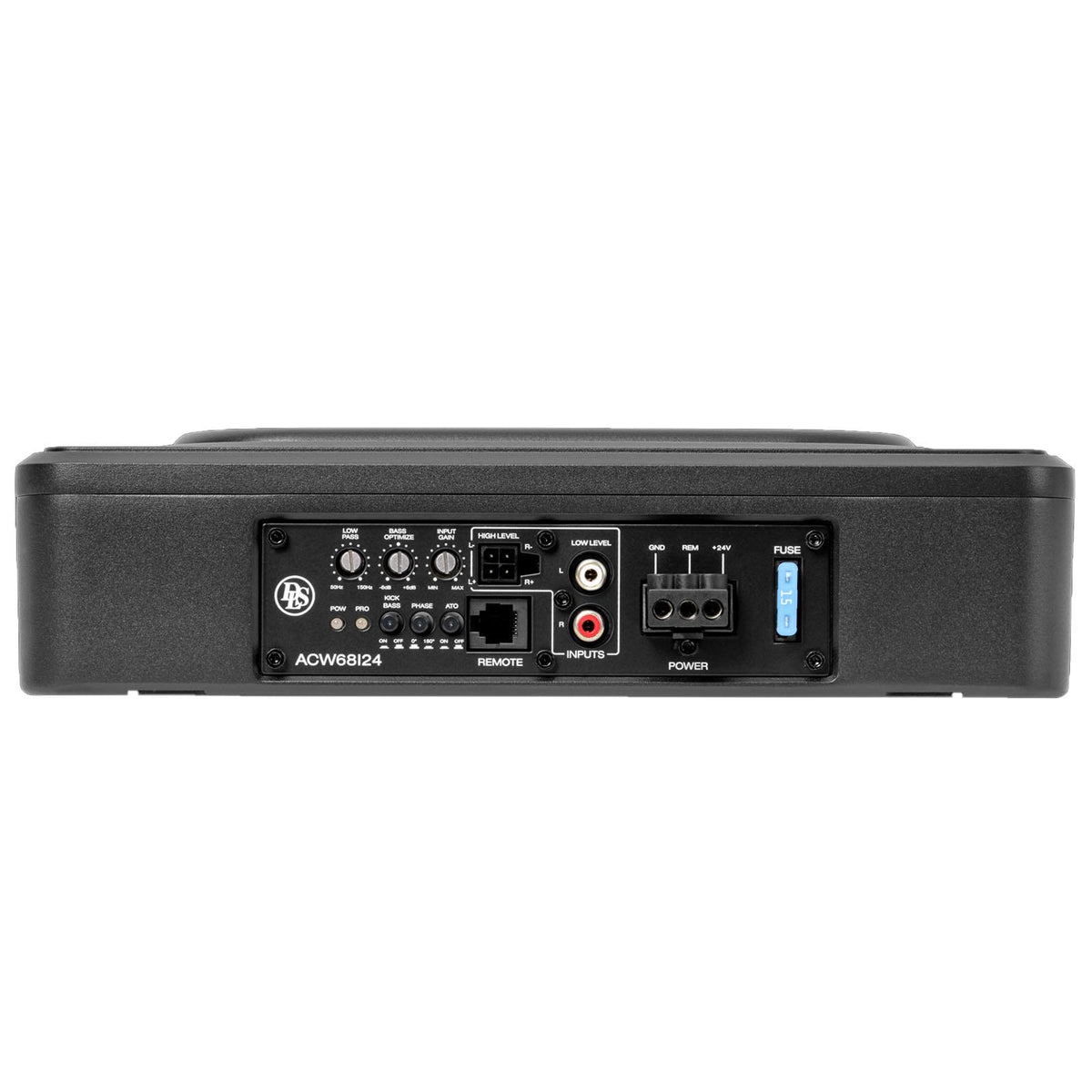

- Quick-release power, ground and remote connector
- High-level speaker input
- Automatic Turn-On functionality
- Smart Load Circuit for factory-system integration
- Adjustable Bass Optimise circuit
- Kick Bass function for improved 70�100Hz response
- Built-in EMI and RFI interference filtering
Specifications:
- Operating voltage: 24 volts
- Subwoofer size: 6 x 8 inches (150 x 200mm)
- RMS power output: 120 watts
- Maximum power output: 250 watts
- Amplifier type: Class AB
- Frequency range: 30Hz�150Hz
- Low-pass filter: 50Hz�150Hz
- Subsonic filter: 50Hz at 12dB/octave
- Input sensitivity: 0.9�35V
- Bass Optimise adjustment: -6dB to +6dB at 55Hz
- Total harmonic distortion: Less than 0.4%
- Signal-to-noise ratio: Greater than 95dB
- Fuse rating: 15A
- Enclosure height: 72mm

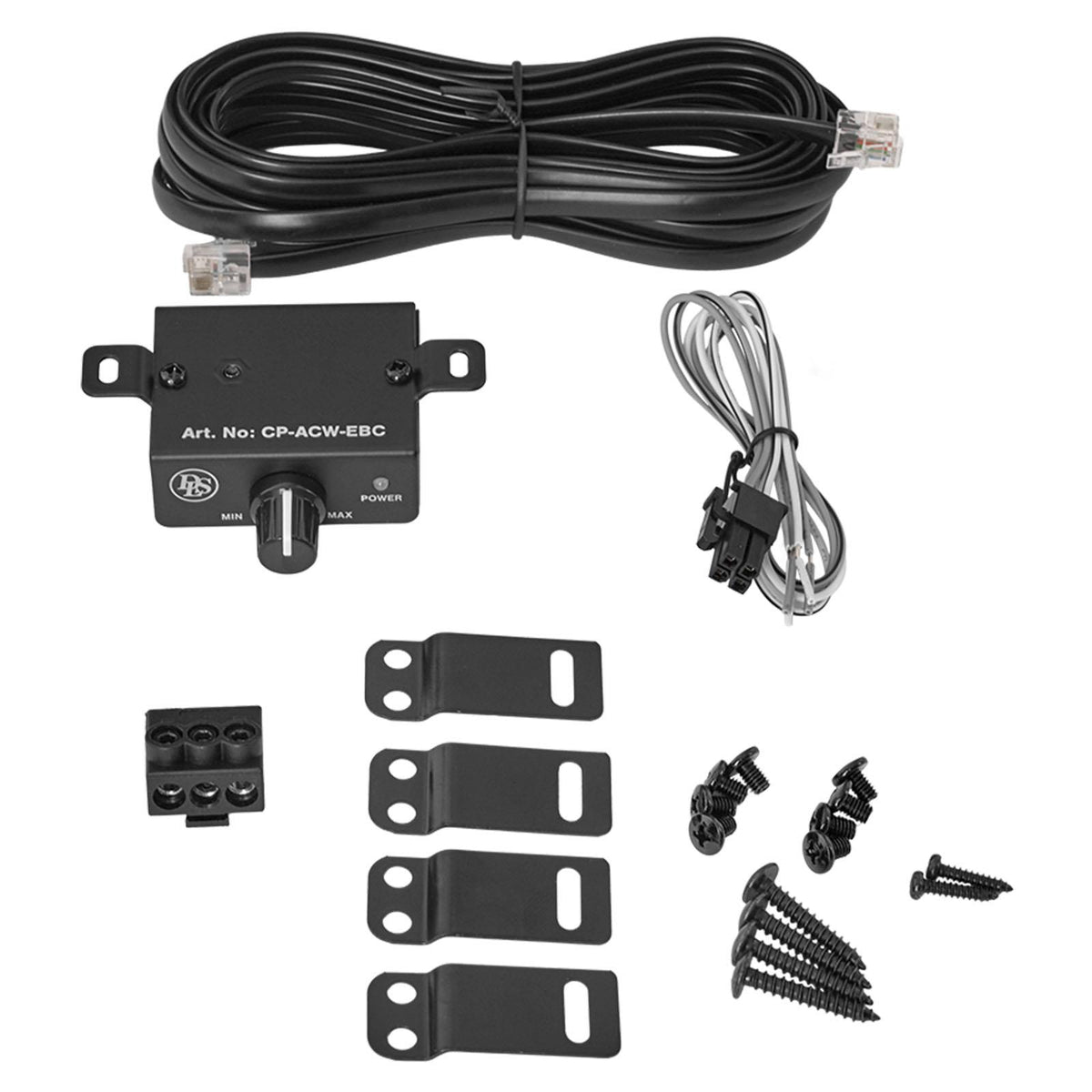

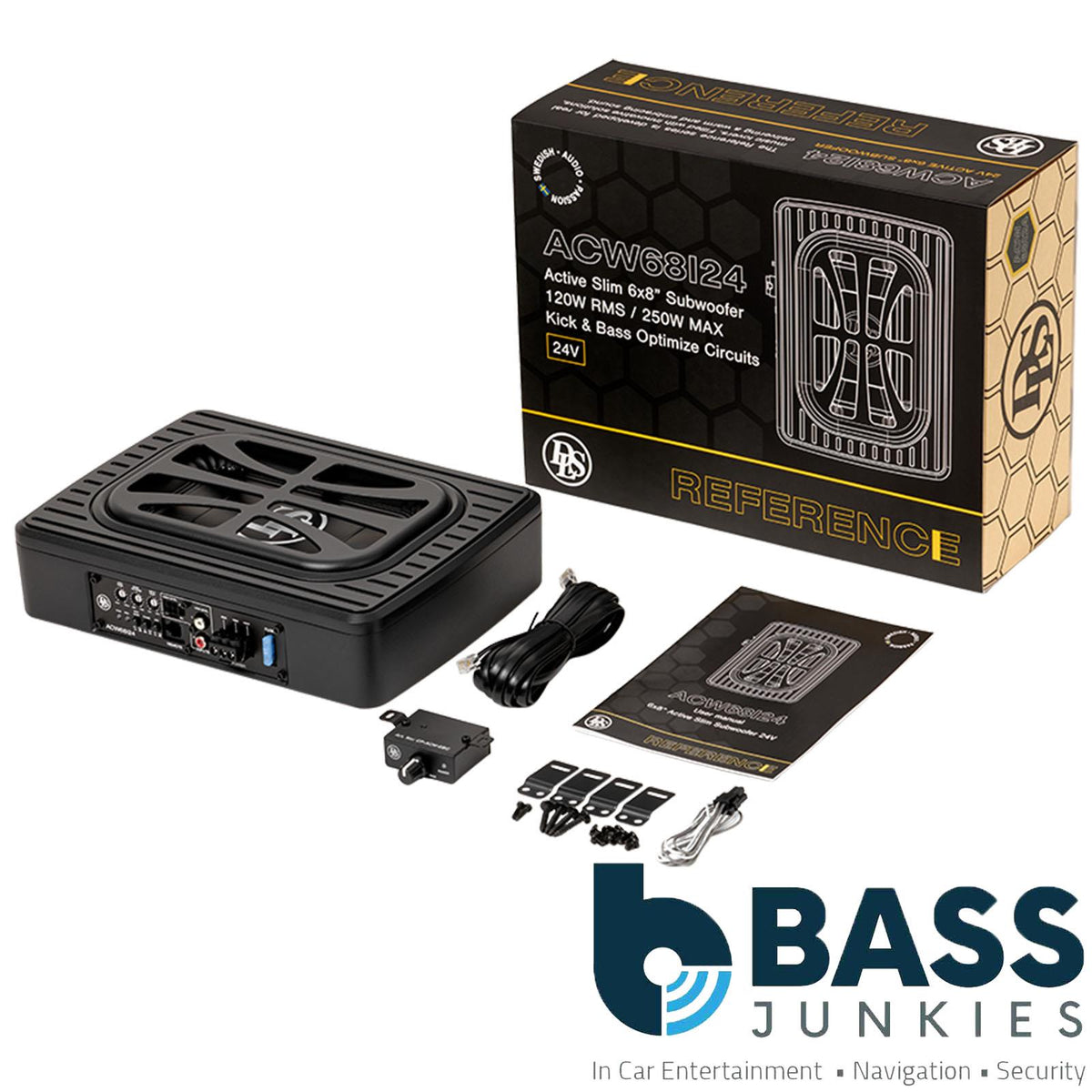

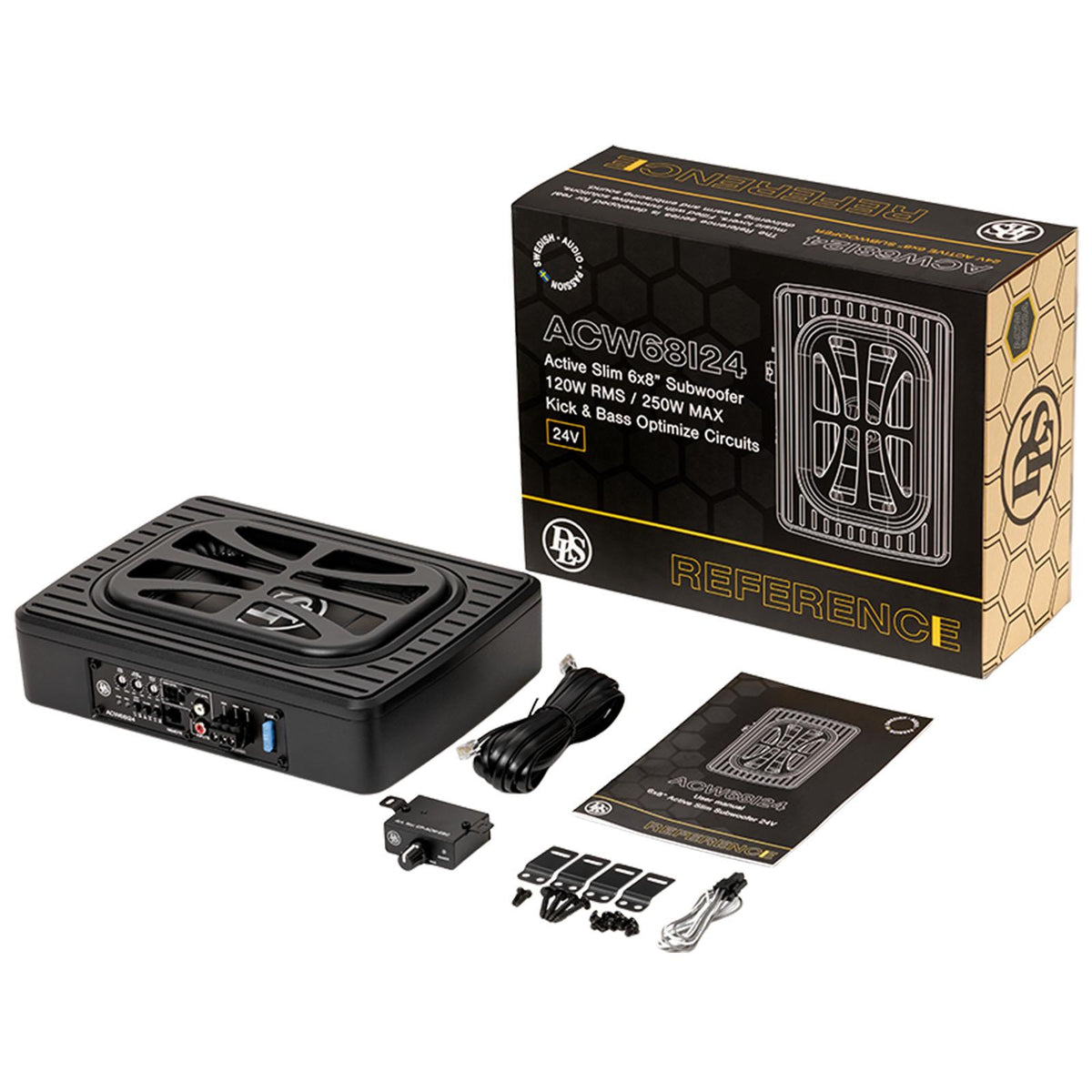

Package Contents:
- 1 x DLS Reference ACW68i24 active subwoofer
- 1 x Quick-release connection plug
- Installation accessories
Please check that the vehicle uses a 24V electrical system and has sufficient installation space before purchasing. Professional installation is strongly recommended.
