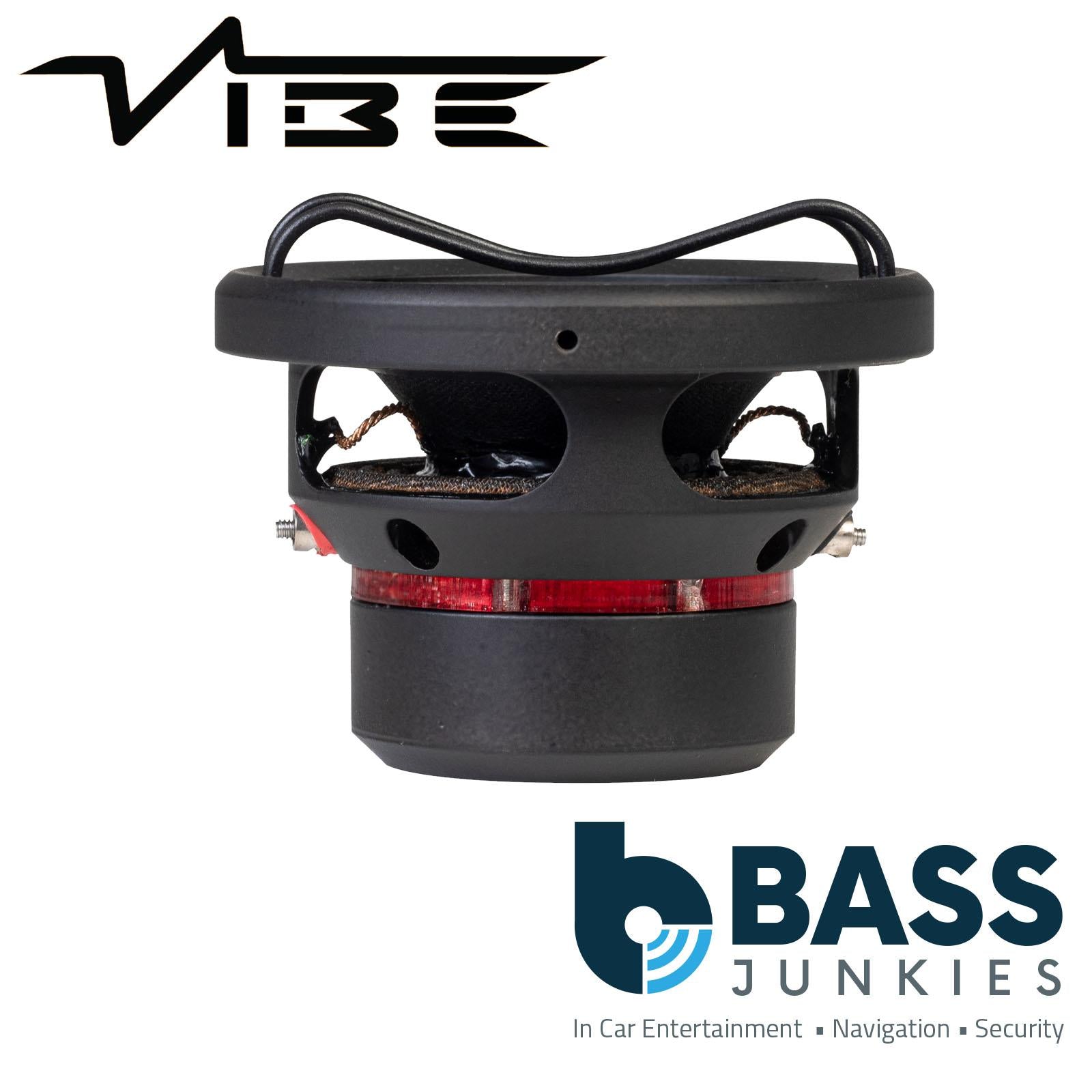

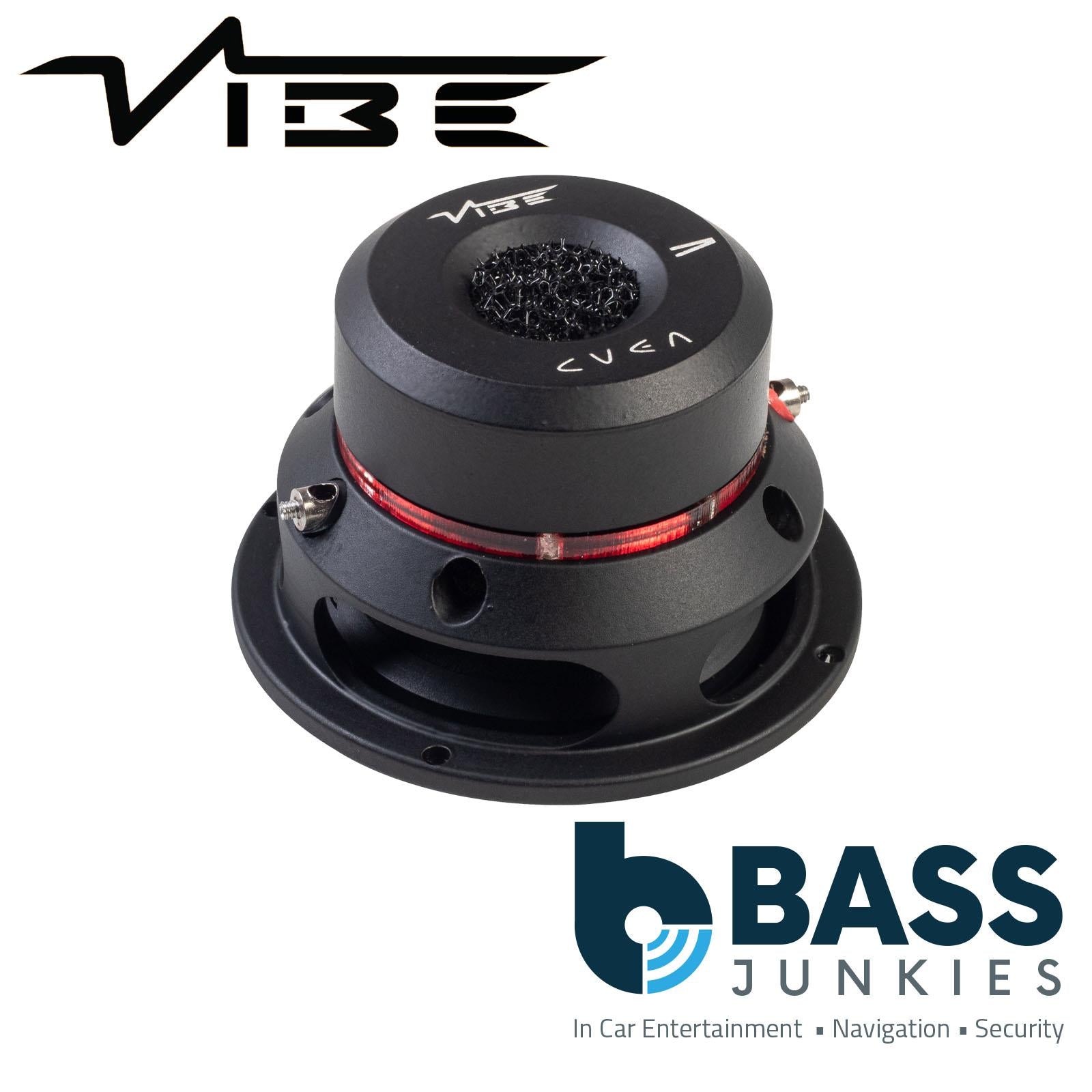

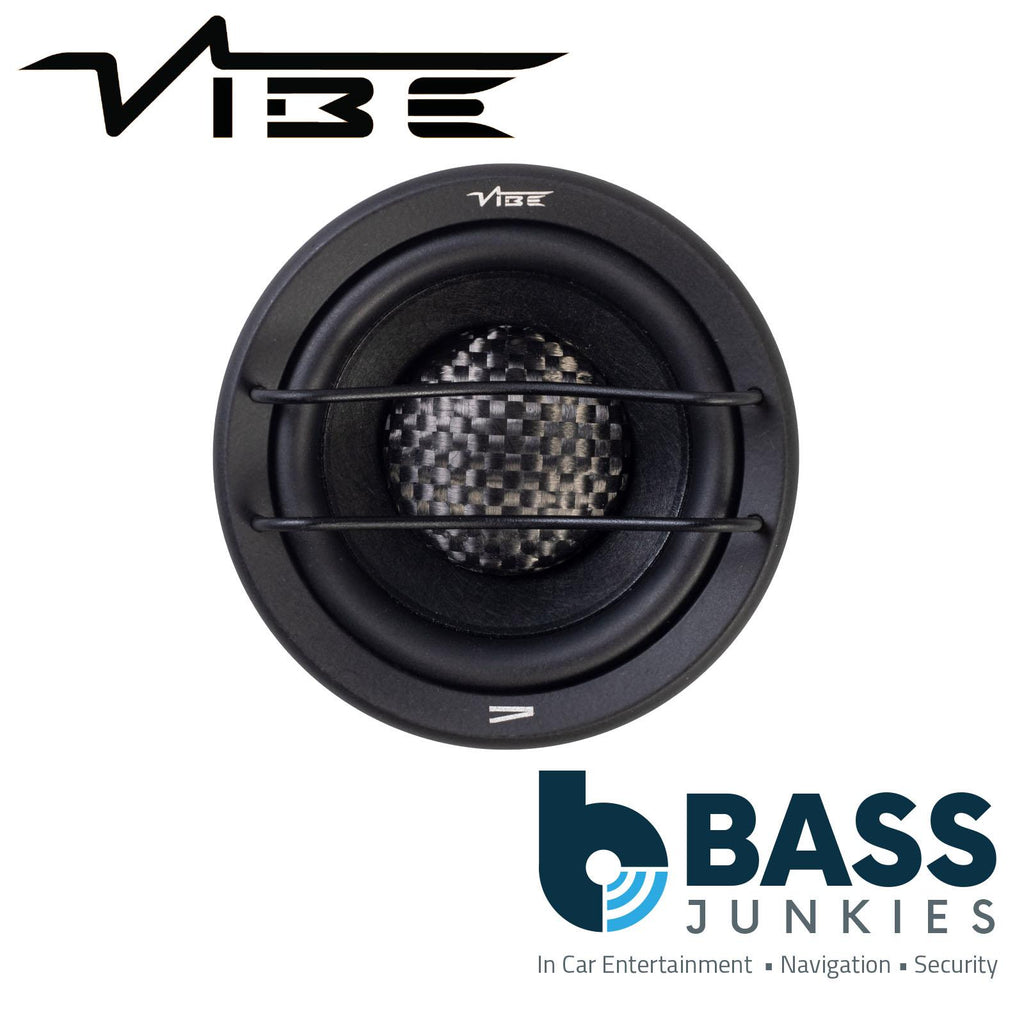

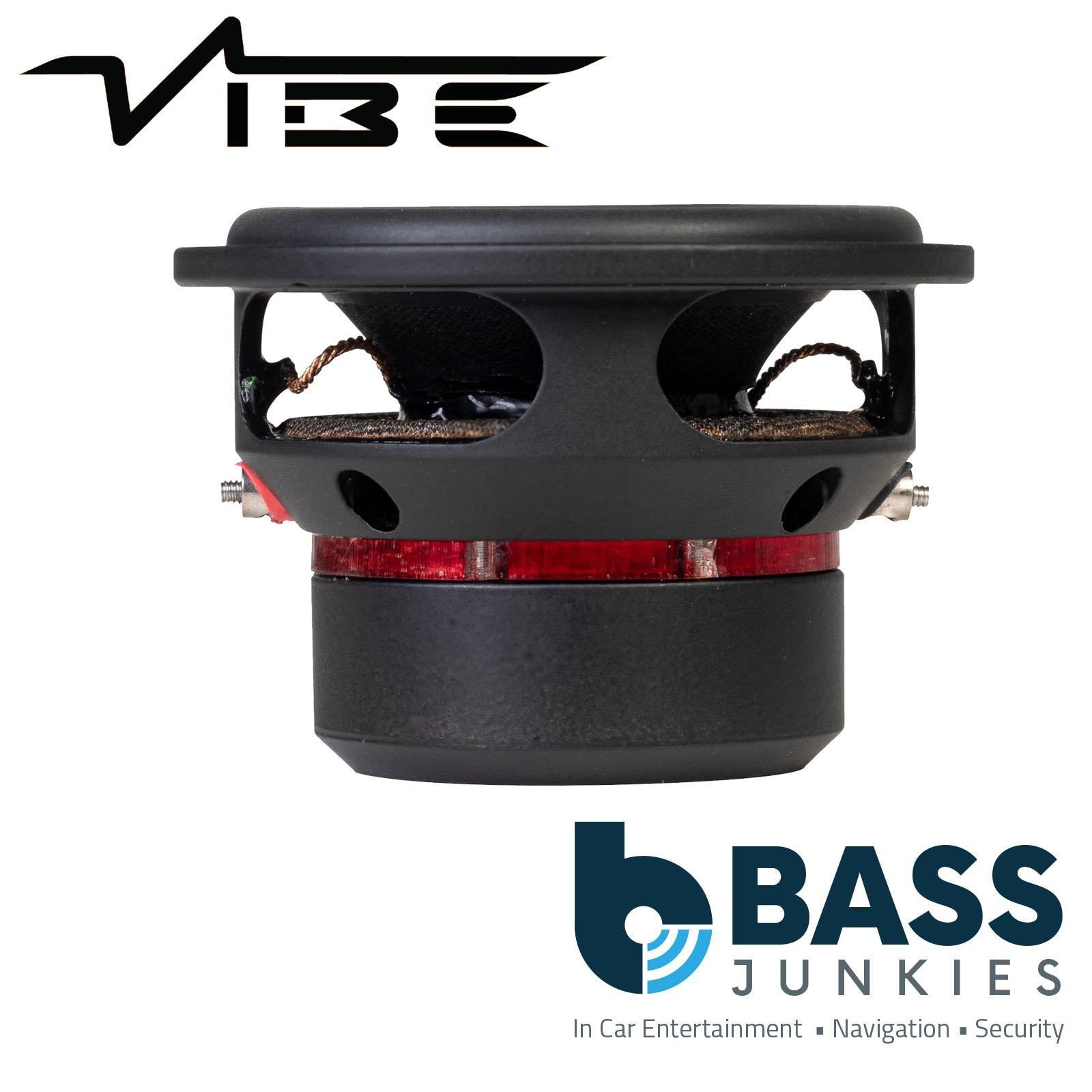

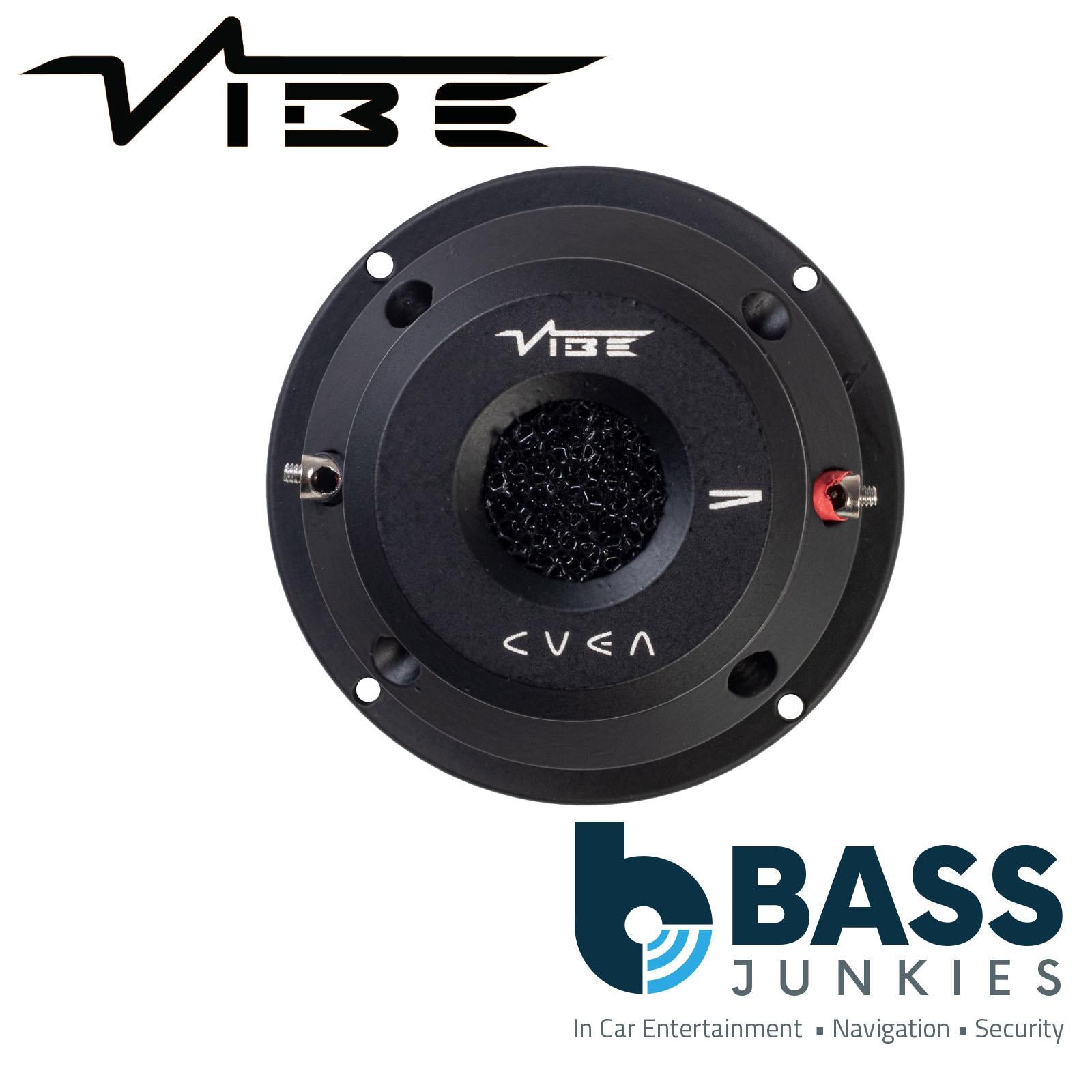

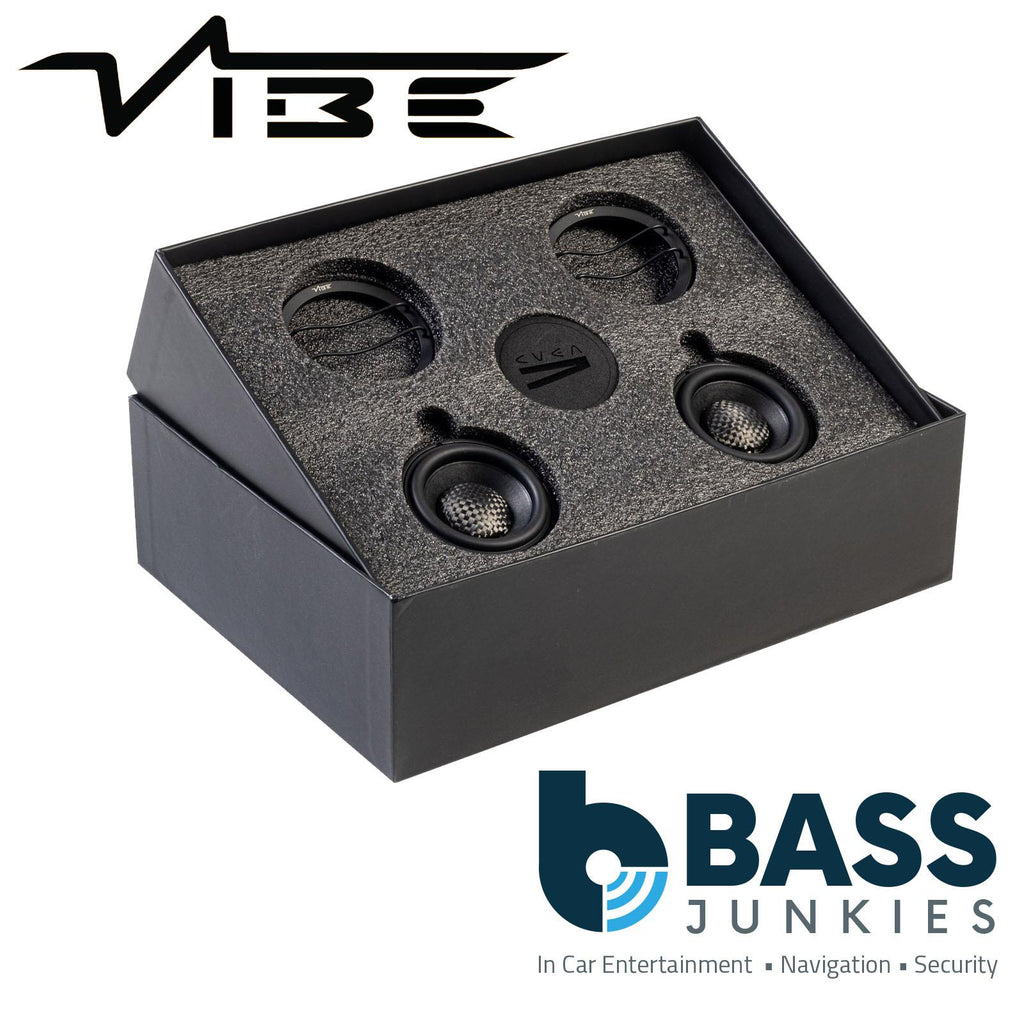

VIBE CVEN2.5SQM-V9 2.5" 7cm 4Ohm High End CVEN Car Audio Midrange Drivers The CVEN2.5SQM-V9 Midrange Tweeters are interesting and unusual-only 2 inches in size. Their outer diameter is 6 cm. The mounting depth is 3.7 cm.
The cones of the cones are made of cellulose composite, and the caps, like those of the woofers/midrange speakers, are carbon fibre.
Magnetic systems are based on neodymium magnets. Here, too, there is a large axial channel closed with a porous liner - acoustic load.
Features
- Model: CVEN2.5SQM-V9
- 2.5" (7cm) high end CVEN series midrange driver
- Impedance: 4 Ohm
- Very low resonance frequency of 143Hz for a perfect connection to the low frequency range
- Operating range from 143Hz - 16.000Hz
Specifications
- FS 143.55Hz
- Re 4?
- Sd 13.2025 cm2
- Qms 4.86
- Qes 1.12
- Qts 0.91
- Cms 0.2682 mm/N
- Mms 4.5833g
- Rms 0.85 Ohm
- Bl 3.84 Tm
- SPL 74.38 dB
- VAS 0.0653 L
- Zmin 4.17 Ohm
- L1kHz 0.15mH
- L10kHz 0.15mH
- Weight: 2.50 kg
