Ford Transit Custom 2012 - 2018 (Euro 5 V362 Model ONLY) - (Phoenix Silver Finish) Car Stereo Double Din Fascia & Steering Wheel Interface Fitting Kit with Rear Brake Light Reversing Camera
PLEASE NOTE - WE LIST 3 DIFFERENT KITS FOR THIS VEHICLE - PLEASE READ BELOW TO SEE WHICH KIT YOU NEED TO ORDER

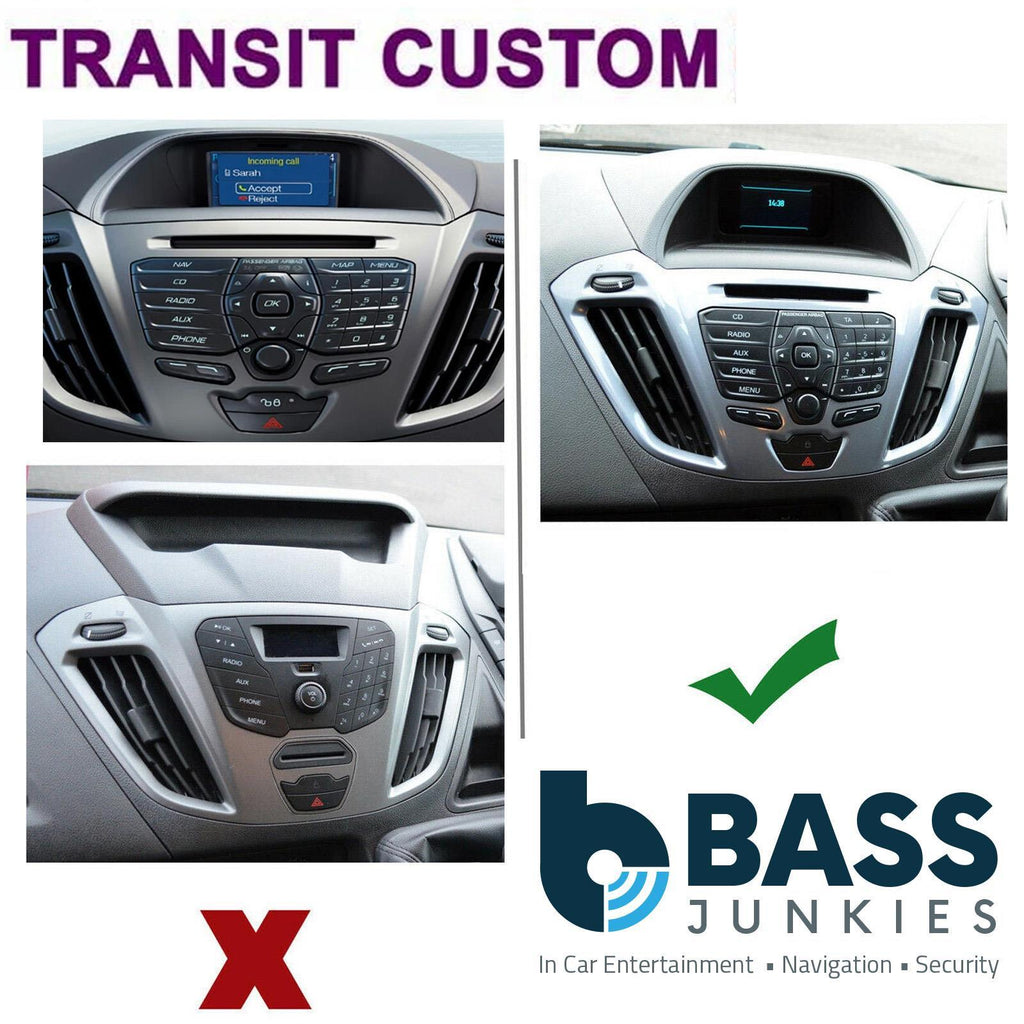

This kit is designed for vehicles with Blue Mono centre dash display screen as shown in our 2nd image. Please check before you make your purchase
IF YOUR VEHICLE IS FITTED WITH THE FULL COLOUR OR NO CENTRE DASH DISPLAY THEN YOU WILL NEED TO BUY A DIFFERENT KIT FROM US. SEE OUR OTHER EBAY LISTINGS FOR THE FULL COLOUR OR NON DASH DISPLAY KITS
|
Manufacturer
|
Model
|
Note
|
Year From
|
Year To
|
Headunit
|
Connection
|
|
Ford
|
Transit-Custom
|
Euro 5 Models
|
2012
|
2018
|
Blue Mono Dash Display
|
OEM Specific
|

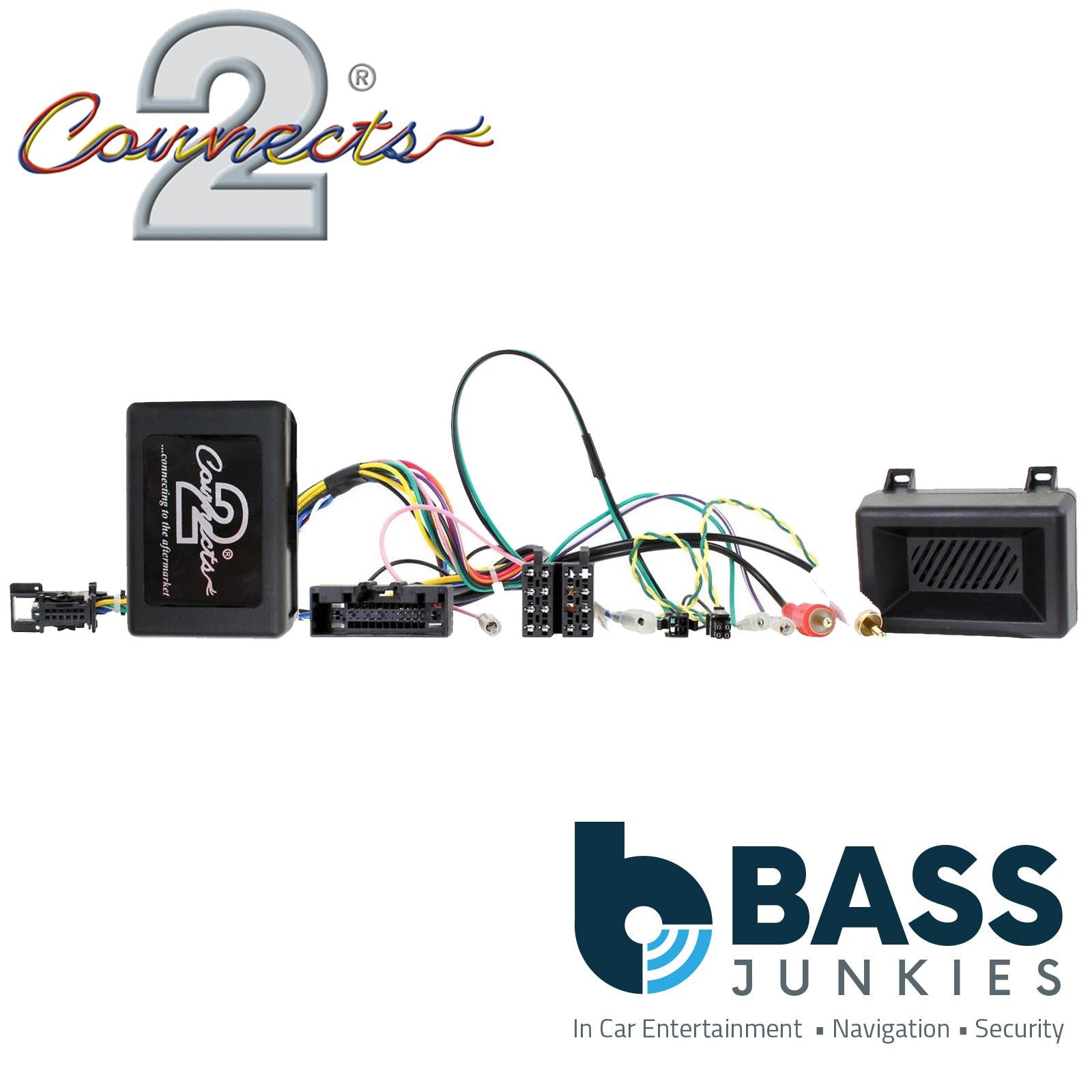

This Steering interface connects a compatible car stereo with a joystick input (blue line-in or 3.5mm jack) or wire SWC input fly lead on the back of the unit to the existing stalk/steering wheel controls of the vehicle when replacing the factory radio to an aftermarket radio.
Please make sure your Stereo has this feature on the rear before purchasing this part.
Steering Wheel Control (SWC) Features
Steering Wheel Control interfaces allow plug and play installation of a new aftermarket car stereo head unit into a vehicle whilst maintaining use of the exsisting steering wheel volume, track up and down and mobile phone answering controls if factory fitted.
Mobile Phone Buttons (MPB) Features
Mobile Phone Buttons Support feature allows you to use Phone Buttons on the Steering Wheel if already factory fitted with any compatible an aftermarket Bluetooth Head Unit you install.
Compatible Vehicles
- Ford Transit Custom 2012 - 2018
- V362 Euro 5 Model Only
- Vehicles with Blue Mono Centre Dash Display
Installtion Tips

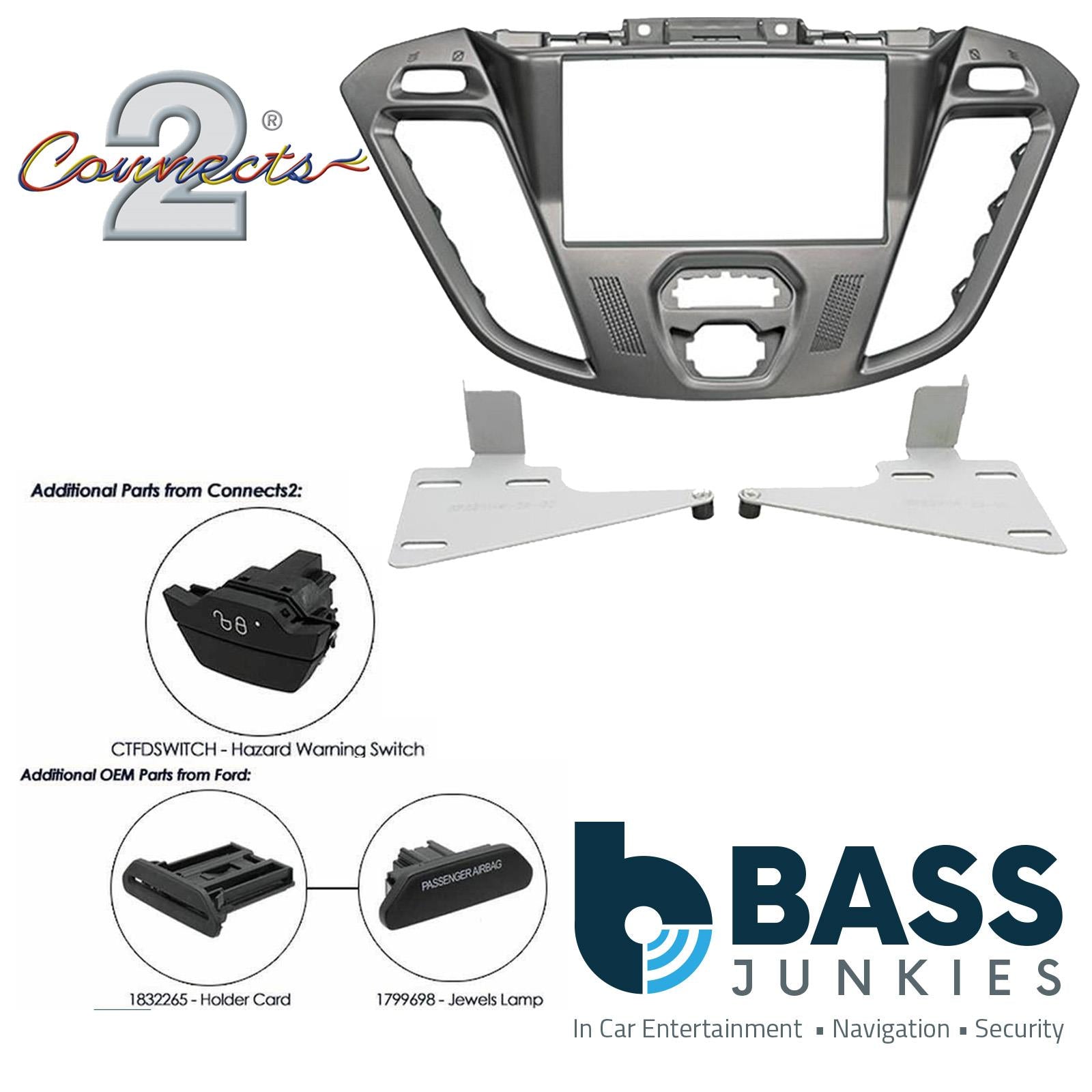

Please Note – Some additional OEM parts maybe required from Ford which are NOT included in the kit
Some cutting and triming behind the dashboard has to be carried out in order for this kit to fit. Kit comes with fitting guide to help you

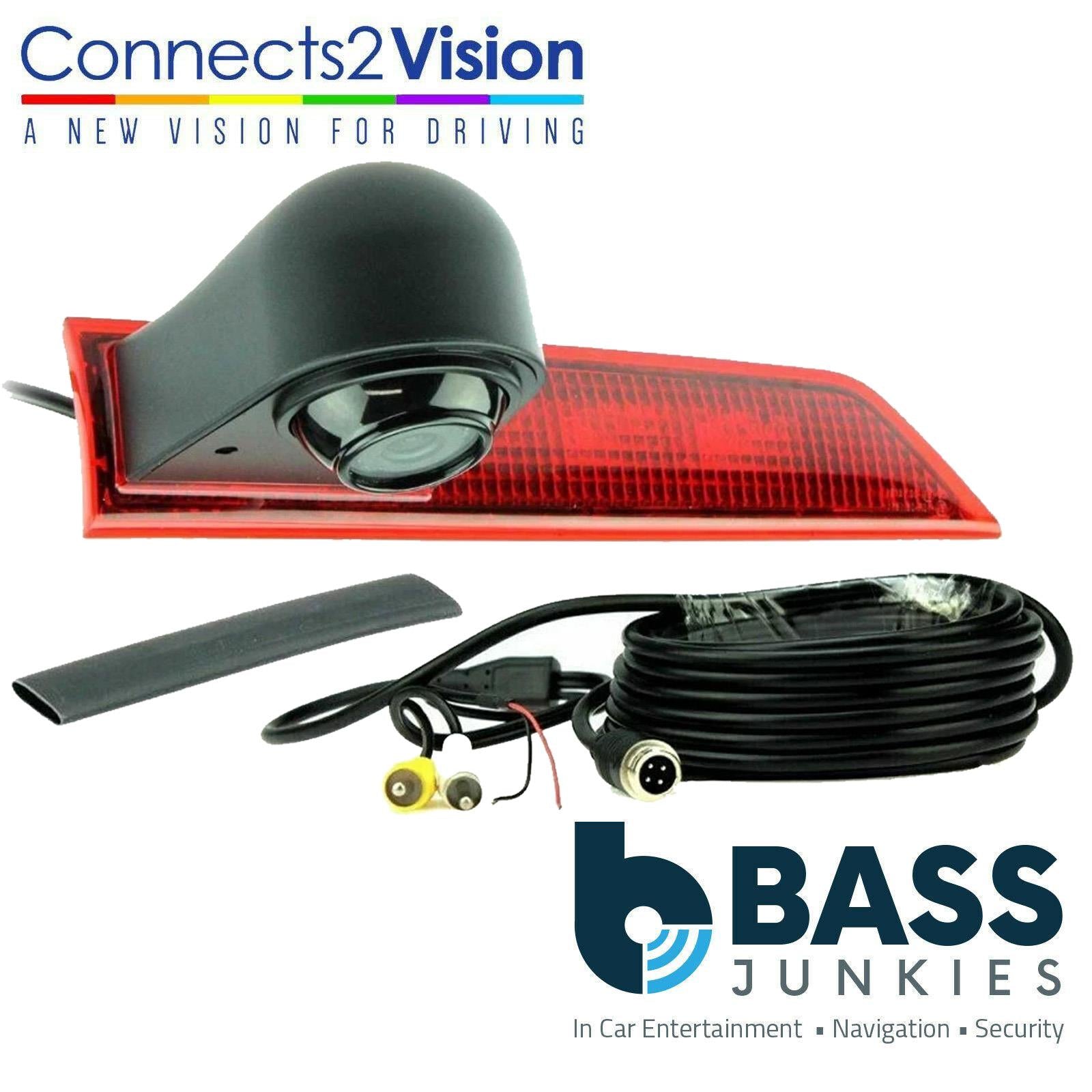

Rear Brake Light & Reversing Camera Features

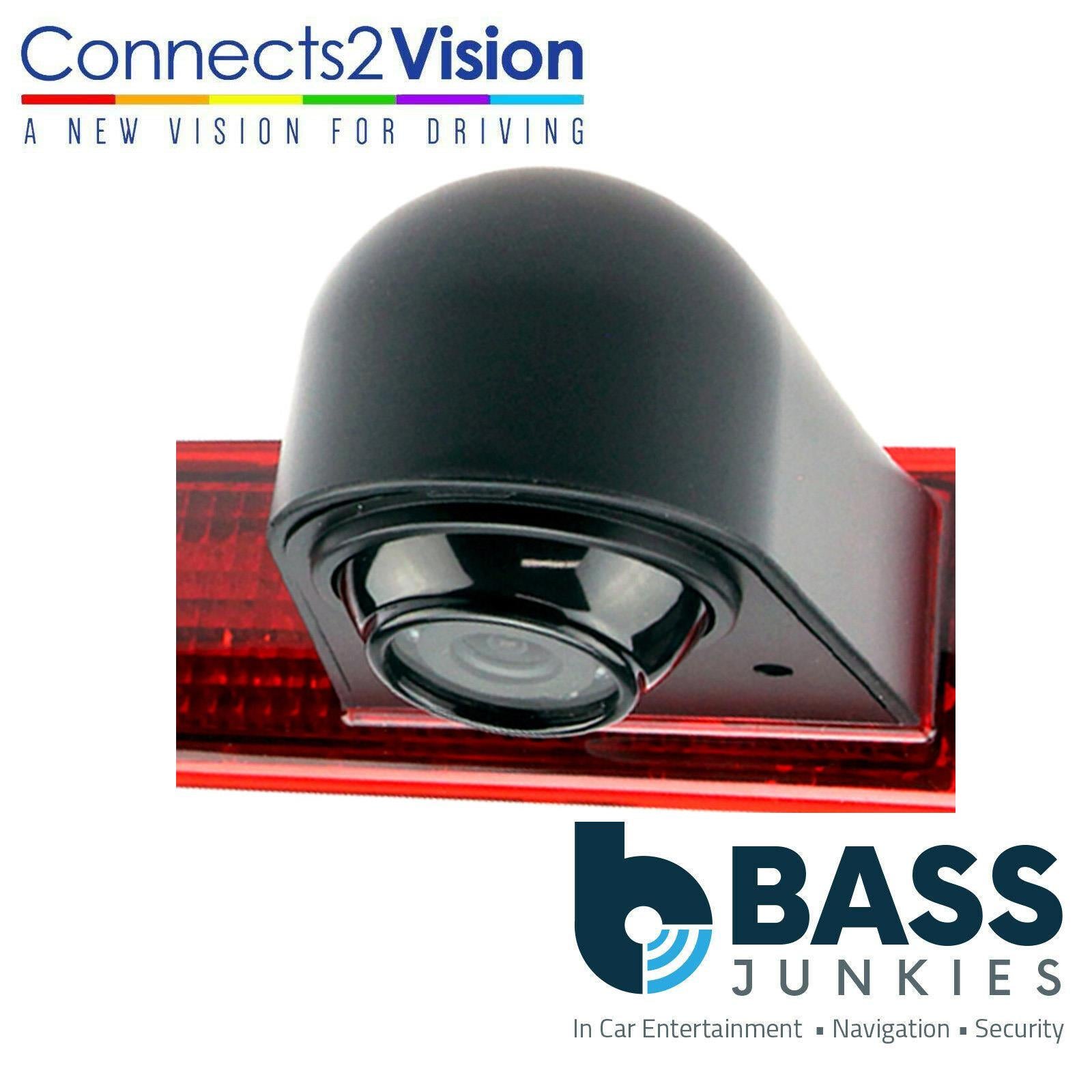

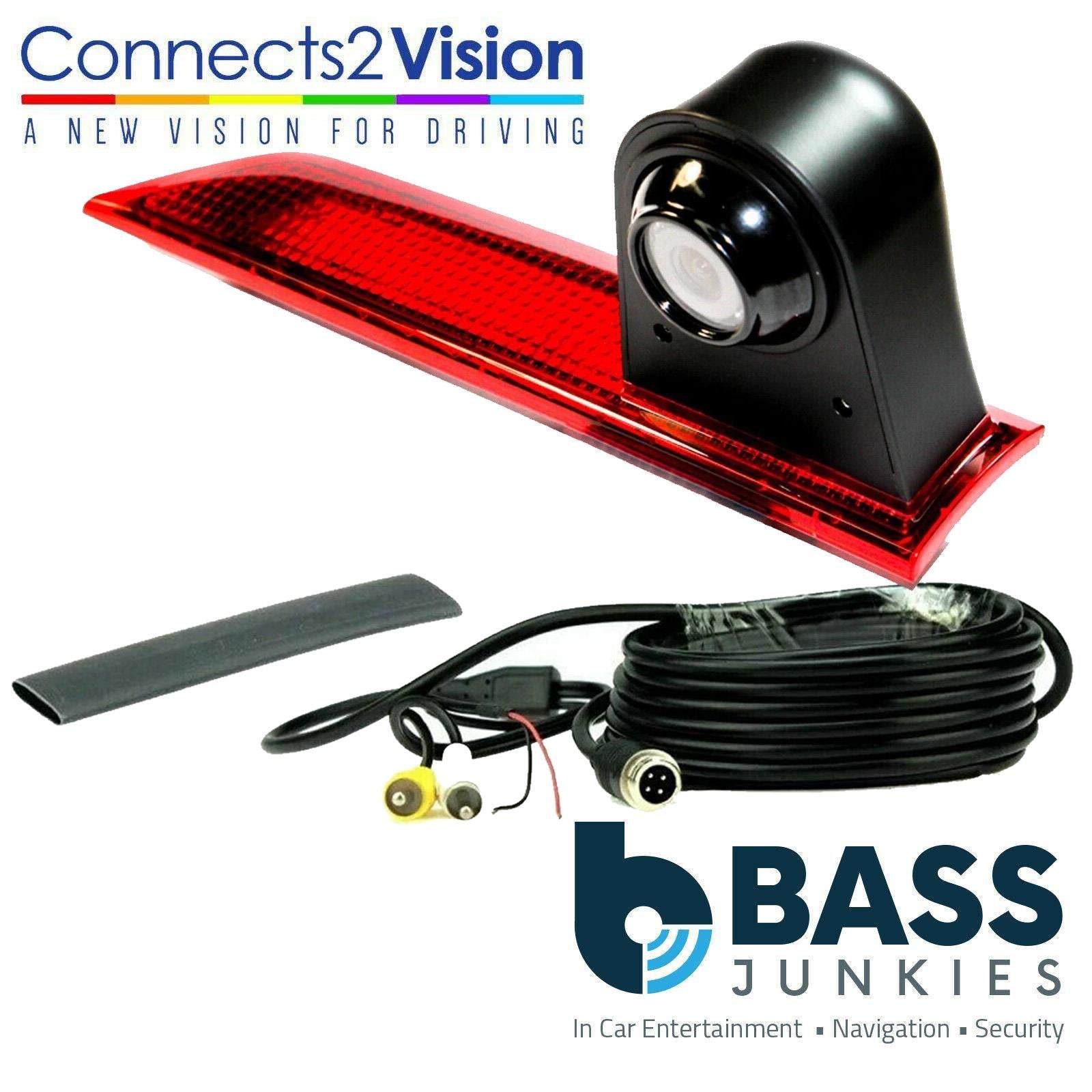

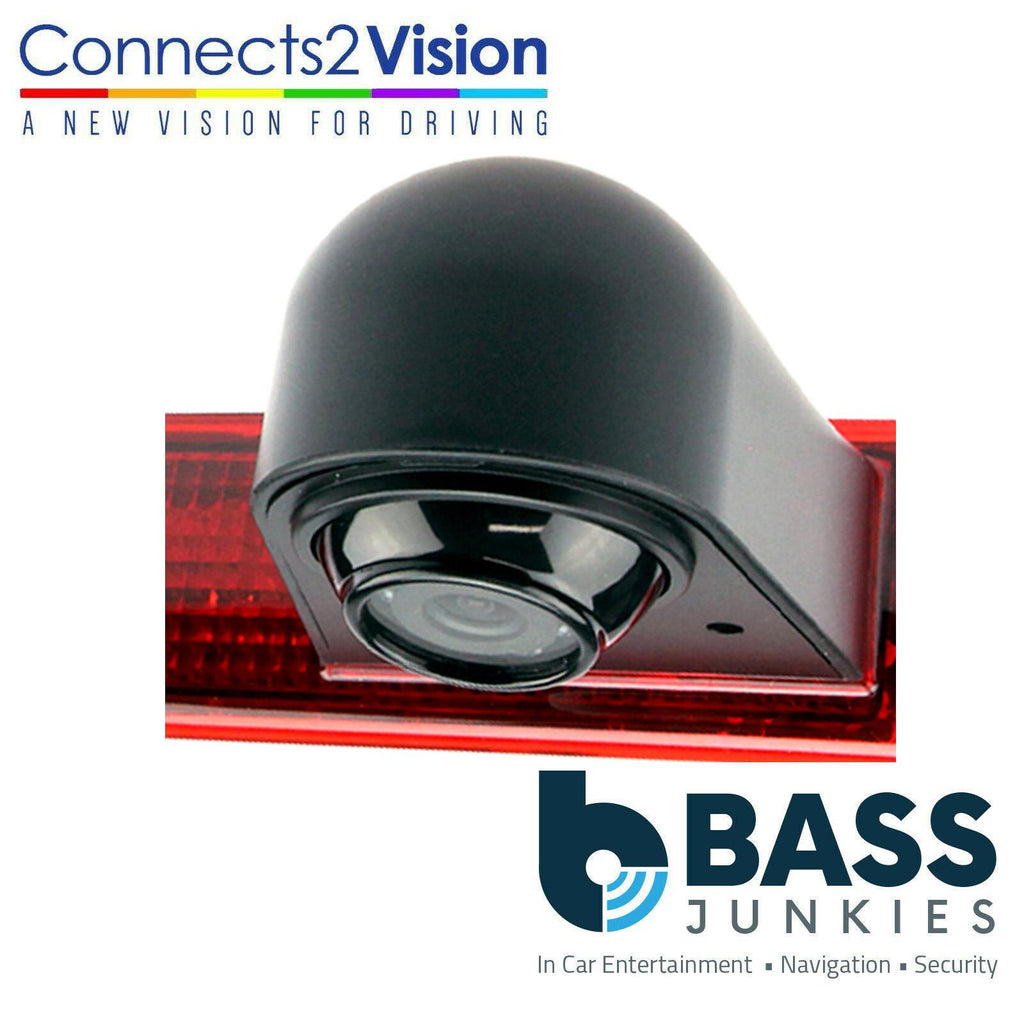

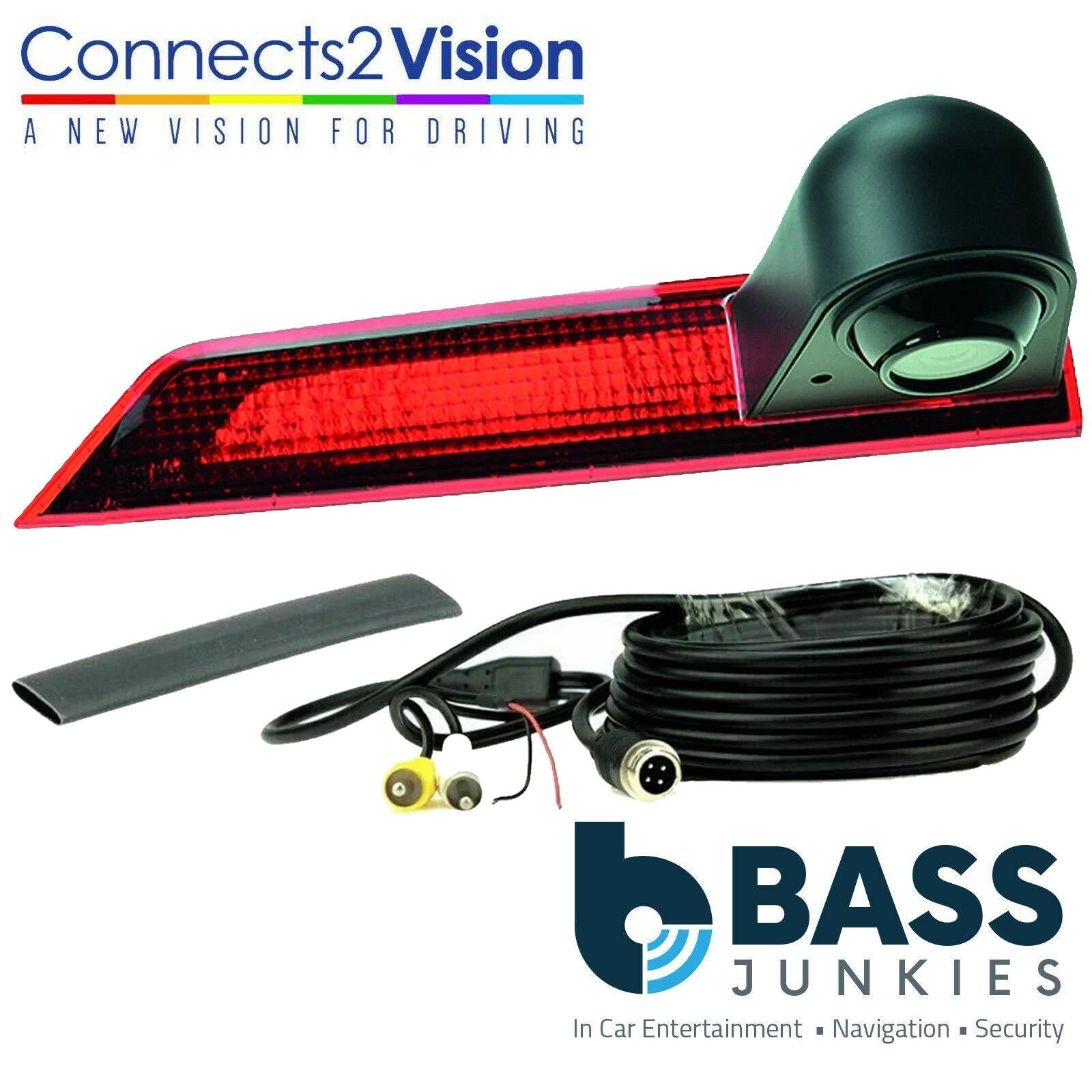

The CAM-FD8 is a Replacement Brake Light Reversing Camera for the Transit Custom (V362) 2012-2016.

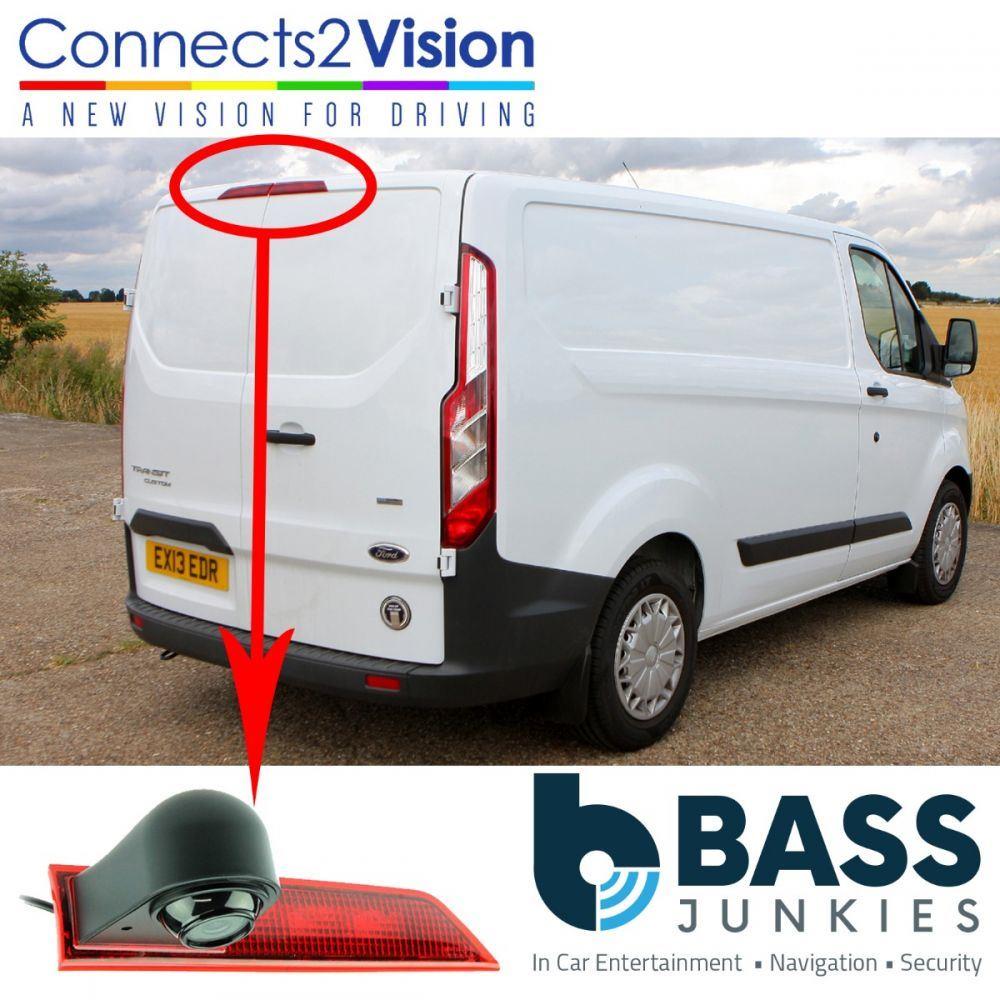

The camera replaces the vehicles original third brake light with a combined brake light reversing camera unit.
The CAM-FD8 features a 1/3 CMOS image sensor, 120 degree viewing angle and impressive IP69K weatherproof rating meaning this unit will withstand anything the world can throw at it.
The camera brake light combination not only adds visual safety to the rear of the vehicle but also keeps the original aesthetics.
Rear Brake Light & Reversing Camera Product Specifications:
- Image Sensor: 1/3 CCD
- TV Lines: 700
- TV System: PAL
- Viewing Angle: 120 Degrees
- Waterproof Rating: IP69K
- Image: Mirror
- Infra-Red LEDs: Yes
- Enhanced Performance In Low Light: Yes
- Operating Temperature: -40 Degrees C to +80 Degrees C
- Current Consumption: 45-141mA @ 13.8V
- Operating Voltage: 12V DC (Negative Ground)

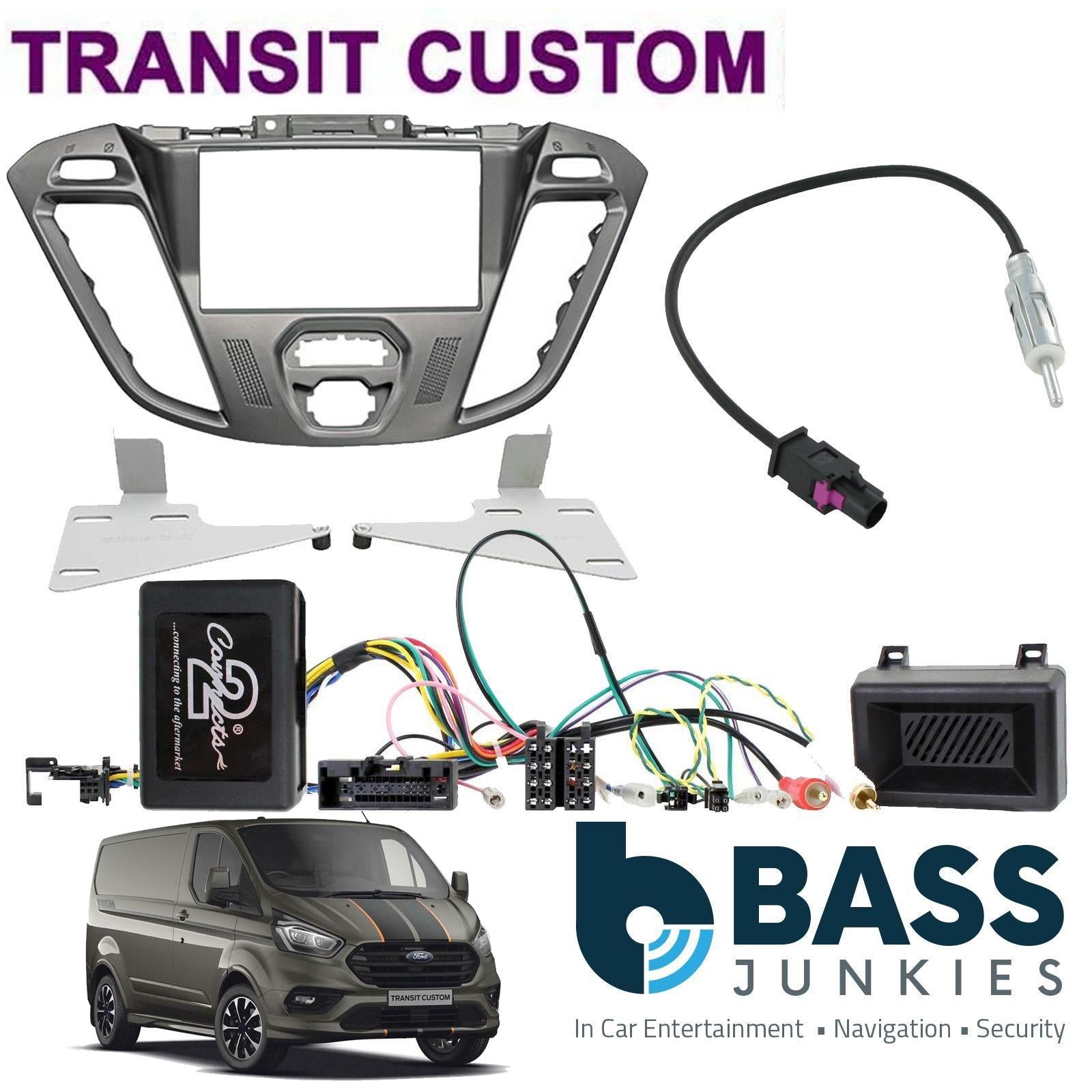

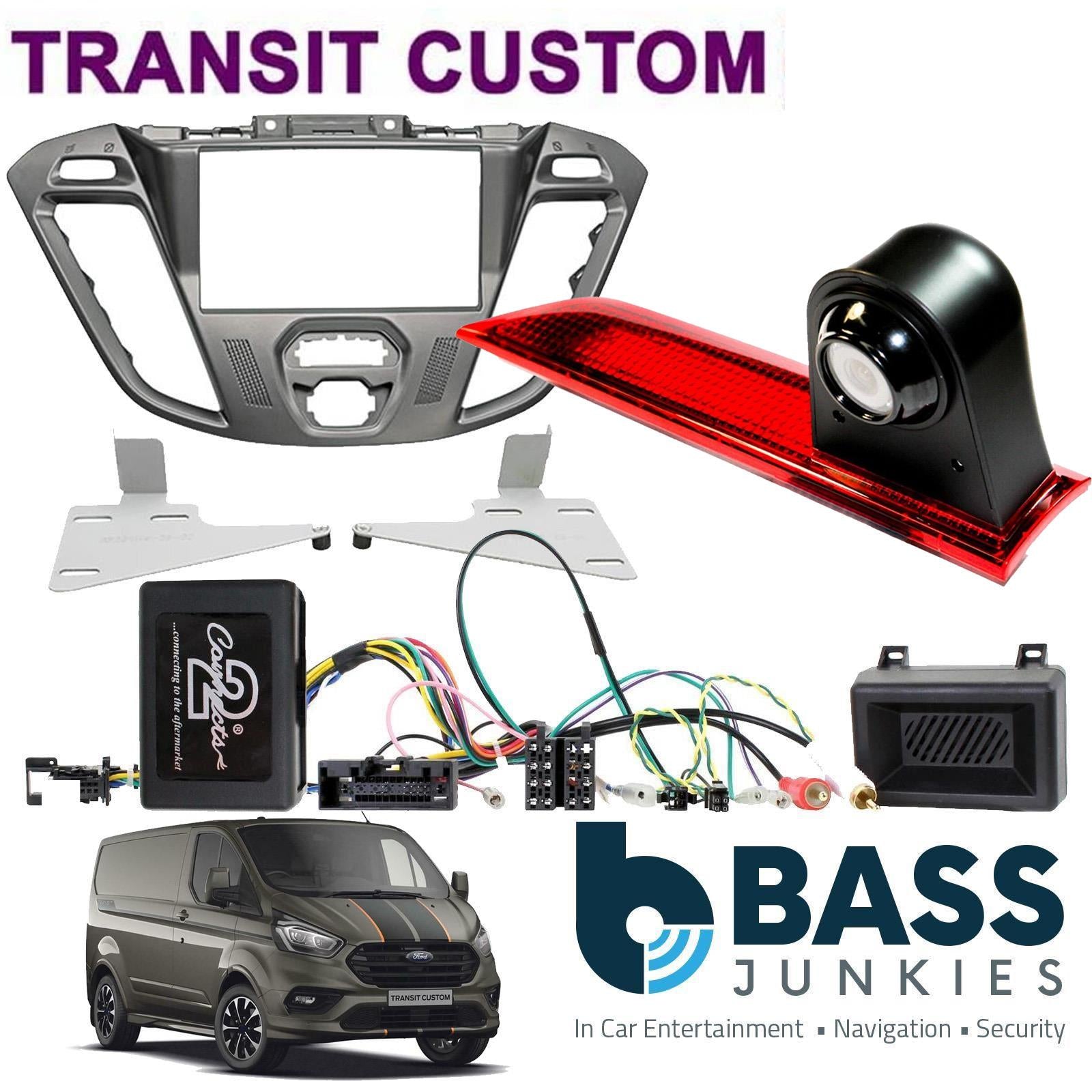

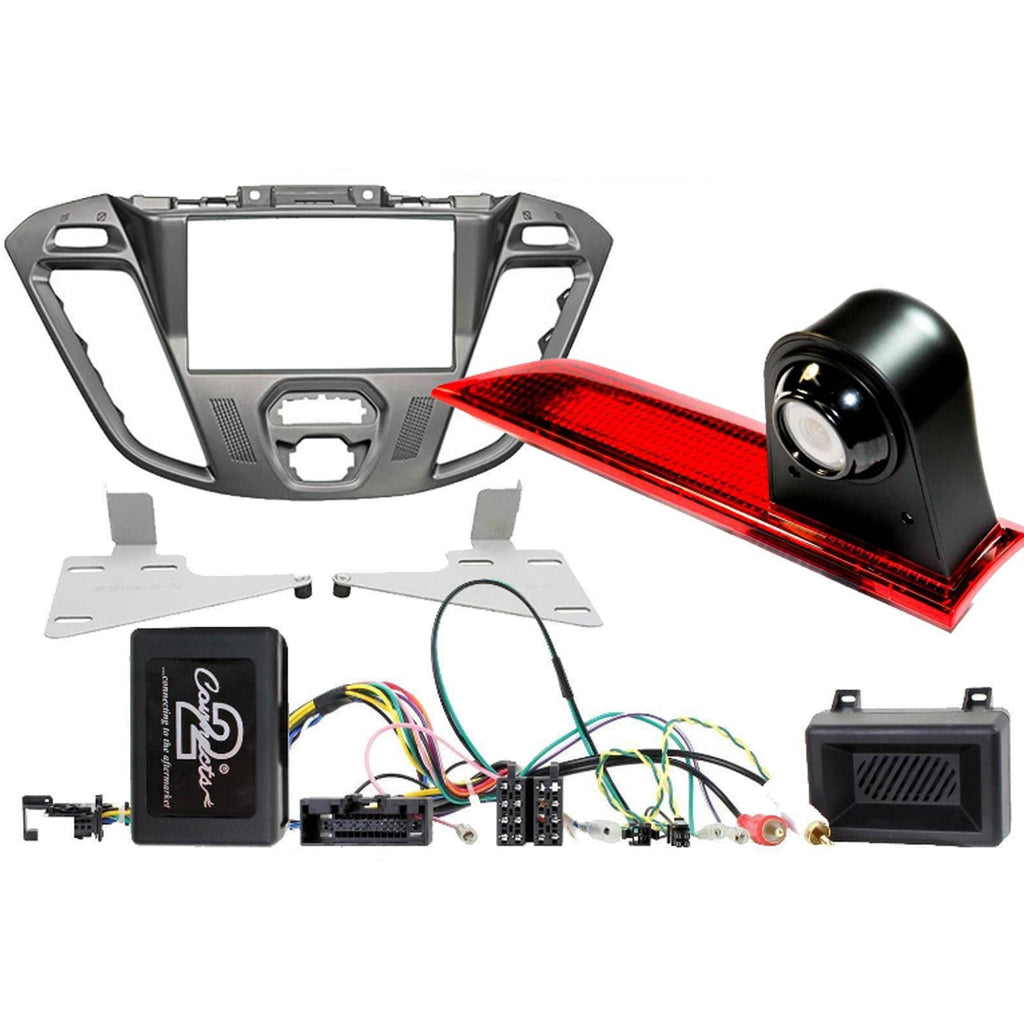

What’s included in the Kit
- Double Din Fascia Adaptor
- Steering Wheel Stalk Control Interface

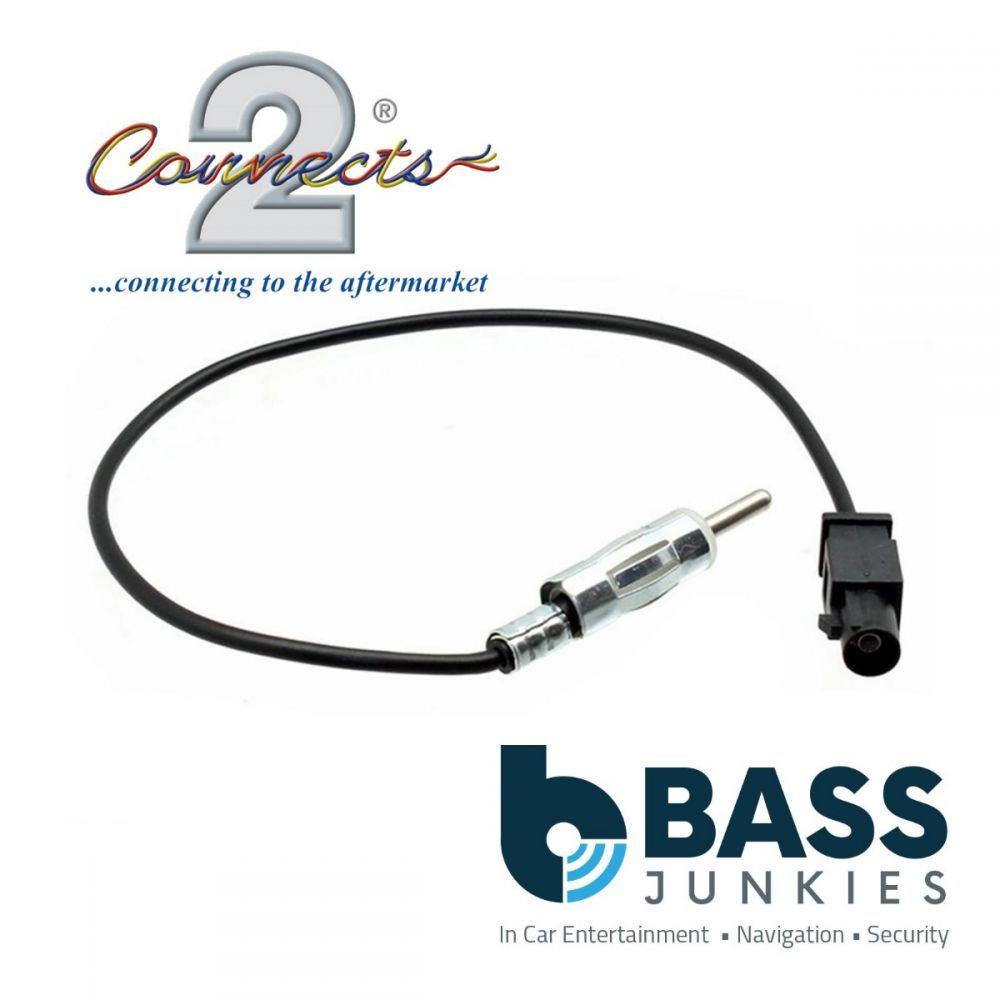

- Aerial Adaptor
- Rear Brake Light & Reversing Camera
Installation tip:
- This panel is designed to fit most Japanese branded double din units such as Kenwood, Pioneer, JVC, Sony, Alpine and Clarion
- If you are fitting a non-branded unit from china with brands such as Erisin, EONON Pumpkin and Xtron, there is a VERY high possibility YOU will have to modify, cut and trim this panel to suit the stereo and accommodate it in your dash.
- These panels are designed based on Japanese stereo's which are a uniformed standard size, stereos from china can be different sizes and we cannot guarantee the stereo will fit without modification and we can not be held responsible.
- the panel is supplied with side brackets and the stereo cage is not used to fit the radio.
