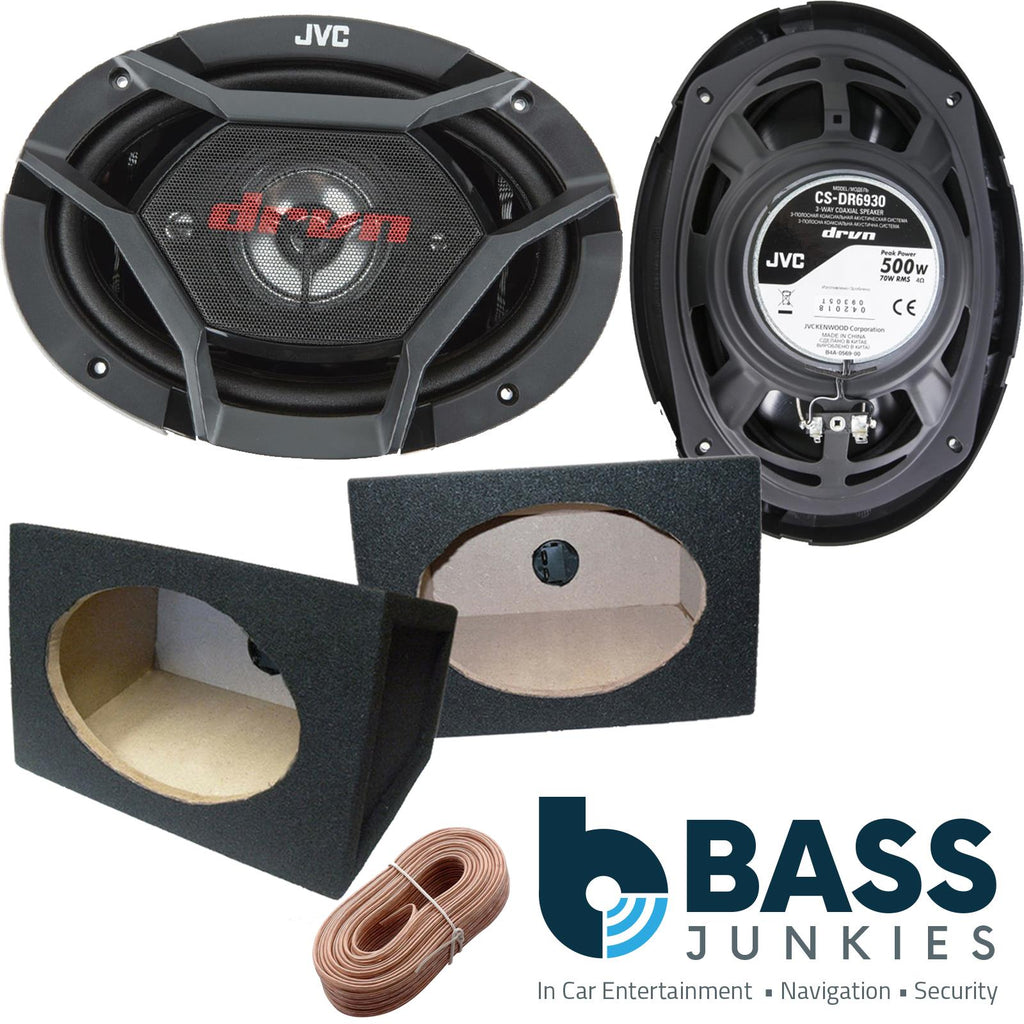

JVC CS-DR6930 6"x9" 3-Way 1000 Watts a Pair 6x9" Coaxial Speakers with Black Carpeted 6"x9" Speaker Boxes & 8m of Oxygen Free 16AWG Speaker Cable
Crank up the JVC 6"x9" 3-way speakers with confidence — the Polyswitch protection circuit protects the tweeters and midrange speakers against power surges.
The woofers complement the highs supplying strong bass with carbon-reinforced cones heavy-duty internal parts and durable butyl rubber surrounds
Superior design and the latest cosmetic treatments have resulted in a series that will meet the needs of the most discerning car audio enthusiast. Silk dome tweeters produce stunningly accurate highs while the rigid injection moulded polypropylene cones produce tight accurate bass response. The Performance dynamic response Butyl Rubber Surround offers excellent lateral stability and durability for prolonged high performance.
Featuring advanced 3-Way speaker configuration, the CS-DR6930 combines a separate woofer, midrange and tweeter for improved audio clarity. The new performance stylised slim-line grille adds the finishing touch to the installation and suits all door panels. The CS-DR6930 6x9" 3-Way Full Range speakers produce an impressive 1000 Watts a pair of crisp power, the perfect mix of performance and style.
Features:
- 3-Way Coaxial
- 1000 Watts Peak Per Pair
- 500 Watts Peak Each Speaker
- 140 Watts RMS Power Per Pair
- 70 Watts RMS Power Per Speaker
- Frequency Response: 58 - 21,000Hz
- Sound Pressure Level: 88dB/W.m
- 15 x 23 cm (6" x 9") Carbon Mica Cone Woofer
- 6.6cm (2-5/8") Poly-Ether Imide Cone Midrange
- 1.5 cm (19/32") Poly-Ether Imide Dome Tweeter
- Ferrite Magnet (Woofer)
- Hybrid Surround
- Mounting Depth: 79 mm (3-1/8")
Technical Specifications
Woofer
- Size: 15 x 23 cm (6" x 9")
- Diaphragm: Carbon Mica Cone
- Surround: Hybrid Surround (Rubber & Cloth)
- Magnet: Ferrite
Midrange
- Size: 6.6 cm (2-5/8")
- Type: Cone
- Diaphragm: Poly-Ether Imide
- Magnet: Ferrite
Tweeter
- Size: 1.5 cm (19/32")
- Type: Dome
- Diaphragm: Poly-Ether Imide
General
- Frequency Response: 58 - 21,000Hz
- Power Handling Capacity (RMS): 70W Per Speaker
- Power Handling Capacity (Peak Power): 500W Per Speaker
- Impedance: 4 ohms
- Sound Pressure Level: 88dB
Weight
- Weight (w.Grille): 1.07kg (2.4lbs)
- Weight (w/o Grille): 0.99kg (2.2lbs)
- Magnet Mass: 285g (10oz)
- Mounting Depth: 79 mm (3-1/8")
Whats included
- 1 X JVC CS-DR6930 Pair
- 1 x 6x9" Black Boxes (1 for each speaker)
- 8 metres of 16AWG Oxygen Free Speaker Cable
