Connects2 Turn Signal CAN-Bus Interface for Fiat Ducato Series 8 2021 On

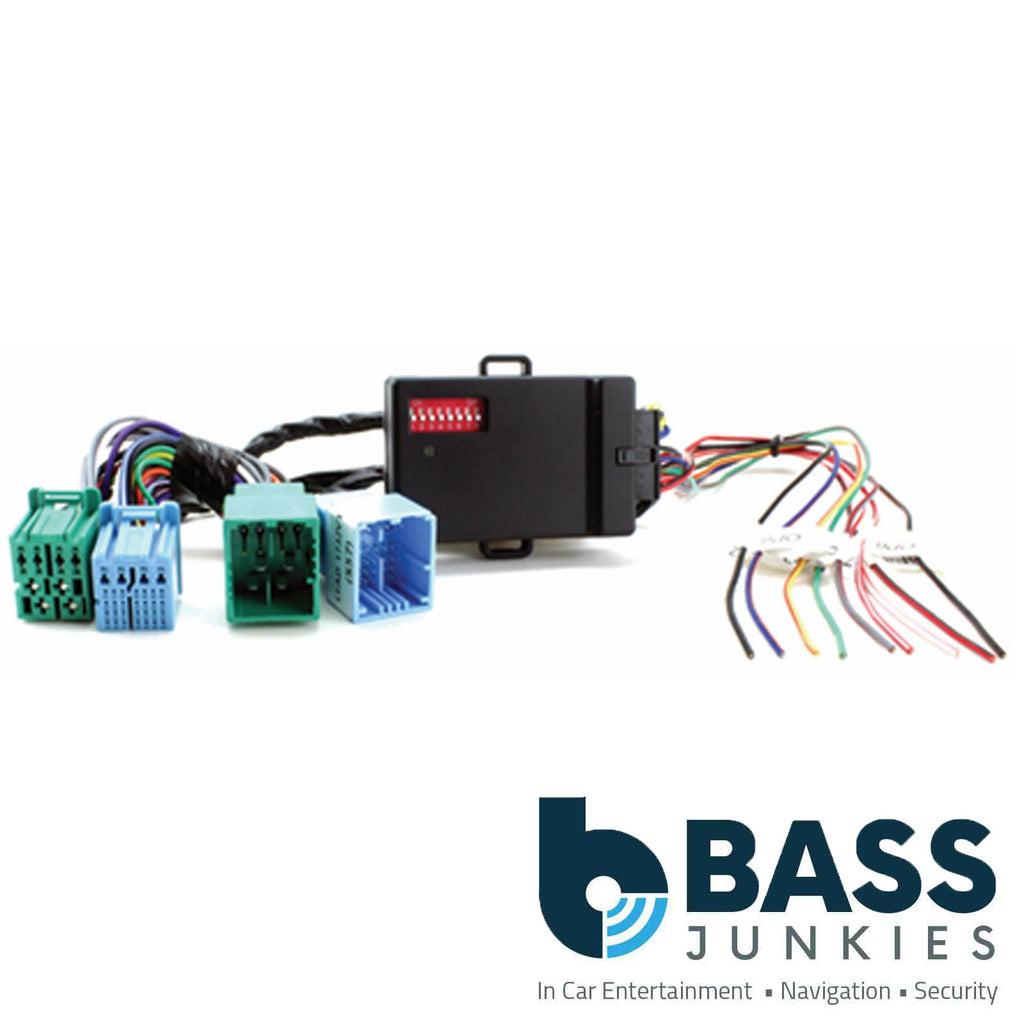

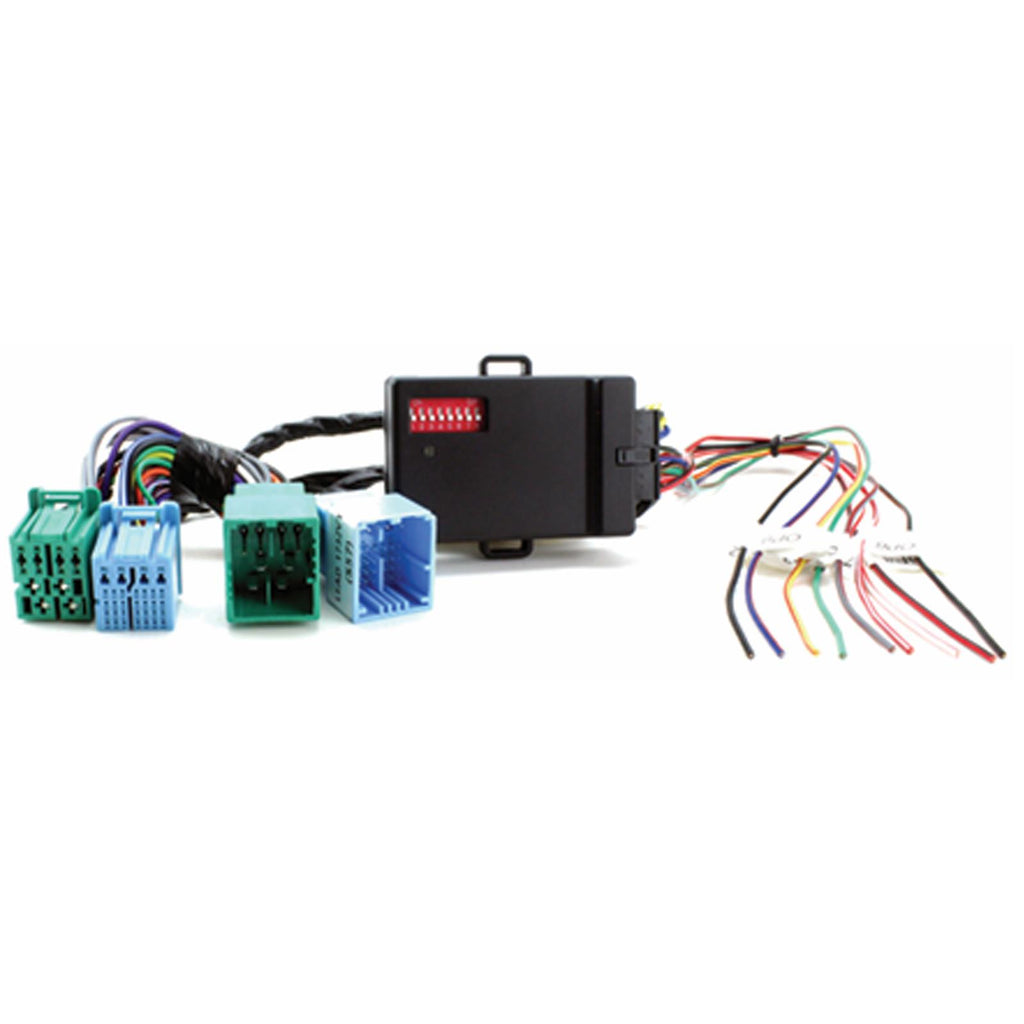

The Connects2 TURNCAN-FT1 is a CAN-Bus integration interface developed for the Fiat Ducato Series 8 (2021-onwards). It provides multiple low-level outputs that allow installers to connect and control aftermarket accessories such as cameras, lighting, or other electronic devices using vehicle data from the CAN network. With its plug-and-play design, this interface makes it easy to trigger accessories based on factory signals — including left/right turn indicators, reverse, high-beam, ignition, and more.
Key Features:
-
Designed specifically for Fiat Ducato Series 8 2021 Onwards
-
Outputs provided:
-
+12 V Accessory
-
Illumination
-
Speed Pulse
-
Reverse
-
Engine On
-
Left Turn Signal
-
Right Turn Signal
-
High Beam
-
Park Brake
-
Speed Signal Output: Enables navigation systems or data loggers to read real-time vehicle speed.
-
Reverse Output: Automatically triggers rear-view cameras or lighting when engaging reverse gear.
-
Left / Right Turn Outputs: Perfect for triggering side-mounted cameras or auxiliary indicator lighting.
-
Plug-and-Play T-Harness: Installs inline with the factory radio harness — no wire cutting required.
-
USB-Updatable Firmware (Micro USB): Future-proof design for easy updates.
Technical Specifications:
-
Output Current: 1 A per output
-
Output Voltage: 12 V
-
Input Voltage Range: 8 V – 16 V
-
Sleep Current: < 1 mA
-
Operating Temperature: -20 °C to +85 °C
-
Non-configurable DIP Switches
Installation Overview:
-
Remove the air vents on each side of the radio using a trim pry tool.
-
Remove the four T20 screws securing the factory radio.
-
Unplug the radio’s connectors and insert them into the female connectors on the TURNCAN T-harness.
-
Plug the male connectors from the harness into the rear of the radio.
-
Connect desired accessories to the appropriate outputs.
-
Test all functions (turn signals, reverse, illumination, etc.), then reinstall the radio.
Important Notes:
-
Read the manual before installation — basic vehicle electrical knowledge is required.
-
Ensure the interface and harness are installed away from moisture or heat sources.
-
Always use the correct tools to avoid damage to the vehicle or product.
-
Connects2 cannot be held responsible for damage caused by improper installation.
Summary:
The Connects2 TURNCAN-FT1 provides a reliable and efficient way to integrate aftermarket accessories into the Fiat Ducato 8. With outputs for turn signals, reverse, speed, and other key functions, it enables automatic activation of lights, cameras, and systems directly through the vehicle’s CAN-Bus — making it an essential tool for professional installers and custom vehicle builders.
