Double Din Stereo Fitting Kit + Steering Wheel Stalk Controls to fit VW Crafter 2017-21 | VW Grand California 2017- | MAN TGE 2017-
- Contains universal patchlead CTMULTILEAD.2
- This product has been developed through carefully documented data and research.

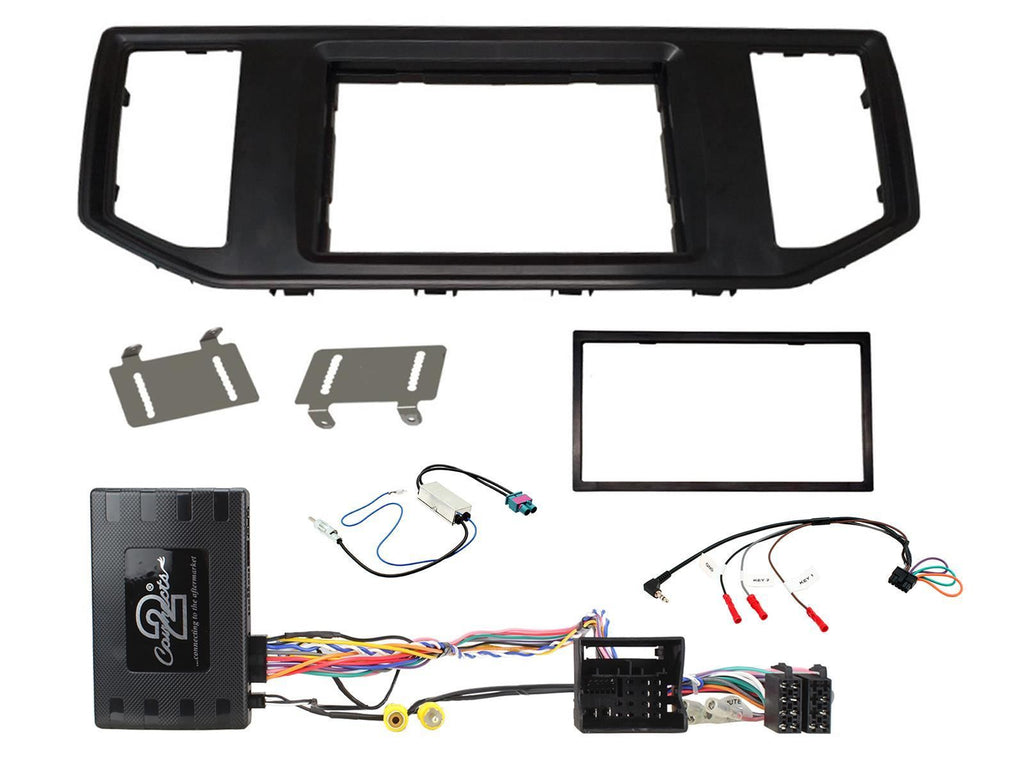

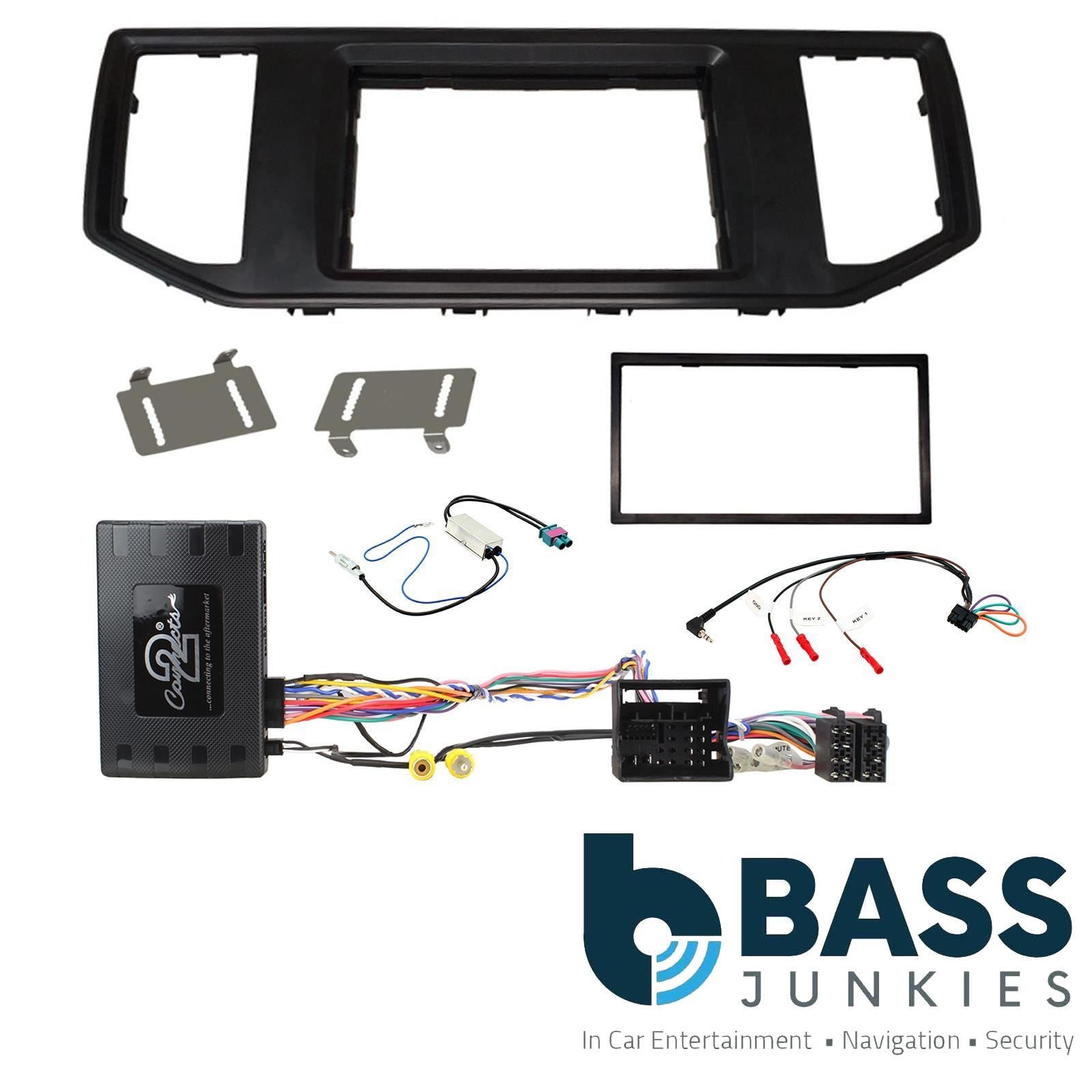

Fitting Kit Breakdown:

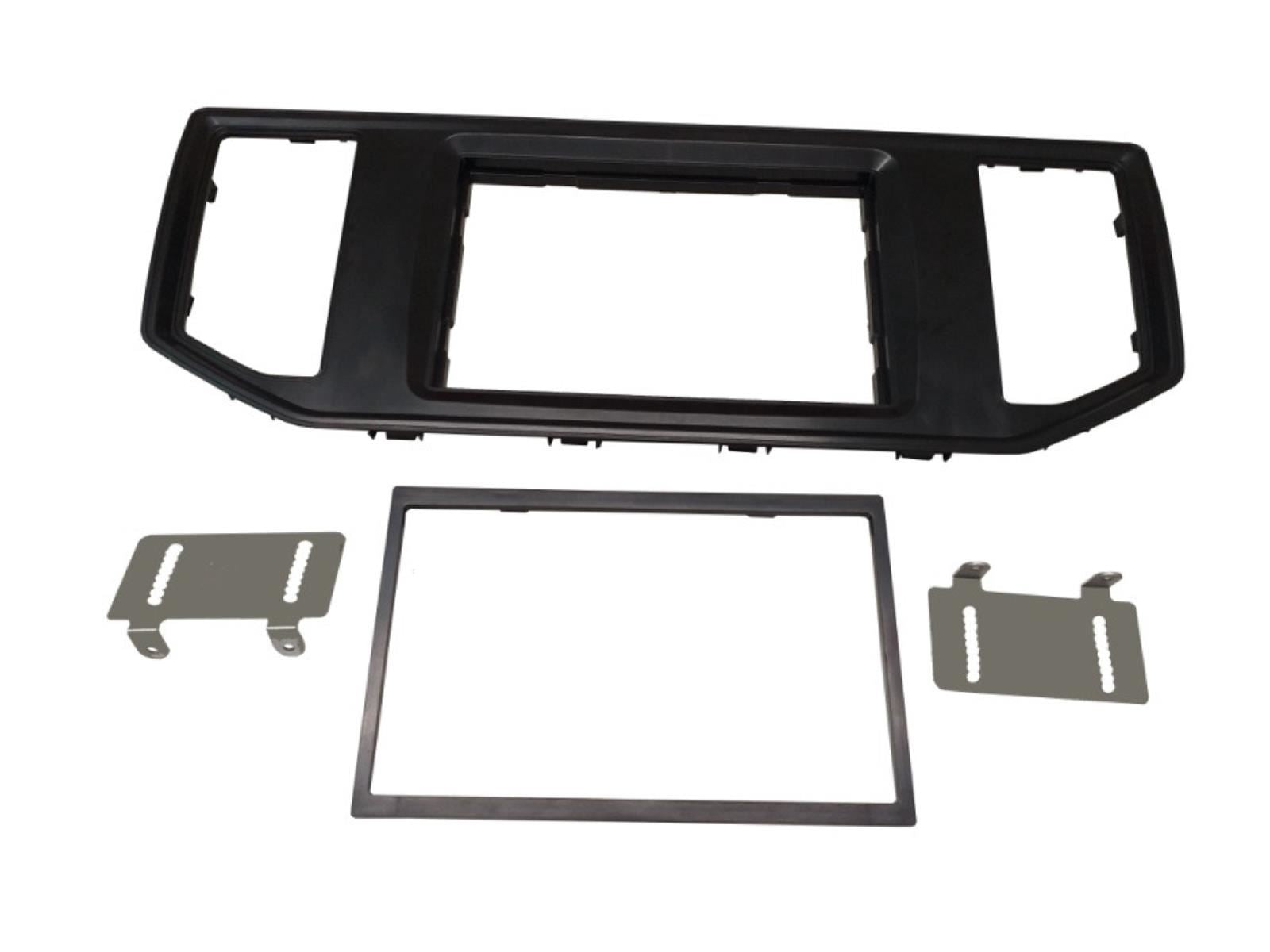

Fascia Panel
For double DIN head unit installation. Finished in black (matt). Note: Maximum mounting depth of aftermarket radio = 55mm This fascia kit allows the installation of an aftermarket head unit into a non din sized aperture
High quality finish designed to match the vehicle dashboard
This product has been developed through carefully documented data and research. Connects2 Ltd. cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.
Includes mounting brackets and fitting accessories
Fascia Panel

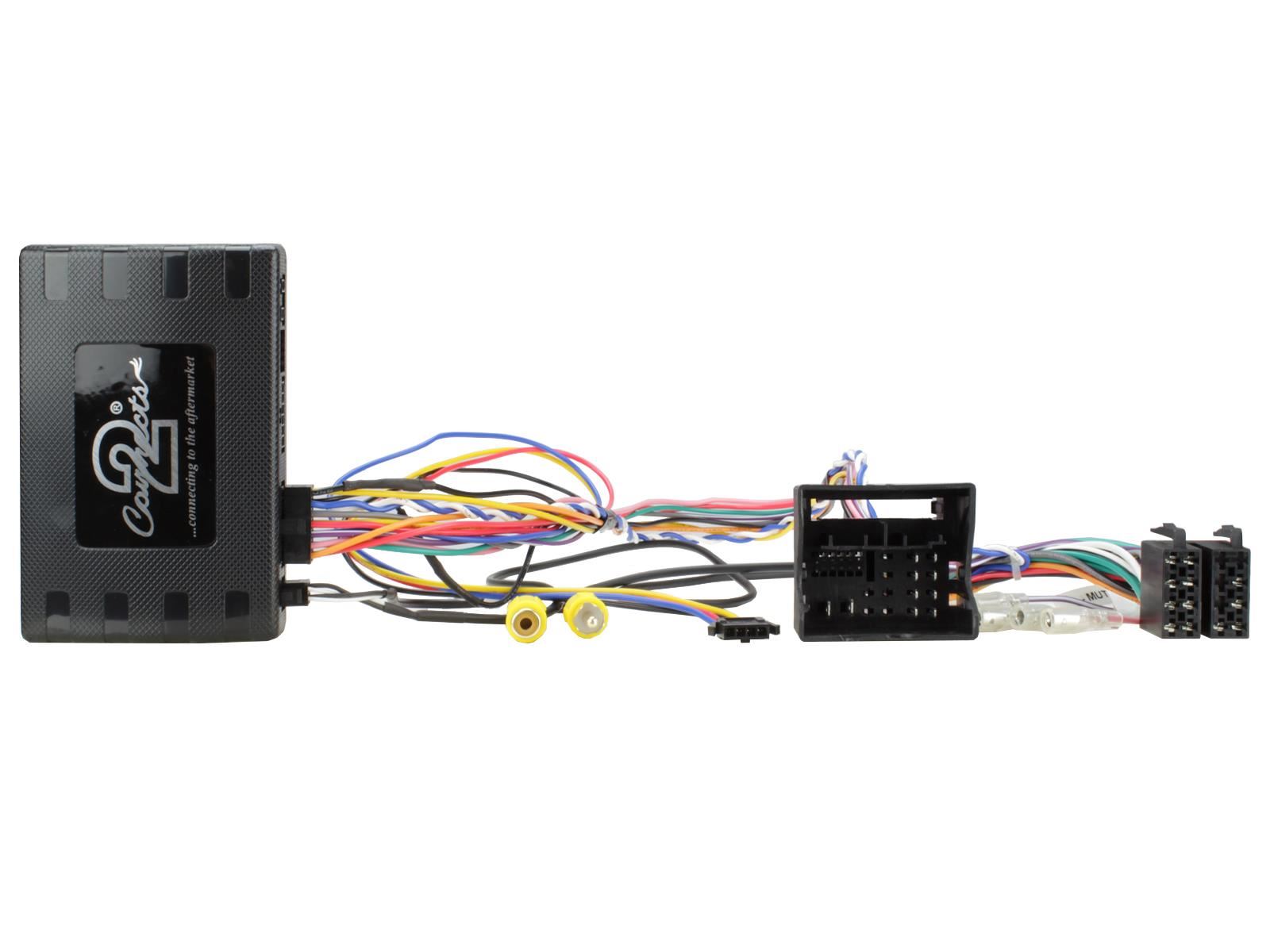

Interface to retain vehicle menus, steering wheel controls, phone buttons and more when installing an aftermarket stereo. Provides optional input for reversing camera and outputs for park brake, speed pulse, reverse gear and mute. Also is able to retain the OEM reverse camera (when used in conjunction with CAM-VW3-RT) as well as parking sensors (if applicable) Note: this product is for vehicles with MIB II systems Allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls
Safety: Allows you to keep your hands on the steering wheel and eyes on the road.
Plug and play, no cutting of wires required
Choose the relevant head unit connection lead according to the make of aftermarket head unit you wish to fit
This product has been developed through carefully documented data and research. Connects2 Ltd. cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.
Retains vehicle settings and generates settings menus
Provides input for aftermarket reversing camera
Provides outputs for park brake, reverse gear, speed pulse and mute
Infodapter menu settings are controlled and altered via the vehicle's original steering wheel controls

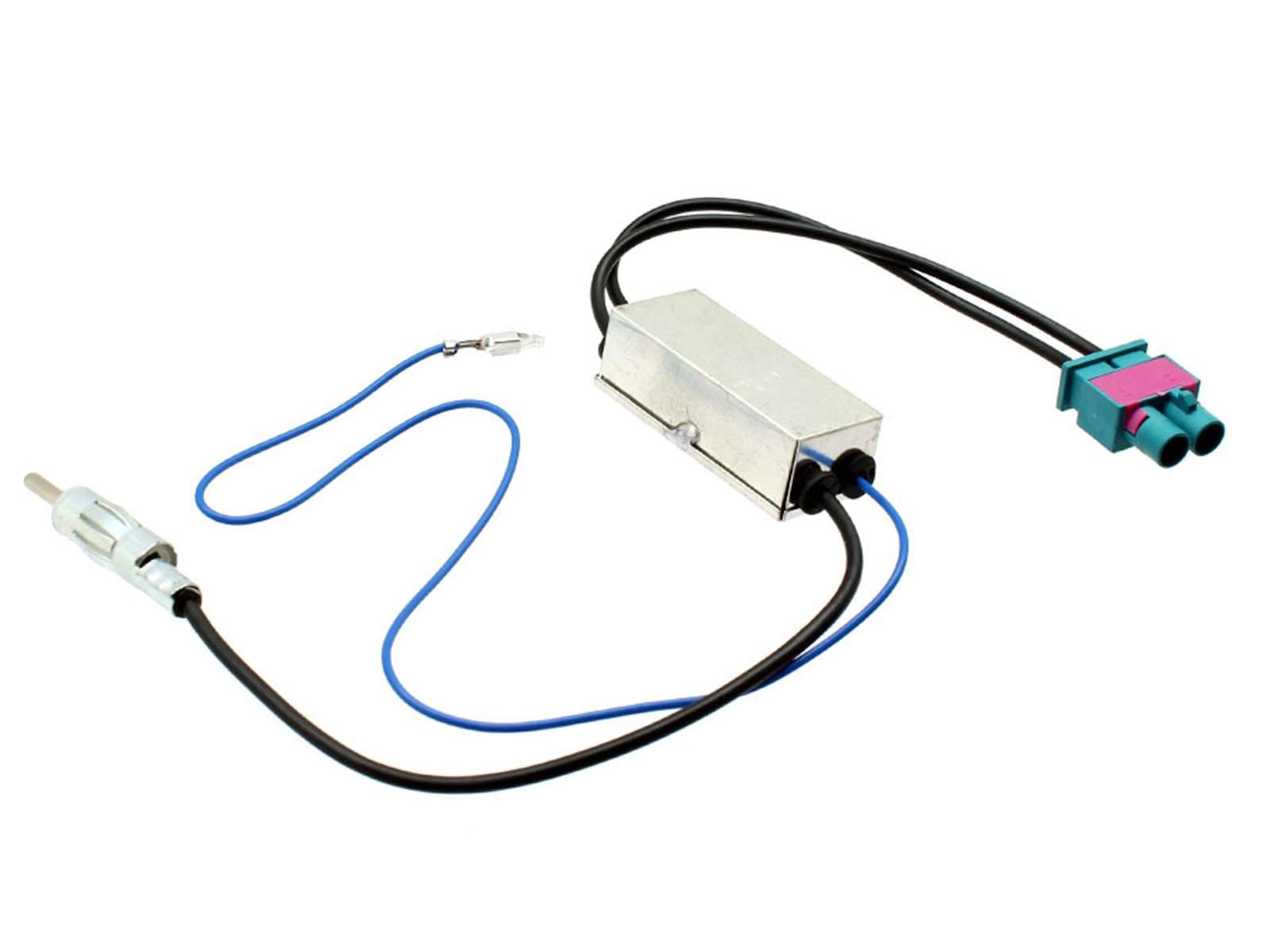

Aerial Adapter
VAG Double Fakra - DIN Antenna Adapter. Twin FAKRA To DIN Antenna Adapter With Phantom Power Supply. *For Aftermarket Radio With DIN Antenna Connector* Converts car specific antenna connector to a universal aftermarket connector
Steering Controls Adapter
Universal patch lead to connect an aftermarket stereo to a Connects2 interface. Supports most major head unit brands including Alpine, Clarion, JVC Kenwood, Panasonic, Pioneer, Sony and more. This head unit connection lead can be used with all of the Connects2 steering wheel control interface range
This kit is designed to fit the following vehicles:
-
VW Crafter 2017-2021
[Connection: Quadlock (Fakra)]
-
VW Grand California 2017-2019
[Connection: Quadlock (Fakra)]
-
MAN TGE 2017>
[Connection: Quadlock (Fakra)]
DISCLAIMER:
Please check the plugs and connections in our picture matches the plugs and connections in your vehicle before you make your purchase. If unsure please message us with pictures of the plugs and connections so we can advise further.
