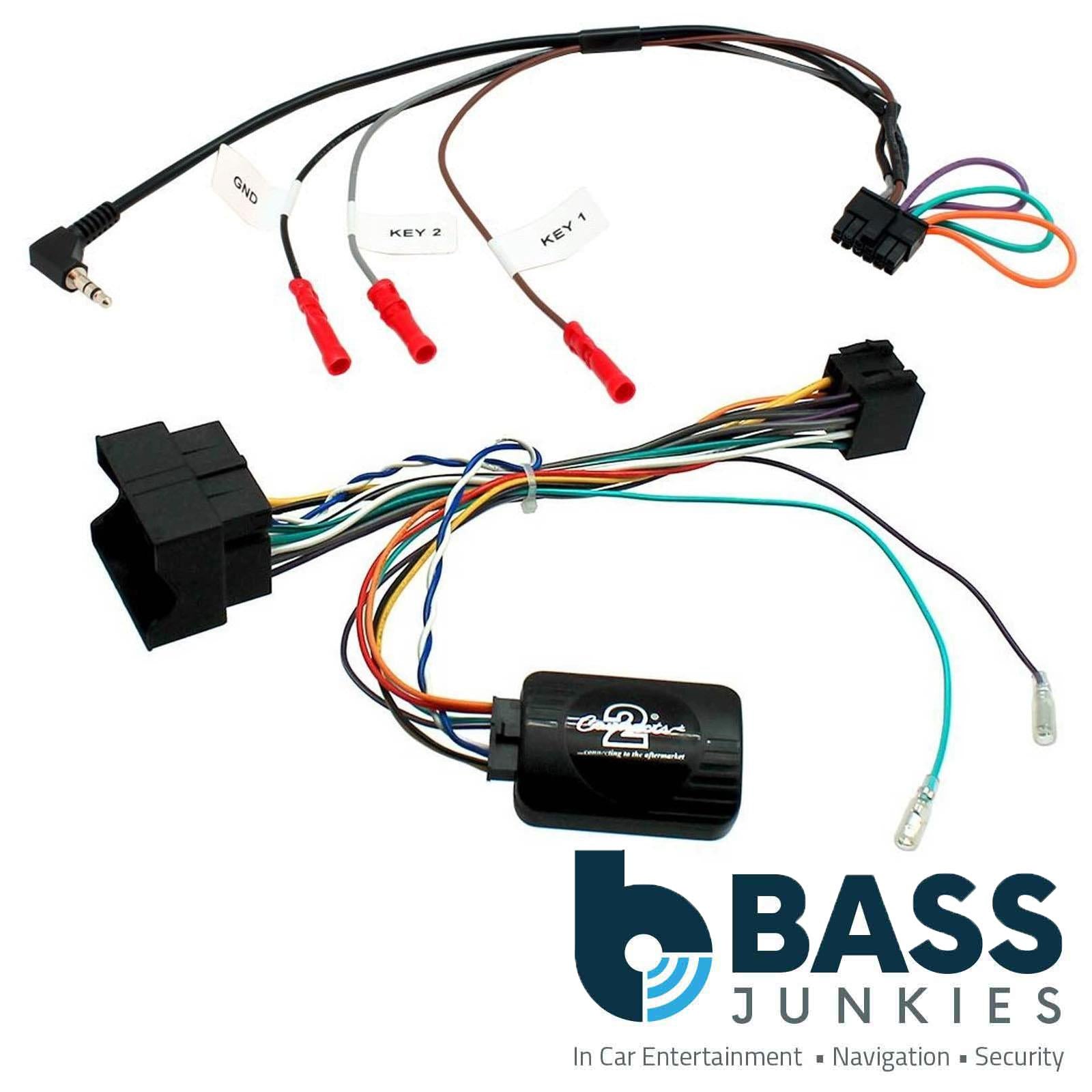

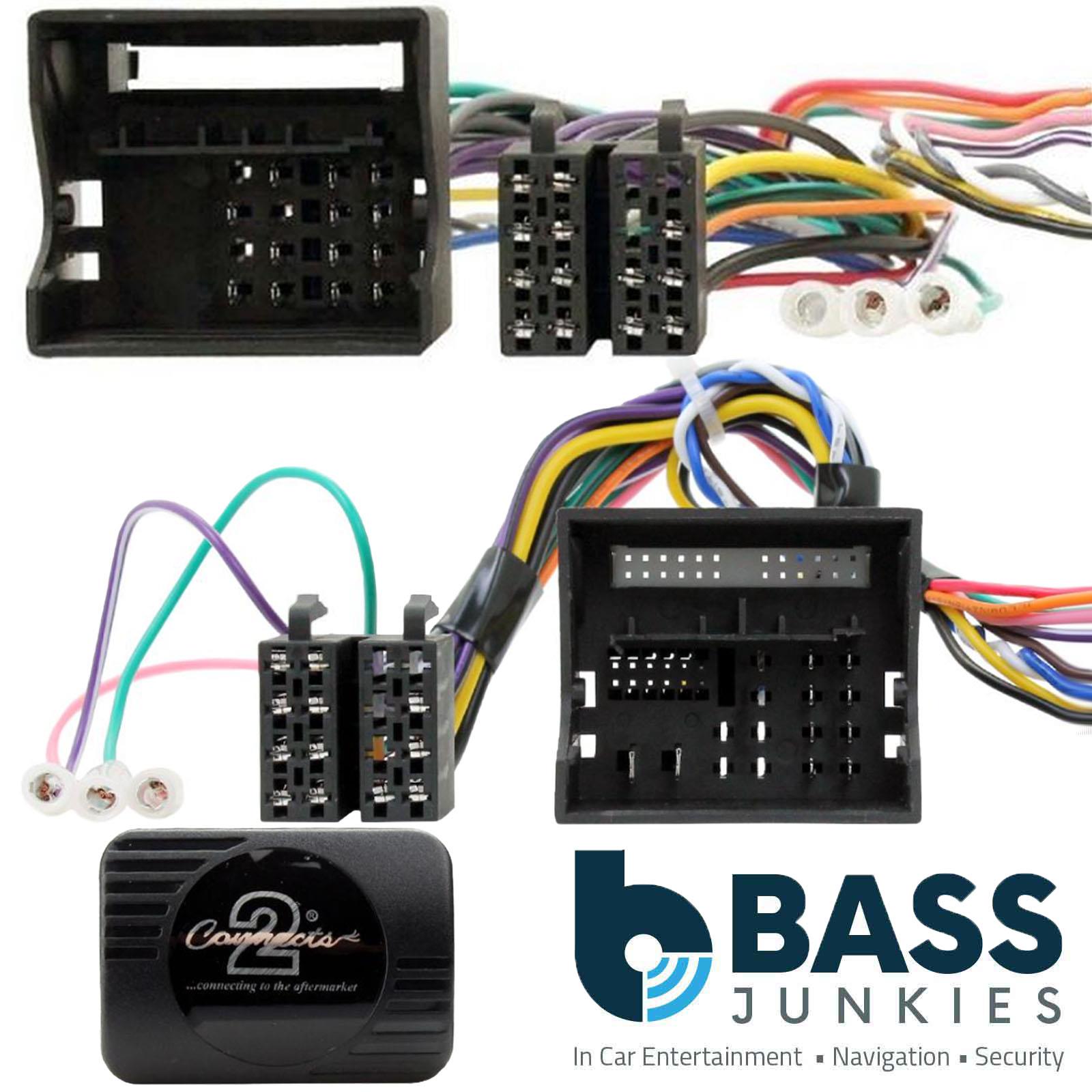

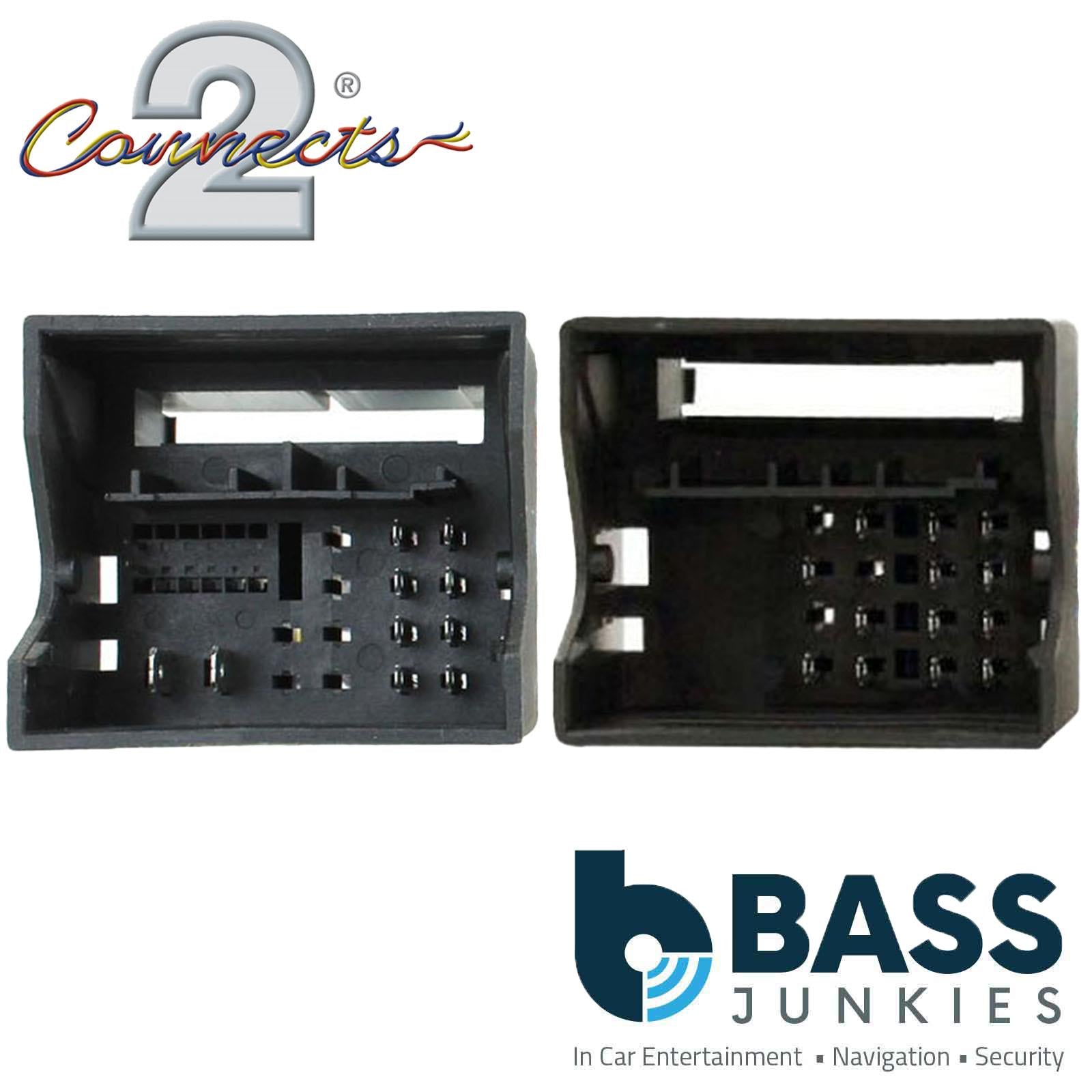

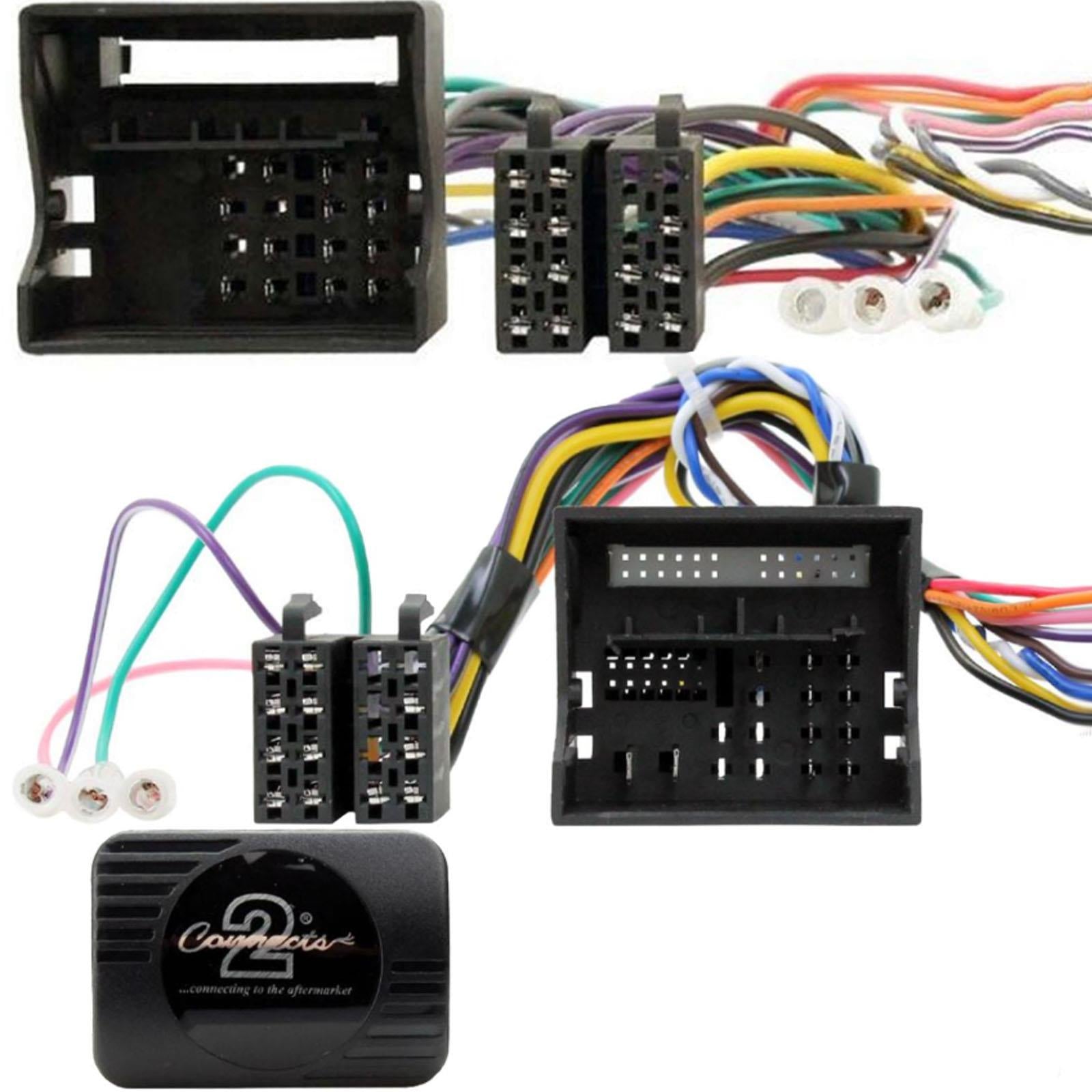

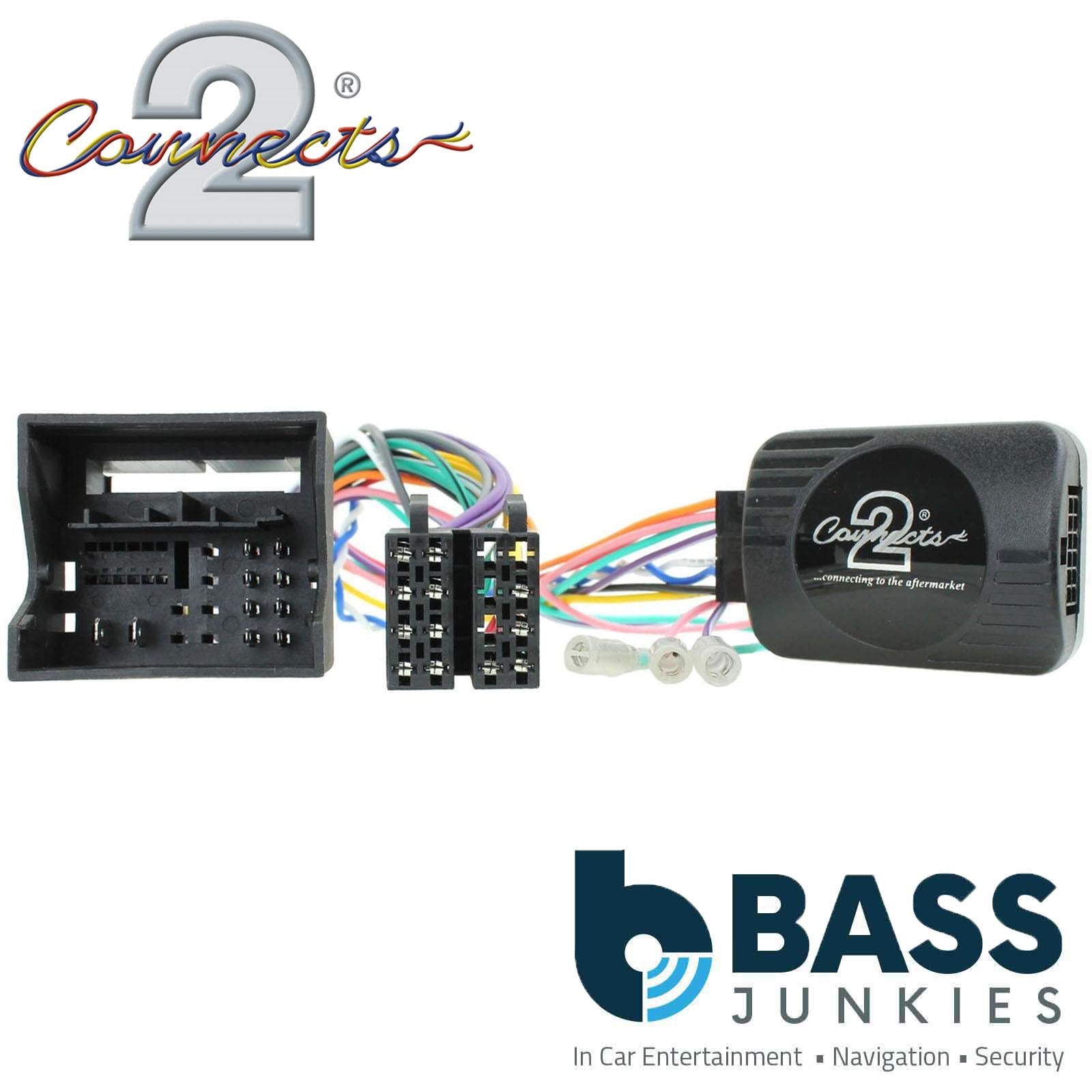

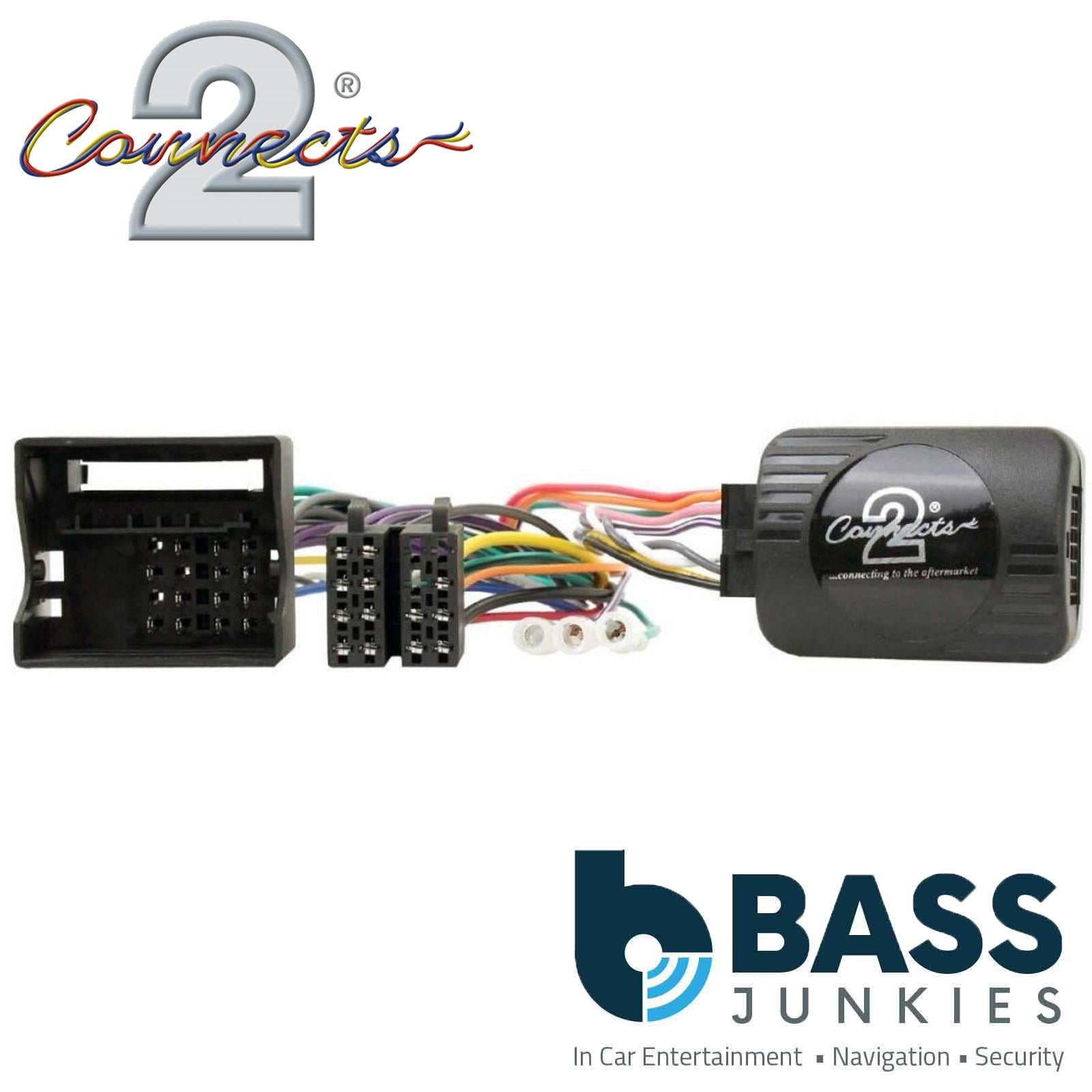

Connects2 CTSVW020.2 – VW SWC & MPB Interface Lead for VW Passat 3C 05-15
SWC with MPB Combined Interface Lead
This interface connects a compatible aftermarket stereo with a joystick input (blue line-in mini-jack) or wire input on the back of the unit to the existing steering wheel audio controls and, if equipped, the mobile phone buttons in your Volkswagen when replacing the factory radio.
Features
-
Plug-and-play installation – no cutting of factory wiring.
-
Retains use of original steering wheel audio controls and mobile phone buttons.
-
Designed for CAN-Bus vehicles to ensure seamless integration.
-
Works with most major stereo brands (requires appropriate patch lead – sold separately).
Compatible Vehicles
Please Note:
-
If your vehicle has a separate dashboard-mounted audio display, it may no longer function after the upgrade, but your clock and temperature readings will remain.
-
Compatibility lists are a guide – always confirm before purchase.
| Model | Year From | Year To | Head Unit |
| Passat (B6, 3C) (B7, 3C36) | 2005 | 2015 | Gamma/Beta/MFD/MCD |
| Golf (Mk5 and Mk6) | 2003 | 2013 | RCD200/300/310/500/510 |
| Touran | 2003 | 2015 | RCD200/300/310/500/510 |
| Transporter | 2003 | 2015 | RCD200/300/310/500/510 |
| Polo (9N) (9N3) (6R) | 2005 | 2014 | RCD200/300/310/500/510 |
| Jetta | 2005 | 2015 | RCD200/300/310/500/510 |
| EOS (1F) | 2006 | 2015 | RCD200/300/310/500/510 |
| Tiguan (5N) | 2007 | 2015 | RCD200/300/310/500/510 |
| Scirocco | 2008 | 2015 | RCD200/300/310/500/510 |
| Vento (Mexico) | 2005 | 2011 | RCD200/300/310/500/510 |
| Sagitta (China) | 2005 | 2011 | RCD200/300/310/500/510 |
| Magotan (Asia) | 2005 | 2011 | RCD200/300/310/500/510 |
| Fusca (Brazil) | 2005 | 2011 | RCD200/300/310/500/510 |
| UP! (VW120) | 2011 | 2016 | RCD200/300/310/500/510 |
| Amarok (2H) | 2009 | 2016 | Audio 10 |
| Touareg | 2006 | 2012 | RCD200/300/310/500/510 |
| Suran | 2009 | 2021 | Quad lock (Farka) |
| Tiguan (5N) | 2015 | 2015 | Quad lock (52 Way Farka) |
| Amarok (MIB-PQ) | 2016 | 2021 | Quad lock (52 Way Farka) |
| Crafter | 2017 | 2021 | Quad lock (52 Way Farka) |
| Scirocco | 2015 | 2021 | Quad lock (52 Way Farka) |
| Sharan 2 (7N) | 2015 | 2021 | Quad lock (52 Way Farka) |
| Caddy (2K/KN) | 2015 | 2020 | Quad lock (52 Way Farka) |
| Beetle (5C1) | 2015 | 2019 | Quad lock (52 Way Farka) |
| Jetta | 2011 | 2018 | Quad lock (52 Way Farka) |
| Transporter T6 (7H) | 2015 | 2019 | Quad lock (52 Way Farka) |
| Grand California | 2016 | 2019 | Quad lock (52 Way Farka) |
