Connects2 CTKNS20 - Nissan Navara 2016 - 2019 (Model D23) Gloss Black Double Din Fascia Panel & Steering Wheel Interface with 360 Camera Retention Kit
The CTKNS20 is a full integration kit for the 2016-2019 Nissan Navara. The kit allows you to install an aftermarket head unit whilst retaining the vehicle’s four factory installed cameras, enabling 360-degree camera functionality through the new head unit’s display. The bespoke interface also allows the retention of the vehicle’s multifunctional steering wheel controls including phone buttons.
This kit also includes an antenna adapter, a universal patch lead, a double-DIN fascia panel finished in gloss black to retain the original vehicle's aesthetics and includes all of the mounting accessories for simple plug-and-play installation.
Please note: for vehicles where the camera display is built into the rear view mirror. Does not retain any feature(s) involving ‘Intelligent Park Assist’
This Steering interface connects a compatible car stereo which must have a 3.5mm jack or a SWC input fly lead on the back of the unit
Please make sure your Stereo has this feature on the rear before purchasing this part.
Steering Wheel Control (SWC) Features
Steering Wheel Control interfaces allow plug and play installation of a new aftermarket car stereo head unit into a vehicle whilst maintaining use of the existing steering wheel volume, track up and down and mobile phone answering controls if factory fitted.
Mobile Phone Buttons (MPB) Features
Mobile Phone Buttons Support feature allows you to use Phone Buttons on the Steering Wheel if already factory fitted with any compatible an aftermarket Bluetooth Head Unit you install.
Benefits
- Provides a seamless installation with plug-and-play compatibility.
- Upgrade the vehicle's factory head unit to an aftermarket unit to gain features including Apple CarPlay, Android Auto, Bluetooth and more (dependent on unit).
- Can be used with any current aftermarket double DIN head unit on the market.
- The bespoke fascia panel matches the vehicle’s original dashboard.
- Access the original factory fitted cameras through aftermarket head unit.
- Control the aftermarket head unit through the original steering wheel controls.
- Kit includes everything needed to upgrade the vehicle's head unit.
Features
- Retain the vehicle's steering wheel compatibility with aftermarket head unit. This includes: Volume, Track/Seek, Phone Pick Up and Hang Up.
- Setting of the vehicle’s time is retained through the use of the steering wheel controls.
- Retains the 360-degree camera functionality via the original four factory-fitted camera feeds.
- Additional button controller for manual selection of the 360 camera function.
- Retains the original USB of the vehicle.
- The interface has been designed so that it doesn’t affect the control and usability of the MFD screen.
- Multi-lingual software available in English, French, German, Italian, Swedish, Norwegian, Portuguese, Spanish and Dutch.
- The universal patchlead allows the vehicle to recognise the new technology as if it were the factory system
To Fit:
- Nissan Navara 2016 - 2019 (Model D23)

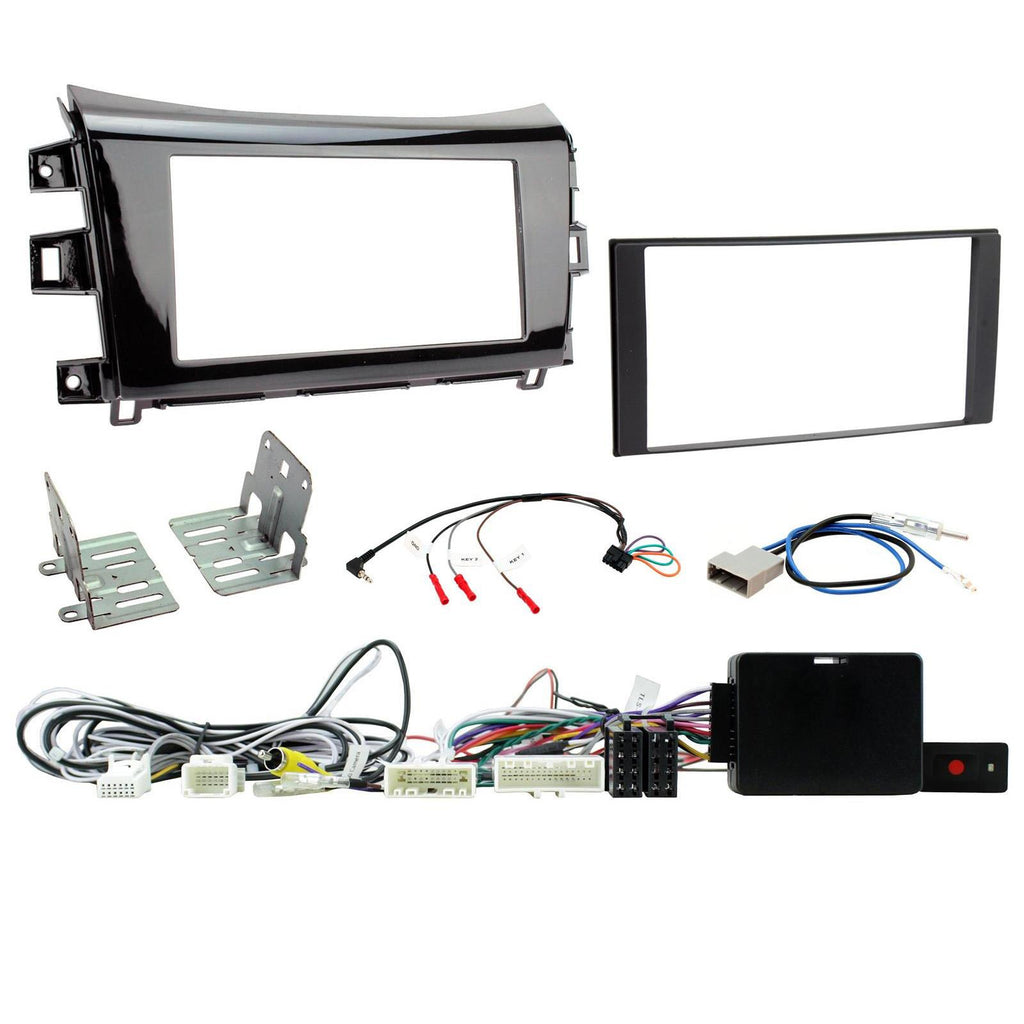

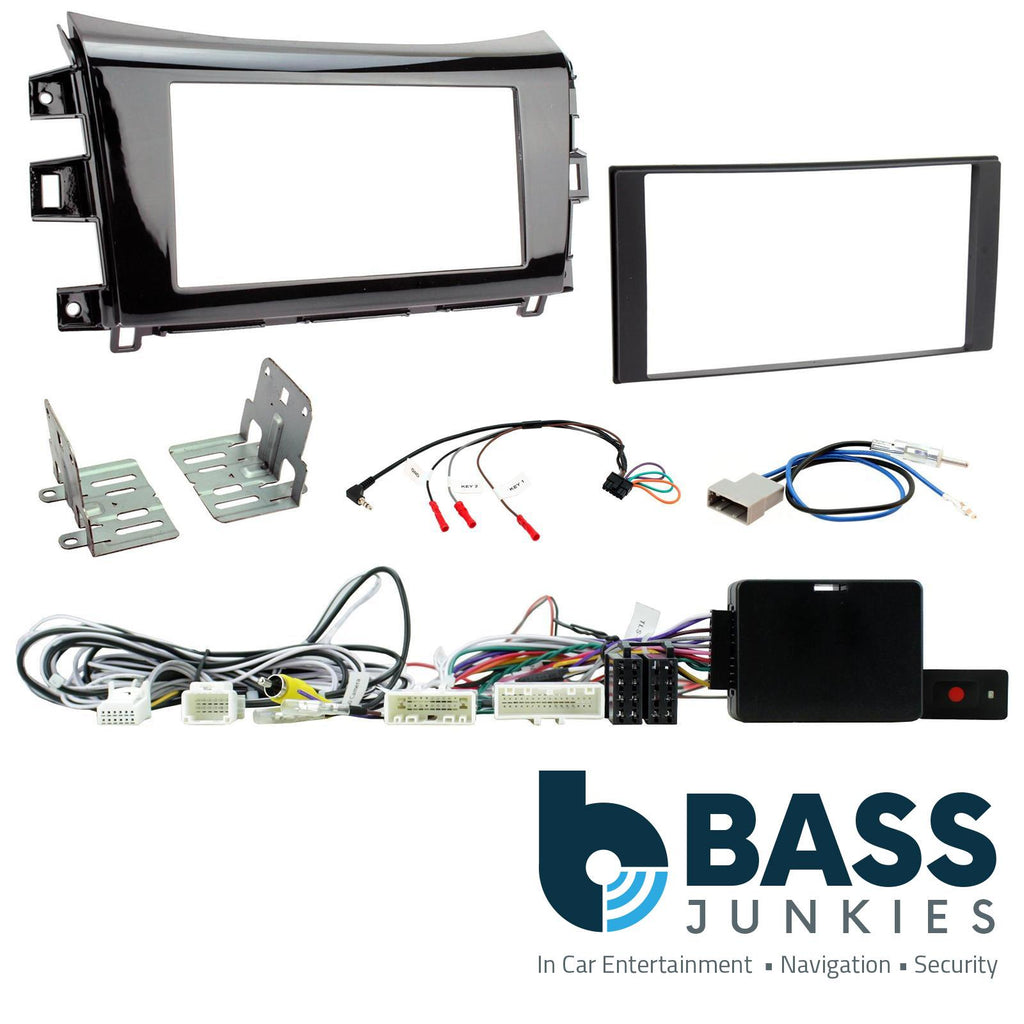

What’s Included in the Kit

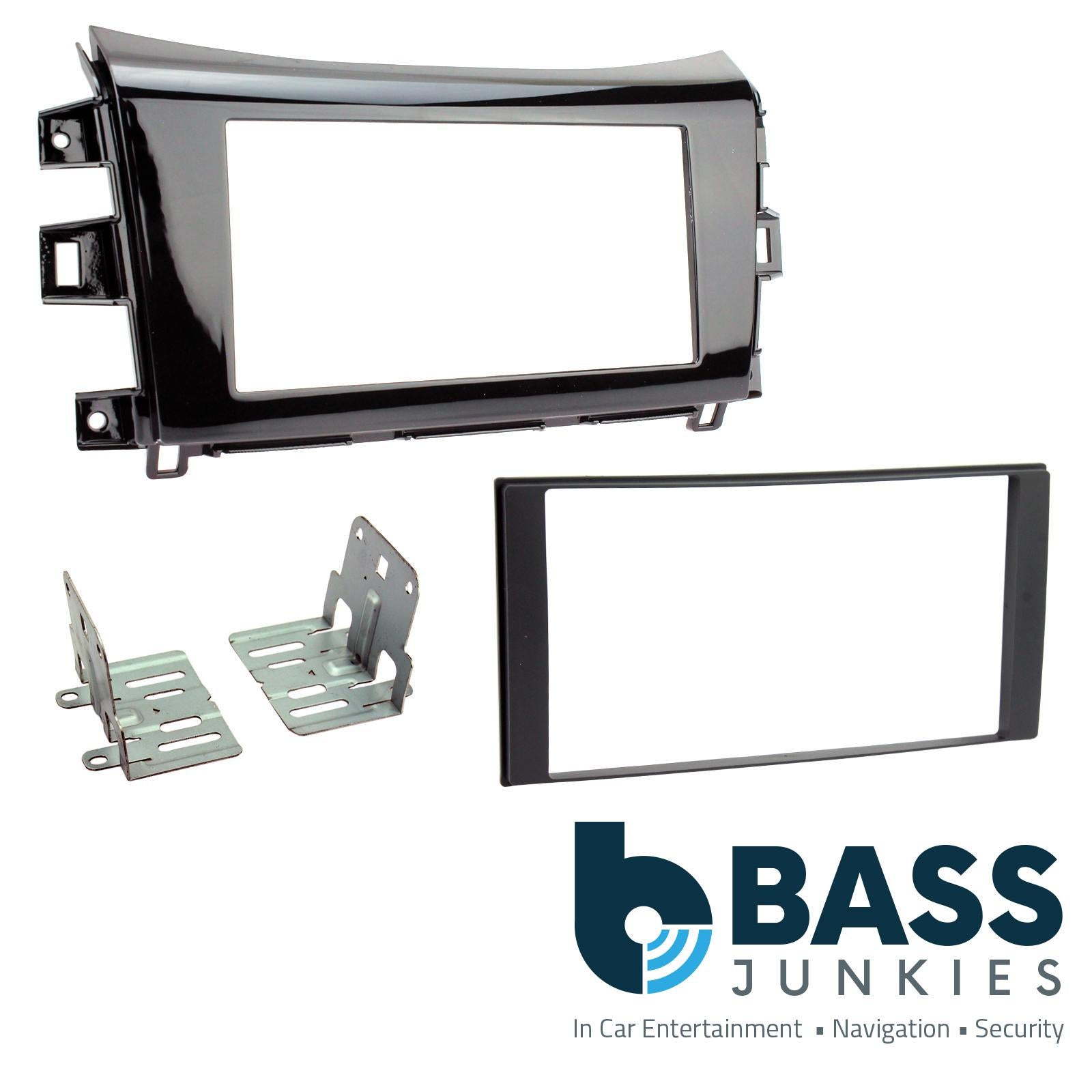

- Double Din Fascia Adaptor

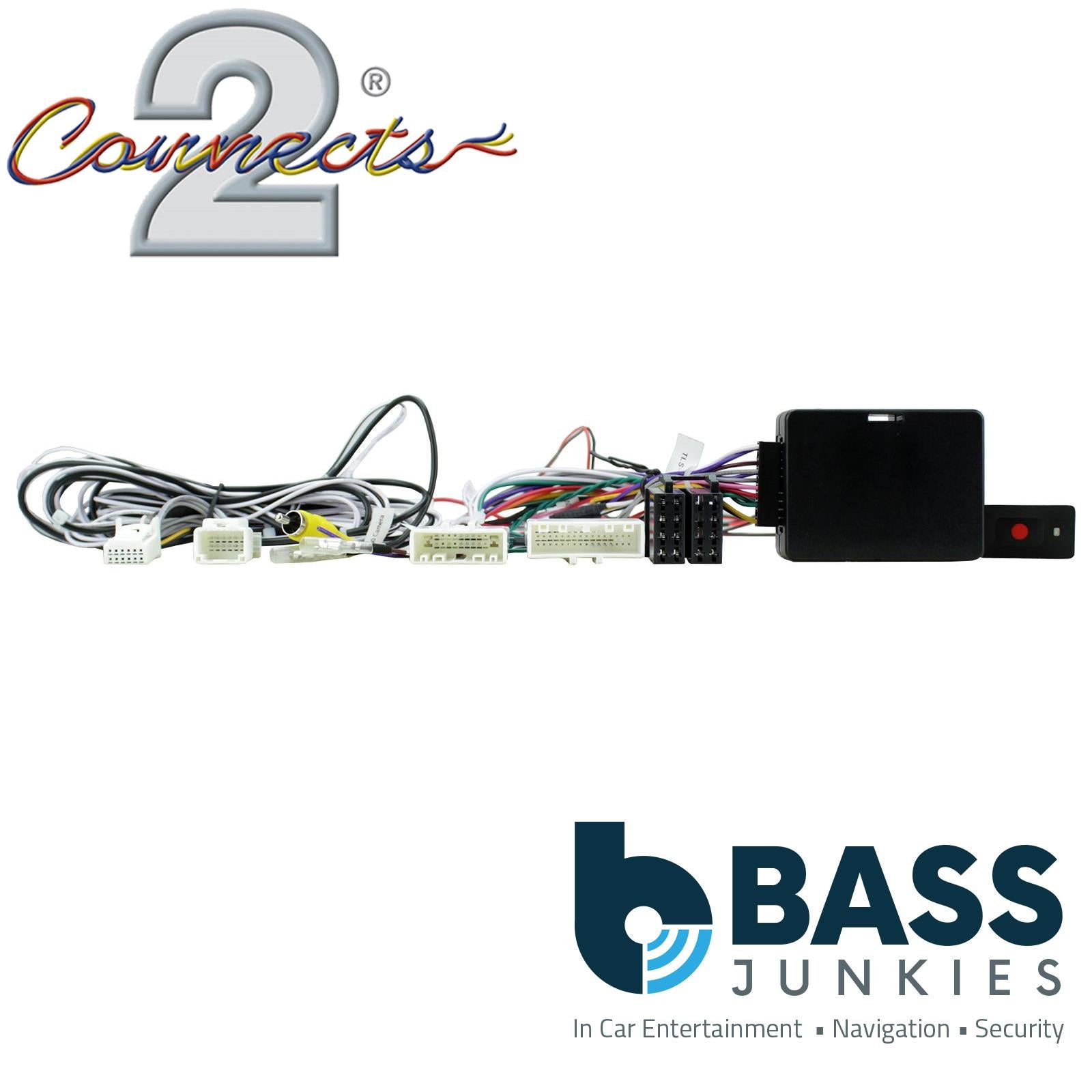

- CAN-Bus Steering Wheel Stalk Control Interface
- Steering Wheel Stalk Control Interface Patch Lead
- 360 Camera Retention Kit

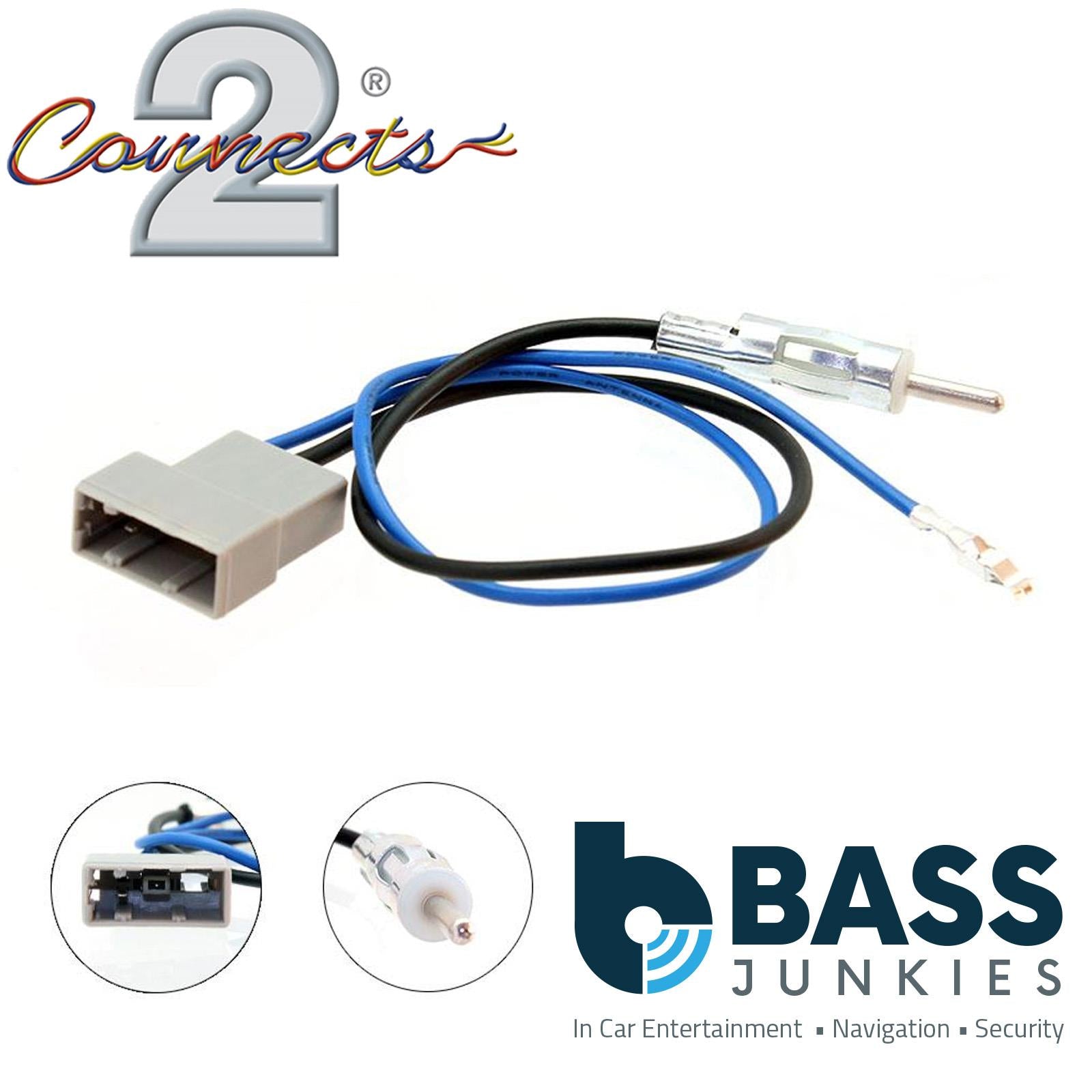

- Aerial Adaptor
Installation tip
This panel is designed to fit 6"-7" double din units. Most Japanese brands such as Kenwood, Pioneer, JVC, Sony, Alpine and Clarion will suit this fascia.
If you are fitting a non-branded unit from china with brands such as EONON and Xtron, there is a VERY high possibility YOU will have to modify this panel to suit the stereo and accommodate it in your dash.
These panels are designed based on Japanese stereo's which are a uniformed standard size, stereos from china can be different sizes and we cannot guarantee the stereo will fit without modification.
