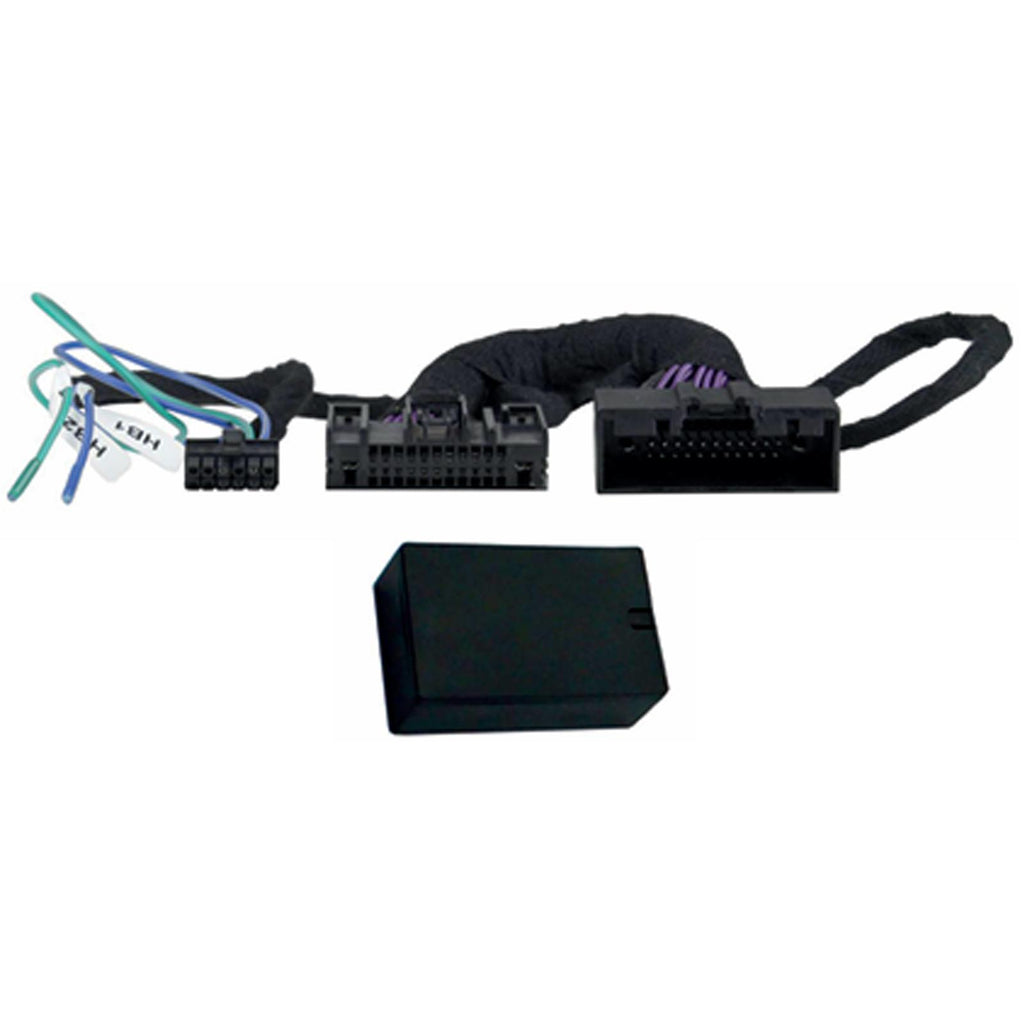

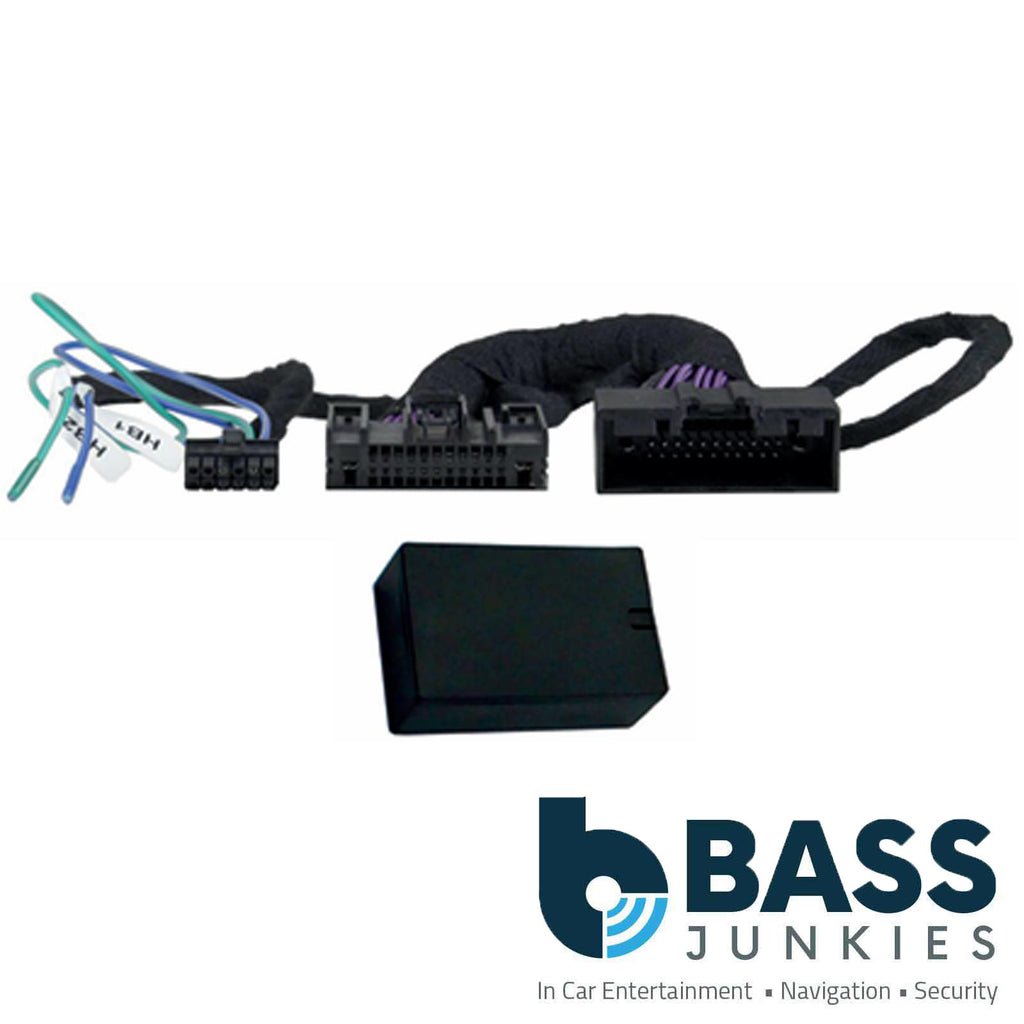

The Connects2 CANHBFD1 Hi-Beam Interface is a CAN-Bus integration module that allows additional accessories or lighting to be controlled via the vehicle’s factory high-beam system. It decodes data from the CAN network to create two active low-level outputs, ideal for triggering relays connected to work lights, spot lamps, or other high-current accessories. This plug-and-play system connects easily through the vehicle’s OBD port, providing a clean and reliable installation without the need to cut or modify factory wiring.

Key Features:

• Designed specifically for Ford Ranger (2015-up) and Ford Transit VI (2012-up).

• Provides two low-level high-beam outputs (Hi-Beam 1 and Hi-Beam 2).

• Enables control of aftermarket lights or accessories via the vehicle’s high-beam signal.

• Offers three output modes:

  • Hi-Beam 1: Mirrors the state of the factory high beam (on/off).

  • Hi-Beam 2: Toggles on and off each time the high beam is flashed.

  • Follow Me Home Mode: Keeps connected accessories active after engine shutdown, based on the number of high-beam flashes.

• Programmable ‘Follow Me Home’ Duration:

  • 1 flash = 30 seconds

  • 2 flashes = 60 seconds

  • 3 flashes = 120 seconds

  • 4 flashes = 300 seconds (maximum)

• Plug-and-play connection via OBD harness — no hardwiring required.

• Ideal for vehicles requiring additional lighting for off-road or work use.

Installation Overview:

1. Locate the vehicle’s OBD port (under the steering column).

2. Unclip the existing OBD connector and plug in the male connector from the Hi-Beam harness.

3. Connect Hi-Beam 1 or Hi-Beam 2 output (via automotive relay) to your additional accessory.

4. Reconnect the vehicle’s existing wiring to the female connector of the Hi-Beam harness.

5. Turn the ignition on and test high-beam functionality with the new accessory.

6. Once confirmed, installation is complete.

Programming ‘Follow Me Home’ Mode:
After turning the engine off but leaving ignition on, flash the high beam the desired number of times within 30 seconds (flashes must be within 1.5 seconds apart). Once complete, turn off ignition — the accessory will remain powered for the selected duration.

Important Notes:

• Professional installation recommended — basic automotive electrical knowledge required.

• Use proper tools and relays to prevent vehicle or product damage.

• Do not install near moisture or heat sources.

• Connects2 is not responsible for damage caused by incorrect installation.

Summary:
The Connects2 CANHBFD1 Hi-Beam Interface is the ideal solution for Ford Ranger and Transit owners who need additional lighting or accessories that respond directly to the vehicle’s high-beam controls. With simple OBD connection, three programmable modes, and robust CAN-Bus communication, it’s a fast, smart, and reliable way to expand vehicle lighting functionality.
