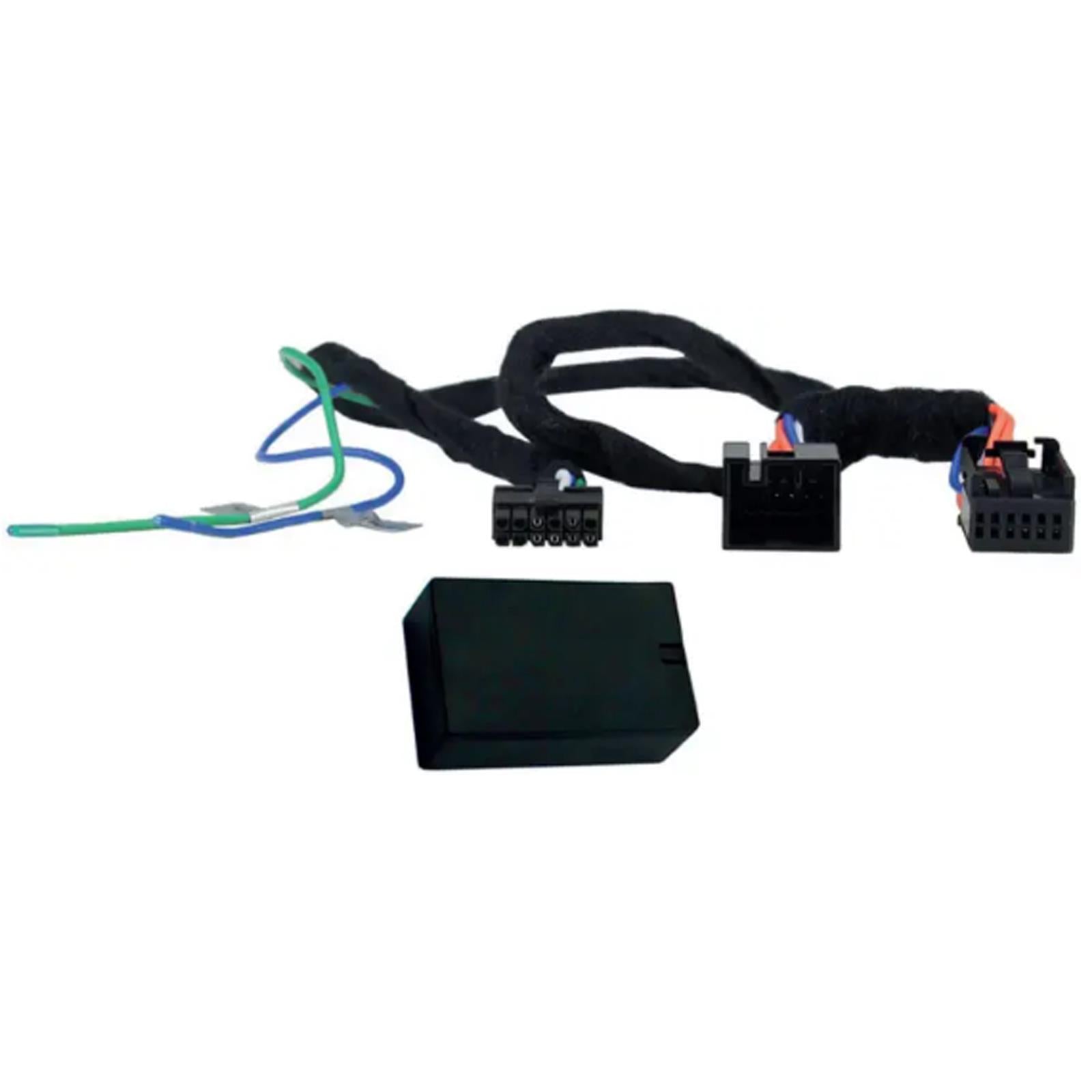

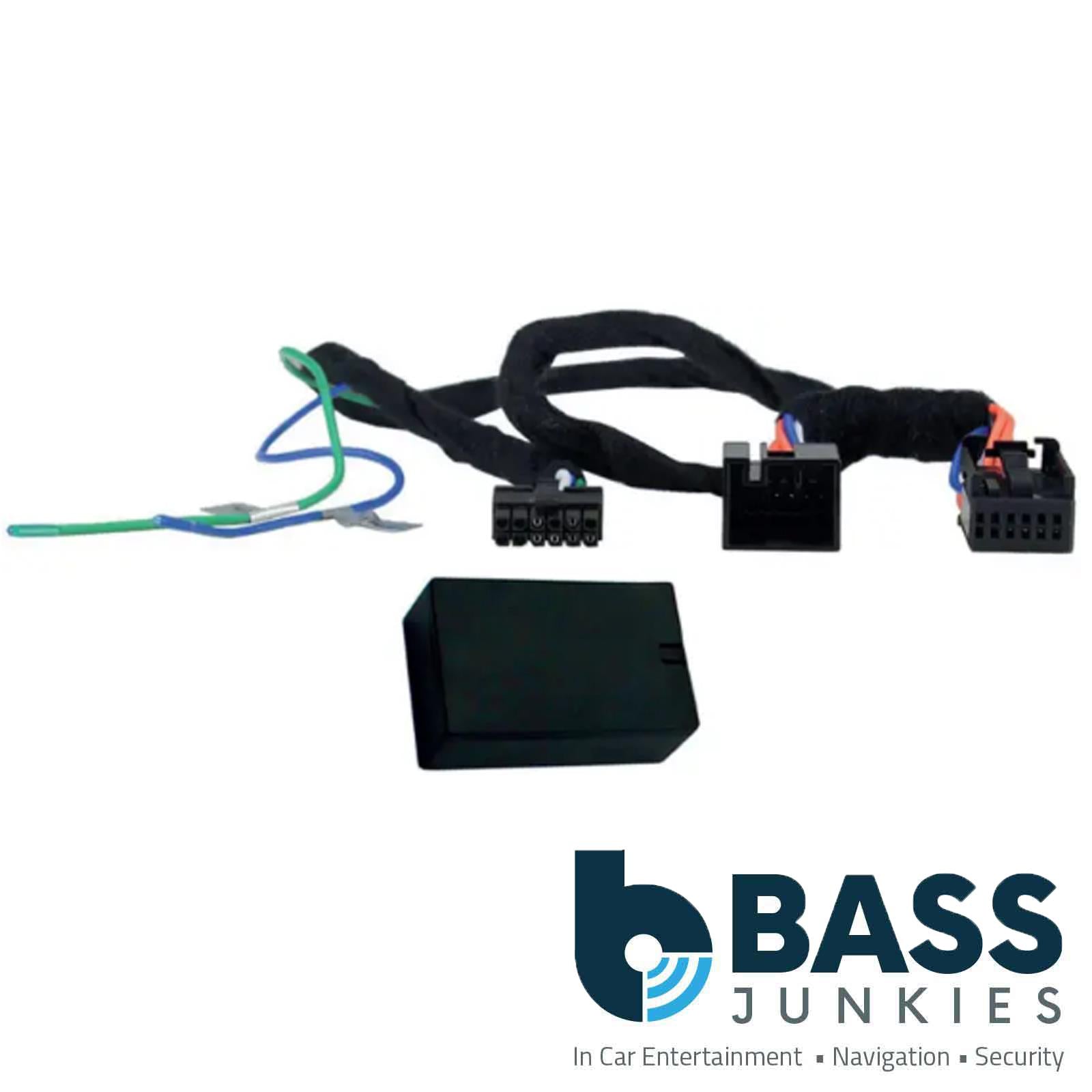

The Connects2 CANHBBM1 is a dedicated CAN-Bus interface designed for selected BMW and MINI vehicles. It allows you to safely trigger additional lighting or accessories from the vehicle’s high-beam signal without splicing into factory wiring. By connecting directly at the speedometer harness, the CANHBBM1 delivers a clean, reliable signal for lighting control through a plug-and-play setup.
Key Features:
-
Provides two low-level outputs that can trigger relays for high-current lights or accessories.
-
Three operating modes:
-
Constant Mode: Follows the high beam on/off signal.
-
Toggle Mode: Alternates output state with each high-beam flash.
-
Follow-Me-Home Mode: Keeps accessories powered after shutdown based on high-beam flash count (30–300 seconds).
-
-
Plug-and-play installation at the vehicle’s speedometer harness—no cutting of wires required.
-
Ideal for driving lights, work lights, or other high-beam-triggered accessories.
-
Compact design for easy dashboard installation.
Compatibility:
-
BMW 3 Series (F30 / F31) – 2012 onwards
-
BMW 4 Series (F32 / F33 / F36) – 2013 onwards
-
BMW X5 (F15) – 2013–2019
-
MINI Clubman and related models using compatible CAN speedometer harness
Programming – Follow-Me-Home Duration:
-
1 flash = 30 seconds
-
2 flashes = 60 seconds
-
3 flashes = 120 seconds
-
4 flashes = 300 seconds (maximum)
Installation Overview:
-
Access the area behind the vehicle’s speedometer.
-
Disconnect the speedometer plug and connect the CANHBBM1 harness inline.
-
Wire the output through an automotive relay to your auxiliary lighting or accessory.
-
Test high-beam operation and confirm accessory activation in each mode.
Technical Notes:
-
Requires professional or experienced installation.
-
Outputs must drive relays for high-current devices.
-
Ensure the interface is installed away from moisture and heat sources.
Summary:
The Connects2 CANHBBM1 High Beam Interface provides a simple and intelligent way to control additional lights or accessories in modern BMW and MINI vehicles. With plug-and-play connectivity and selectable modes, it offers factory-grade integration and safe signal decoding — ideal for installers adding driving or work lighting to premium CAN-Bus-equipped vehicles.
