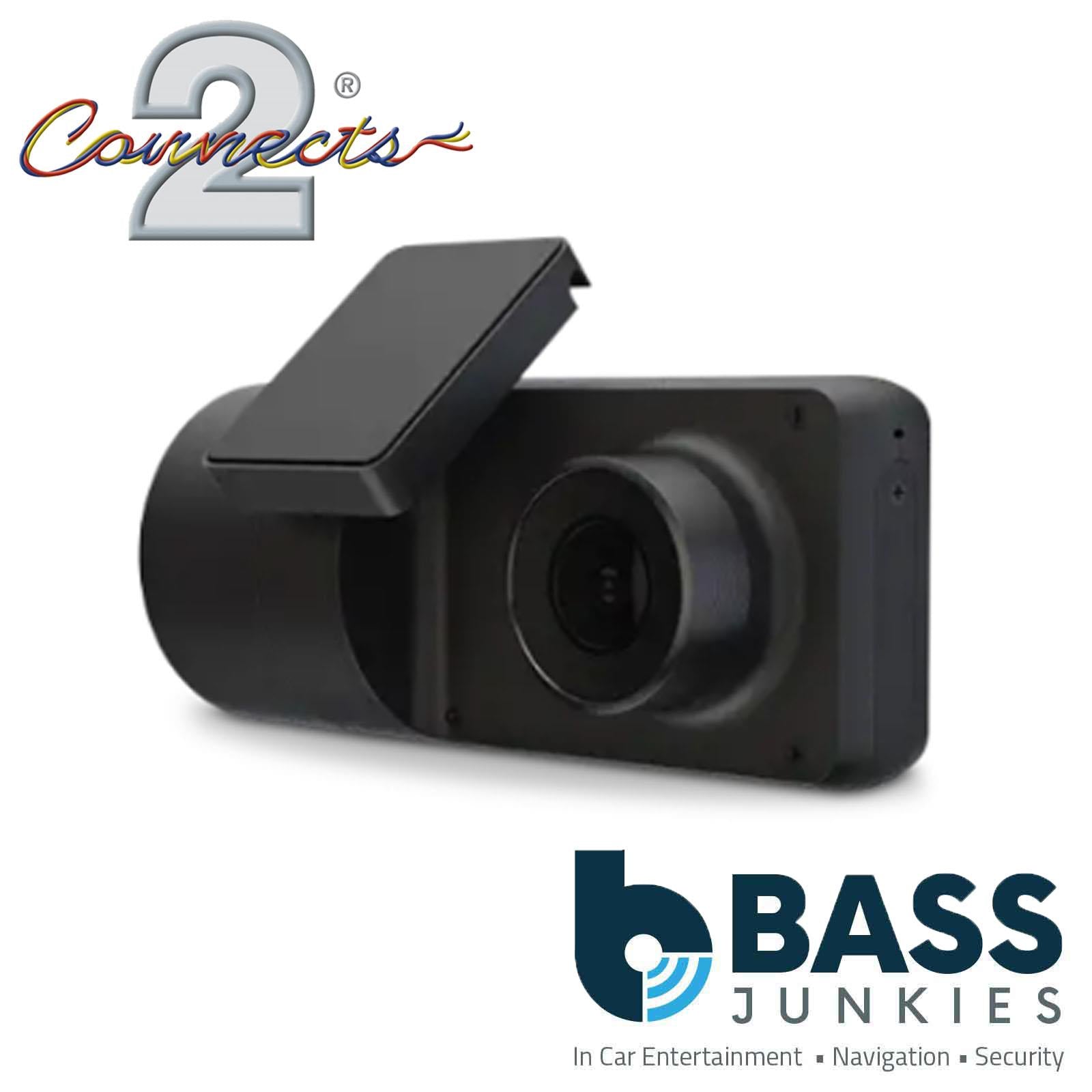

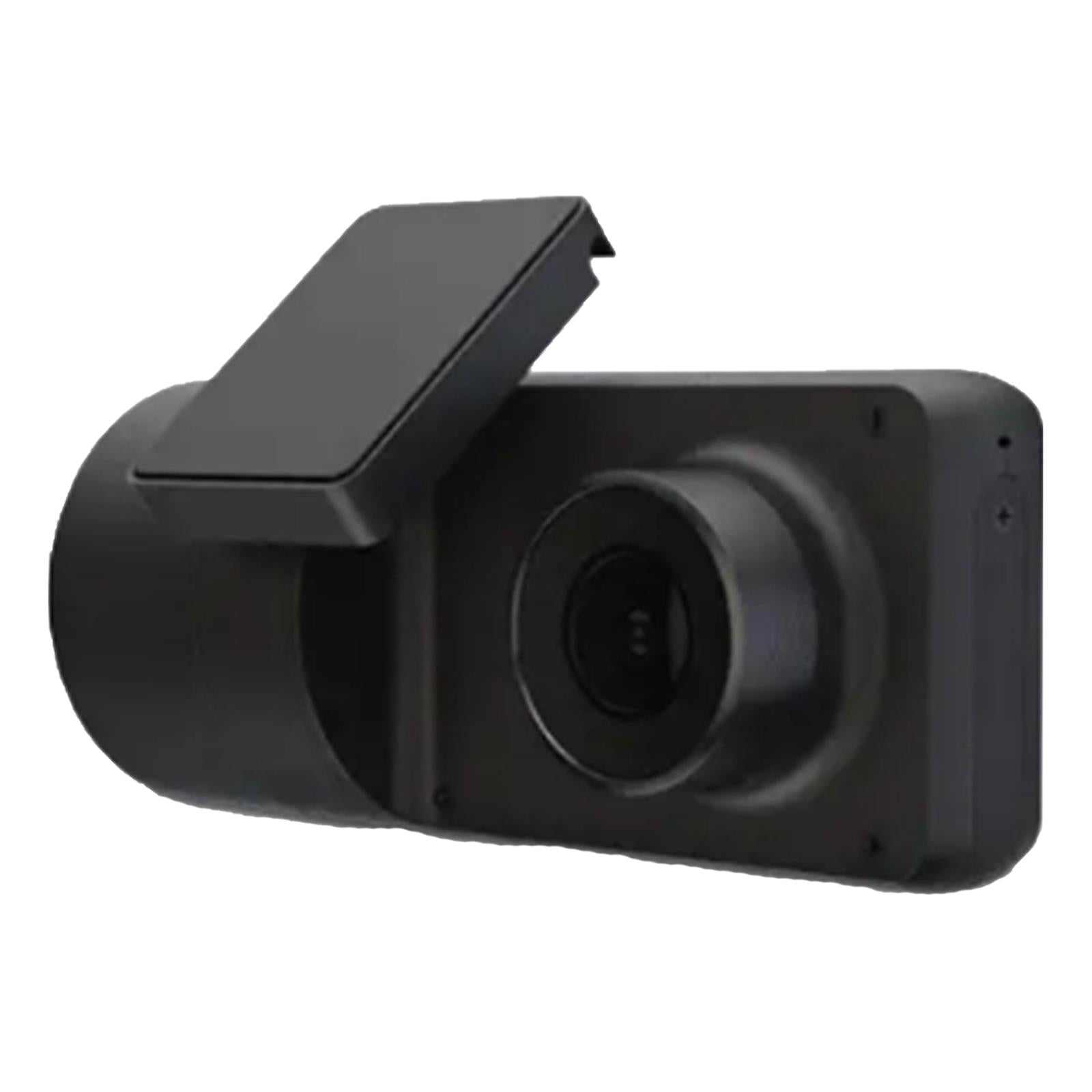

Connects2 CAM-50 CMOS 1920x1080 Rear DVR Camera for CAM-KIT13 & 14

Connects2 CAM-50 CMOS 1920x1080 Rear DVR Camera for CAM-KIT13 & 14

The CAM-50 is a high-definition rear DVR camera designed specifically to work alongside CAM-KIT13 and CAM-KIT14 systems. It provides clear 1080p recording with a wide viewing angle and night vision support, making it ideal for rear-view recording and DVR integration.

Product Specifications

• Image Sensor: CMOS

• Resolution: 1920 × 1080 (Full HD)

• Viewing Angle:

  • 146° Horizontal

  • 119° Vertical

• Night Vision: Yes

• Dimensions: 58.65 (L) × 30 (W) × 23.7 (H) mm

• Operating Temperature: −20°C to +70°C

Compatibility

• Works only with: CAM-KIT13 & CAM-KIT14

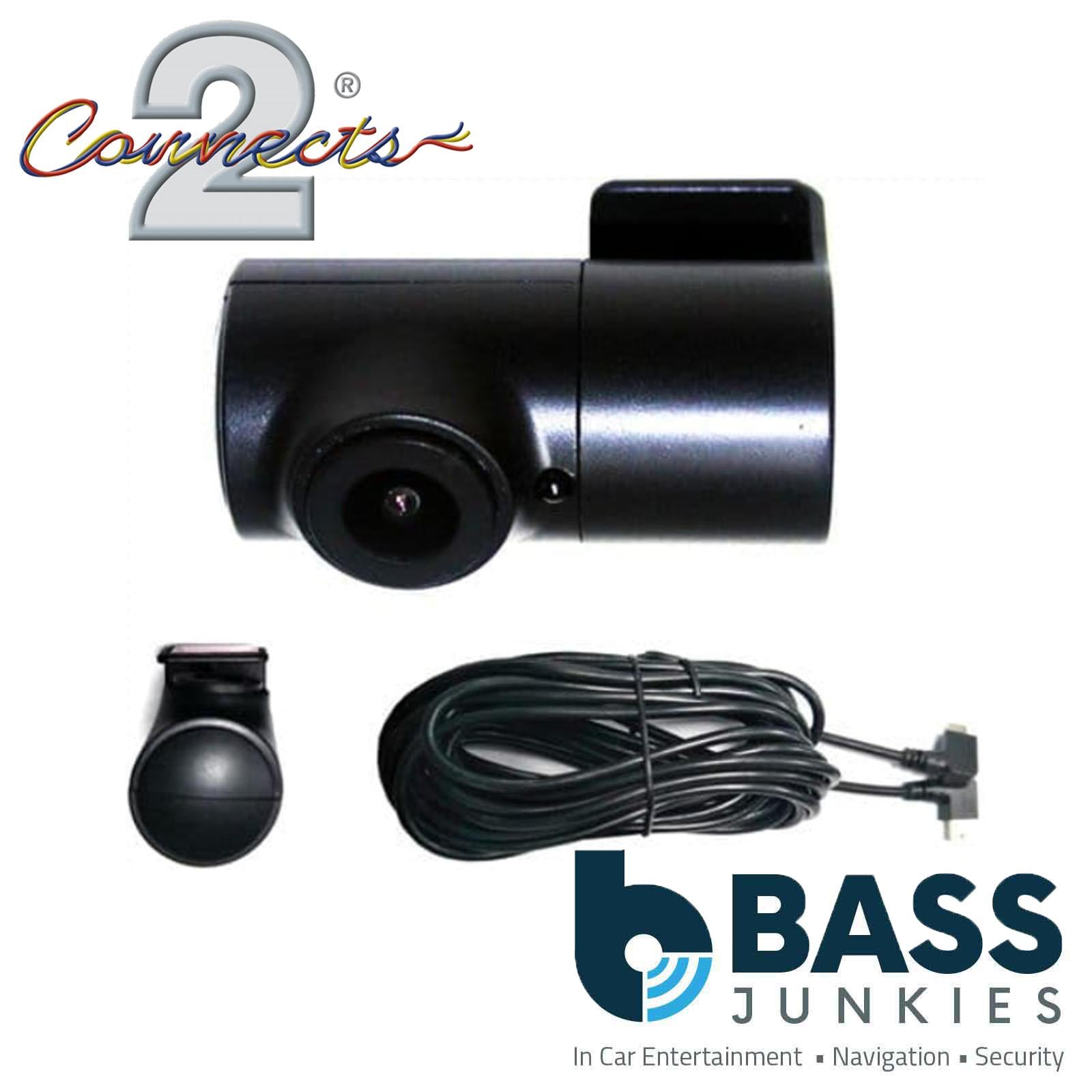

What’s Included

• CAM-50 HD DVR Rear Camera

• Power Cable

• Mounting Adhesive Pad

Installation Notes

Technical knowledge is required for installation. Always read the manual before fitting. Use appropriate tools to prevent damage to the vehicle or product. Connects2 cannot be held responsible for improper installation.

Installation Steps

1. Connect the black cable to CAM-KIT13 or CAM-KIT14 and route it to the rear of the vehicle.

2. Connect the cable to the CAM-50 camera.

3. Choose a suitable mounting position on the rear window.

4. Secure the camera using the supplied adhesive pad.

5. Power on, test the camera, and adjust the pivoting bracket to achieve the correct viewing angle.
