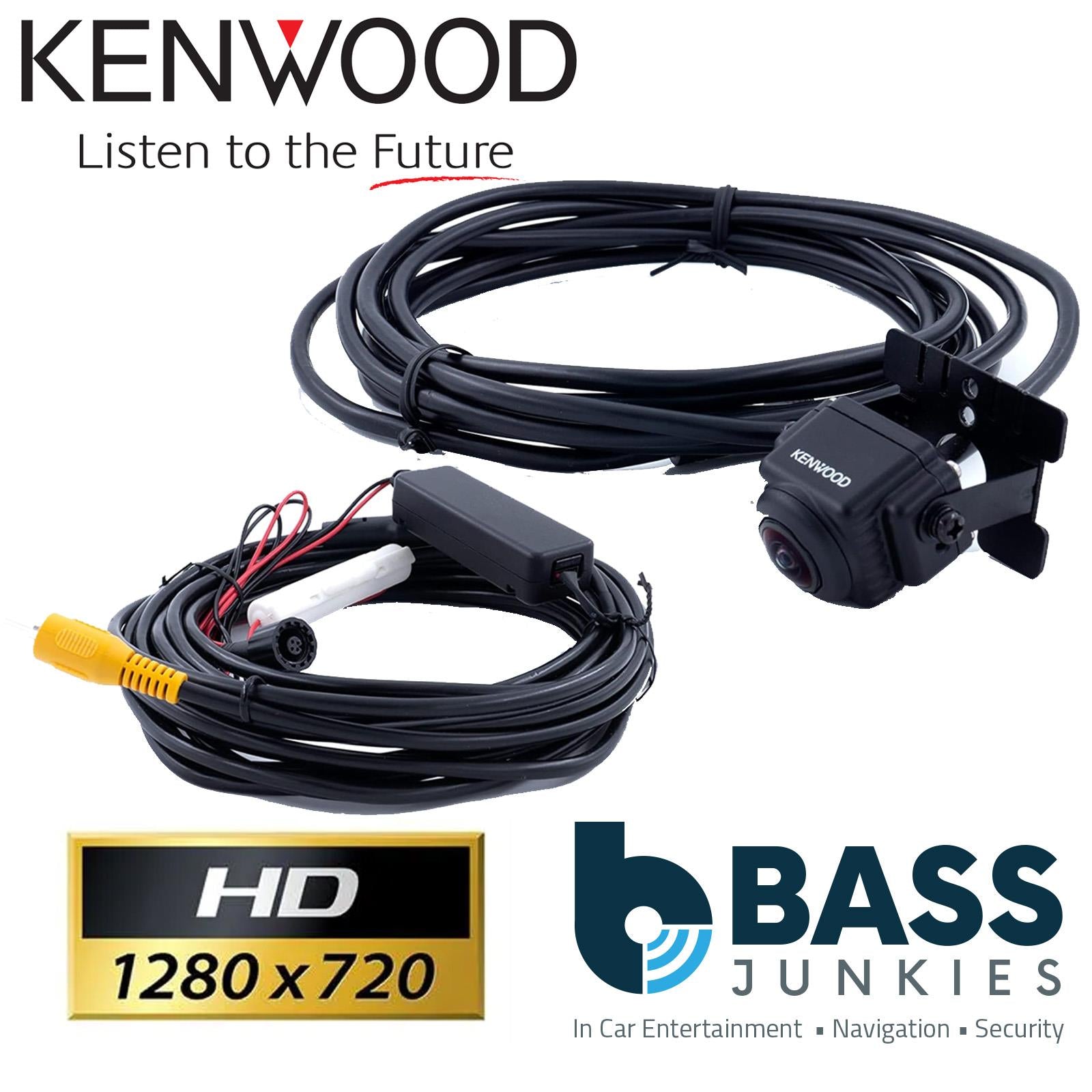

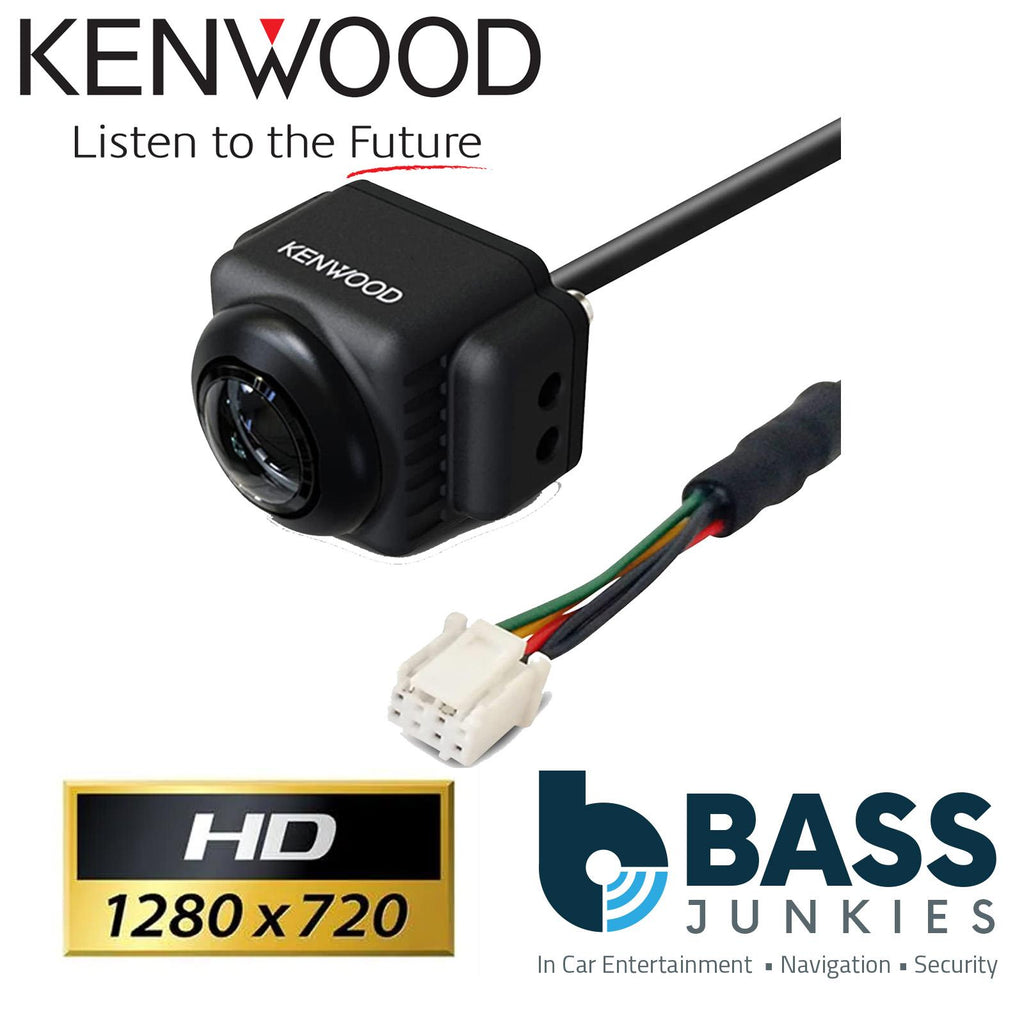

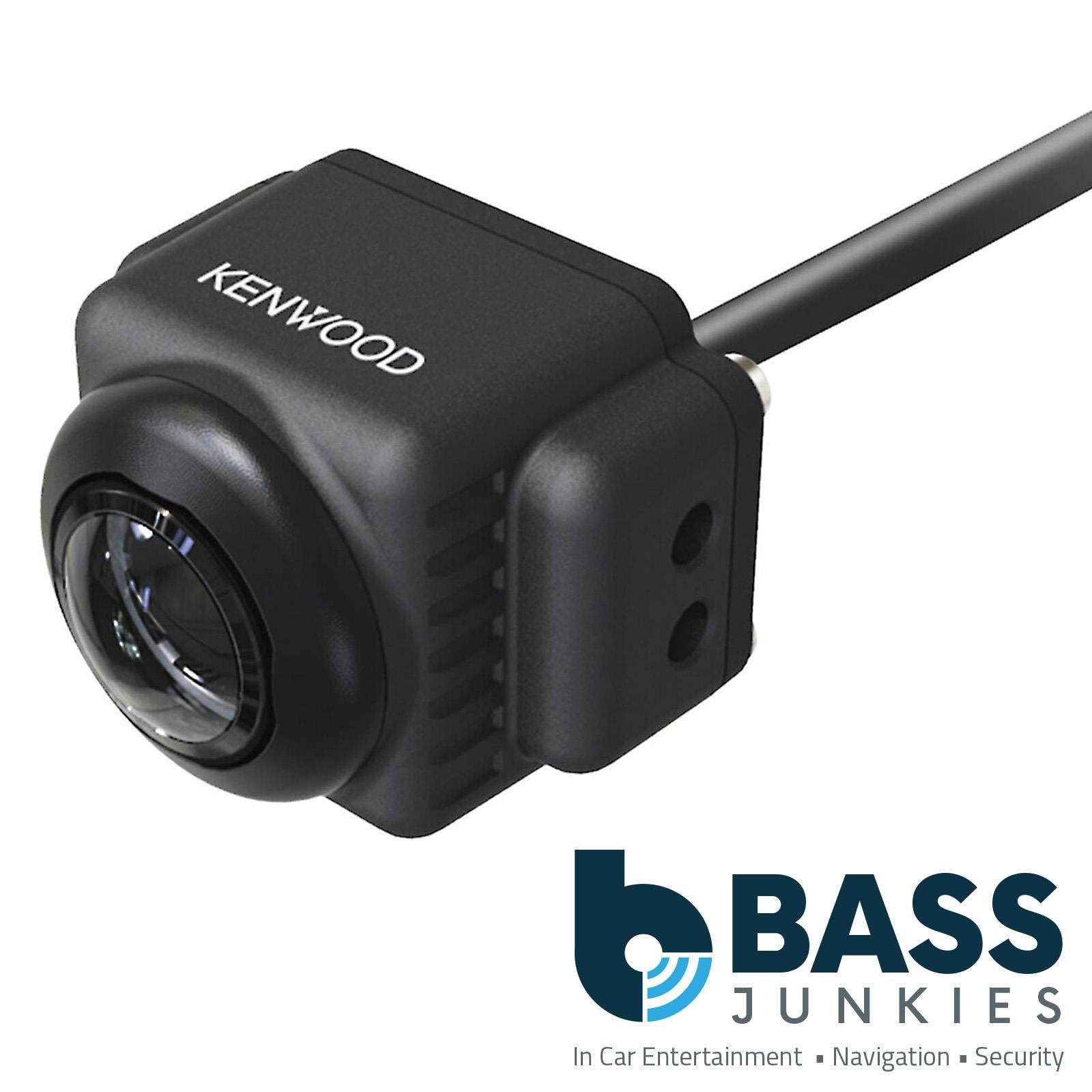

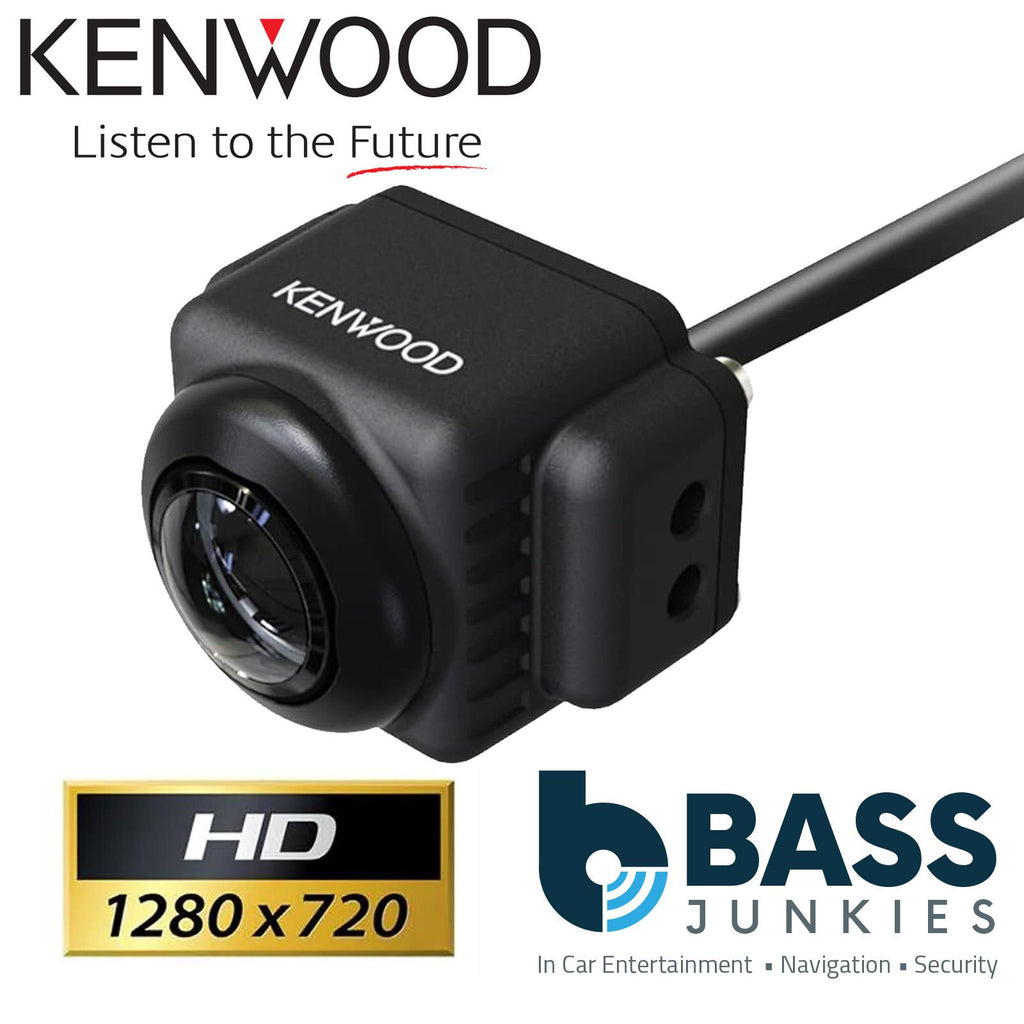

CMOS-740HD HD Rear / Front Camera
The CMOS-740HD High Definition camera, exclusive for DMX9720XDS, can be connected to the rear or front camera inputs of the receiver, displaying the image in true HD 1280 x 720 pixels on the large screen of the DMX9720XDS.
Key Features
- Rear / Front Camera for DMX9720XDS
- High-Definition Imaging (1280 x 720px)
- HDR (High Dynamic Range)
- IP67 Waterproof and dustproof
- Wide angle lens, focal length: 1.86mm F:2.0
- Horizontal 180°/ Vertical 103° angles of view
- HD-TVI output signal
- Total cable lenght: 9 meter
Camera Unit
- Camera Type 1/3.8-inch colour CMOS sensor
- Number of pixels 1280 (Vertical) x 720 (Horizontal)
- Effective number of pixels roughly 1300000
- High sensitivity Pixels
- Output video HD-TVI
- Waterproof chassis

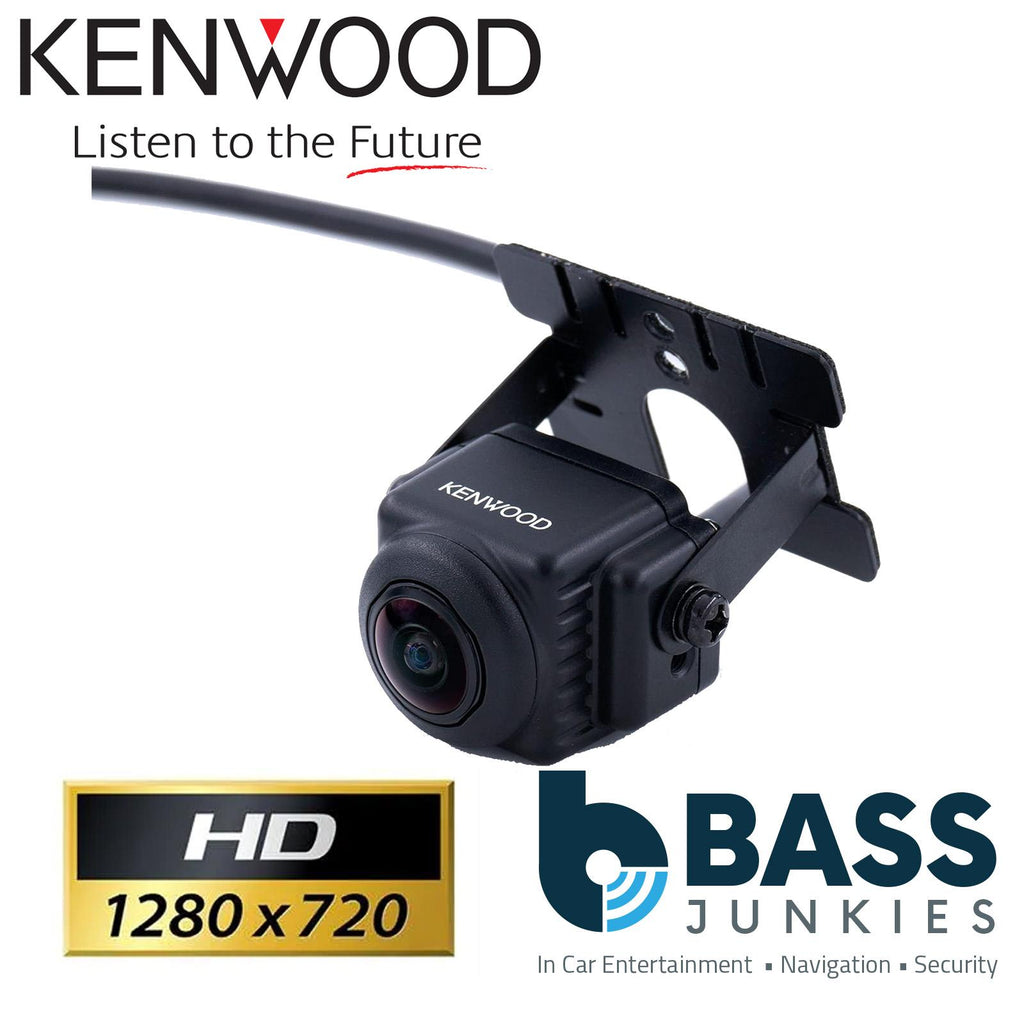

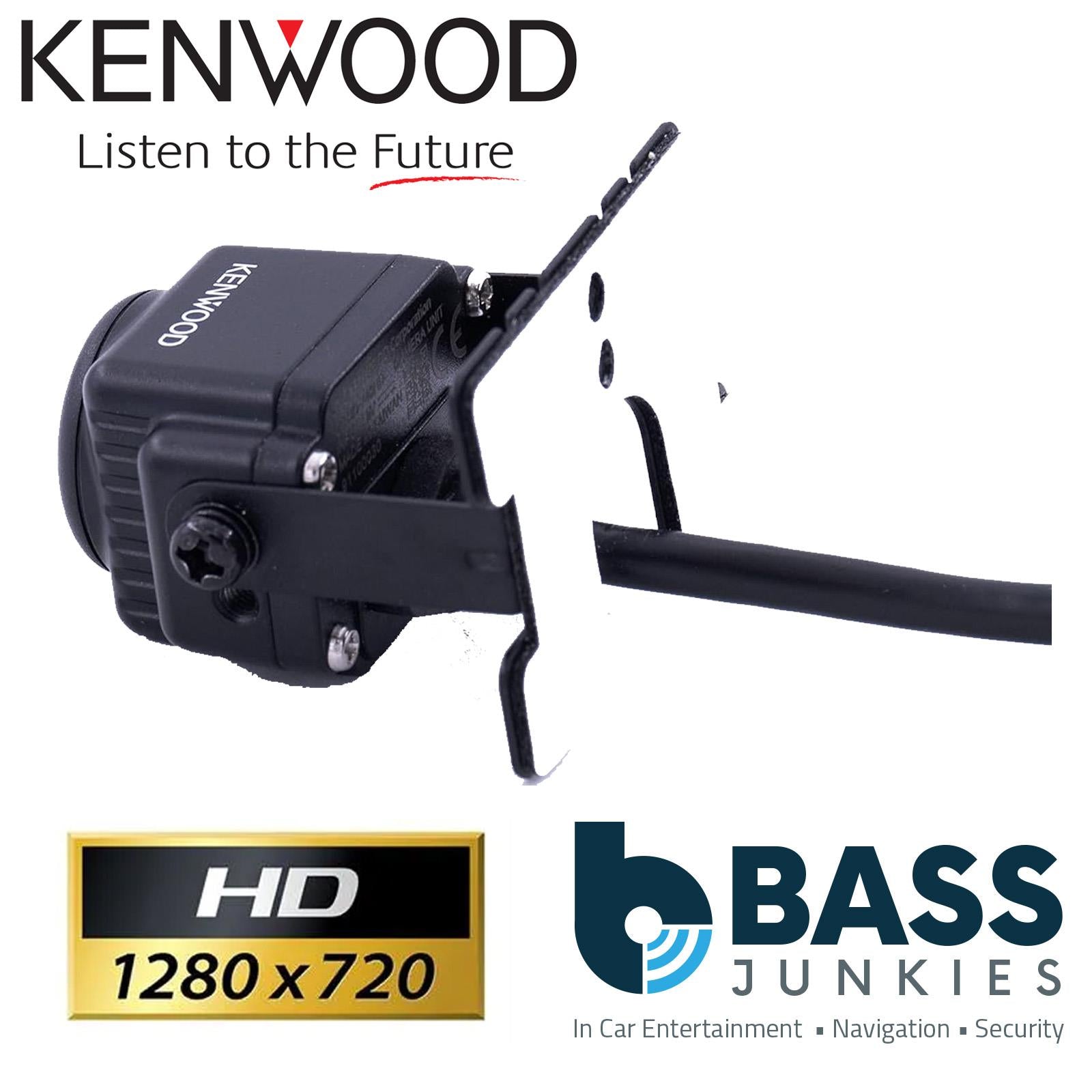

- Mounting system Fix mount base
- Installation positions Front or rear
- Rear view switching Reverse line
- High voltage protection
- Wide angle lens
- Focal length f: 1.86mm, F value 2
- Horizontal Angle view +/- 180°
- Vertical Angle View +/- 103°
- Illumination range approx. 1 to 100 lux
- White balance HDR
- Video signal format HD-TVI
- Camera cable to power supply box 3 meter
- DC cord 6 meter
General Specifications
- Operating voltage 12V (12 ~ 24V Allowable)
- Dimensions Hideaway Unit (WxHxD) 69.2 x 23.6 x 15.5mm
- Dimensions (WxHxD) 31.1 x 23 x 25.2mm
- Weight 33.2 gr.
- Operation Temperature Range --30°C ~ 85°C
- Instruction Manuals Multi-language quick Guide
